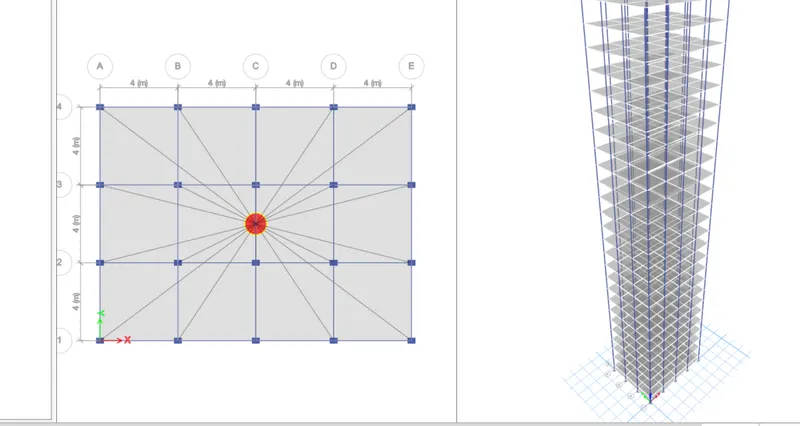

Modelling of 25 storey building with the specified properties using ETABS

Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres.

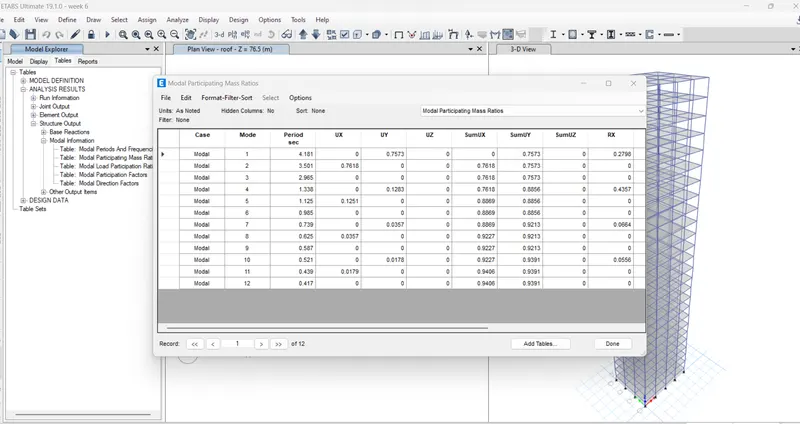

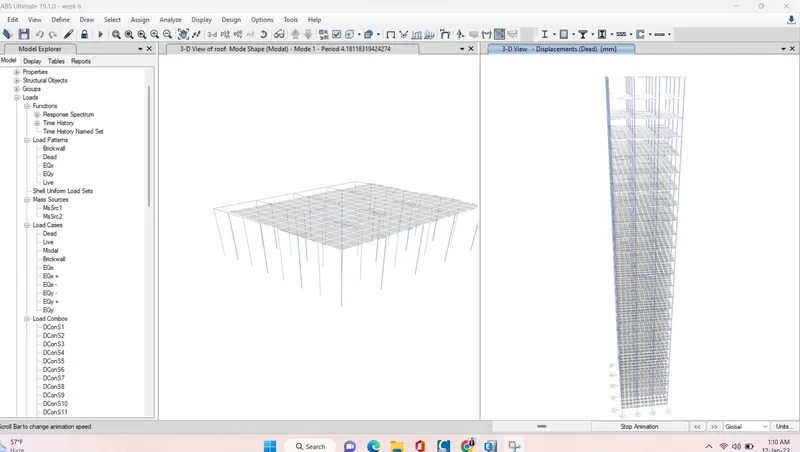

Check if the translational fundamental natural period of vibration in both the x and y direction is approximately:

• Tx1Tx1= 4.4 second - 4.2
• Ty1Ty1= 4.2 second - 3.5

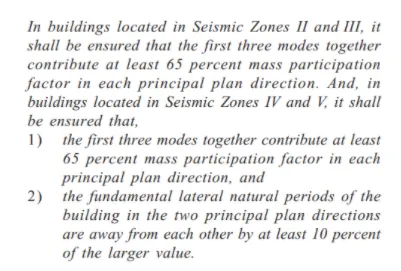

Check if the two provisions of clause 7 in Table 6 (shown below) of IS 1893 (part 1) – 2016, regarding vertical irregularity is satisfied

clause 1) yes statisfied

clause 2) No

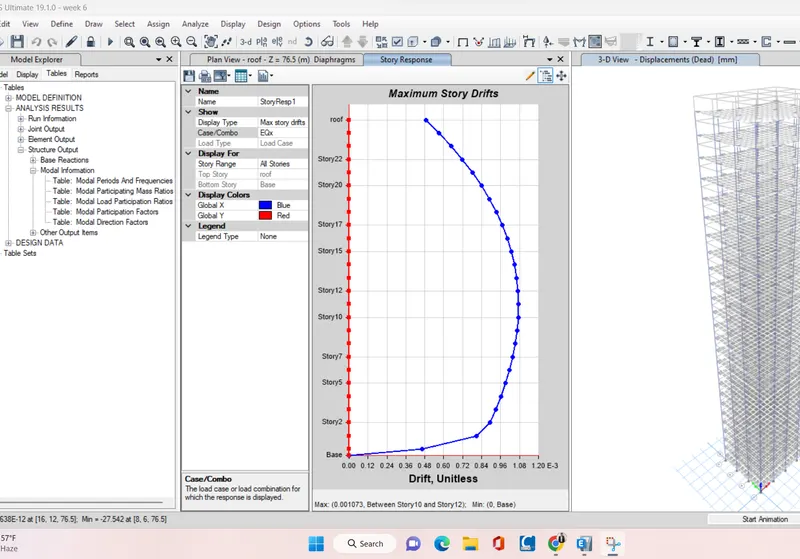

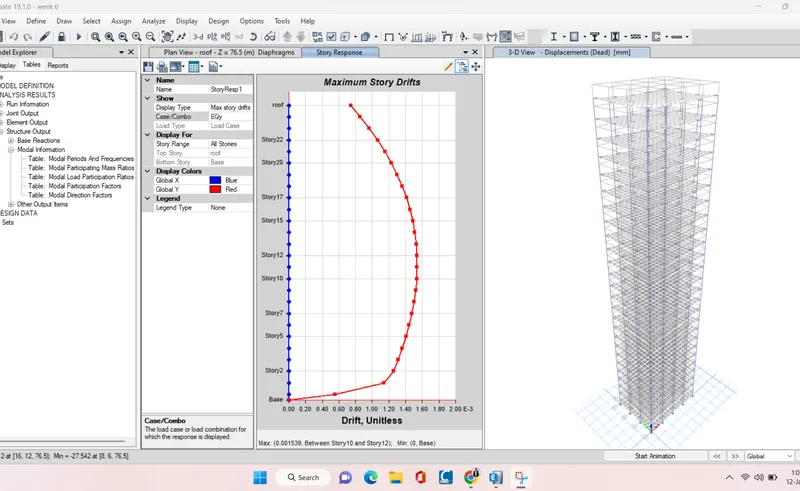

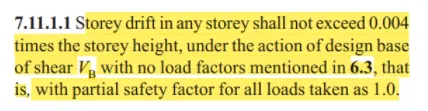

Check if provision on inter-storey drift limitations in clause 7.11.1.1 satisfied. Please note that this check is for Serviceability Limit State and hence is for situation when stucture is subjected to unfactored seismic base shear

Ans 7.11.1.1 - Yes
