Modelling of 25 storey building with the specified properties using ETABS

aim

to complete the given challenges

steps

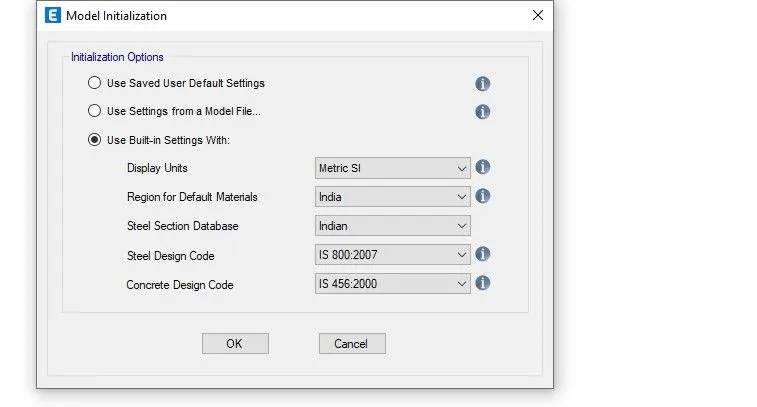

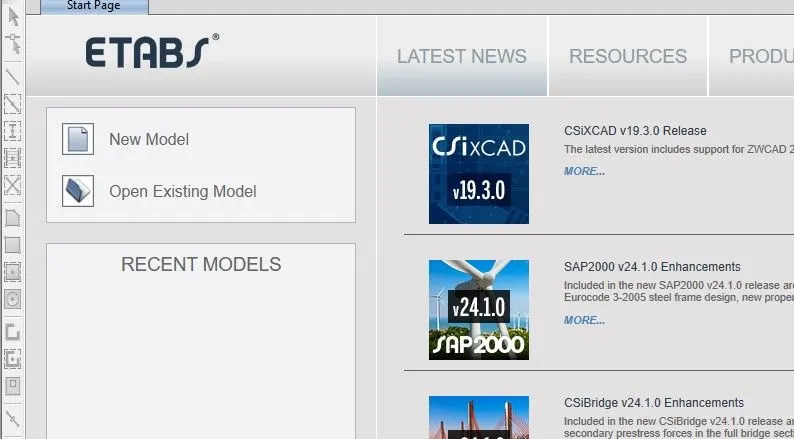

• create a new model

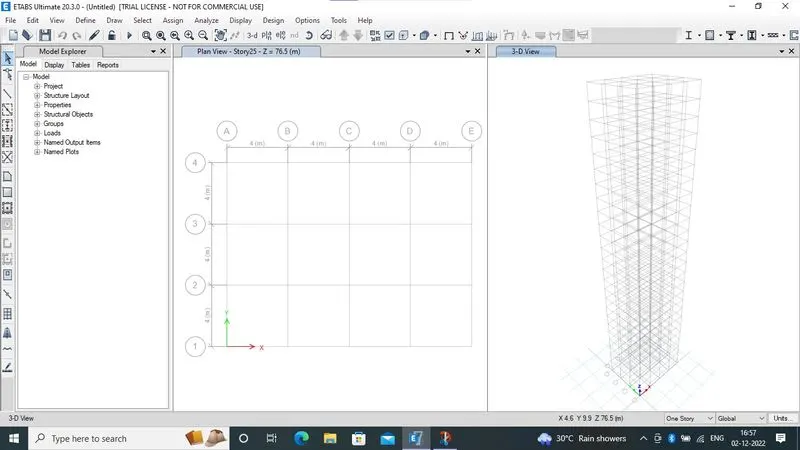

• form the grids by given details

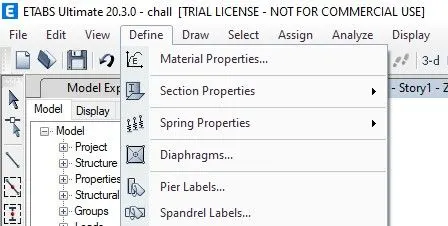

• define the material properties and section properties the column size is 800mm*800mm and the beam size is 400mm*300mm , slab thickness is 125mm

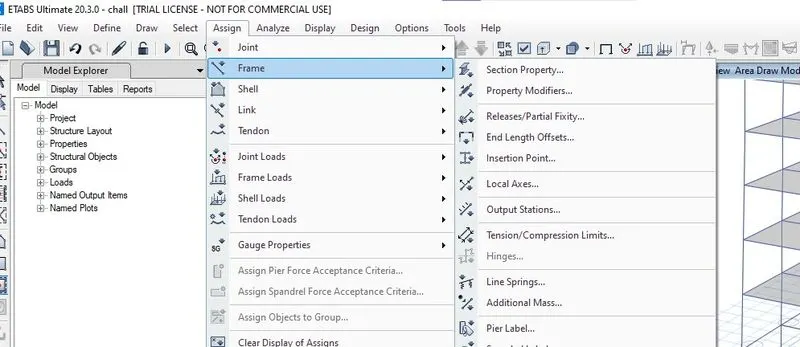

• then assign the properties

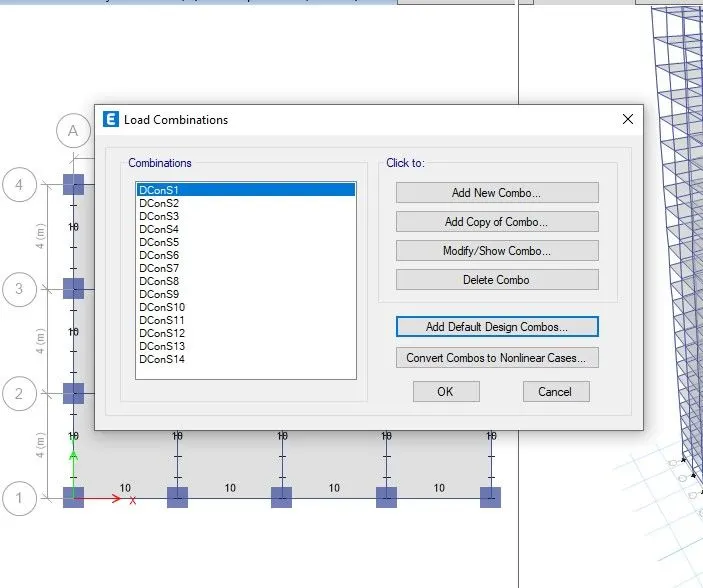

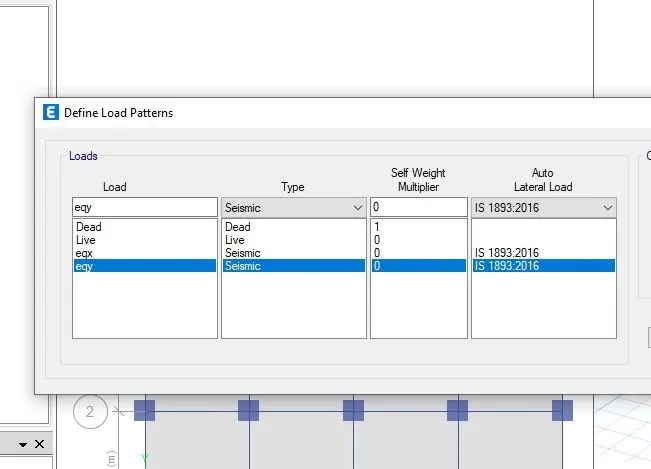

• define the load patterns like dead,live,earth quick loads etc
•

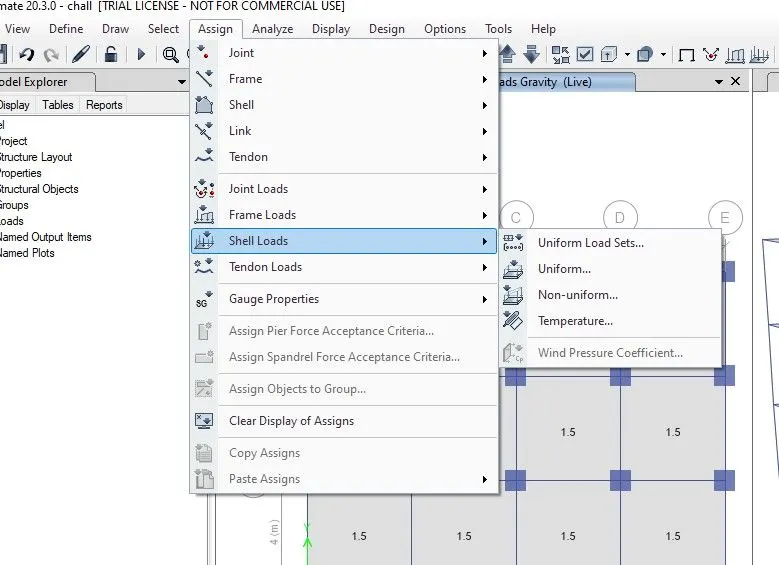

• assign the loads and the supports

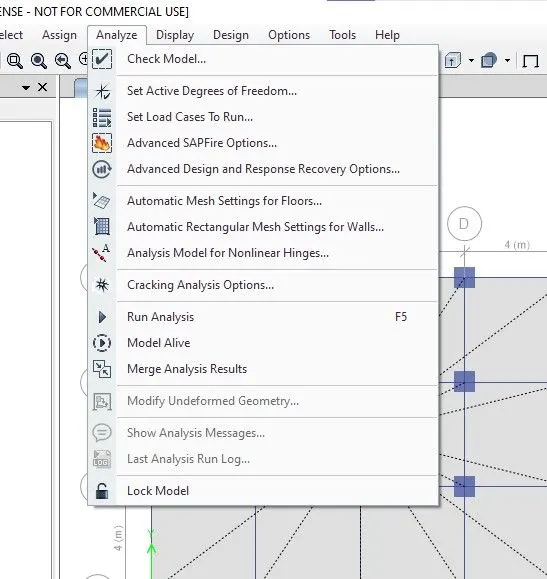

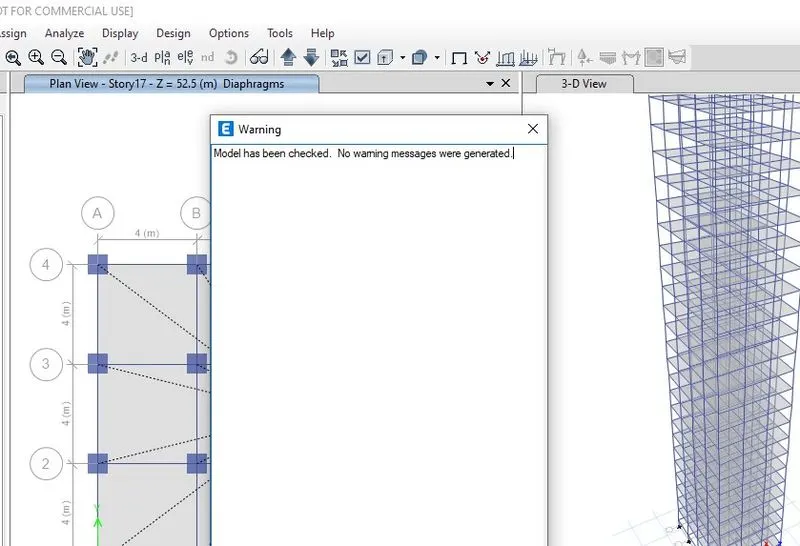

• check model

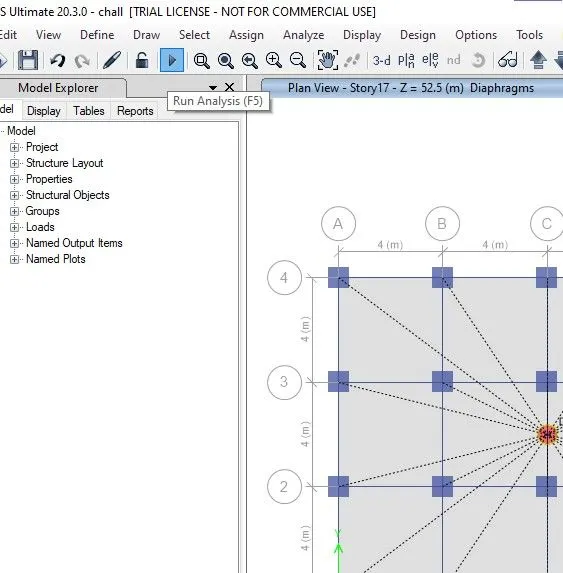

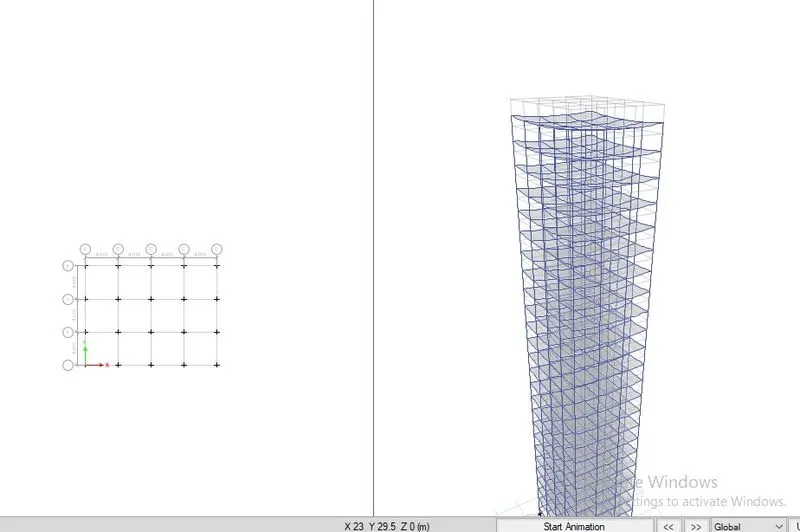

• run analysis the model

results

given challenges are completed
