Introduction to National Building Code and Steps in a Construction project

1).   Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School.   (ANSWER): From the above the options of type of structure to build a building,…

Introduction: Revit proides several different ways to collborate with team members who are using the sofware. Several mutiple model can be linked together, allowing team members to work in a context. Through work sharing, users on same local area network (LAN) can work together in the same revit model. When collaboration…

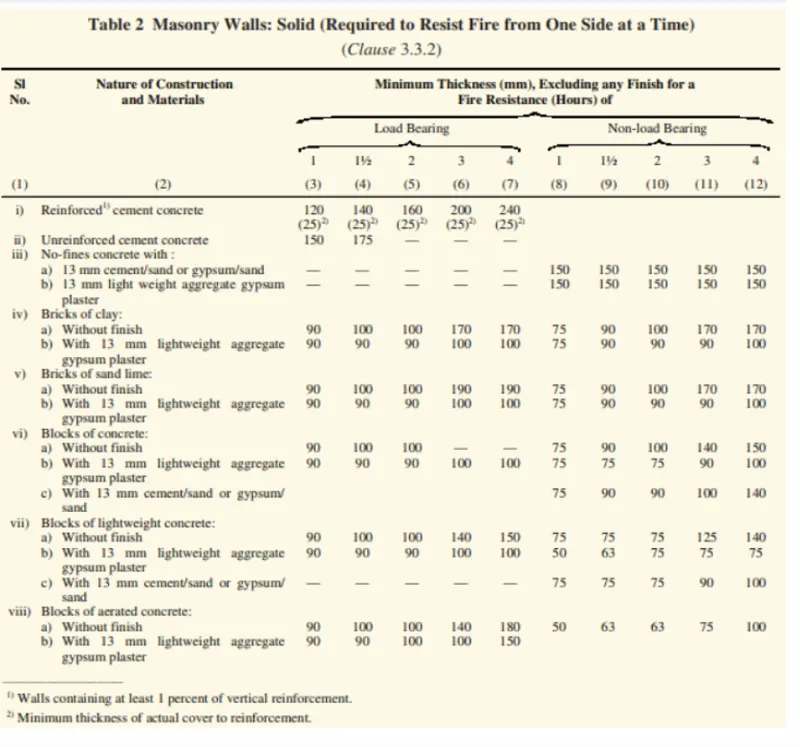

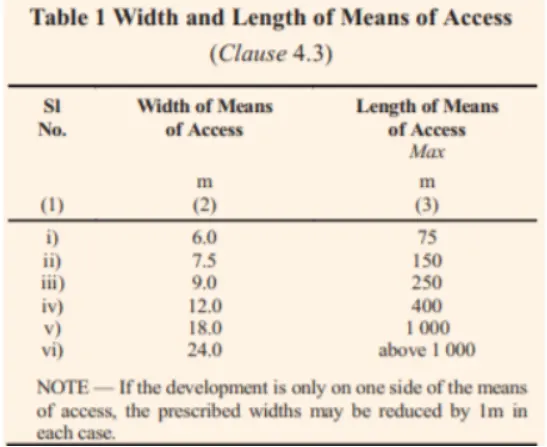

AIM: Introduction to National Building Code and Steps in a Construction project INTRODUCTION The National Building Code (NBC) is a document that provides guidelines for construction of structures - residential, mercantile, institutional, educational, commercial, assembly, storage spaces or even hazardous buildings. It…

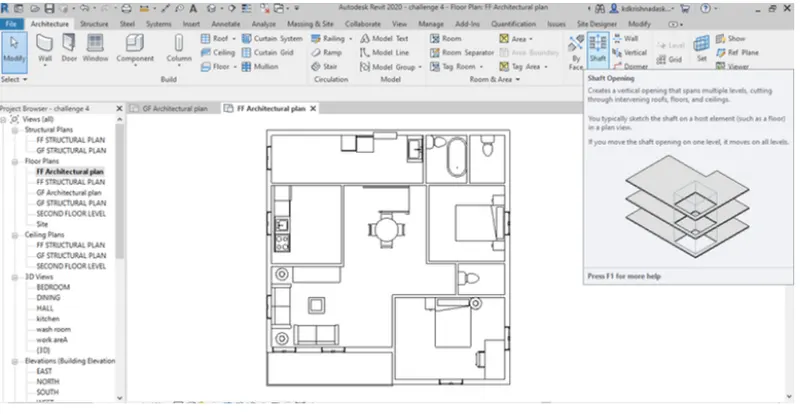

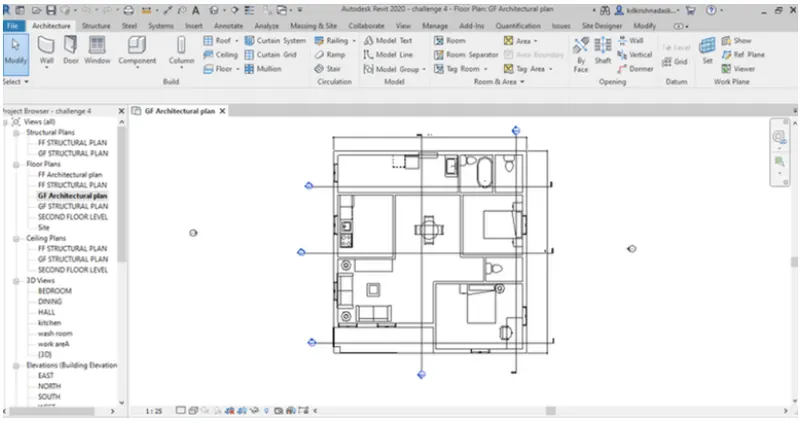

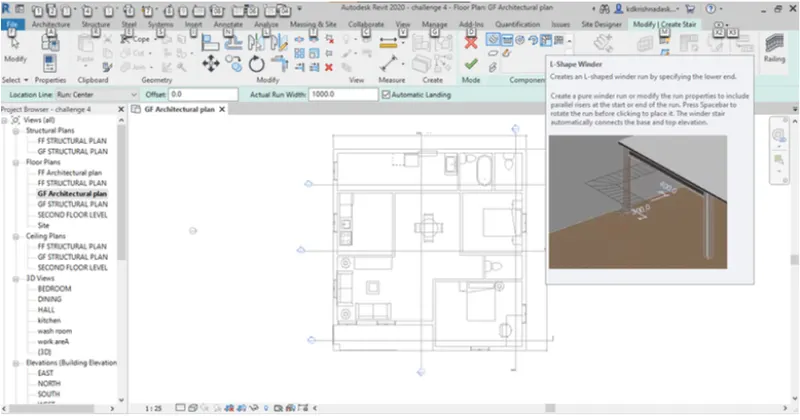

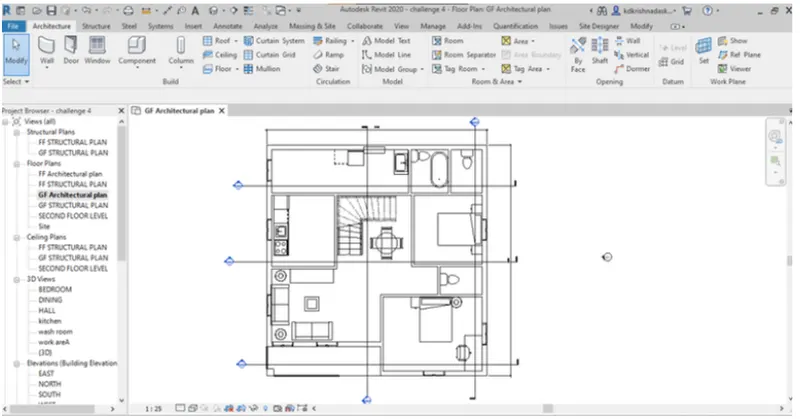

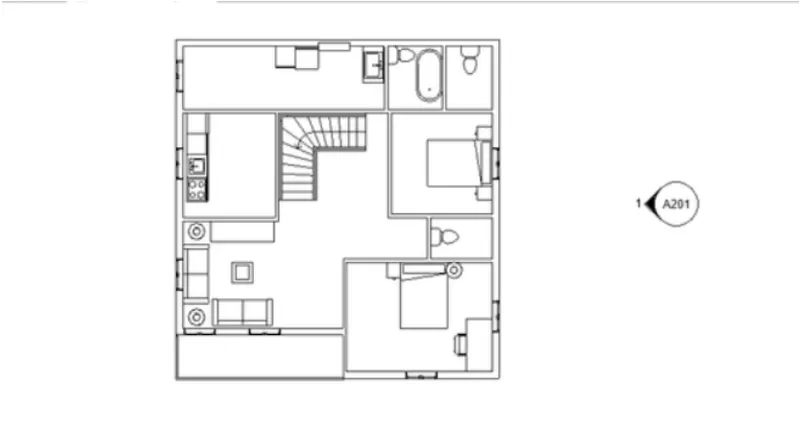

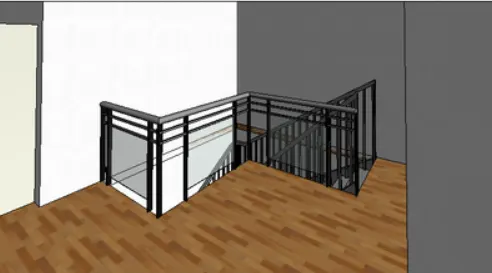

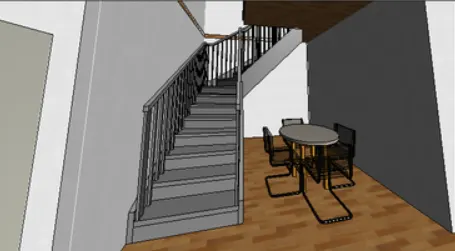

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level. AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION: The creation of Ceilings within Revit is a very similar…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1) What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. A) Building Information Modeling (BIM): BIM is an acronym for Building Information Modeling or Building Information Management. It is a highly collaborative process that allows architects, engineers, real estate developers, contractors,…

1) From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately Aim: To Create a new project and name the project appropriately Introduction: Revit is an Autodesk product and is a building information modeling software for architects, landscape architects,…

AIM To create a 3-dimensional model of the residential building with a rendered view INTRODUCTION: 3D computer-generated images of proposed building projects and other types of constructions are designers to showcase their designs to clients The steady advancement in computer graphics has enabled the creation of realistic…

1.AIM To create a 3D Isometric view of the given building with plan and elevation INTRODUCTION As isometric drawing is 30 representations of an object, room, building or design on a 2D surface. One of the defining characteristics of an isometric drawing. compared to other types of 30 representation, is that the final image…

AIM To create a 3D furniture element as given in the figure and need to assume dimensions which are missing in the drawing. INTRODUCTION The three-dimensional furniture element was drawn in the autocad using the different tools in the autocad 3D models are widely used anywhere in 3D graphics and CAD Their use predates…

AIM To create a layout of the plan and section-A of the project in challenge 7 using the template And use the MV command to create the viewport of the size from the given figure. INTRODUCTION Plans and Sections are different types of drawings used by architects, to graphically represent a building design A plan drawing…

AIM To create the layout of the kitchen and providing hatches to it using the autocad in detail. INTRODUCTION kitchen layout is the most important part of designing your perfect kitchen. It's the layout that will determine how you cook, how you eat and how you socialise So whether you're totally remodelling the kitchen,…

1. AIM To create the templates and need to take the size of title block as per industry standards and need to save them as a block name as Custom 1_titlebox and Custom 2_titlebox INTRODUCTION Drawing template files are drawings that store styles, settings, layers, and layouts in a drawing including title blocks When you…

AIM To draw Architectural Drawings of Floor Plan, Elevations, and Sections and also the Structural Drawings of Column, Beam and Footing Plan INTRODUCTION • Architectural and structural drawings are generally considered to be the drawings of steel, wood, concrete and other materials used to construct buildings, ships,…

AIM To draw the floor plans and sections using the proper dimension techniques and dimension styles to document the project. INTRODUCTION Plans and Sections are different types of drawings used by architects, to graphically represent a building design A plan drawing is a drawing on a horizontal plane showing a view from…

1 The elevation and details of a wardrobe.  AIM : To Draw the elevation and details of a wardrobe using AutoCAD software INTRODUCTION This type of drawing can be drawn by using the line command or rectangle command with specifying the length and angle of the drawing PROCEDURE • Open AutoCAD software • Choose…

1) Aim Create a column schedule as shown in the figure using AutoCAD INTRODUCTION This type of drawing can be drawn by using the line, text, rectangle command with specifying the length and angle of the drawing given in figure PROCEDURE Open the AutoCAD software and dick on new for a new drawing she. Enter units in command…

1. Residence Plan: Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions as reference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missing dimensions. Also, refer the schedule for size of the doors. AIM : To Draw the floor plan using AutoCAD software…

 DECIMAL  AIM : To Draw the various geometries using chamfer, fillet tools AutoCAD software INTRODUCTION This type of drawing can be drawn by using the line command or circle command with specifying the length and angle of the drawing PROCEDURE • Open AutoCAD software • Choose the imperial template and start from scratch…

 1. CROSS-SECTION OF LOAD BEARING WALL AIM : To craw the cross-section of Load bearing wall over spread footing by using AutoCAD software INTRODUCTION This type of drawing can be drawn by using the line command or rectangle command with specifying the length and angle of the drawing PROCEDURE • Open AutoCAD software…

  AIM : To draw the given figures using the coordinate system in Autocad.       ABSOLUTE COORDINATE SYSTEM Command: LLINESpecify first point: 2,1Specify next point or [Undo]: 6,1Specify next point or [Undo]: 6,2Specify next point or [Close/Undo]: 3,2Specify next point or [Close/Undo]: 3,5Specify…

     Assume the size of the plan are : Living room = 5.5 m x 4m Kitchen = 2m x 4m Master Bedroom = 3m x 4m  Children Bedroom = 3m x 3m Bathroom = 1.5m x 2 m Given data : Column size = 300mm x 300mm Beam size = 300mm x 450mm Slab thickness = 125mm Height of the wall = 3m Dead load calculation : Dead…

AIM :- To calculate the concrete mix design for M35 grade concrete with flyash and M50 grade concrete without flyash Procedure : PART 1 To calculate concrete mix design for M35 grade concrete with flyash This article covers the mix design calculation of M35 Grade Concrete with Fly ash admixture and Poly Carboxylite…
