II. Answer in detail

Aim:-To complete the given house with desired things mentioned

Procedure:-

Create a G+4 Residential building as per NBC standards and make it a central model file. Your model should contain:

Tools used:-walls

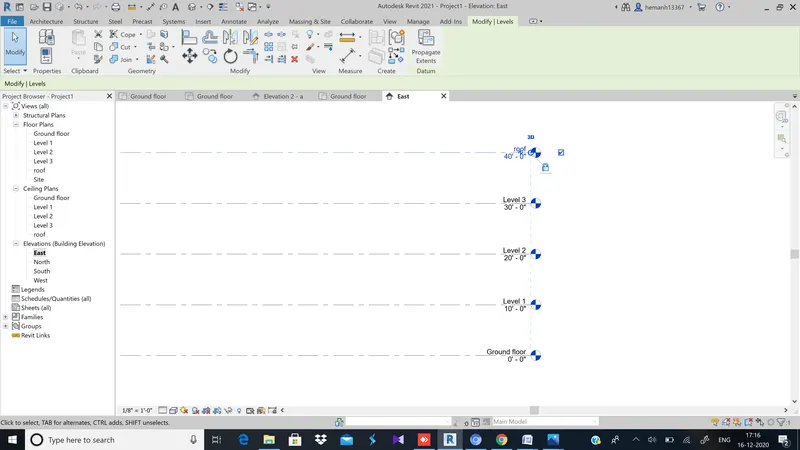

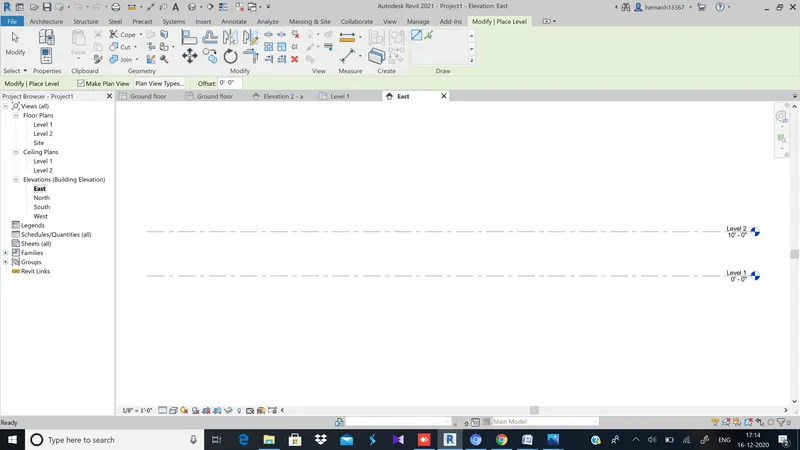

Step 1:-open the east elevation view after creating a new architectural template

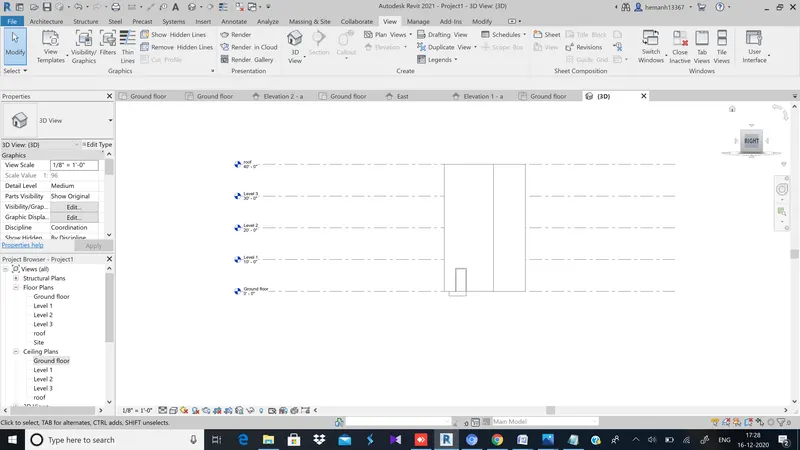

Step 2:-Now create the desired floors(in this case G+4)

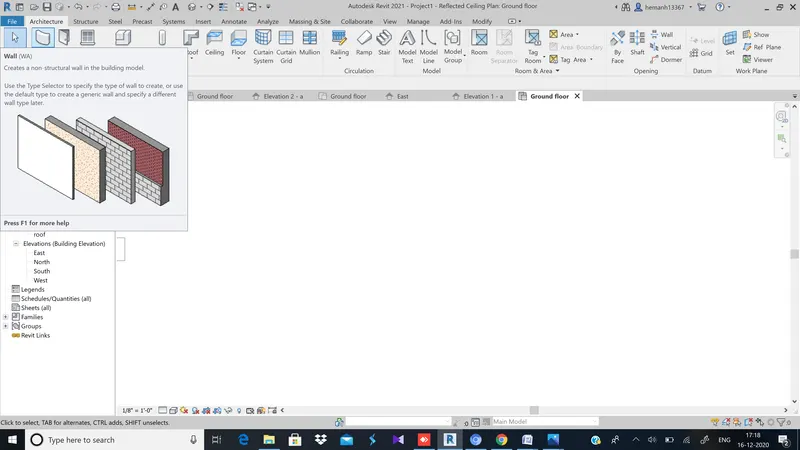

Step 3:-Now select the walls from architectural tab

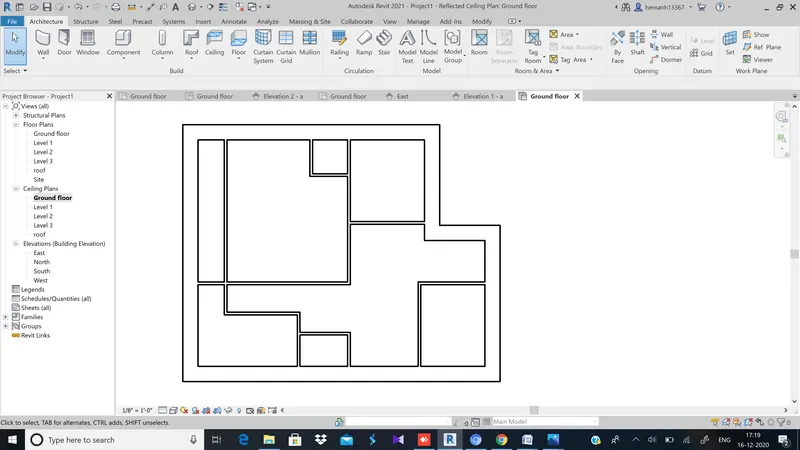

Step 4:-Now create the desired layout

1.The sloped roof at the top level of the building (10 degrees)

Tools used:-roofs

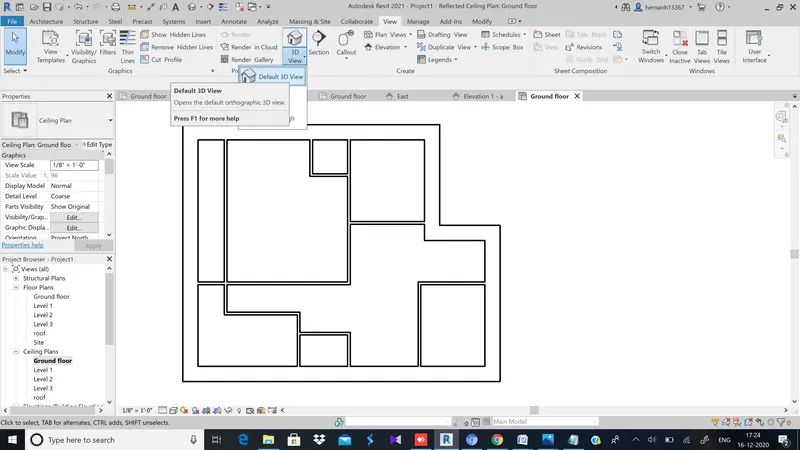

Step 1:-Open 3d view from view tab

Step 2:-Now select the walls

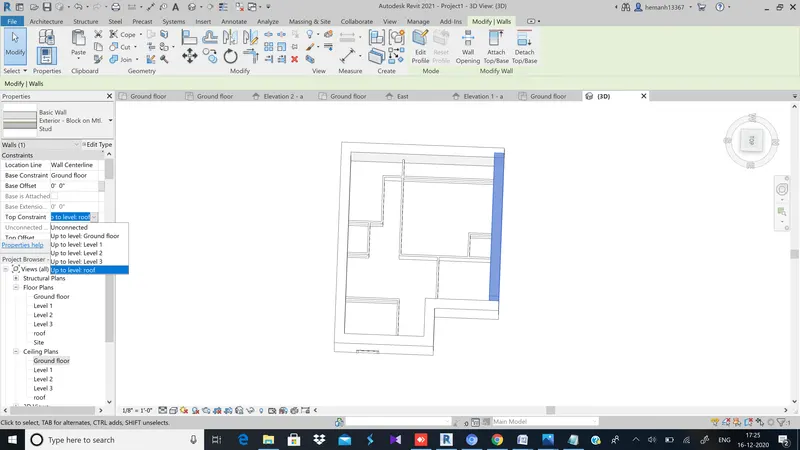

Step 3:-Now select the top constraint to the option upto roof

Step 5:-Now we can see that all the walls are raised to roof

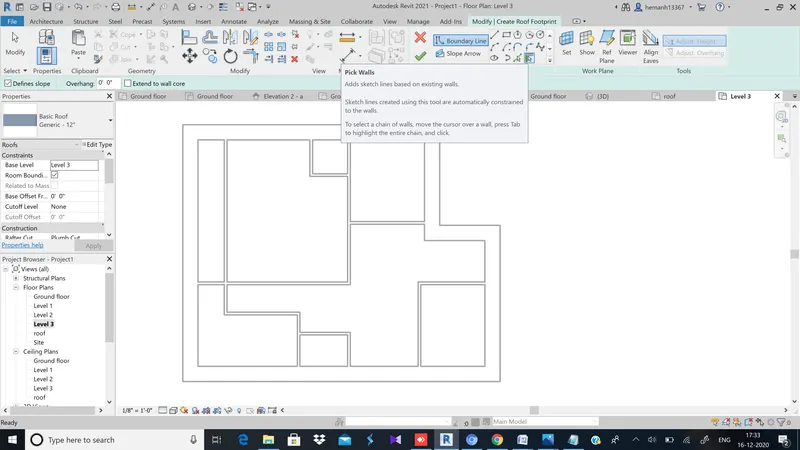

Step 6:-Now select the roofs option and select the option pick walls and select the boundaries of walls

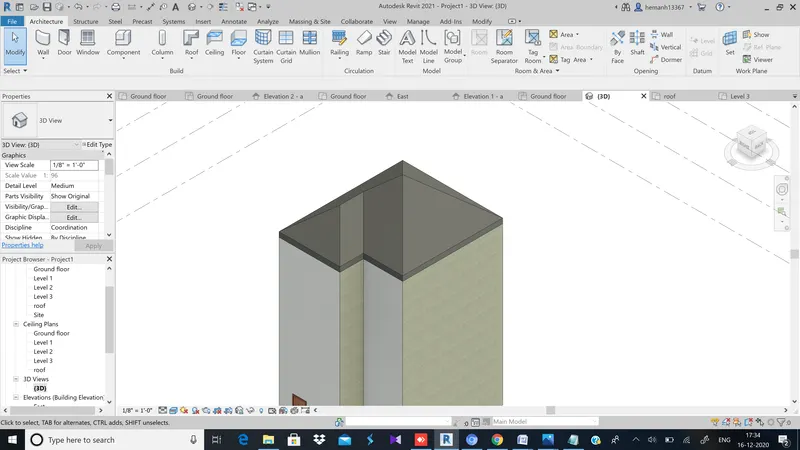

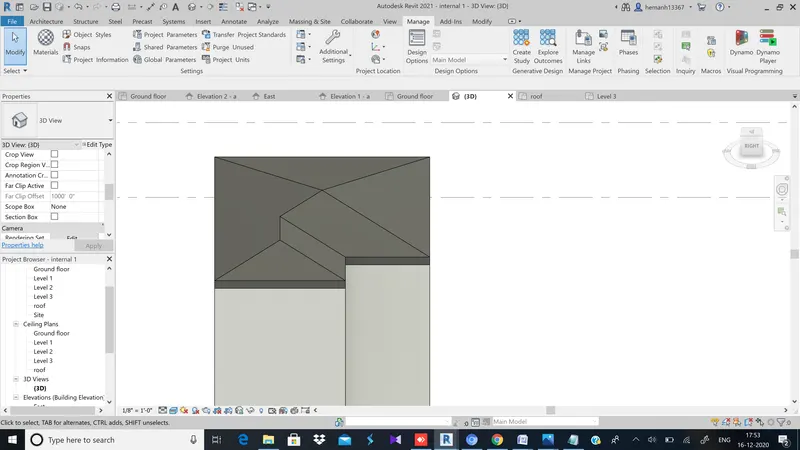

Step 7:-Now we can see that the roof is obtained(mistakely paste the roof in level 3, soo dragged it to the roof)

step 8:-Now from the properties select the option slope from dimensions and change it to 10

2.Architectural components including furniture and home appliances

Tools used:-insert,load family,component

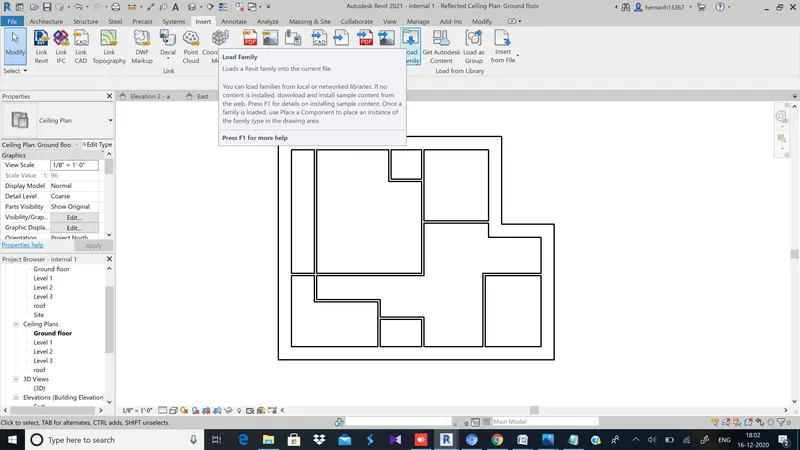

Step 1:-open load family from insert tab

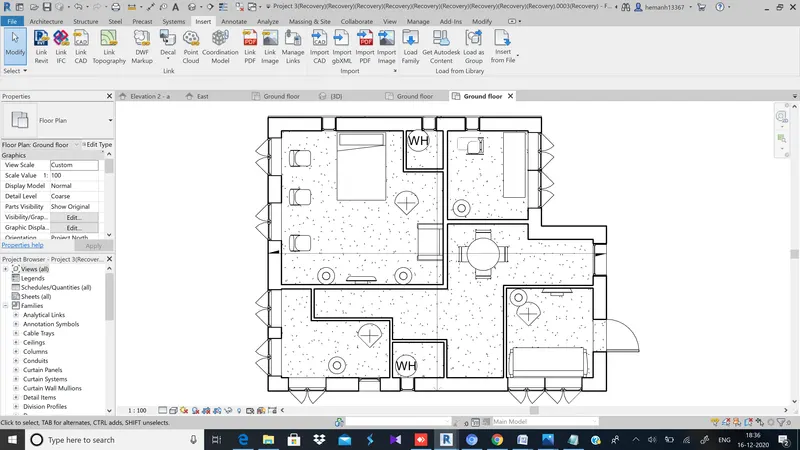

Step 2:-now you can see that we loaded all the images(To load images you must use component from architectural tab)

3.Room tags and Annotations

Tools used:-room , annotate

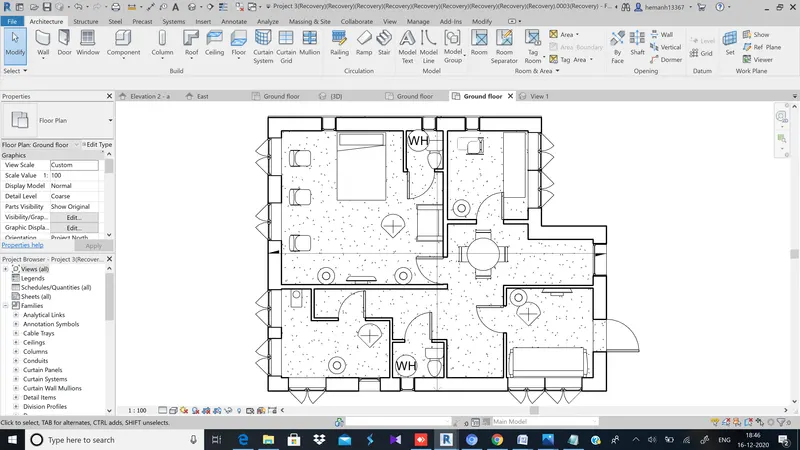

Step 1:-From architecture tab select the room option

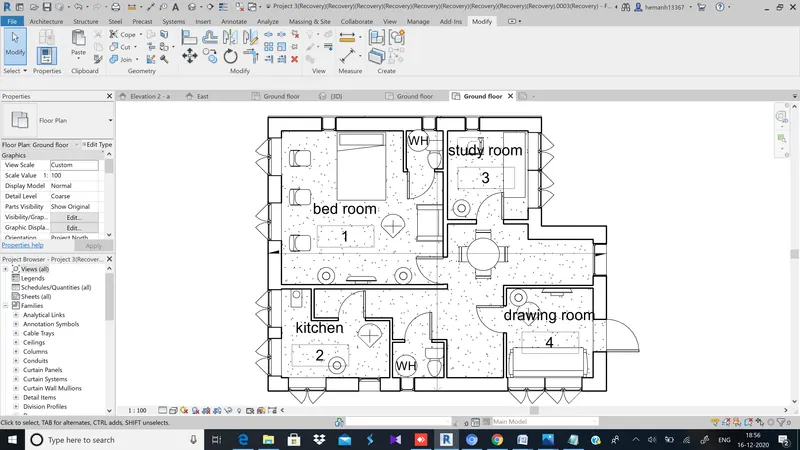

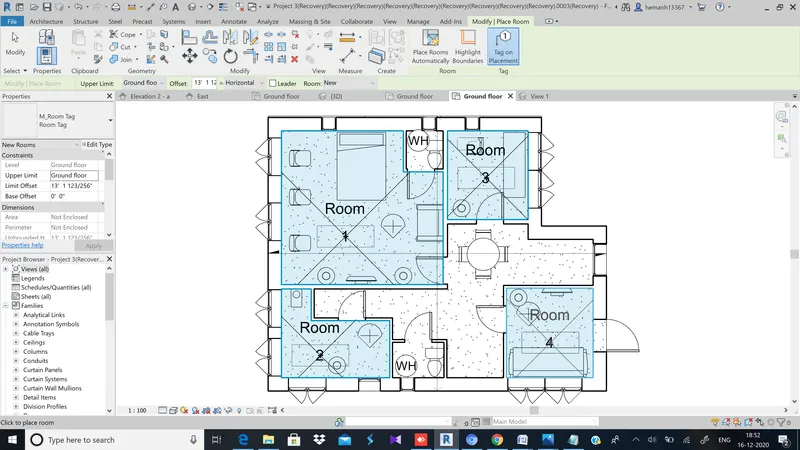

Step 2:-Now place the rooms in desired places

Step 3:-Now rename them

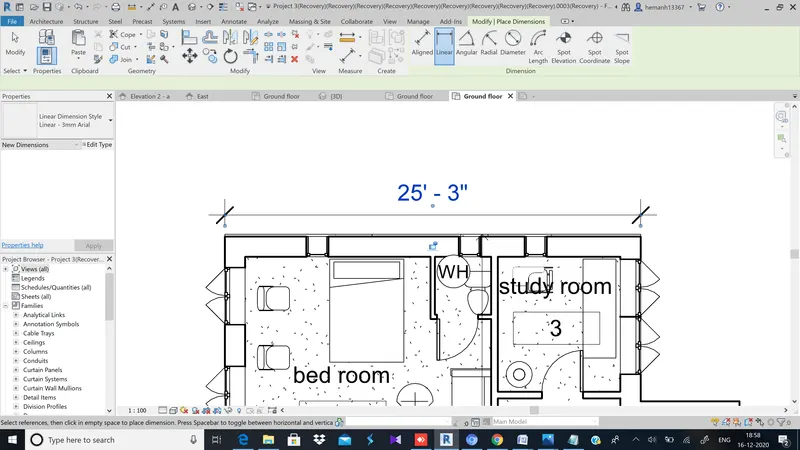

Step 4:-NOw using linear option from annotations mark the annotation

4.Section cut through each room either longitudinally or transversely

Tools used:-view,section

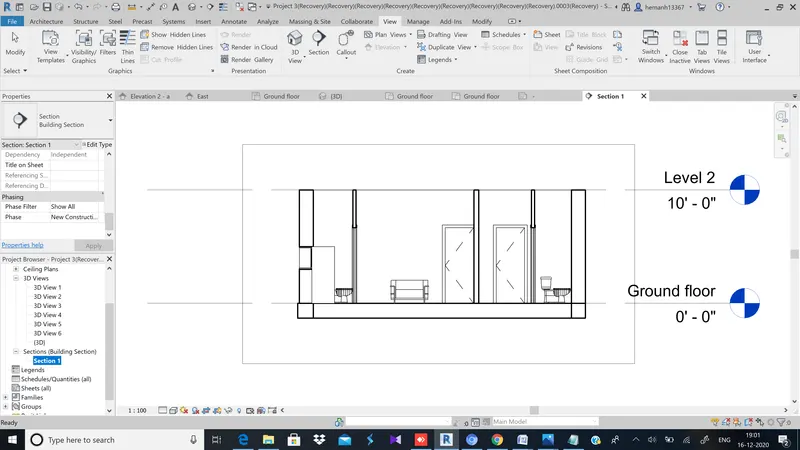

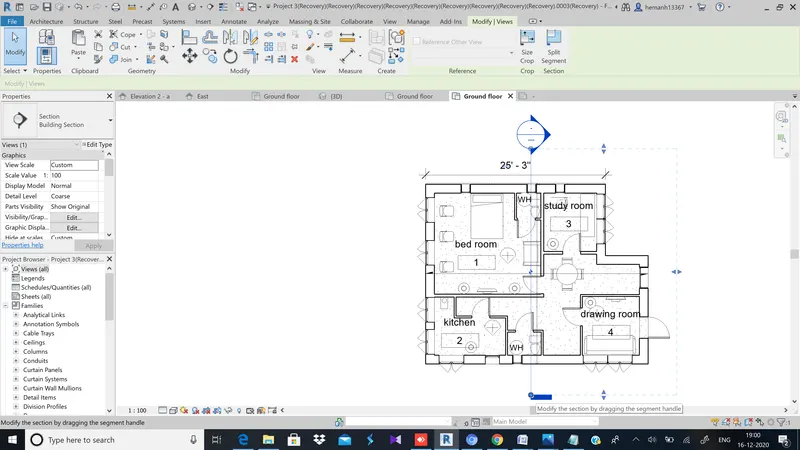

Step 1:-Select the section view ffrom view option

step 2:-Now from project browser open section views

5.Create a camera view on each room and add it in a sheet template.

Tools used:-sheet,view

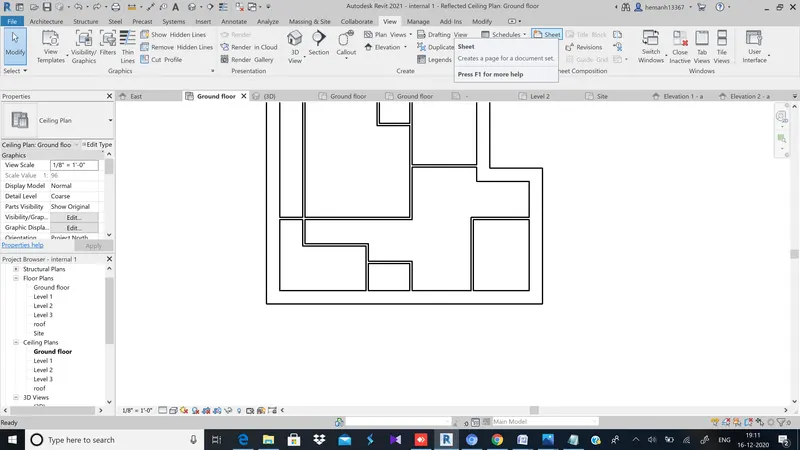

Step 1:-now select the view tab and select the sheet option

Step 2:-Now select the view option

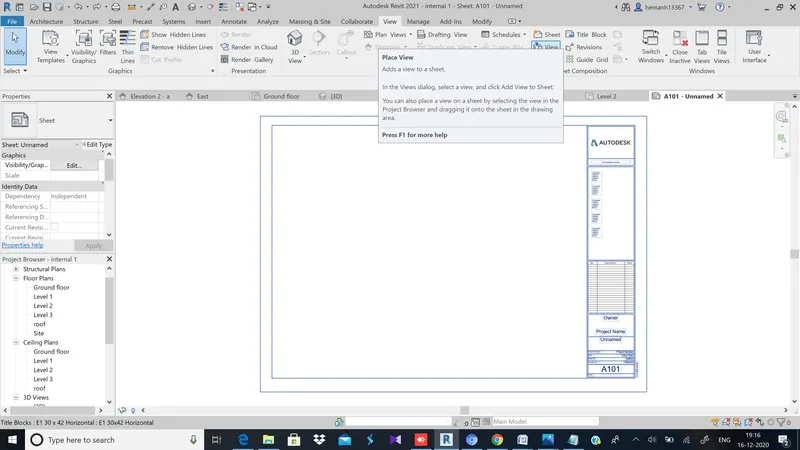

Step 3:-Now select the desired sheet and paste it, repeat it for other floor plans

Result:-Completed all the desired requirements
