II. Answer in detail

1. The sloped roof at the top level of the building (10 degrees)

ans)

AIM:To create a sloped roof of 10 degrees on our Residential Building

PROCEDURE:

> Open the revit file create a plan G+4 Residential Building

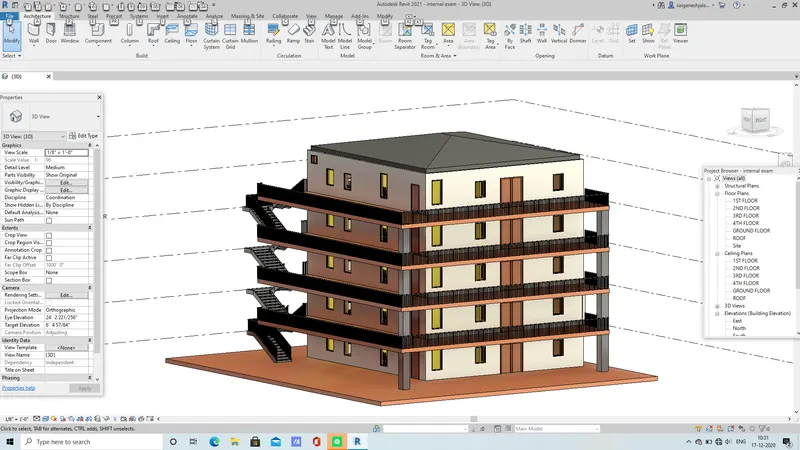

> create a roof by roof by foot prints select the walls and create a roof

> Go to the manage tool bar and select the project units

> Make the slope and angle in degrees

> Select the roof and change the slope as 10 degrees in properties

RESULT:

2)

1. Architectural components including furniture and home appliances

ans)

AIM)To place the ARCHITECTURAL components in our Residential Building

PROCEDURE:

> Open the revit file

>Open the floor plan In the residential building you created

>in the architetral tab you can see the components

>select the components and selxt the load families

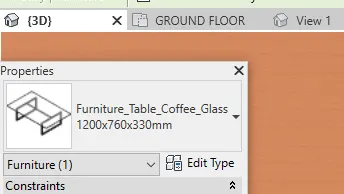

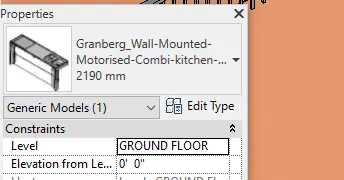

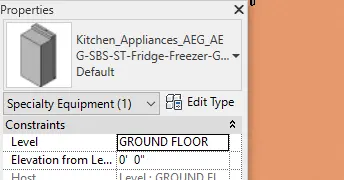

> Go to the libraries and select INDIA and you can see the various home appliances and furniture and various components like sanitary,electrical,plumbing etc...

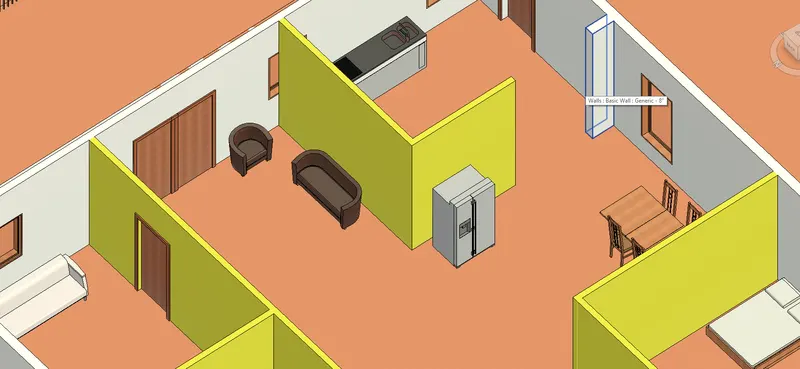

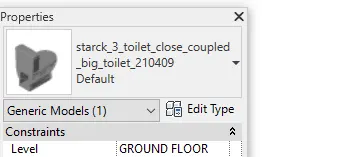

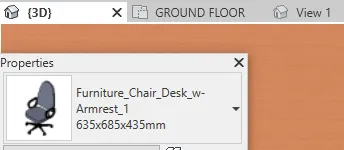

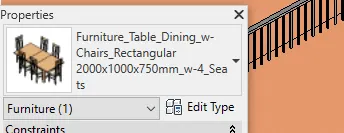

> load the components like plumbing,furniture and place the components in your Residential Buildng

RESULT:

FINAL RESULT:

3)

1. Room tags and Annotation

ans)

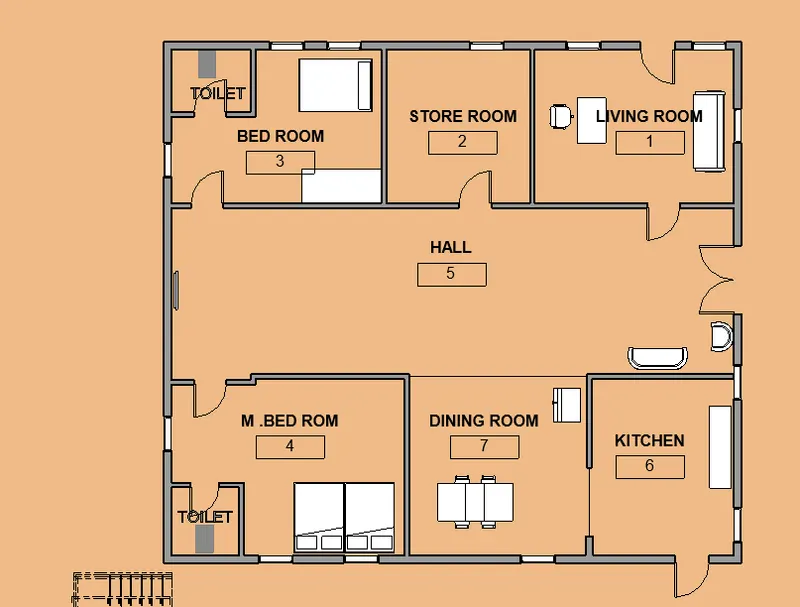

AIM: To create room tags and annotate your Residential building

PROCEDURE:

In architectural tab you can see the room tag option in ROOM &AREA

> select it and place the room whre you want

>if you want to seperate the room then use the room seperator

> then double click on the room and you have to text what you want

> If you want to add text you can add it by MODEL TEXT

RESULT:

4)

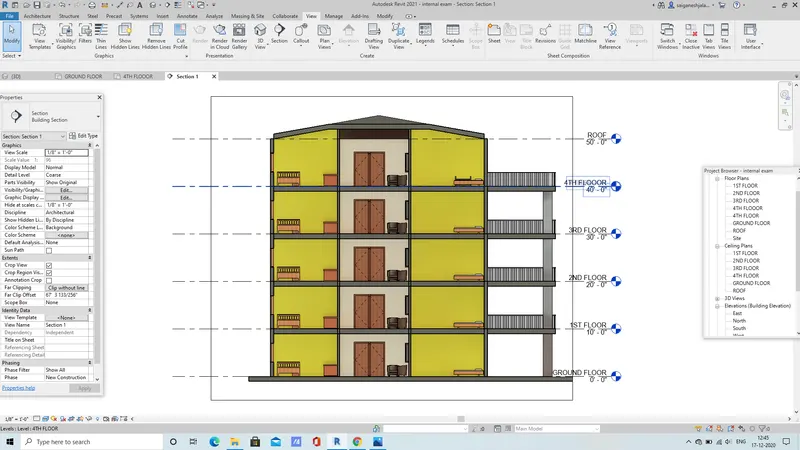

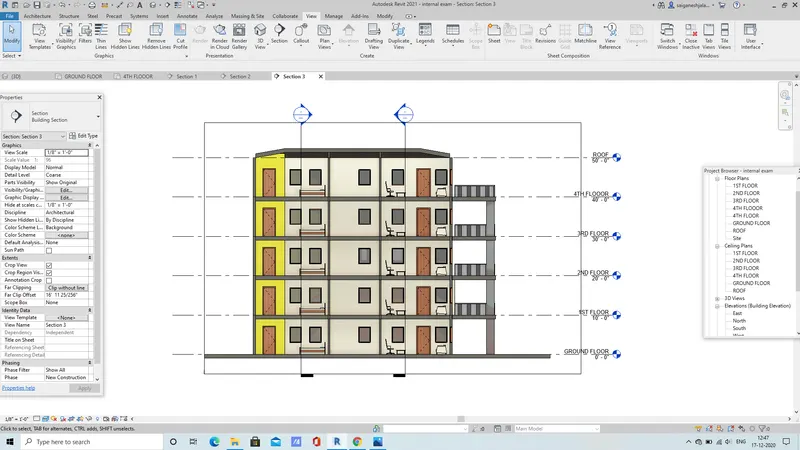

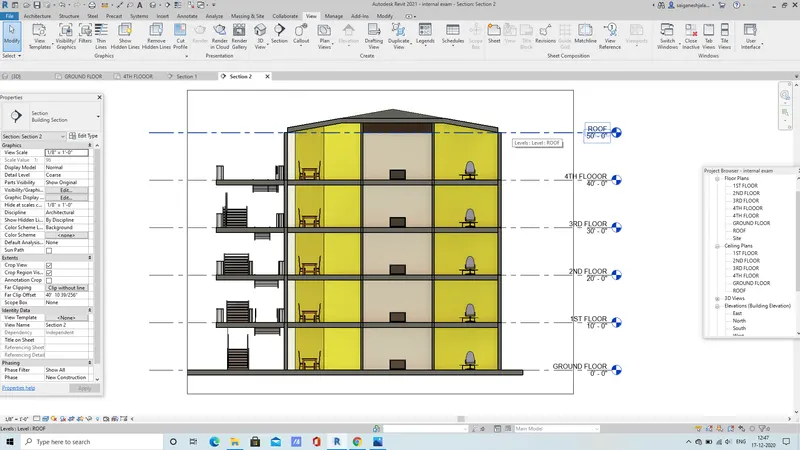

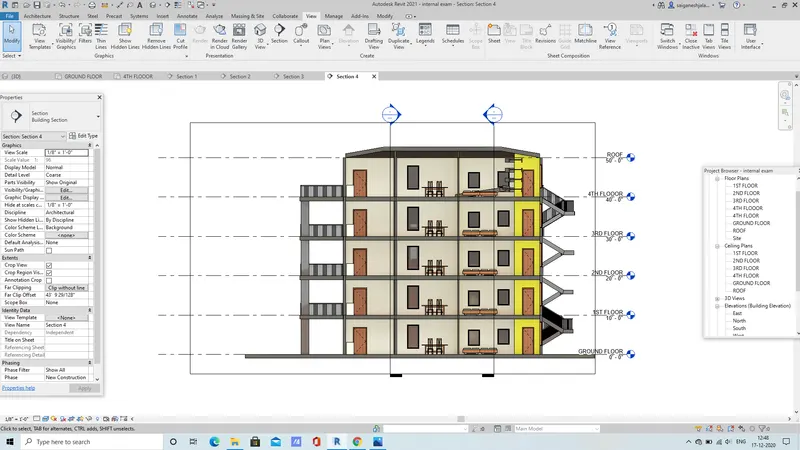

1. Section cut through each room either longitudinally or transversely

ANS)AIM:To make the section cut longitudinally and traversely

PROCEDURE:

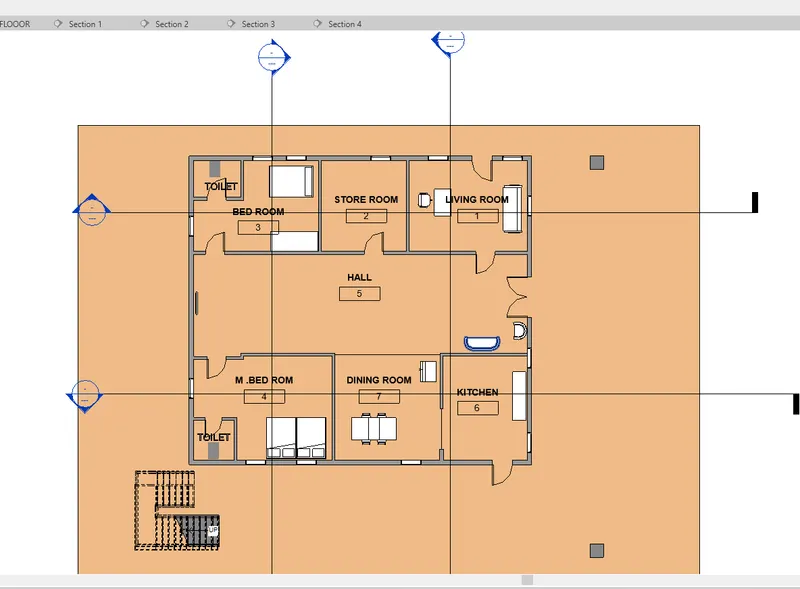

>open the floor plan

>Click on the view tool bar and click on the section

> place the section where you want

FINAL RESULT:

5)

1. Create a camera view on each room and add it in a sheet template.

ANS)
AIM: To create a camera view on each room and add it to a sheet template..

PROCEDURE:

>Open the floor plan

>In view tab click on the camera view

> Place the camera on the room you want to see

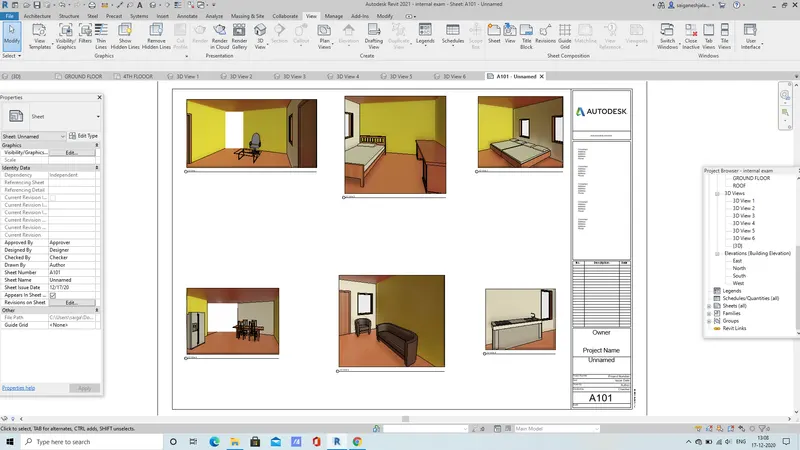

> In view tab click on the sheet and add on new sheet click ok

> place the camera 3D views on the autodesk sheet

RESULT:
