II. Answer in detail

AIM: To Create a G+4 Residential building as per NBC standards and make it a central model file.

Your model should contain:

1. The sloped roof at the top level of the building (10 degrees)
2. Architectural components including furniture and home appliances
3. Room tags and Annotations
4. Section cut through each room either longitudinally or transversely
5. Create a camera view on each room and add it in a sheet template.

   TOOLS REQUIRED:
   > Manage
   > Project units
   > Level
   > Wall
   > Door
   > Window
   > component
   > Railing
   > Room
   > Annotate
   > Aligned
   > 3D view
   > Section
   > Camera
   > Sheet


   PROCEDURE:

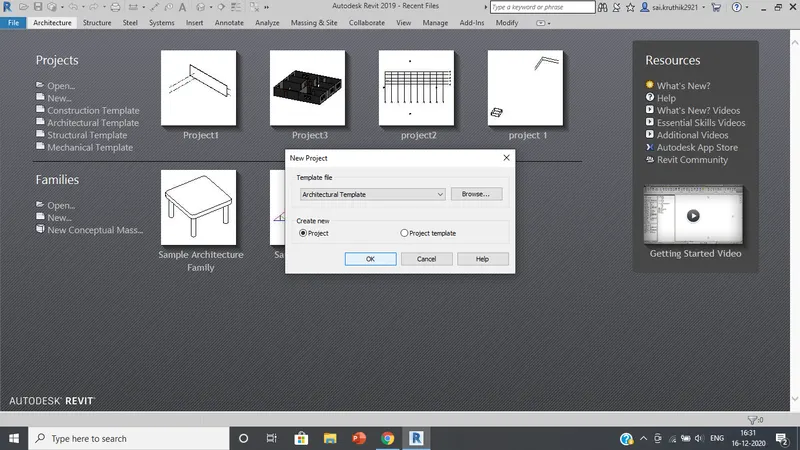

   > Create a new Trchitectural Template in revit and save the project with appropriate name.

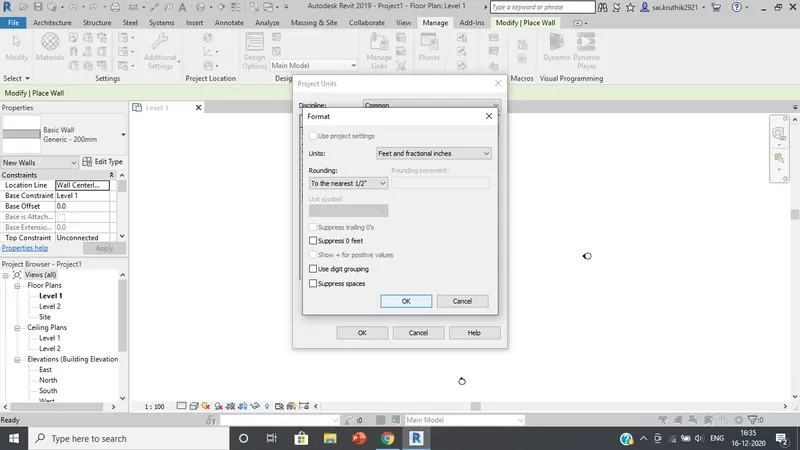

   > Click on manage menu and change the units to Imperial/Mertic.



   > Click on project information and fill the required details.

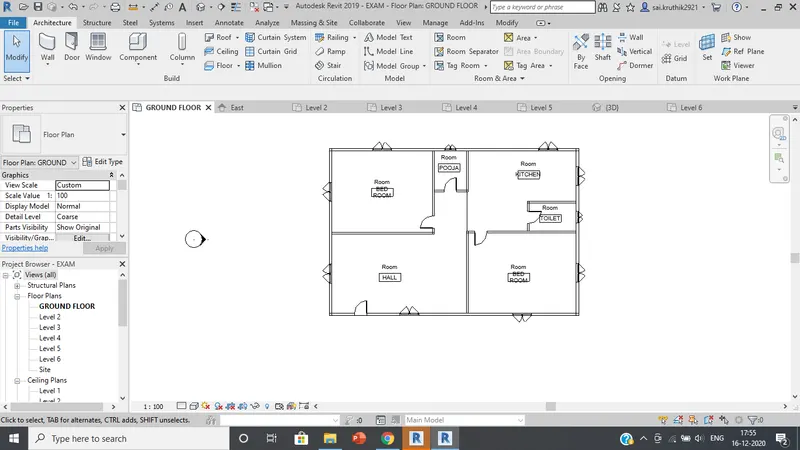

   > Now click on east option under elevations.
   > Now we can view different levels, we can add new levels and change their names as required.

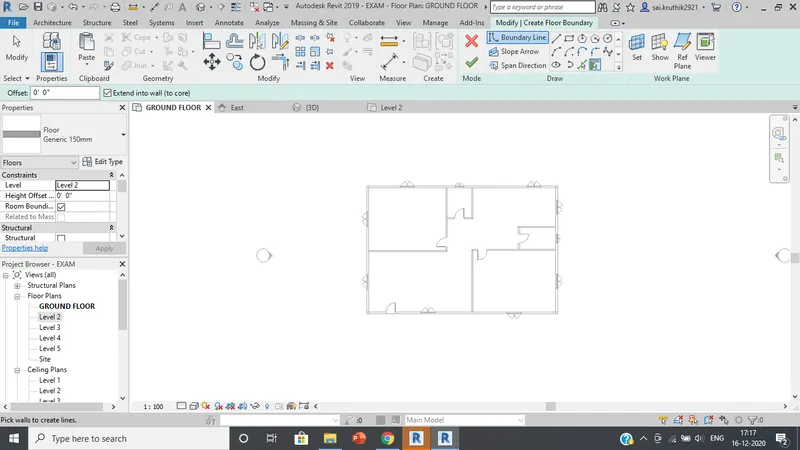

   > Now draw the required layout using wall tool.



   > Add rooms to it using wall tool.
   > Add doors and windows to the layout at required positions with the help of components tab.

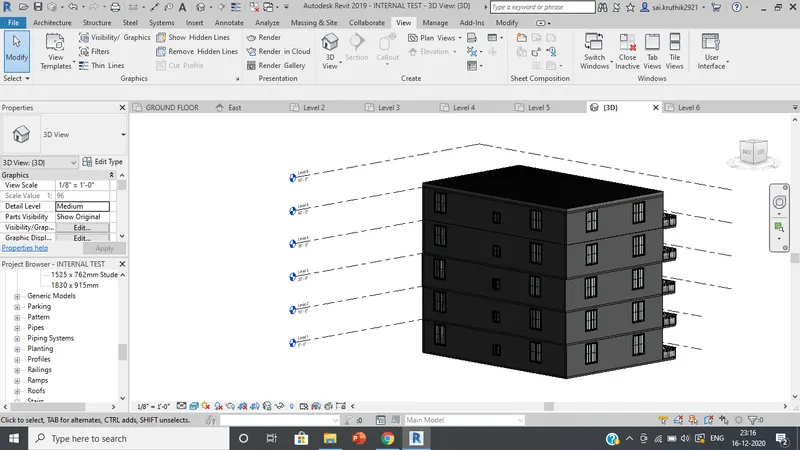

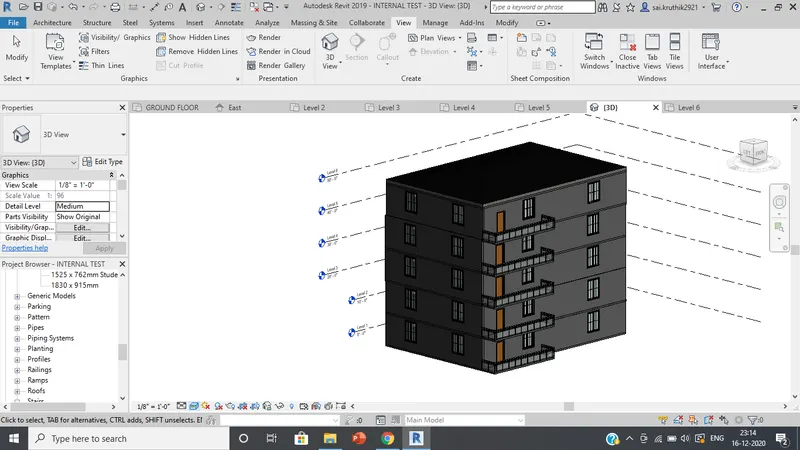

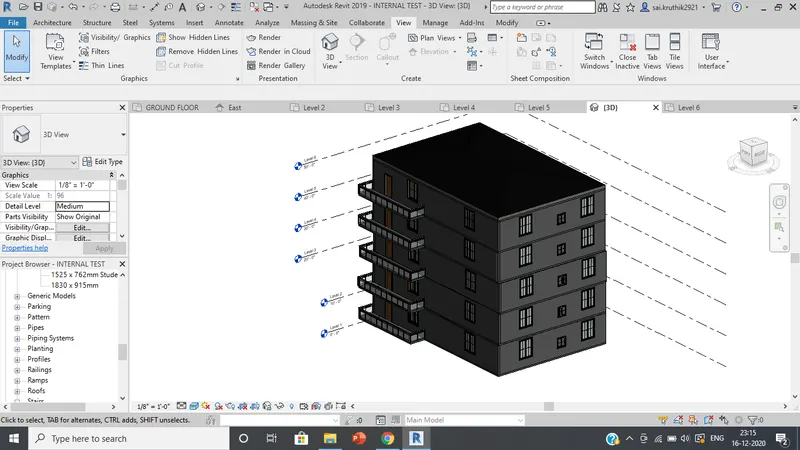

   > Now copy the layout drawn in the groung floor and with the help of paste option paste it in
   other levels.

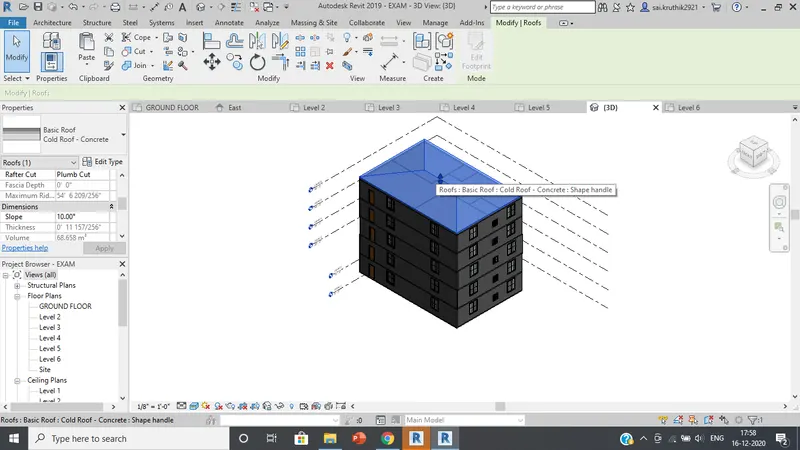

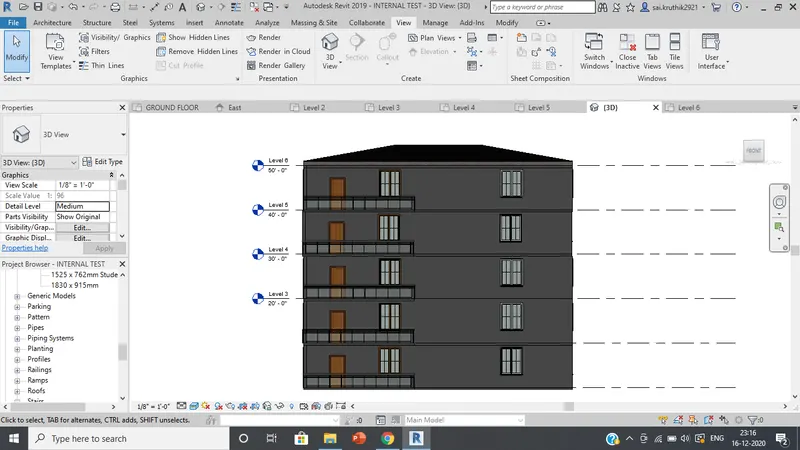

   > Now under the architectural menu we have roof tool, with the help of roof tool make the roof
   of the building.


   > Make the slope of the roof to 10 degrees.



   > Now in architecture menu we hame room tool with which we can add room tags to different
   rooms as per layout.

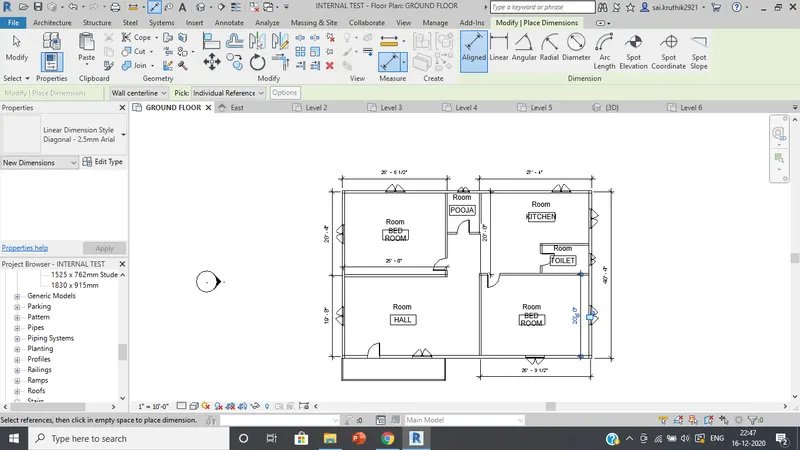

   > With the help of annotate tool add dimensions to the layout and to all the rooms.

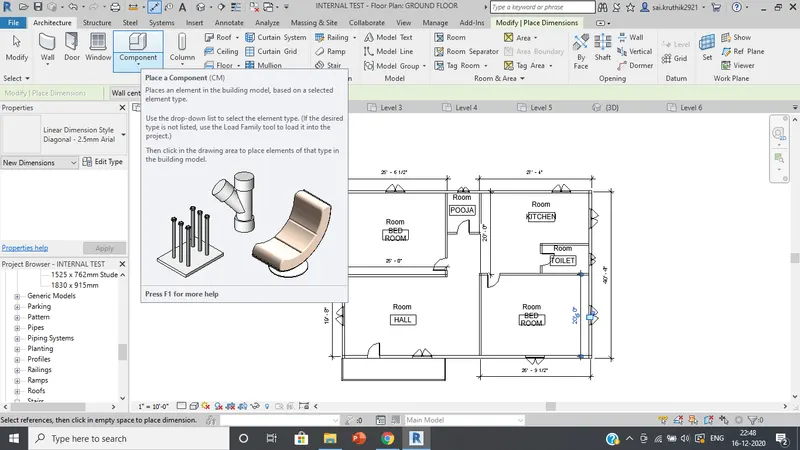

   > Now in the architectural menu we have components menu, in which we can find different kinds
   components and add the to our layout at required places.

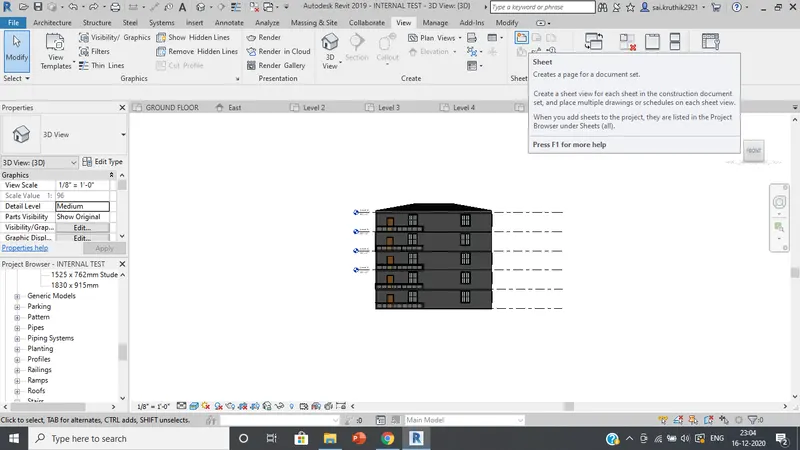

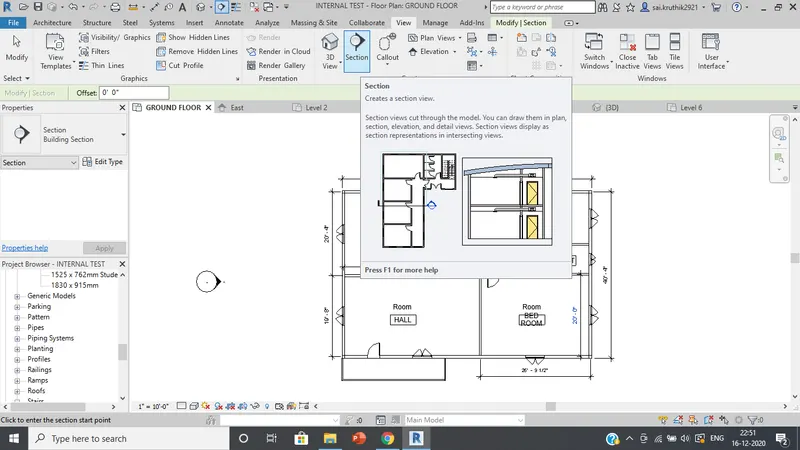

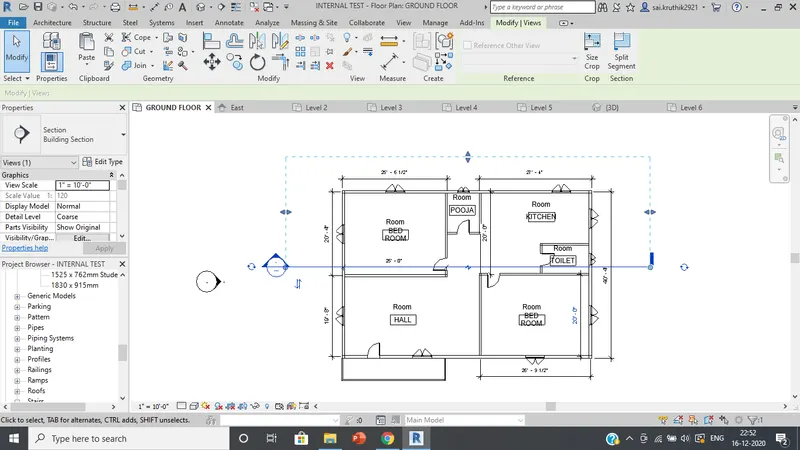

   > Now click on view menu and click on section tool to create a sectional view.

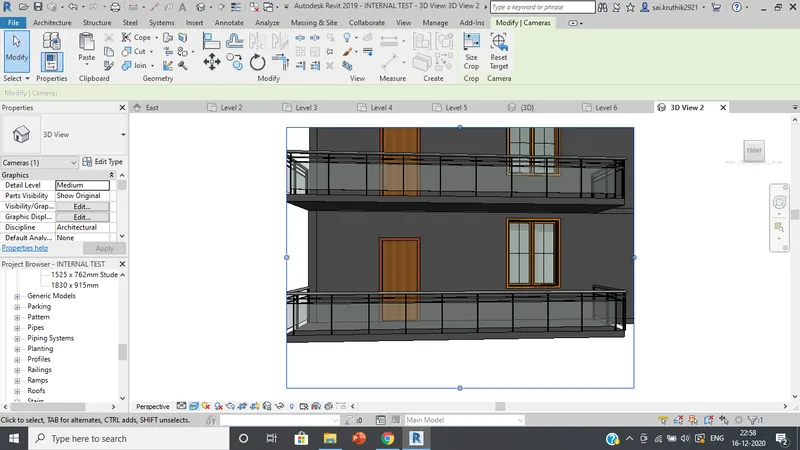

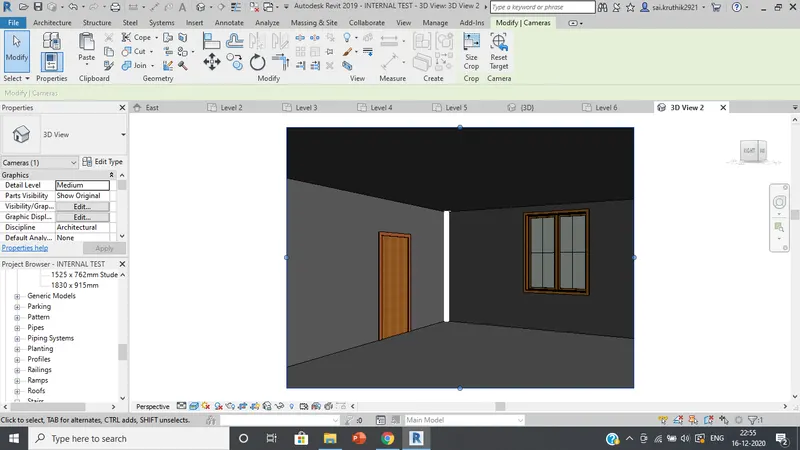

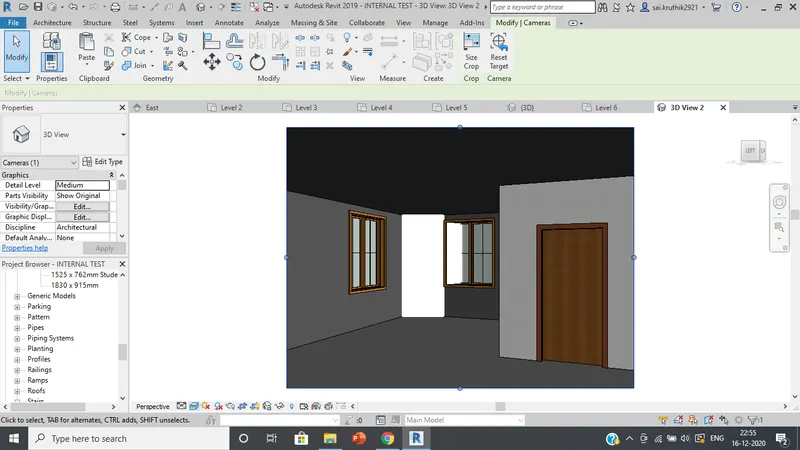

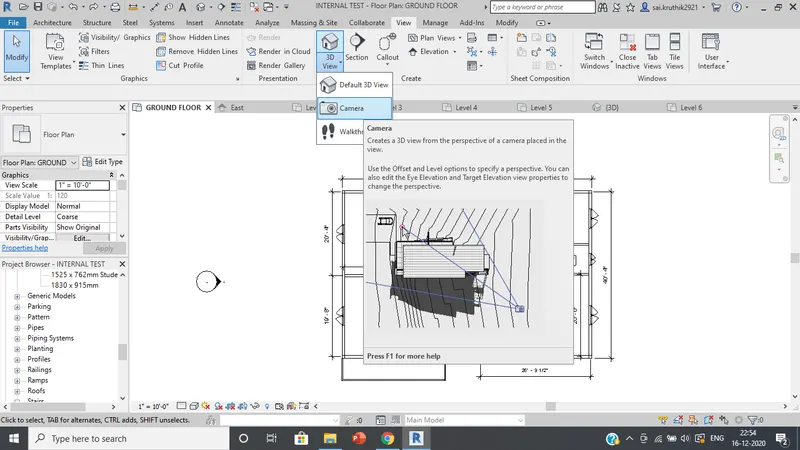

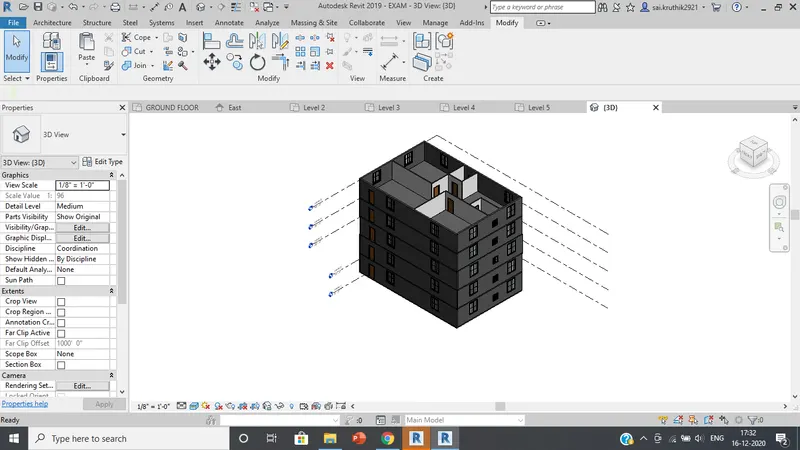

   > Now under the view menu we have 3D tool under which we have a tool called camera with
   with which we can add different of the interior of our plan.

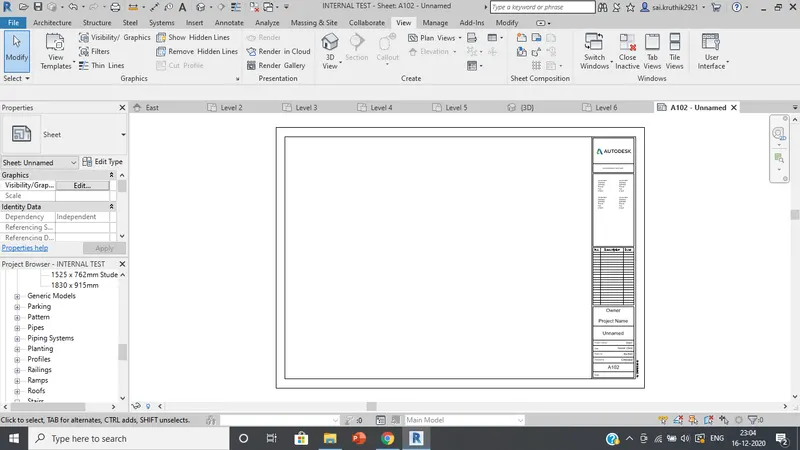

   > Under view menu we have sheet tool click on it and add each view in different sheet and fill in the required details.


   > Finally our design is ready...




   RESULT: The required G+4 residential building as per NBC standards is designed.
