II. Answer in detail

Create a G+4 Residential building as per NBC standards and make it a central model file. Your model should contain:

1. The sloped roof at the top level of the building (10 degrees)
2. Architectural components including furniture and home appliances
3. Room tags and Annotations
4. Section cut through each room either longitudinally or transversely
5. Create a camera view on each room and add it in a sheet template.

Ans) 1)

Aim: To create a G+4 Residential building as per NBC standards and make it a central model file. Your model should contain

Tools Used:

1. collaborate

2. save

Procedure:

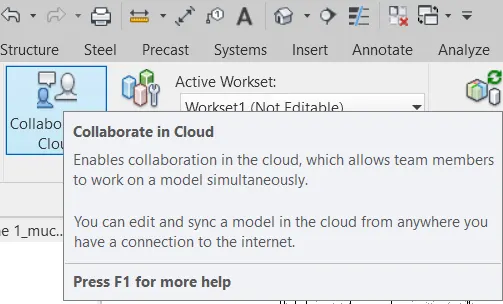

1)click collaborate

2) click ok to dialog box opened

3) click save and save the file as central model

2)

Aim: To make a sloped roof at the top level of the building (10 degrees)

Tools Used:

• roof
• property browser

Procedure:

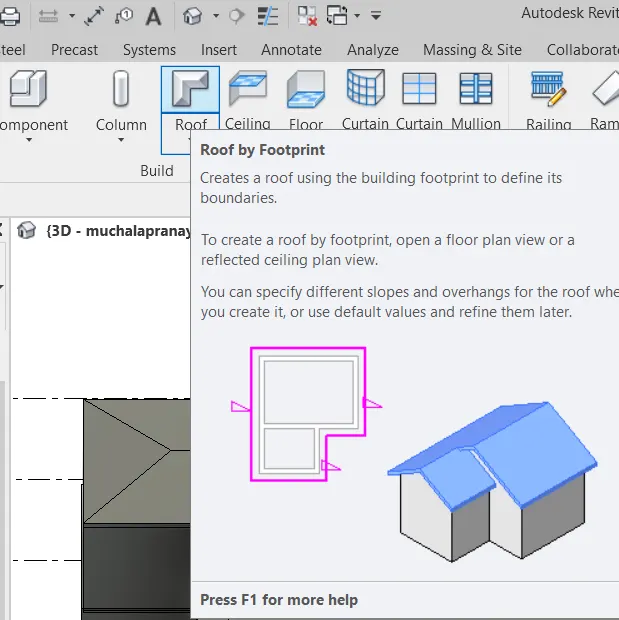

• select roof from the architecture toolbar and select the ends

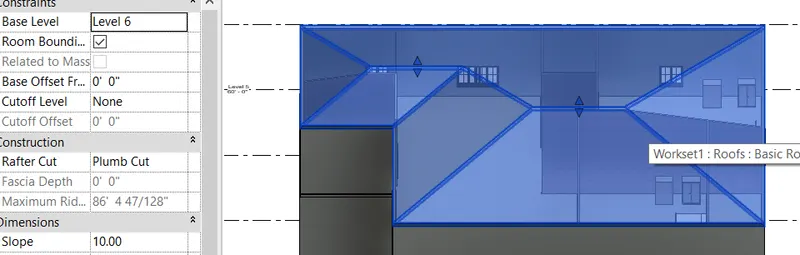

• select the roof applied and change slope from the property browser

3)

Aim: To add architectural components including furniture and home appliances

Tools Used:

• insert
• load family
• component

Procedure:

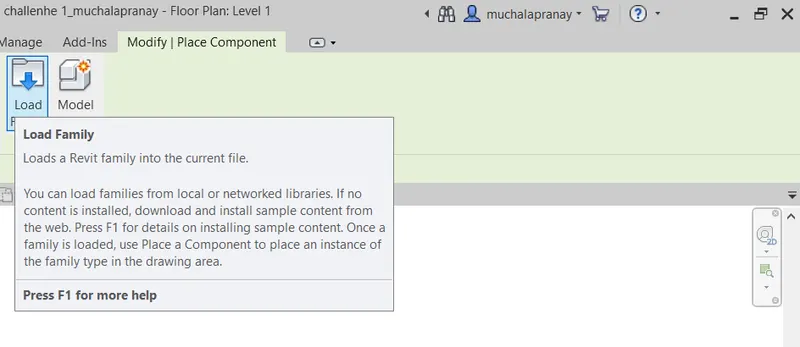

• from the load family select the component to be added

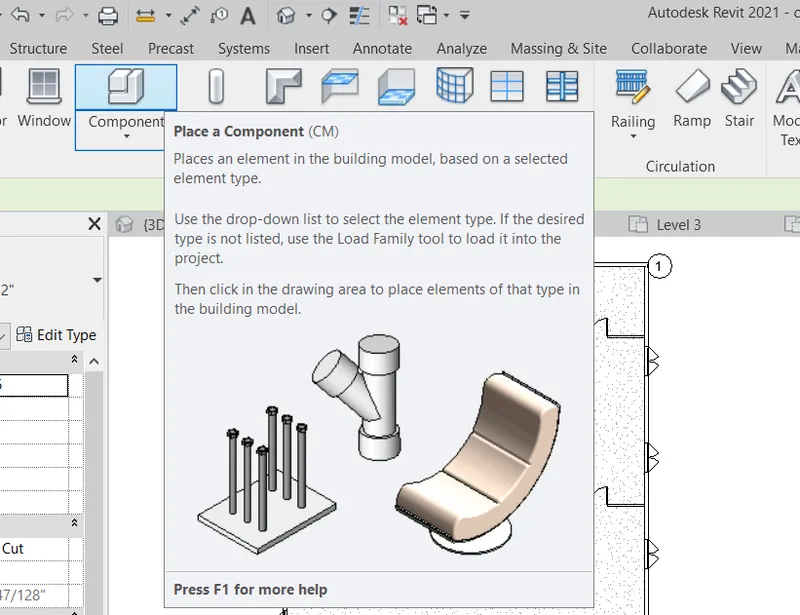

• from the architecture toolbar select component to add the component to plan

4)

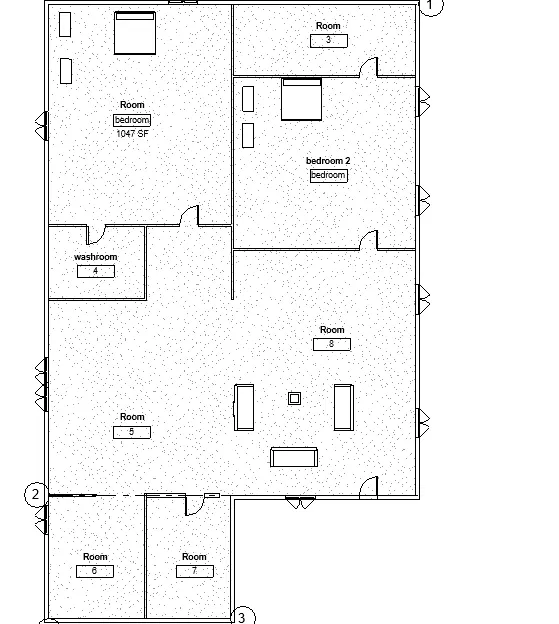

Aim: To add room tags and Annotations

Tools Used:

• room tag
• annotate

Procedure:

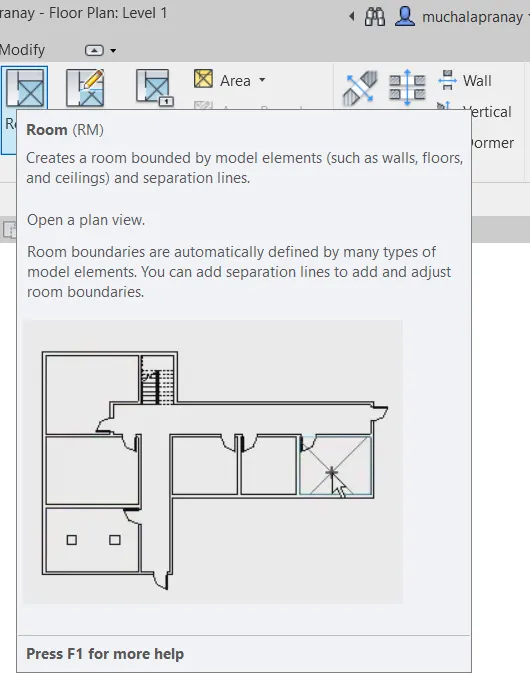

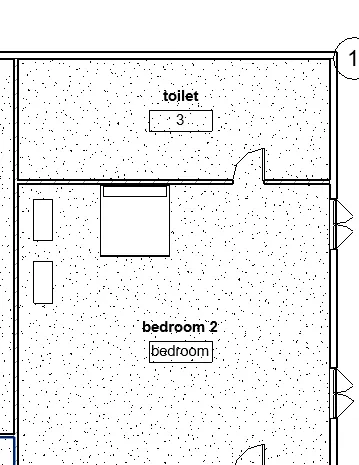

• select room tag from architecture toolbar
• select the rooms
• name them as needed
• use the annotate tool to measure and mar

5)

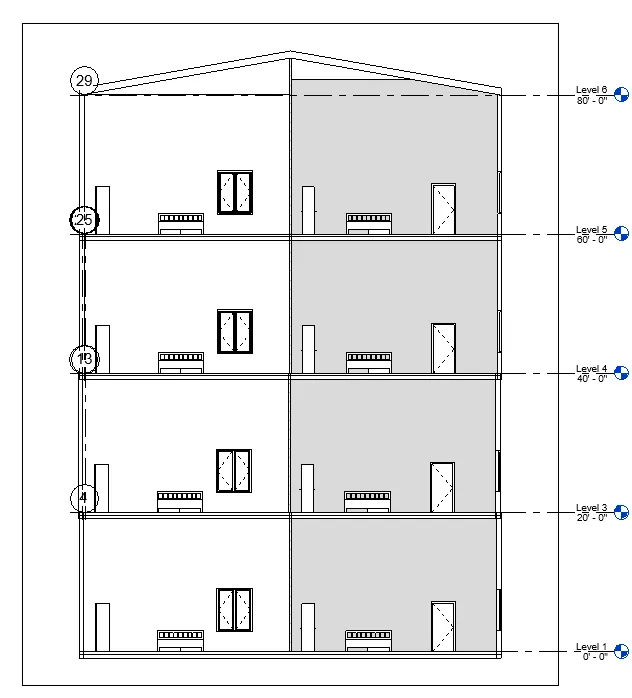

Aim: To show a section cut through each room either longitudinally or transversely

Tools Used:

• view
• section

Procedure:

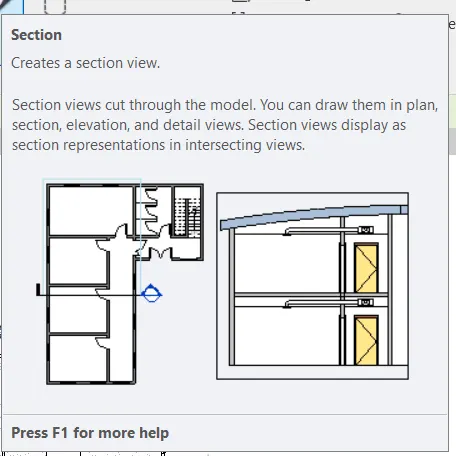

• from view select section view

• draw a line longitudinal or transversely as u need

• open section view

6)

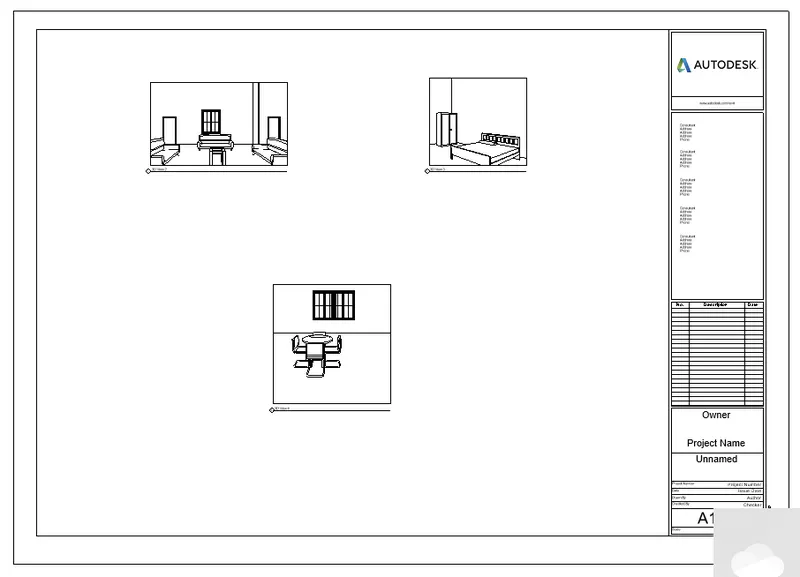

Aim: To create a camera view on each room and add it in a sheet template.

Tools Used:

• sheet
• view

Procedure:

• click on sheet and create a new sheet
• click on view under the sheet and select the views to be adde
