II. Answer in detail

AIM: To create G+4 residential building as per NBC standards and make ita central file.

TOOLS/COMMANDS USED:

Architectural

walls

doors

furniture

windows

levels

elevation

view

roof

floor

sheets

camera view

synchronize

PROCEDURE:

Step-1: Open Revit.

Step-2: Open a new revit file under architectural template.

Step-3: Open collaborate tab and select synchronize with central.

Step-4: Now select synchronize and modify settings and the project is synchronized with the central.

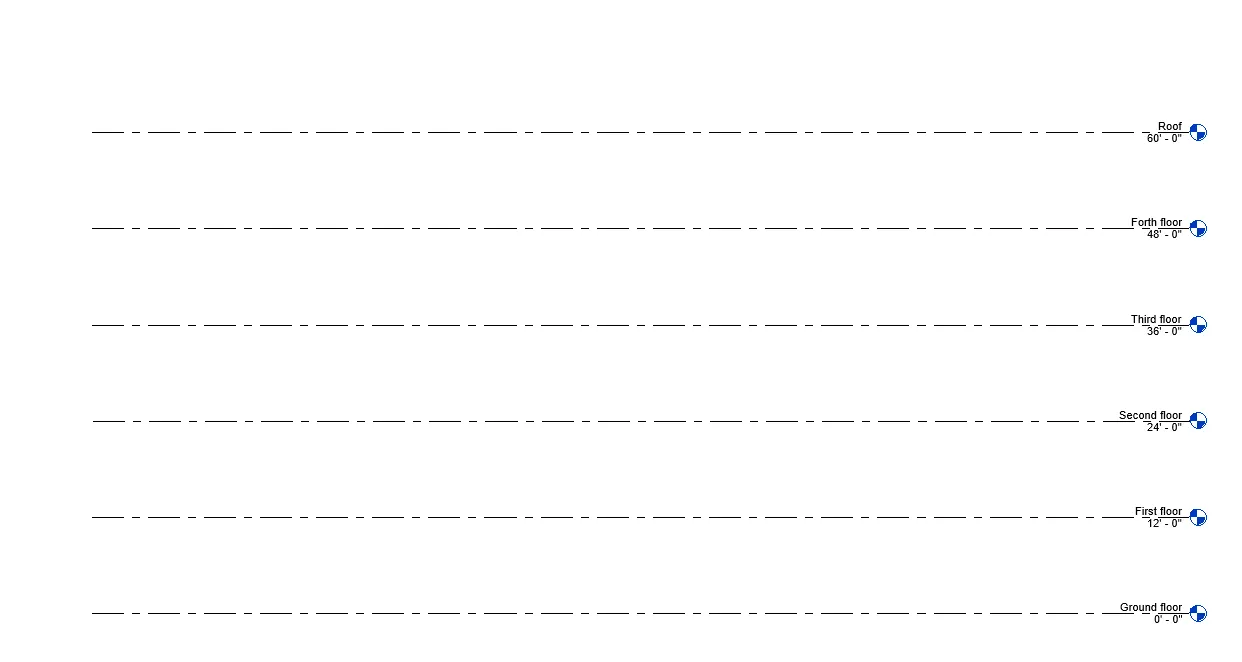

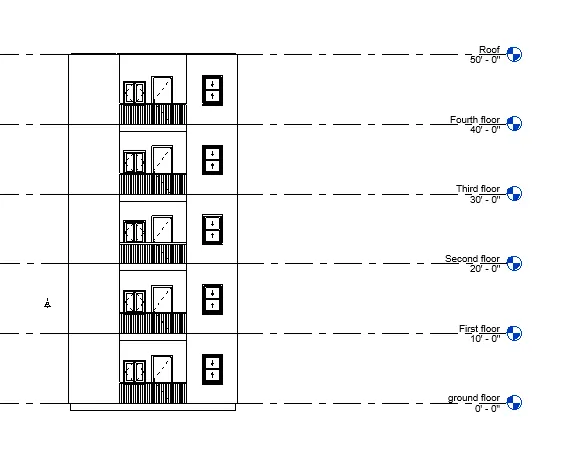

Step-5: Now open the architectural tab and draw levels and rename them.

Step-6: Open the floor in architectural tab and choose architectural.

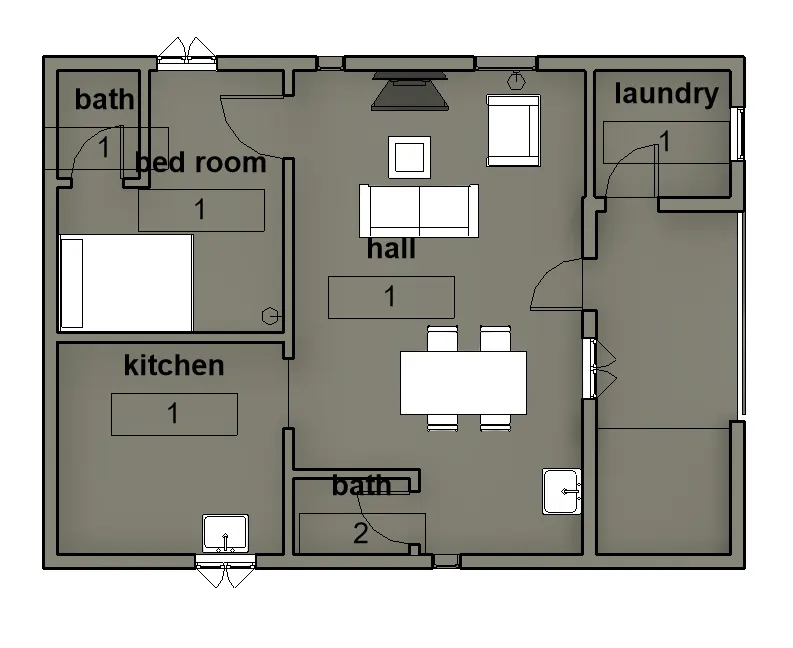

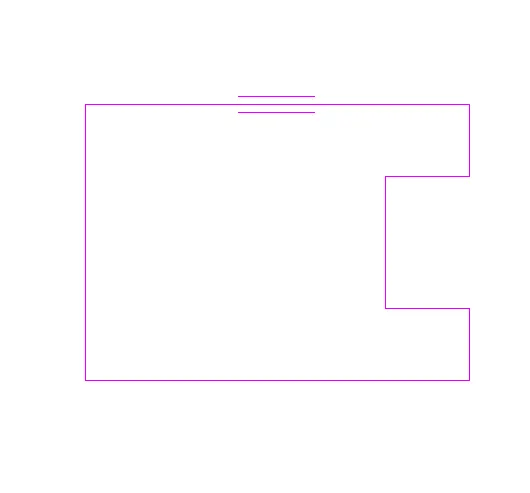

Step-7: Draw the floor plan of the residential building.

Step-8: Now select the walls and choose architectural.

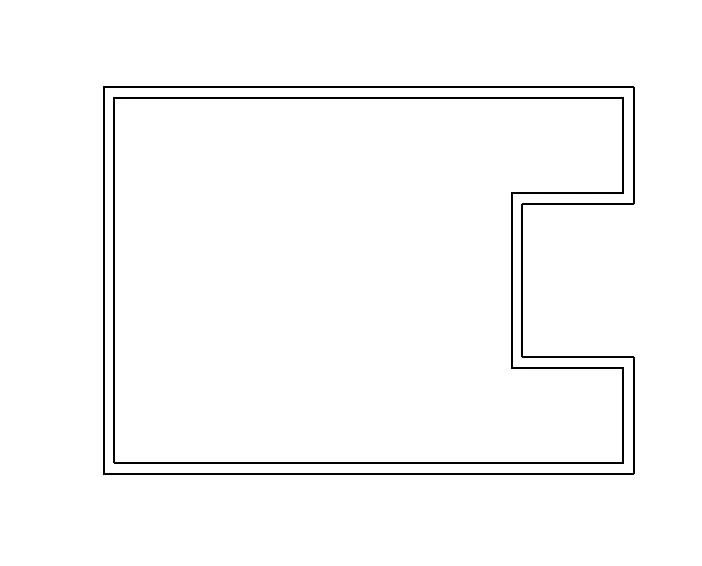

Step-9: Draw walls.

Step-10: Now draw the interior walls.

Step-11: Place all the components needed like lighting, dining table, chairs, sofa, etc. including furniture and home appliances.

Step-12: Copy and paste all the components from the ground floor to all the four floors.

Step-13: Now go the ground floor and tag all the rooms adn annotate.

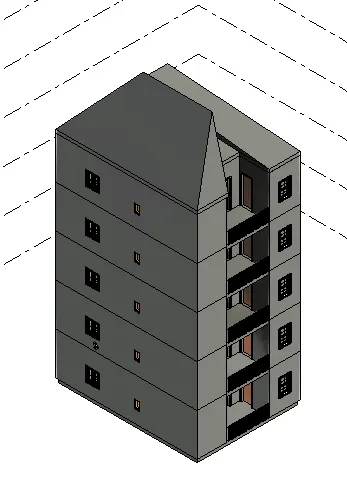

Step-14: Now draw the slope roof at the roof level.

Step-15: Keep the slope as 10 degrees.

Step-16: Now cut the section either longitudinally or along transverse.

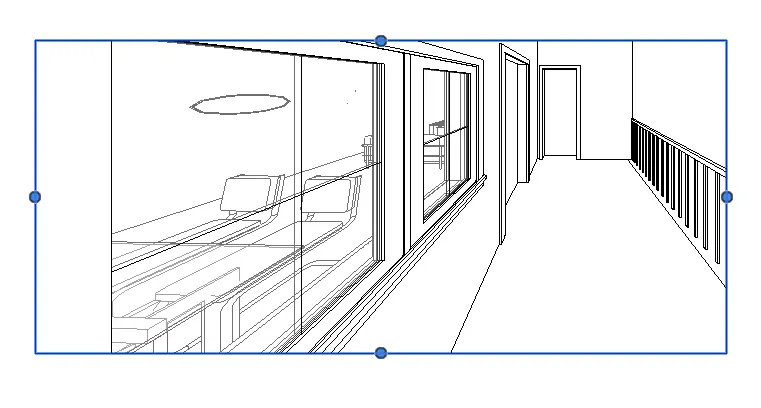

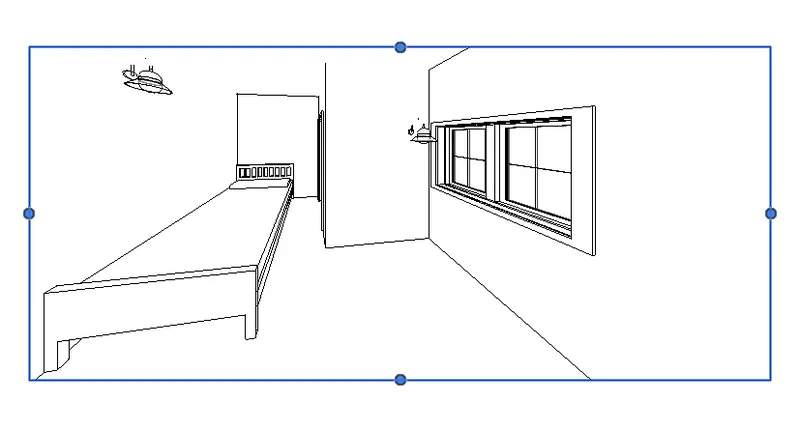

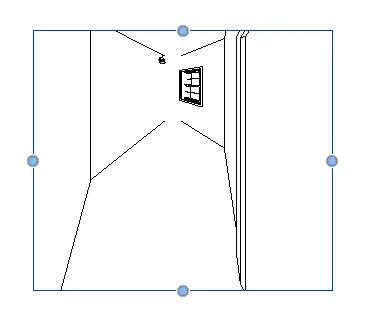

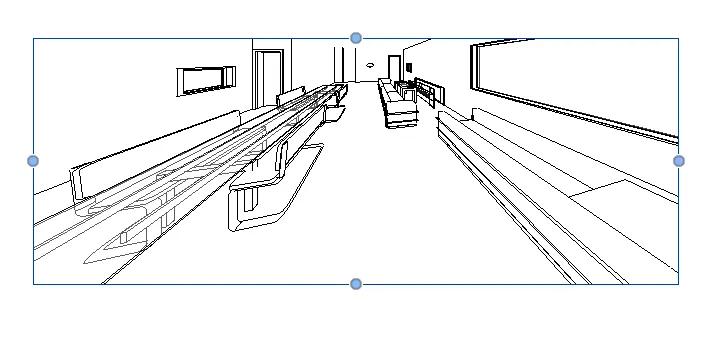

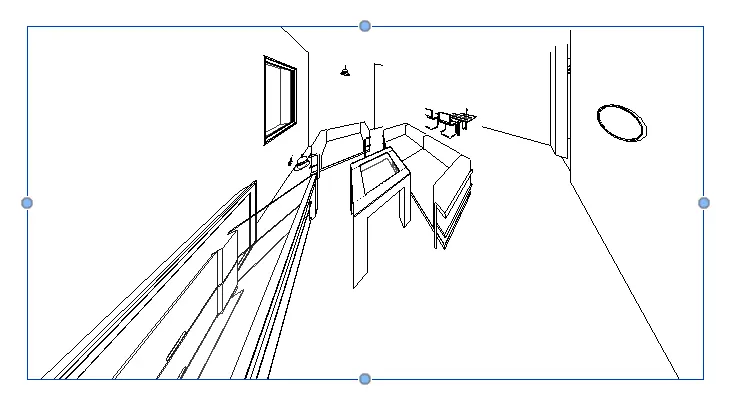

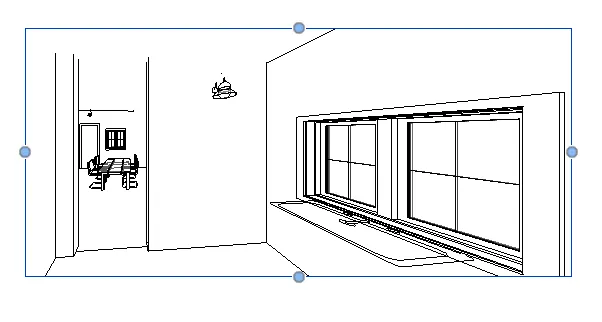

Step-17: Now take the camera views in all rooms and add them to the sheet template.
