AIM :

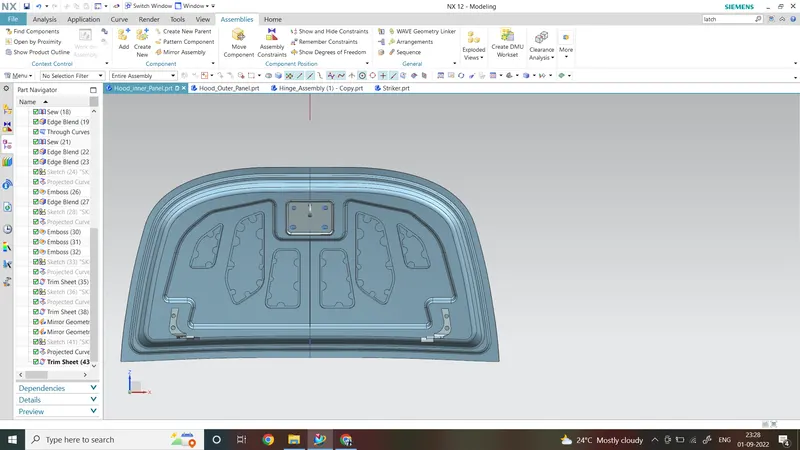

Design Hood Outer Panel, Inner Panel and the necessary reinforcements by following the Master Section mentioned with the Design parameters explained in the videos. Submit an ASSEMBLY of Hood Inner Panel, Outer Panel, Latch, Hinge and the Reinforcements.
A detailed report about the Hood Design which includes a detailed explanation about hood and its components, Latch Trajectory, Mastic Data, Emboss Definitions, Manufacturing process like Deep-Drawing and Hemming, and all the parameters followed in the design.

The report should be well-formatted and should have a good flow of content.

Data to be used:

Hood Thickness Information

Outer Panel Thickness = 0.75mm
Inner Panel Thickness = 0.75mm
Reinforcement Thickness = 1.5mm

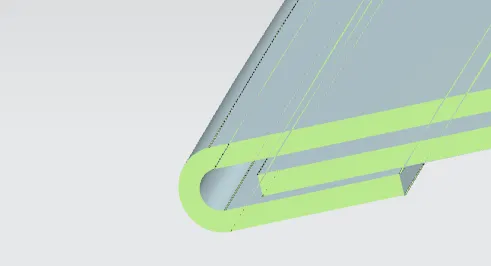

Hemming Data:

Relief rear section:

Front relief:

HOOD it is main component of a car at the front portion.
it is use to minimize the effect of air HOOD DESIGN CONSIDRATION
the hood of car is consider as a frontal enclosed BIWbonet is design to reduce air resistan as the air flow around

HOOD :
it is main component of a car at the front portion. it is use to minimize the effect of air

HOOD DESIGN CONSIDRATION :
the hood of car is consider as a frontal enclosed BIW .bonet is design to reduce air resistance as the air flow around the component
they serve great deal of purpose to protect the passenger

FOLLOWING PART ARE USE IN THIS REPORTS

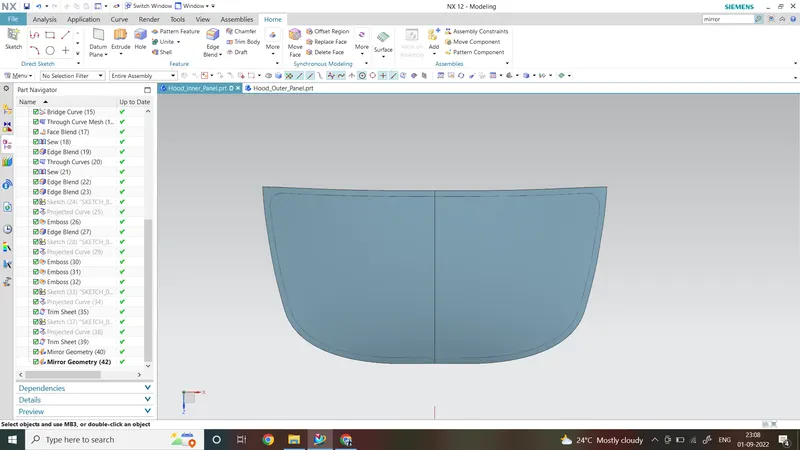

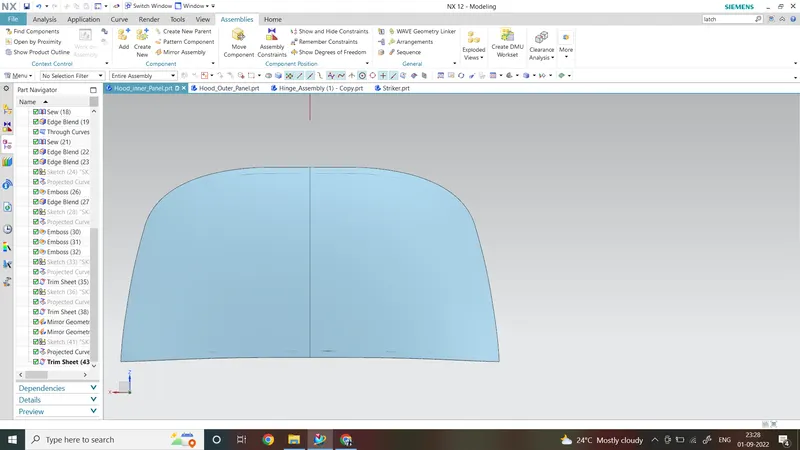

hood outer pannel

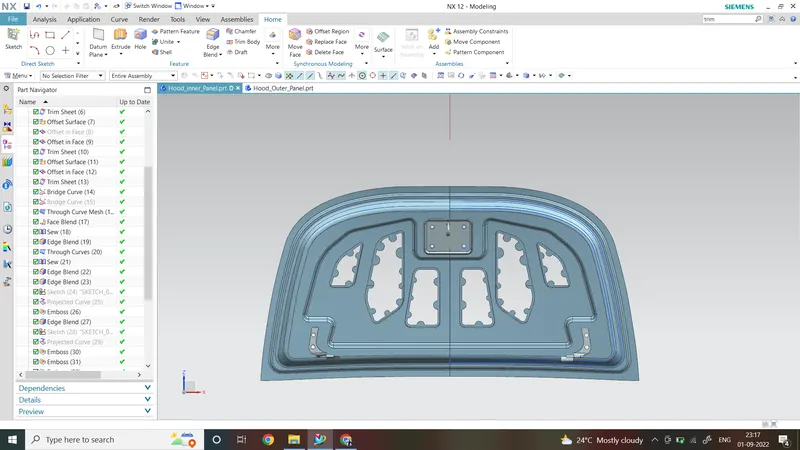

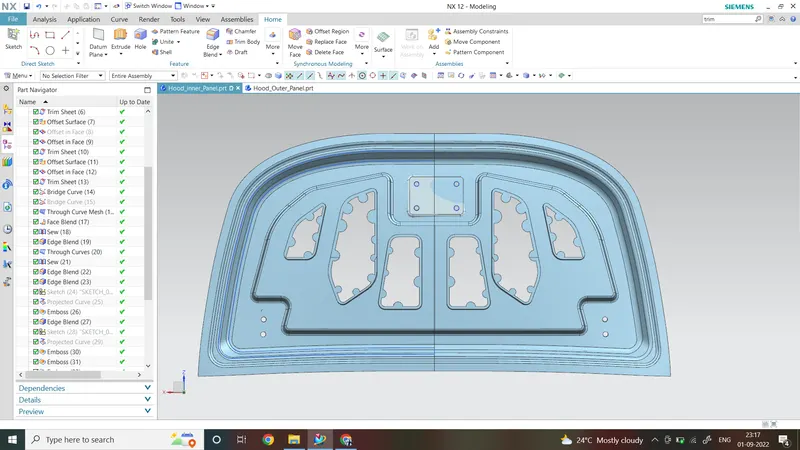

hood inner panel

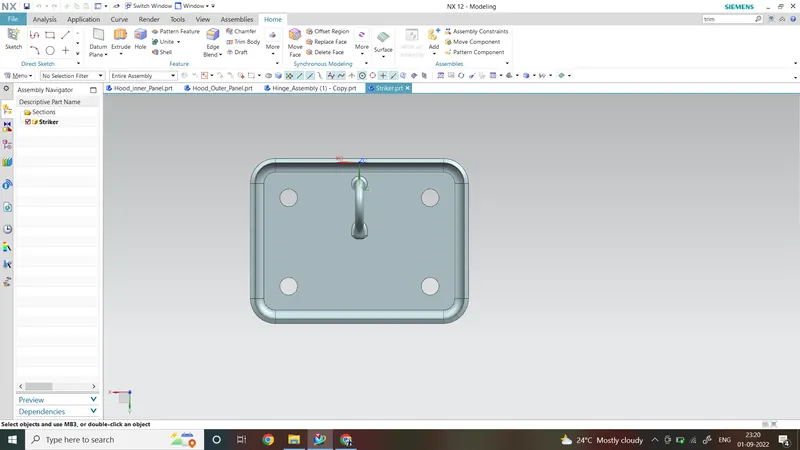

striker

hindge

HOOD THICKNESS

OUTER PANNEL 0.75

INER PANNEL 0.75

REINFORCEMENT 1.5

OUTER PANNEL

we also call it is a cover of inner pannel which give luxirious look for hood

INNER PANNEL

inner pannel only we can research as the safty of driver and passanger

we have to create inner pannel insuring a sufficient energy absorbstion capicity

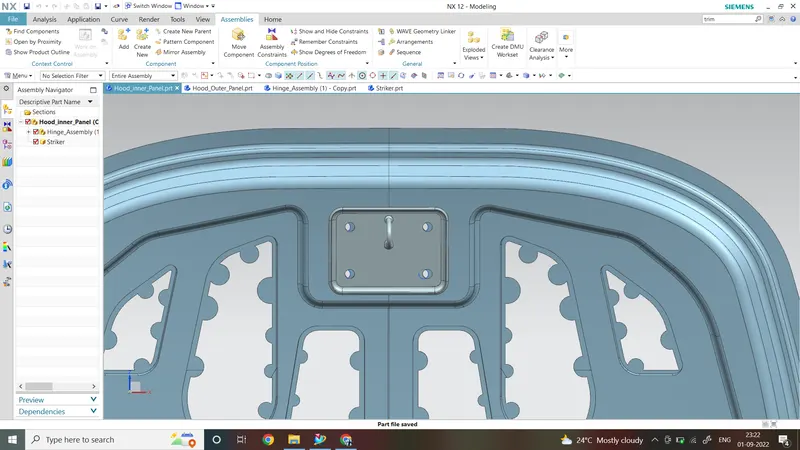

HINDGE ASSEMBLY

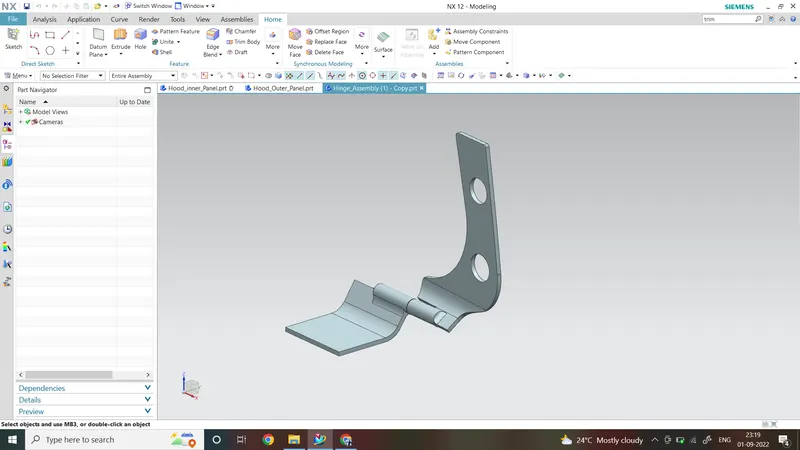

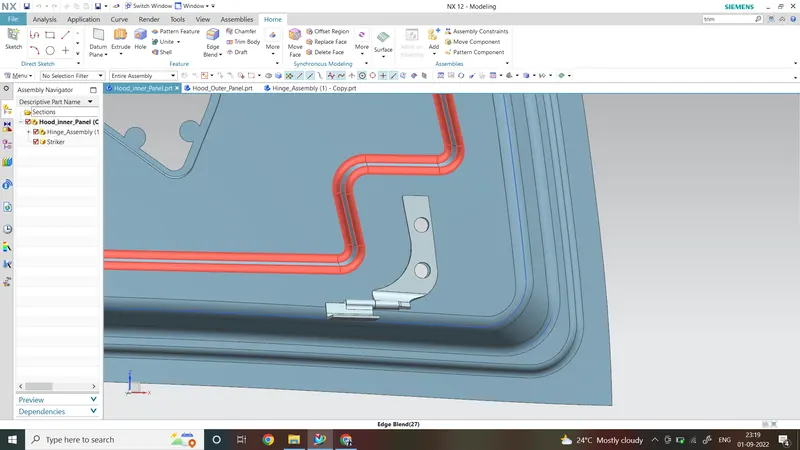

hindge is component that fix the hood to the fender of the car . latch must be fixed with the perpendicular to axis. sothat hood open and close properly.
