Hood design-Week 2

HOOD DESIGN:

DESIGN CONSTRAINS:

Hood Thickness Information

• Outer Panel Thickness = 0.75mm
• Inner Panel Thickness = 0.75mm
• Reinforcement Thickness = 1.5mm

HEMMING AND RELIEF CONSTAINS:

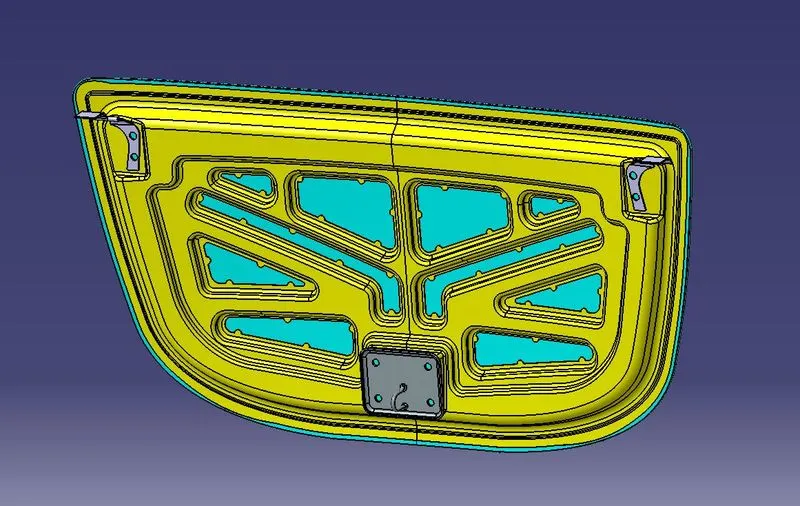

HOOD:

A car hood, also referred to as a bonnet in some other countries, is the hinged cover that rests over the engine of a front-engine vehicle. Its purpose is to provide access to the engine for repair and maintenance. A concealed latch is typically used to hold down the hood.The hood of a car consists of and outer and an inner panel. A latch and two hinges are fixed on the inner panel to attach the hood with the engine compartment of the car.

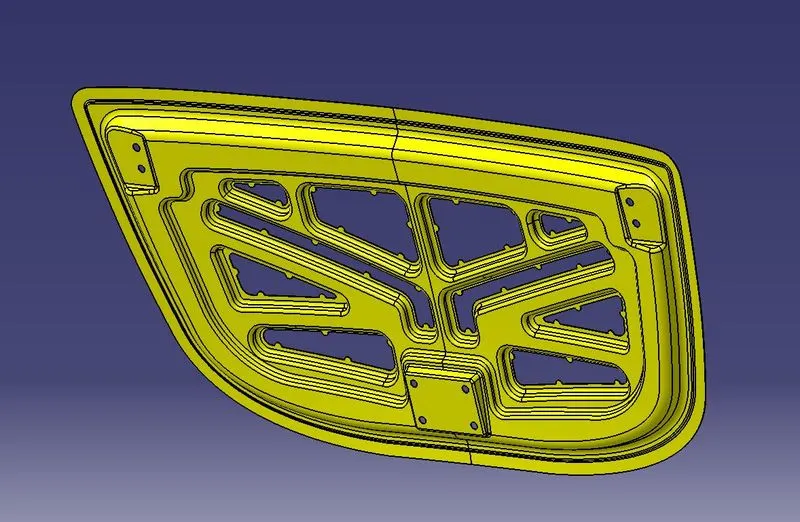

INNER PANEL

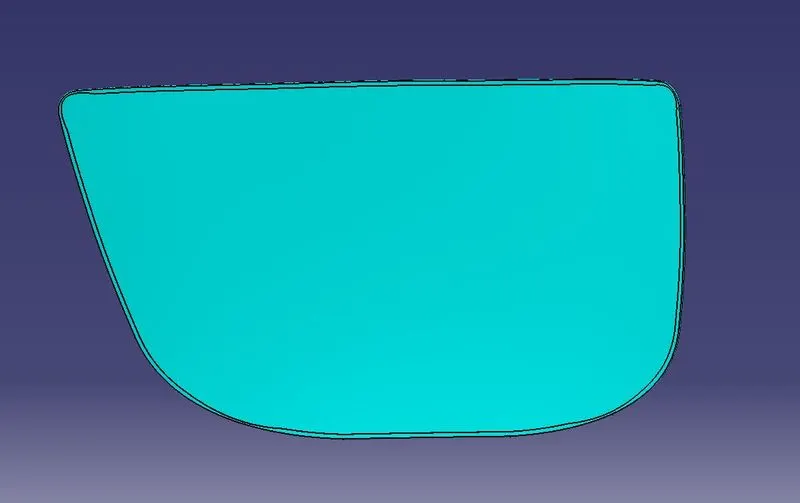

OUTER PANEL

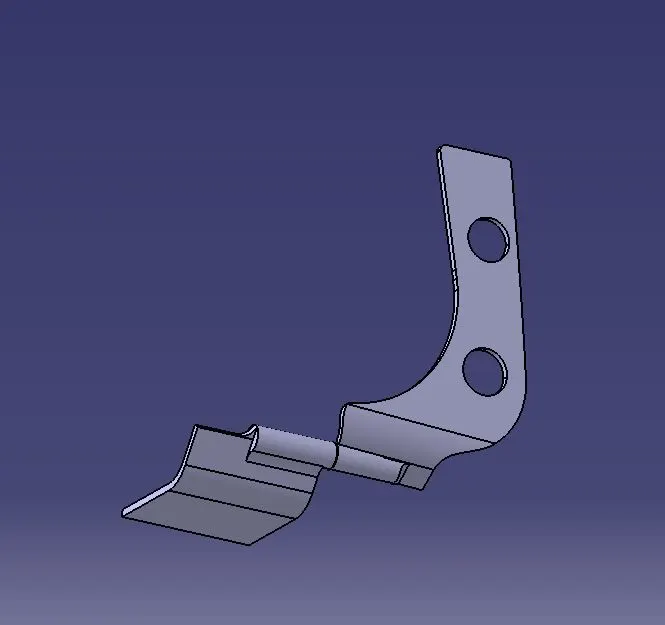

HINGE

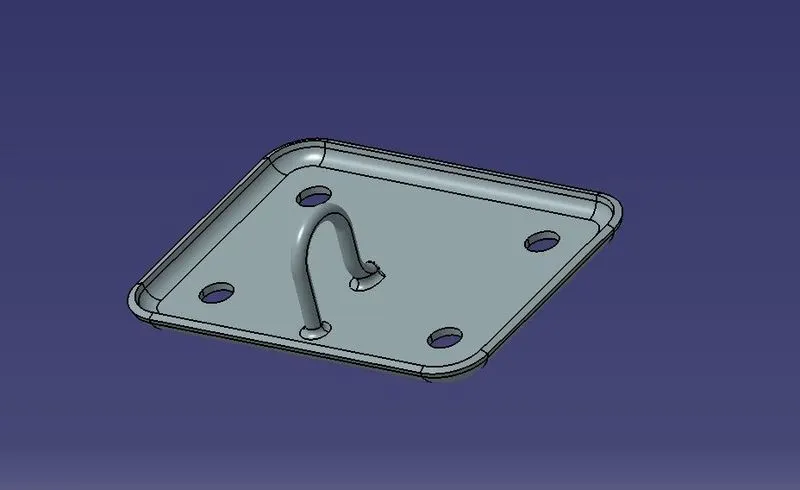

LATCH
