Hood design-Week 2

Hood :

The Hood or bonnet is the hinged cover over the engine of motor vehicles that allows access to the engine compartment or trunk on rear-engine for maintenance and repair.

The bonnet system is an access panel to the engine compartment to enable maintenance of
power train, drive belts, battery, fluid levels and lamp units.

It is fundamentally a reinforced skin panel with many safety and quality requirements.

Pros of Hood :

1. Increase the Engine Power
2. Intake of RAM air
3. Inter cooler exposure
4. Increase performance
5. Good look

Manufacturing process of Hood :

• Blanking
• Stretch forming
• Trimming and Punching
• Deburring
• Welding
• Grinding
• Painting
• Baking
• Polishing
• Coating

Master Data :

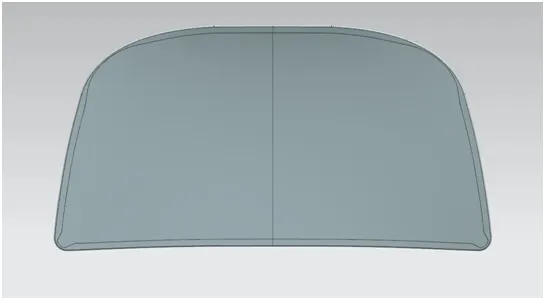

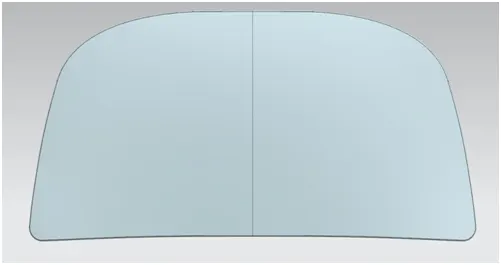

Outer Panel :

The Thickness of the Outer Panel is 0.75 mm

It has been created with Hem and Front & Rear Relief.

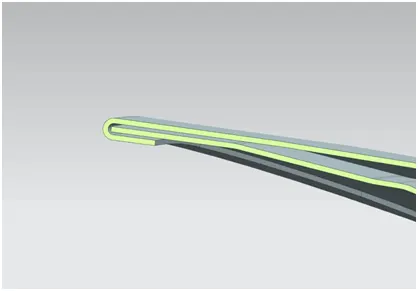

Hemming :

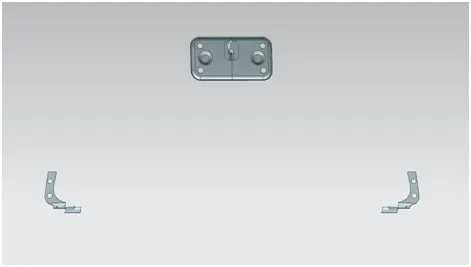

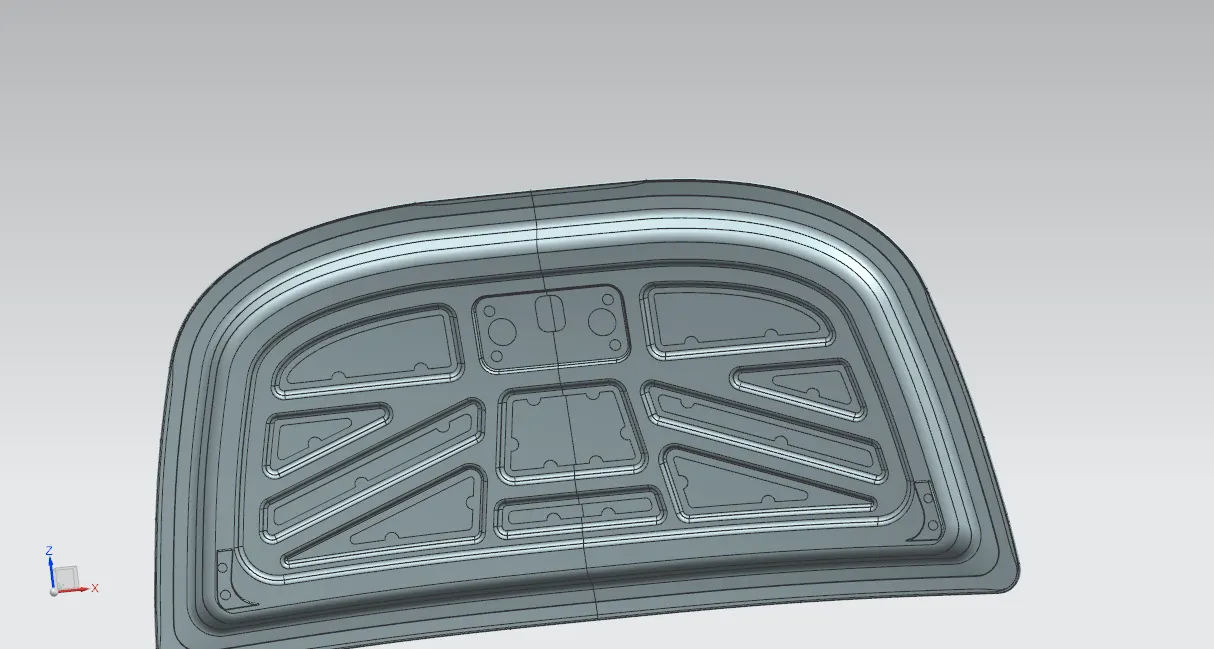

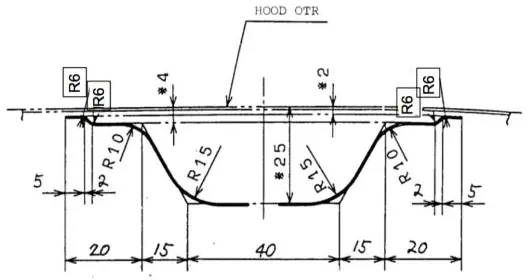

Reinforcement :

ASSEMBLY OF HOOD

PLEASE FIND THE LINK FOR AMRUTH_HOOD_ASSEMBLY

https://drive.google.com/drive/folders/1qgOZbUZ0bPETRPgSLZQDBCzOl6q_RvoX?usp=sharing
