Hood design-Week 2

In hood design of cars, "emboss" refers to a raised or elevated area on the surface of the hood panel. It is a design feature that adds visual interest, texture, and sometimes functionality to the hood. The embossing process involves creating a raised pattern or shape on the metal or material of the hood panel. Here's a detailed explanation of the emboss definition in hood design:

Raised Design Feature: An emboss in hood design refers to a raised portion on the hood panel's surface, creating a three-dimensional effect. It can be in the form of a pattern, logo, emblem, or any other decorative or functional element. The embossed area stands out from the surrounding surface, adding visual appeal and enhancing the overall design aesthetics of the hood.
Design Variation and Customization: Embossing provides flexibility in hood design, allowing manufacturers to incorporate unique and distinctive design elements. It offers an opportunity to create brand identity, showcase logos, or add specific styling cues to differentiate one vehicle model from another. Embossing can be customized to suit the desired design language, align with the vehicle's overall aesthetics, and reflect the brand's image.
Functional Significance: Embossing in hood design can also serve functional purposes. For example, an embossed area may be designed to provide additional rigidity or strength to the hood panel, contributing to its structural integrity. Embossing can also be utilized to create air vents or cooling channels, enhancing airflow to the engine compartment and helping to dissipate heat effectively.
Manufacturing Process: The embossing process involves specialized manufacturing techniques. A die or tool with the desired pattern or shape is pressed onto the hood panel, exerting pressure to create the raised design. This process may involve hydraulic or mechanical presses, which are carefully controlled to ensure consistent and precise embossing results.
Material Considerations: The choice of materials for the hood panel affects the embossing process and the final result. Typically, materials like steel, aluminum, or composites are used in hood construction. These materials need to have appropriate malleability and ductility to allow for successful embossing without compromising their structural integrity.
Design Integration: Hood embossing should be integrated harmoniously with the overall design of the vehicle. It should consider factors such as the hood's curvature, surrounding body lines, and other design elements to ensure a cohesive and visually appealing appearance.
Paint and Finish: After the embossing process, the hood panel may undergo further finishing steps, including painting, coating, or polishing, to achieve the desired appearance and protect the embossed area. These steps help highlight the embossed design feature and ensure its longevity.

Embossing in hood design adds depth, style, and functionality to the overall aesthetic of a car. It allows for customization, branding, and unique design elements that contribute to the vehicle's identity. Through careful integration and manufacturing techniques, embossing creates an eye-catching and visually appealing feature in the hood design.

Deep drawing & Hemming

The manufacturing process of a hood involves several steps, including deep drawing and hemming. Here's an explanation of these two key processes:

1. Deep Drawing:
Deep drawing is a metal forming process used to shape a flat sheet of metal into a three-dimensional shape, such as the main body of the hood. The deep drawing process typically involves the following steps:

a. Blanking: A flat sheet of metal, usually steel or aluminum, is cut into a blank of the required size and shape, which will form the starting material for the hood.

b. Forming: The blank is then placed into a die, which consists of a male punch and a female die cavity. The blank is positioned on the die, and the punch applies force to the center of the blank, pushing it into the die cavity. As a result, the blank undergoes plastic deformation and takes on the shape of the die cavity, forming the basic shape of the hood.

c. Draw Reducing: After the initial forming, the punch may be repositioned to apply additional force and further reduce the height of the drawn part, ensuring the desired depth and shape.

d. Trimming: Excess material around the edges of the formed part is trimmed or cut off to achieve the final shape and size of the hood.

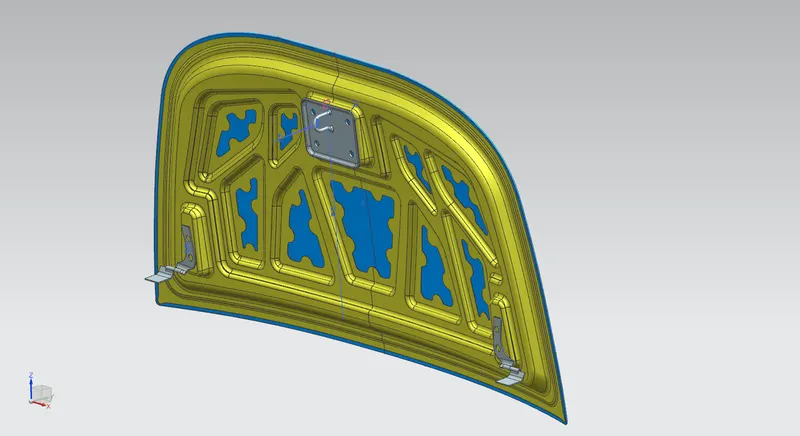

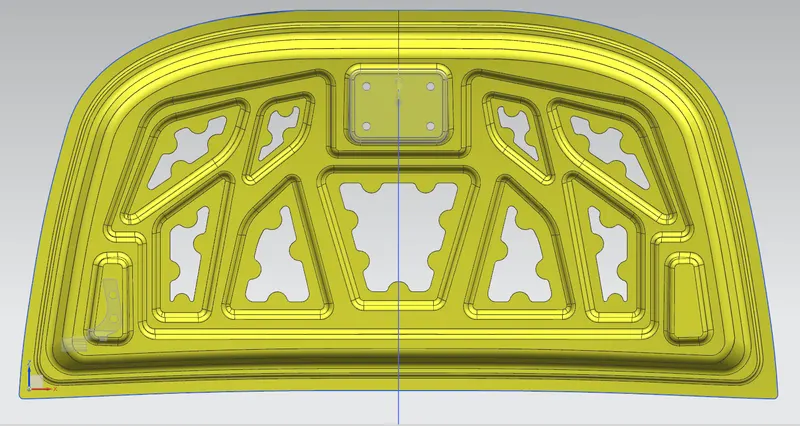

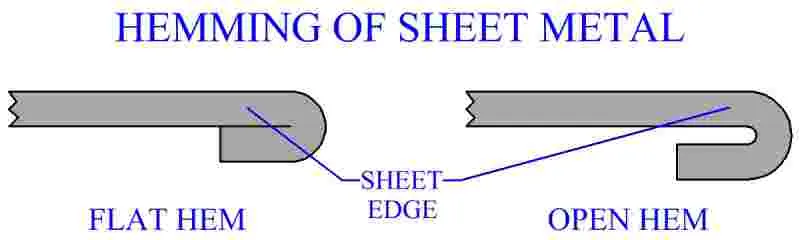

2. Hemming:

Hemming is a process used to join two or more edges of the hood panel, typically for creating reinforced edges or attaching additional components. The hemming process involves the following steps:

a. Flanging: The edges of the hood panel are first flanged, which means they are bent at a 90-degree angle to create a raised lip or flange along the edges.

b. Hemming Tooling: The hemming tooling consists of a hemming die and a hemming punch. The hemming die is positioned beneath the flanged edge, while the hemming punch presses against the flanged edge, folding it over the die.

c. Hemming Operation: The hood panel is placed between the hemming die and punch, and the punch applies force to the flanged edge, bending it over the die and creating a folded hem. This process securely joins the edges, providing strength and a finished appearance.

d. Hemming Types: There are different types of hemming, including single-hemming (one folded edge), double-hemming (both edges folded), and laser hemming (using laser technology to create a folded edge). The specific type of hemming used depends on design requirements and manufacturing capabilities.

After these primary manufacturing processes, the hood may undergo additional steps such as surface preparation, painting, and assembly with hinges, latches, and other components to complete the manufacturing of the hood assembly.

Hood Design Parameters

Design parameters play a crucial role in hood design, as they determine the performance, aesthetics, and functionality of the hood assembly. Here are some key design parameters involved in hood design:

1. Hood Material: The choice of hood material impacts the overall weight, strength, and cost of the hood. Common materials used in hood manufacturing include steel, aluminum, and composite materials. The material selection is based on factors such as structural requirements, weight reduction goals, cost considerations, and manufacturing capabilities.

2. Hood Shape and Contours: The shape and contours of the hood influence aerodynamics, aesthetics, and pedestrian safety. The hood design should consider factors such as airflow management, minimizing drag, ensuring smooth air flow over the vehicle, and meeting regulatory requirements for pedestrian impact.

3. Hood Size and Proportions: The size and proportions of the hood are determined by the vehicle's overall design, space constraints, and functional requirements. The hood should provide sufficient clearance for the engine, accommodate necessary components and systems, and align with the vehicle's proportions to maintain visual harmony.

4. Hood Surface Design: The surface design of the hood involves considerations such as body lines, creases, and styling elements. These design features contribute to the overall aesthetic appeal of the vehicle and can convey brand identity and design language. The surface design should also take into account manufacturing feasibility and ease of maintenance.

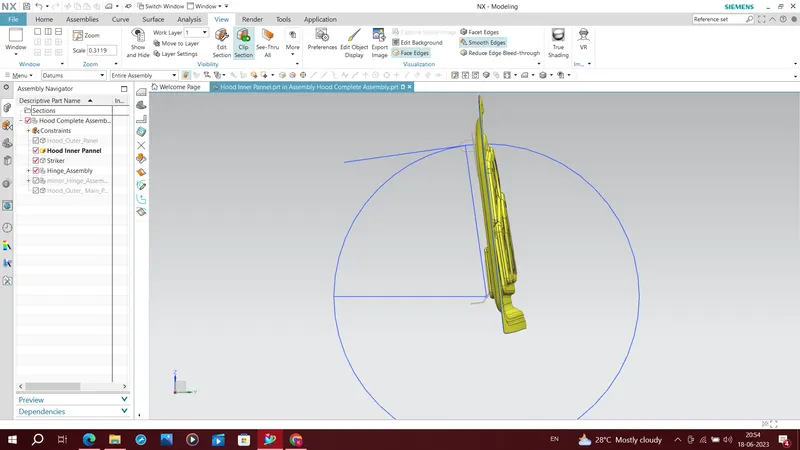

5. Hood Open/Close Mechanism: The design of the hood open/close mechanism, including hinges, latches, and struts, is crucial for smooth and secure operation. Factors such as ease of use, structural integrity, alignment, and safety are considered when determining the hood opening and closing mechanism.

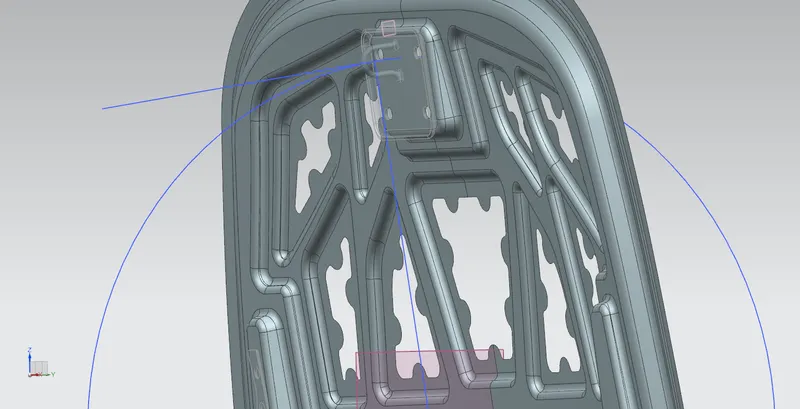

6. Structural Reinforcements: Hood design may incorporate structural reinforcements, such as reinforcements ribs, to ensure the hood's rigidity and resistance to deformation. These reinforcements help improve crashworthiness, minimize vibrations, and provide additional strength to support components mounted on the hood.

7. Hood Insulation and Sound Damping: Hood design may include provisions for insulation materials to reduce engine noise and heat transfer. The design should consider space for insulation mats or liners that help improve acoustics, enhance thermal management, and contribute to passenger comfort.

8. Hood Safety Features: Hood design must comply with safety regulations, including pedestrian safety standards. Design parameters related to pedestrian protection may involve incorporating energy-absorbing structures, providing proper clearance, and designing deformation zones to mitigate injury risks in the event of a collision.

9. Manufacturing Feasibility: Design parameters should also consider manufacturing feasibility, including tooling requirements, assembly processes, and cost-effective production. Design features that are difficult or expensive to manufacture may need to be re-evaluated or optimized for production efficiency.

10. Material Finishes and Coatings: Design parameters include considerations for the desired finish and coatings on the hood, such as paint, clear coat, or other protective layers. These finishes provide aesthetics, durability, corrosion resistance, and protection against environmental factors.

These design parameters collectively determine the functionality, performance, safety, aesthetics, and manufacturing feasibility of the hood assembly. Manufacturers and designers carefully evaluate and optimize these parameters to meet the specific requirements and objectives of the vehicle and brand.
