Hood design-Week 2

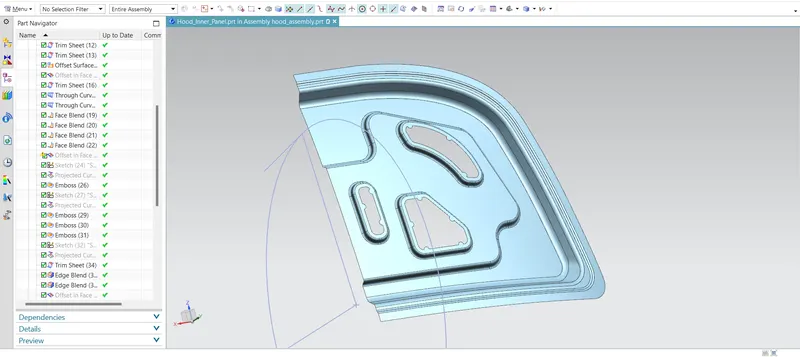

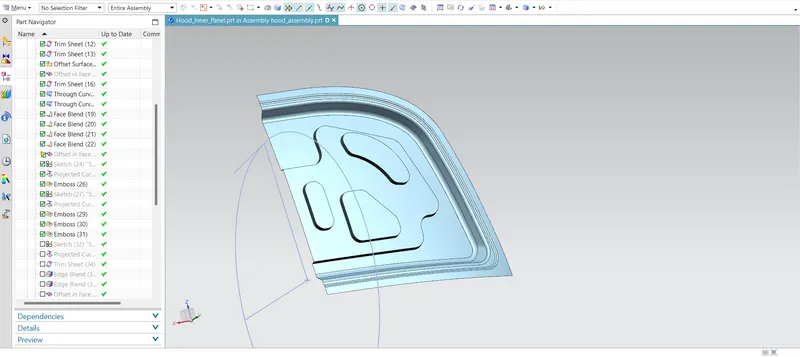

hood inner panel -

Hood inner panel is derived from hood outer panel by using commands like offset surface, trim sheet, through curves , face blend etc

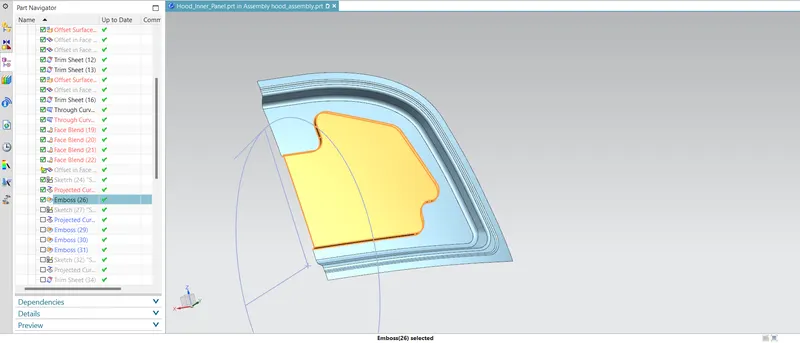

emboss is done by making a sketch on surface

secondary emboss are trimmed with respect to mastic points,

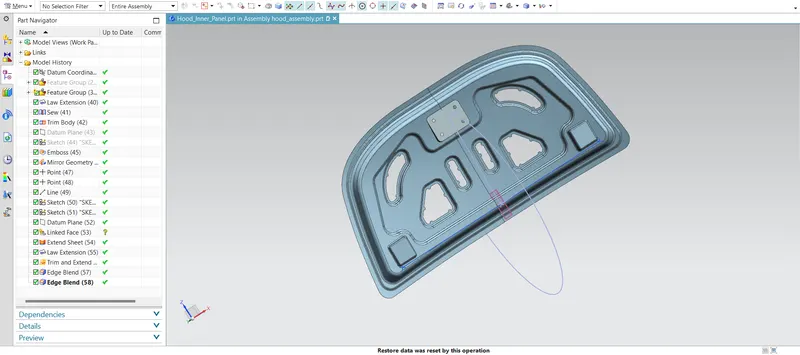

Geometry is mirrored with respect to the reference plane and examined for gaps or overlaps

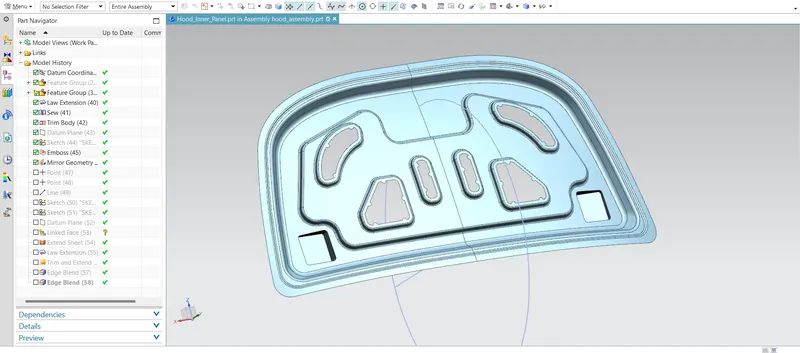

another embosses are created for striker and hinges

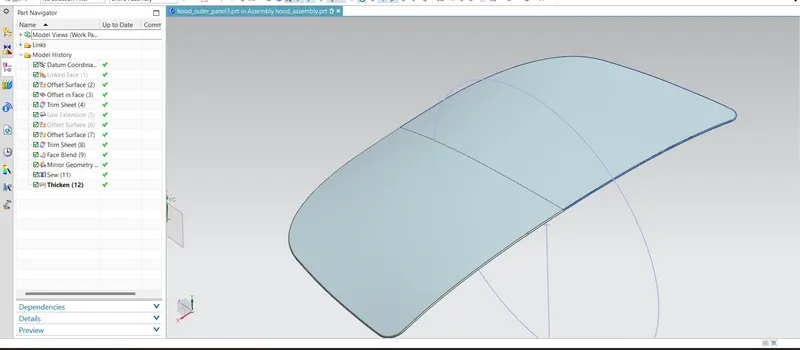

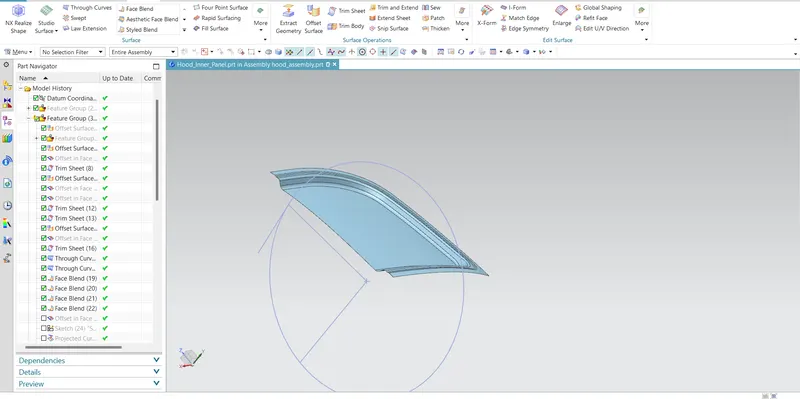

Hood outer panel

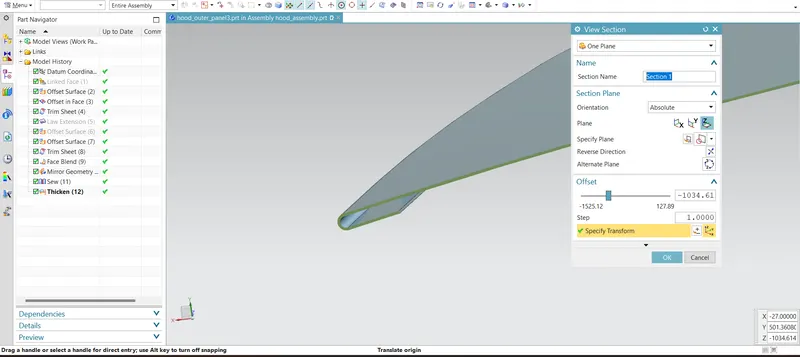

using offset command the outer panel is done and using the calculated dimention its is trimmed as per need , the hemming is done by using trim and offset commands then thickened it with dimension of 0.75

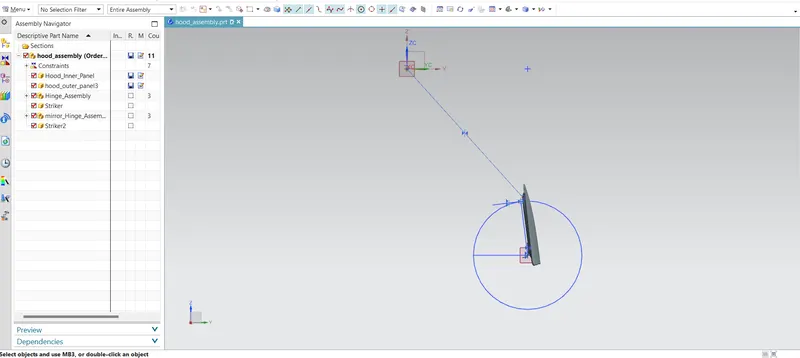

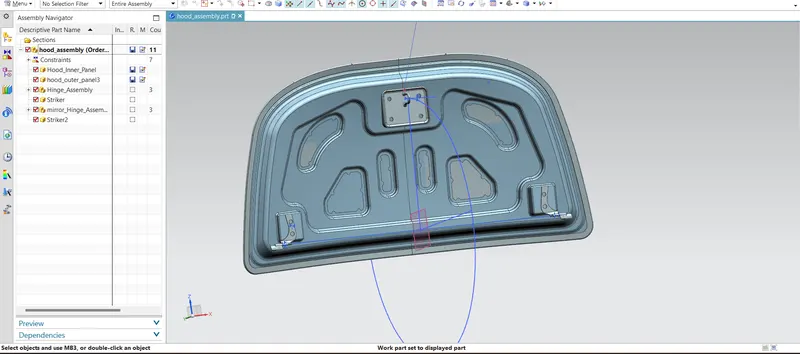

Hood assembly -

the given models are assembled in assembly navigator using commands like add and create new command, and they are fixed and moved using commands like move component and assembly constrains.
