Foundation Design using SAFE

AIM:
⦁ To Analyze and designthe isolated footing from week 11 challenge on SAFE
⦁ To verify the size, depth and steel provided as per calculations.

PROCEDURE:
⦁ Units was selected as Metric and Code IS 456-2000.

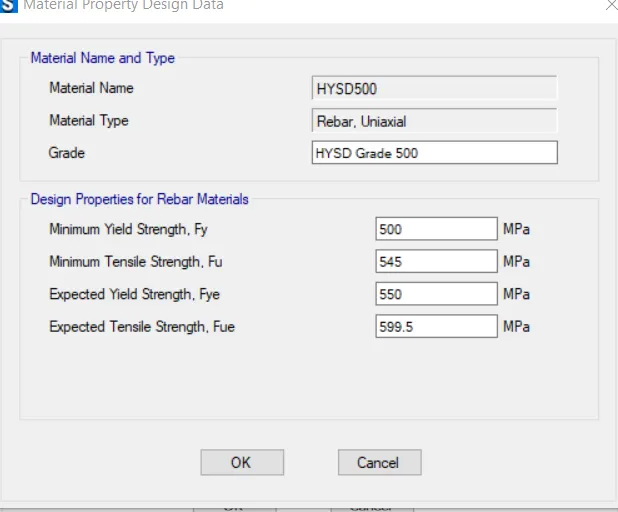

⦁ Define materials

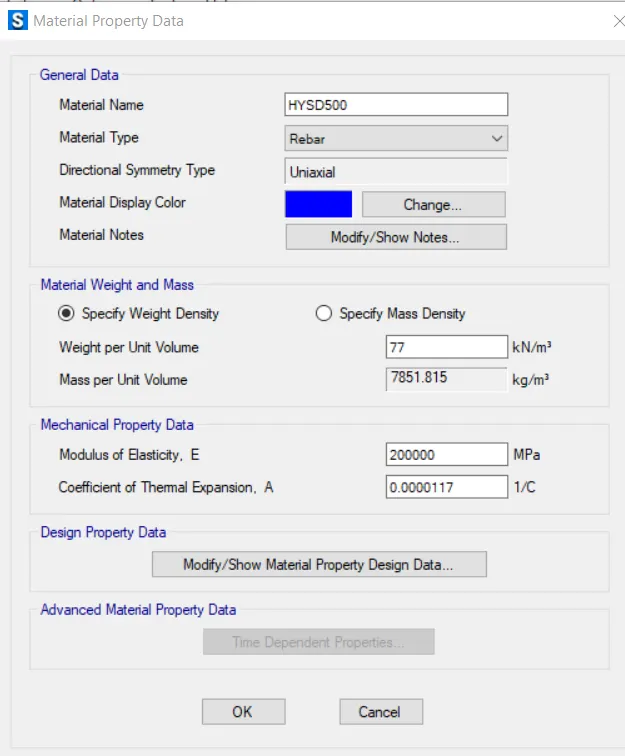

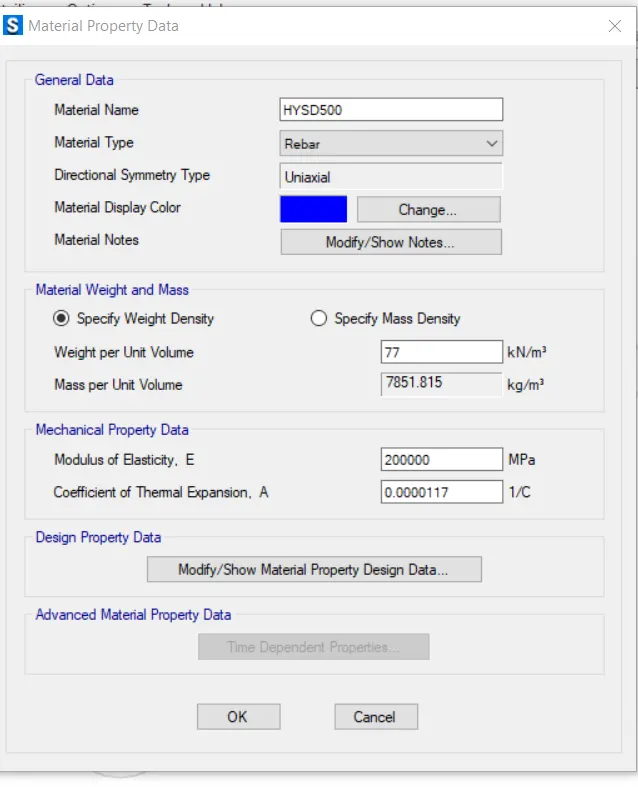

⦁ Material Property data:

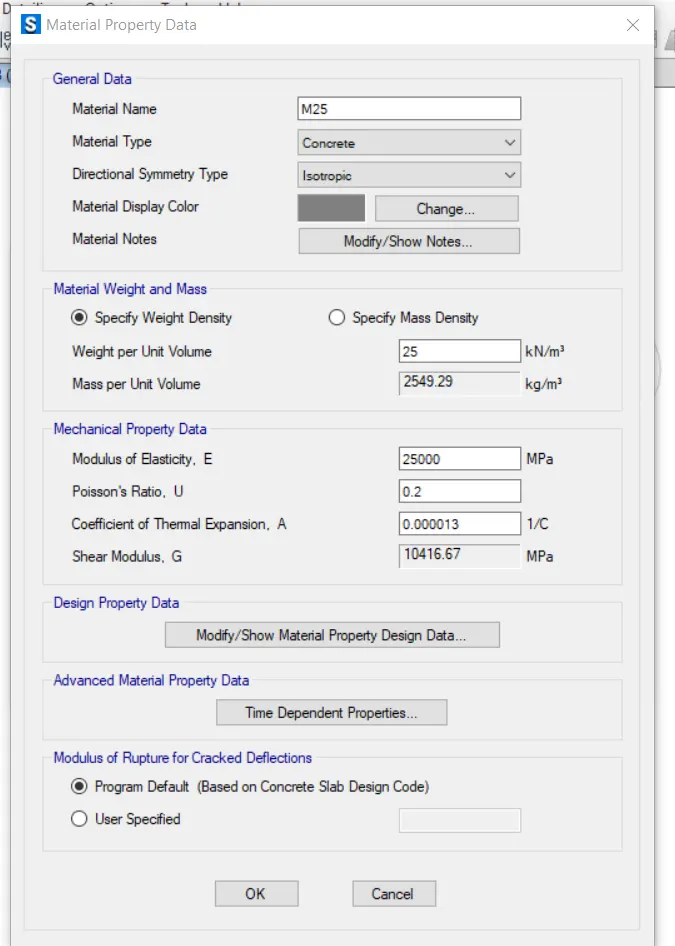

⦁ Click define followed by Material properties

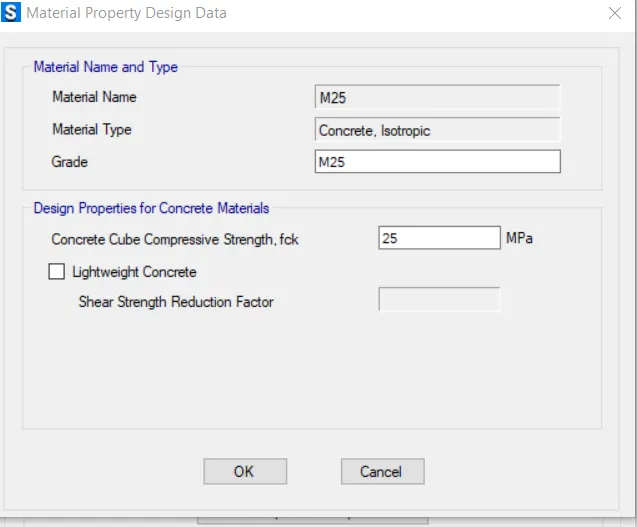

⦁ M25 grade of concrete
⦁ Modulus of elasticity,
⦁ E = √25 X 5000
= 25000N/mm²

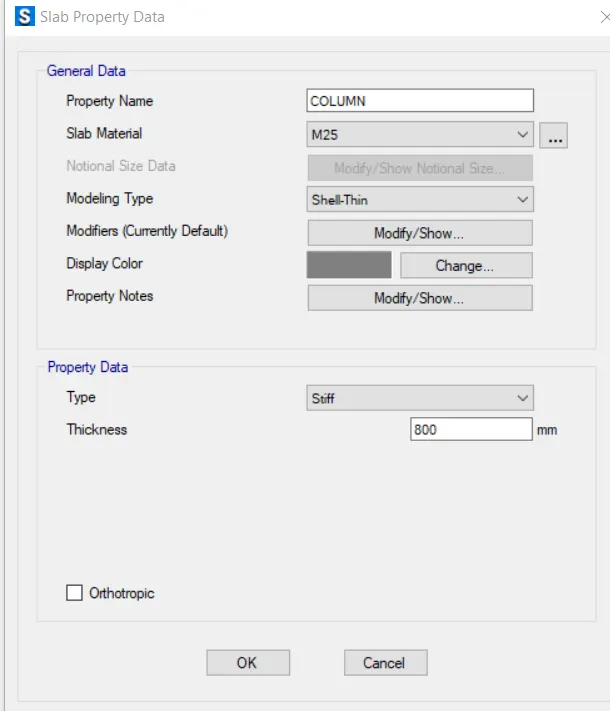

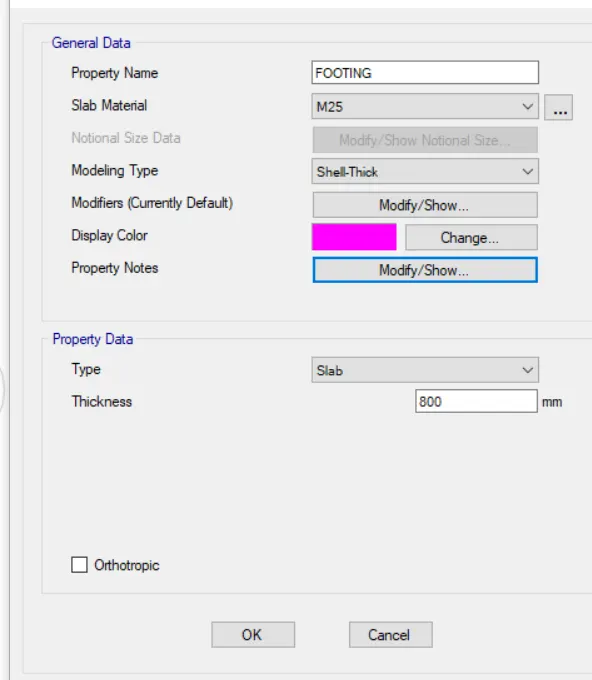

⦁ define properties for footing

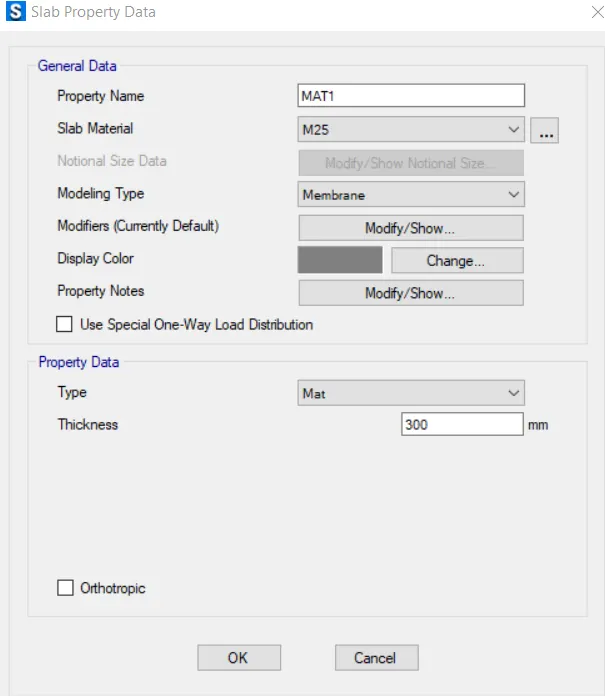

⦁ define properties for mat

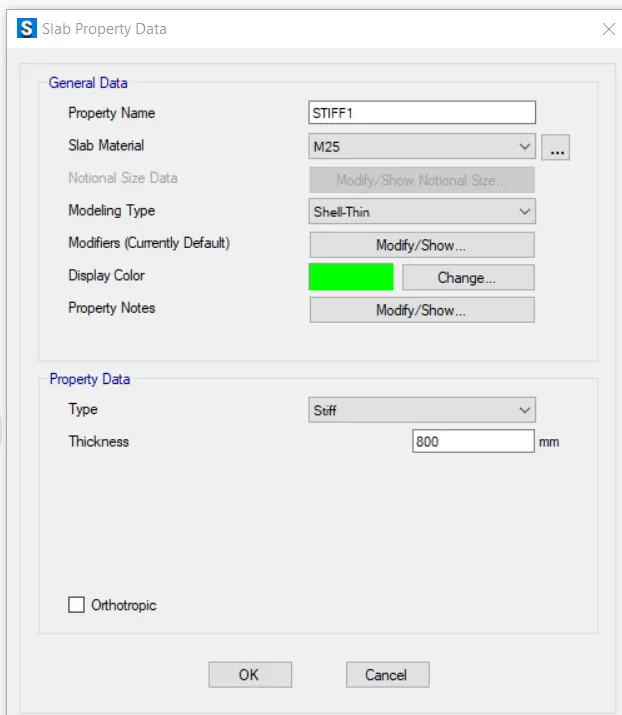

⦁ define properties for stiff 1

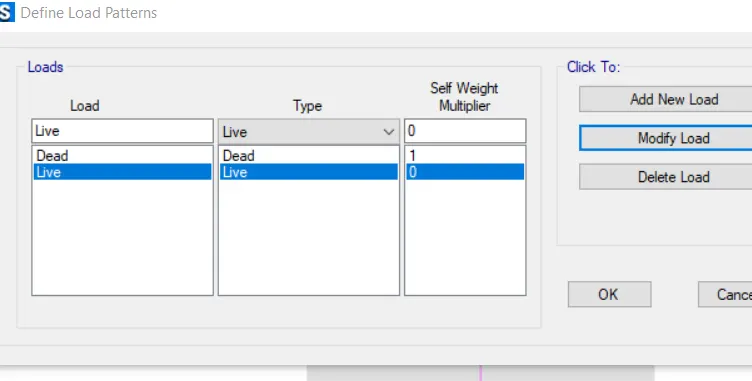

⦁ define load pattern and define subgrade modulus of soil

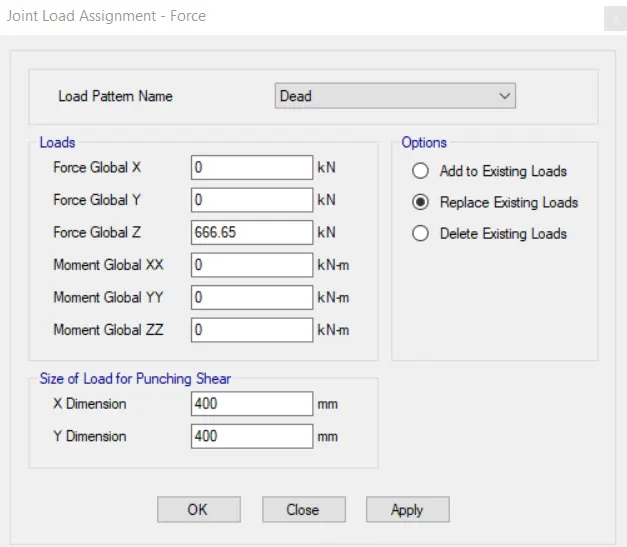

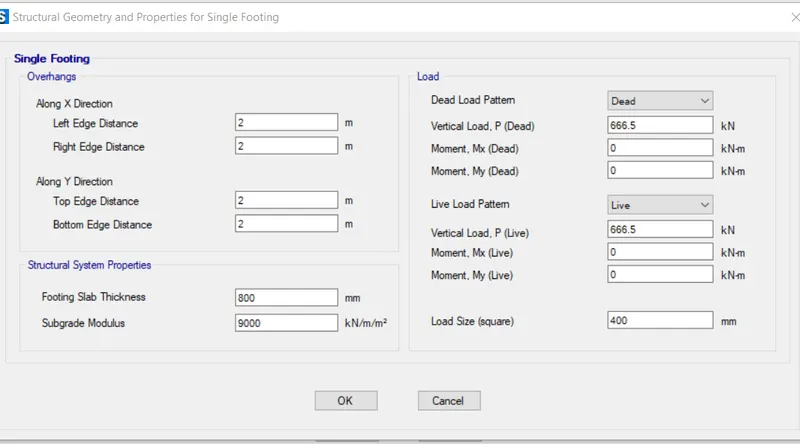

⦁ assign point load

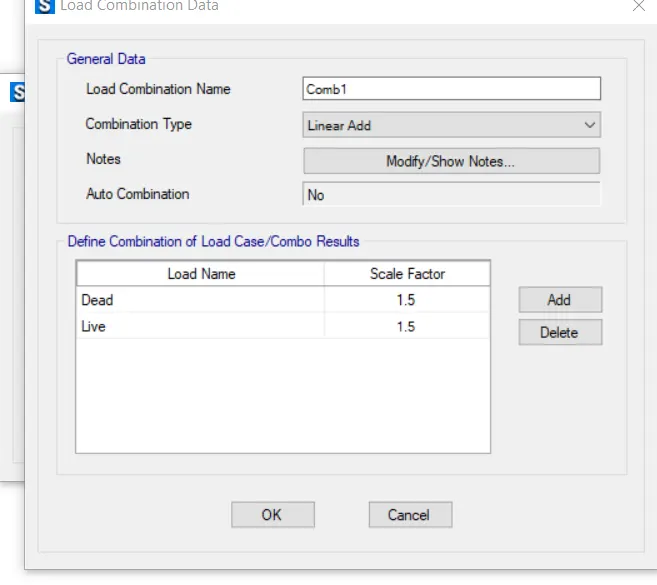

⦁ assign the load combination

⦁ Run the analysis.

RESULT:
⦁ Hence, the isolated footing was designed and analysed in safe.

2. AIM:
⦁ To model, analysis and design the pile footing on safe.

PROCEDURE:
⦁ GIVEN DATA:

⦁ select New Model

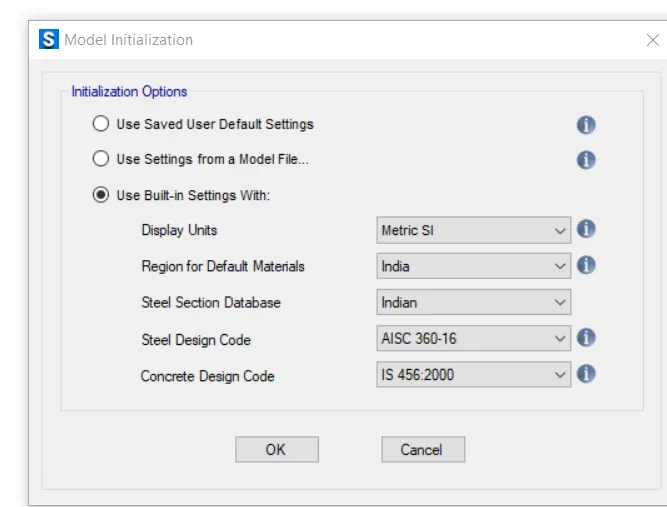

⦁ followed by Input Settings,
⦁ Units was selected as Metric and Code IS 456-2000.

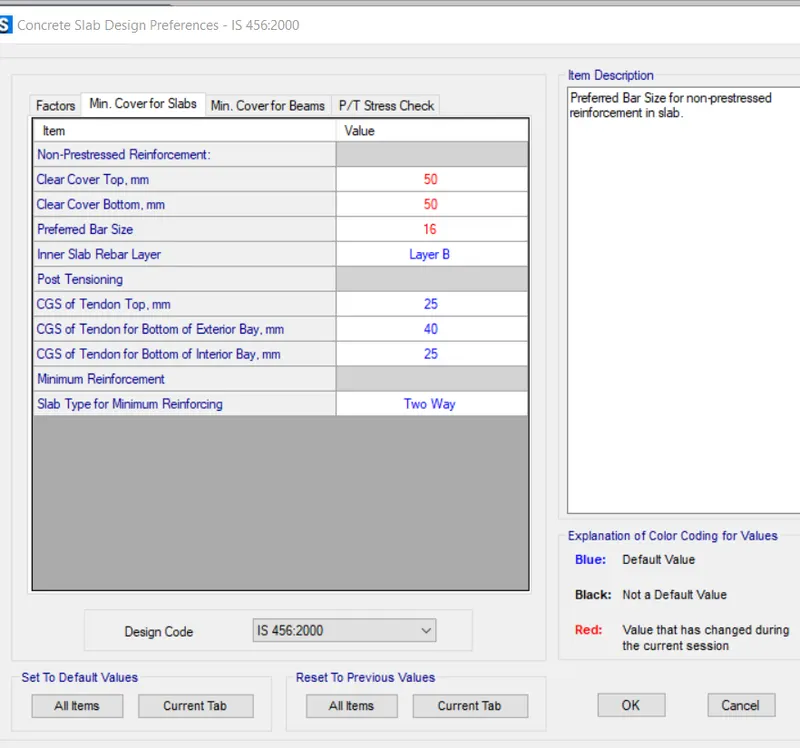

⦁ 50mm each was provided as cover at top and bottom and Bar size was defined as 16mm

Material Property data:

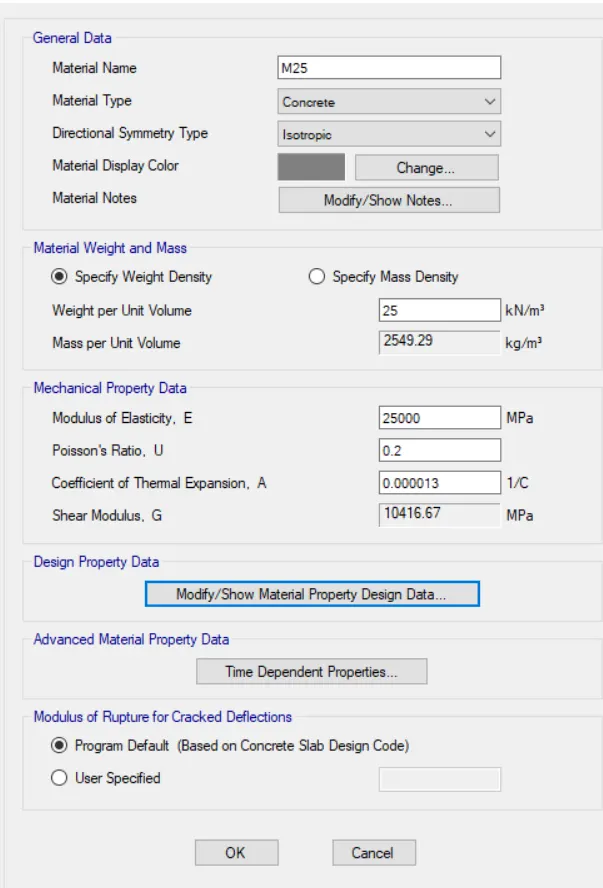

Click define followed by Material properties
M25 grade of concrete
Modulus of elasticity,
E = √25 X 5000
= 25000N/mm²

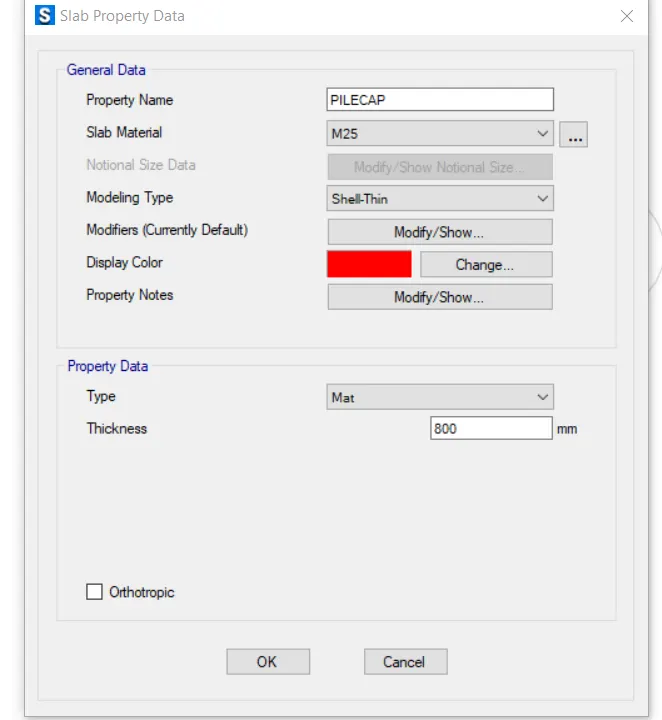

⦁ Define property of pile cap

⦁ define property of column

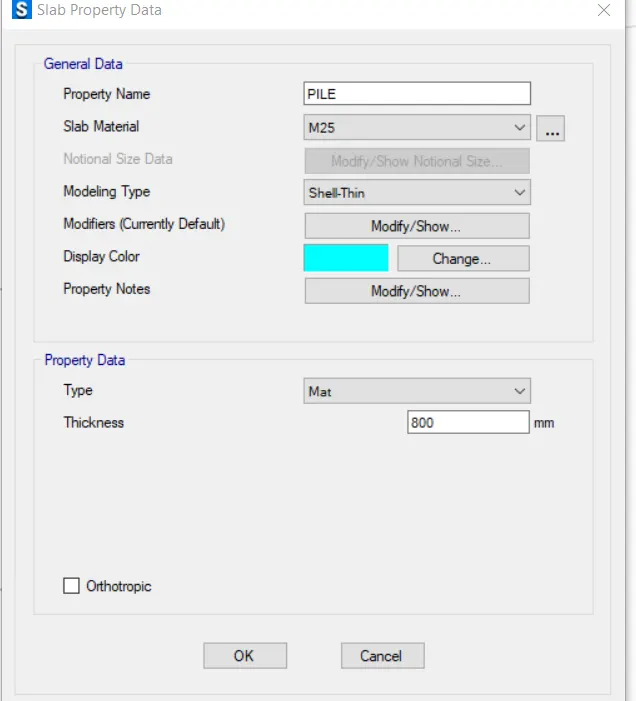

⦁ define the property of pile

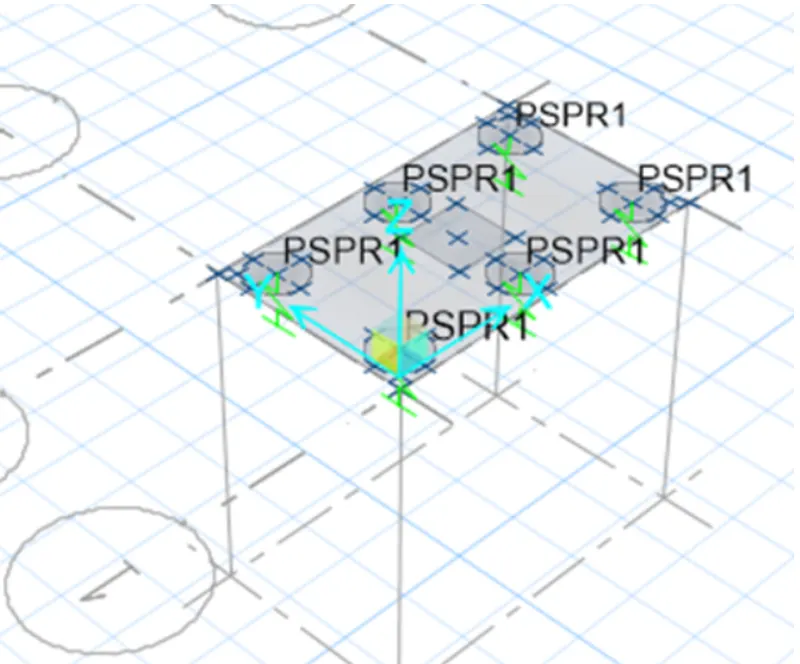

⦁ Draw the slab by using quick draw tool

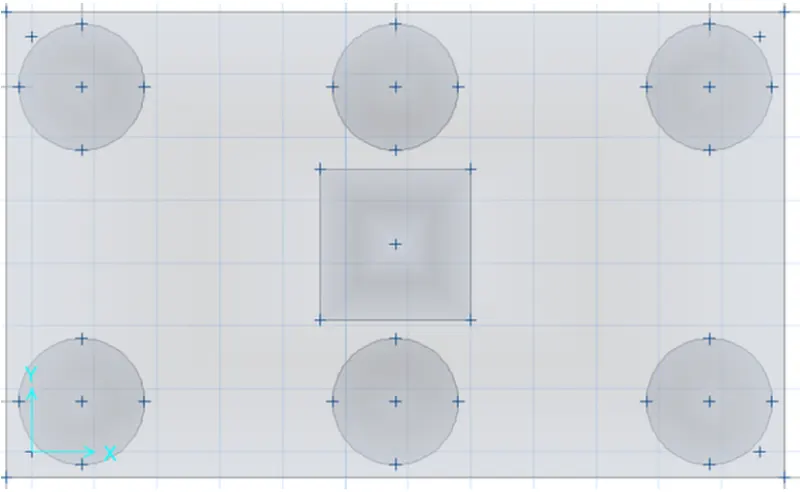

⦁ Add piles at the point
⦁ modify the edge distance to 0.3m
⦁ Create a column of 600mm x 600m
⦁ draw the column in center using quick draw tool

⦁ Springs were added
⦁ select pile< assign < point springs

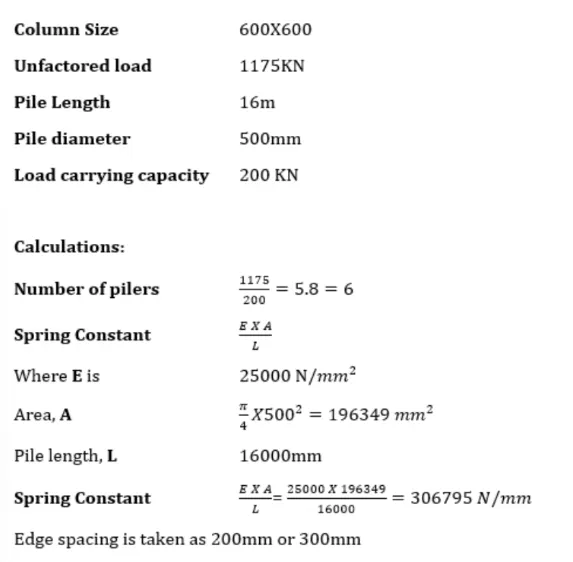

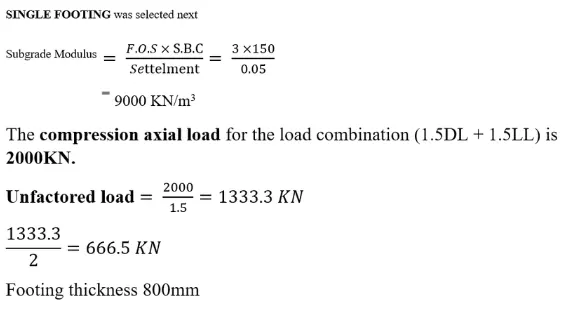

⦁ Springs constant is taken frome above calculation

⦁ Dead and live loads are added next
⦁ and after that defining the load combination with service load (normal) and with service load (ultimate).

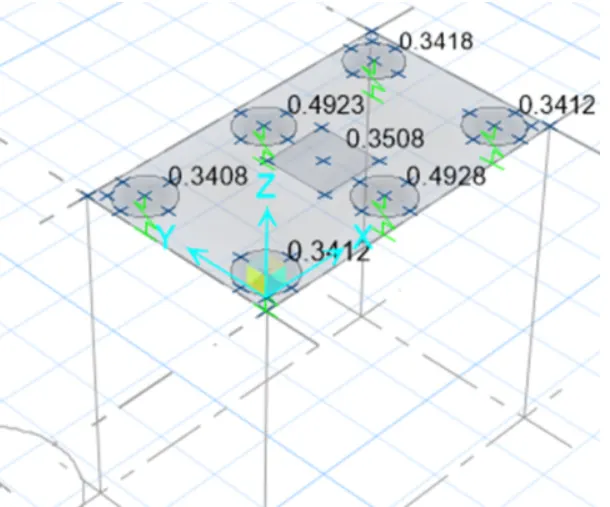

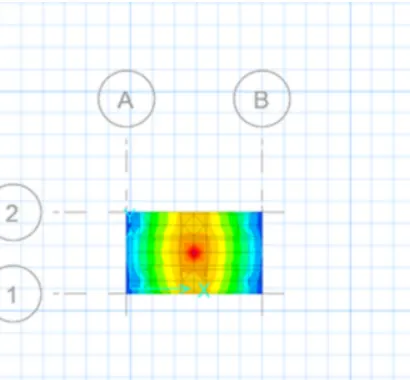

⦁ After the load combination run the analysis and display the max. displacement.

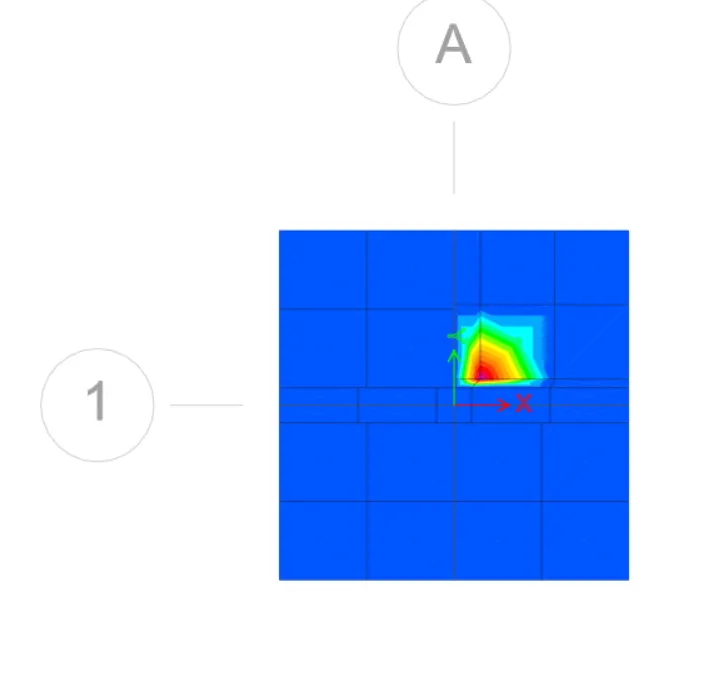

⦁ display the punching shear values and check it less than 1.

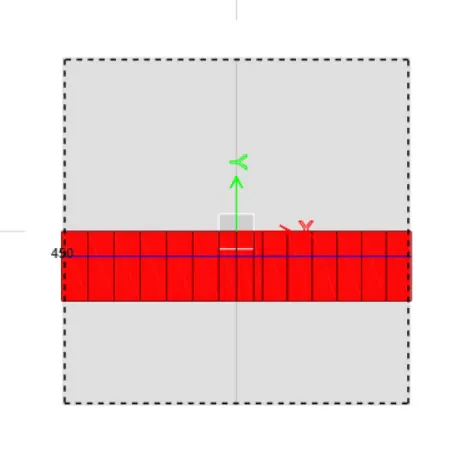

⦁ and display the reinforcement slab design.

RESULT:
⦁ The pile cap foundation is designed and analysed using the safe.
