Flow over airfoil (NACA0012)

Problem statement : Determine drag coefficient , lift coefficient ,coefficient of pressure(Cp) at angle of attack of 4 degrees .

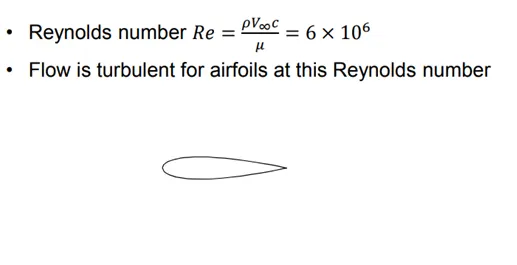

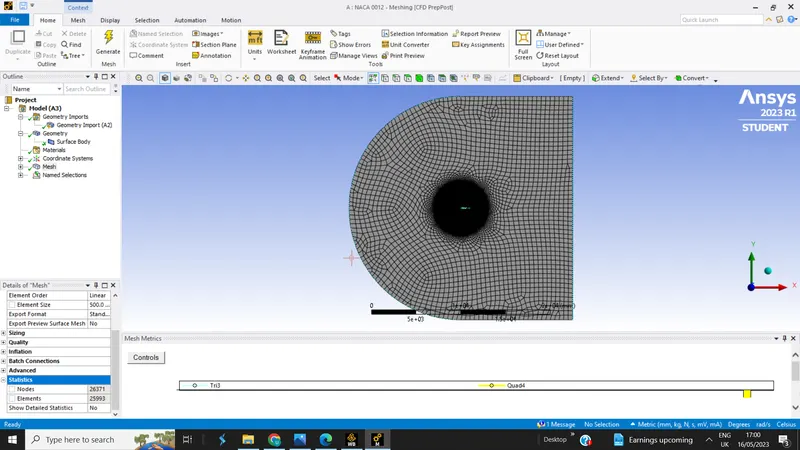

Mesh :

Nodes :26371

Elements : 25993

Results :

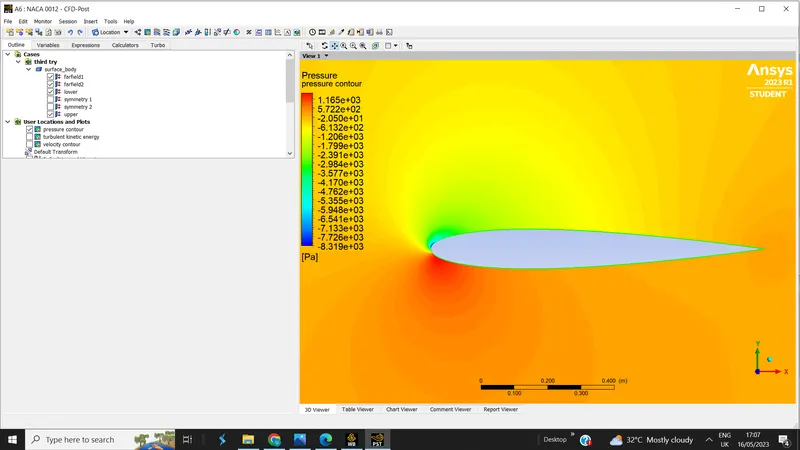

1. Pressure contours

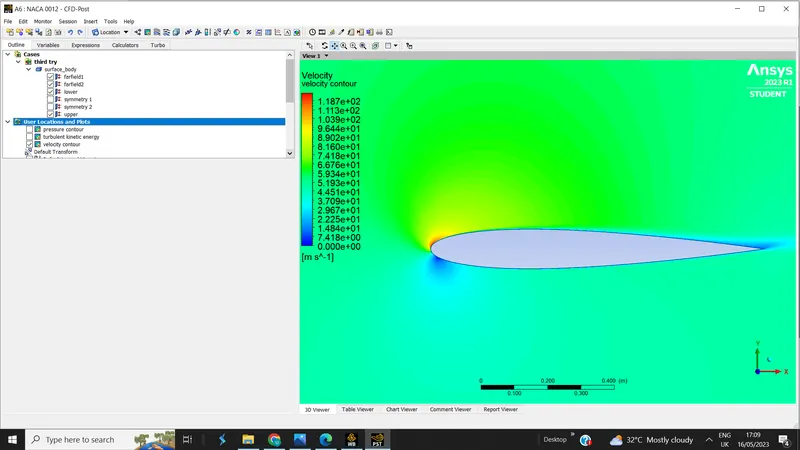

2. Velocity contours

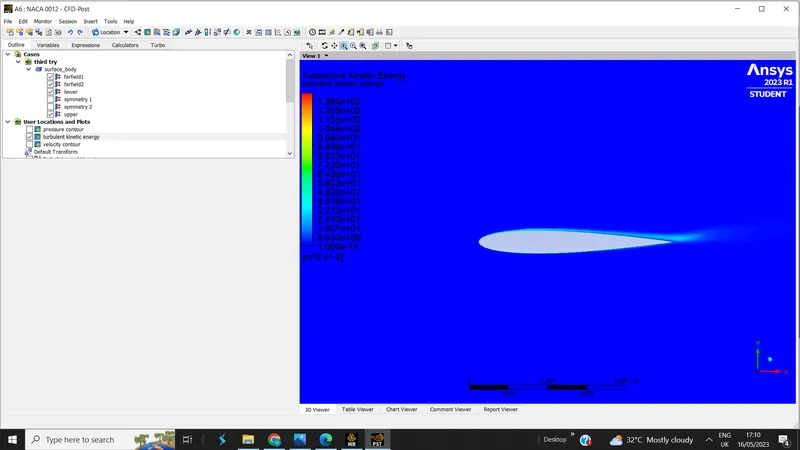

3. Turbulent kinetic energy :

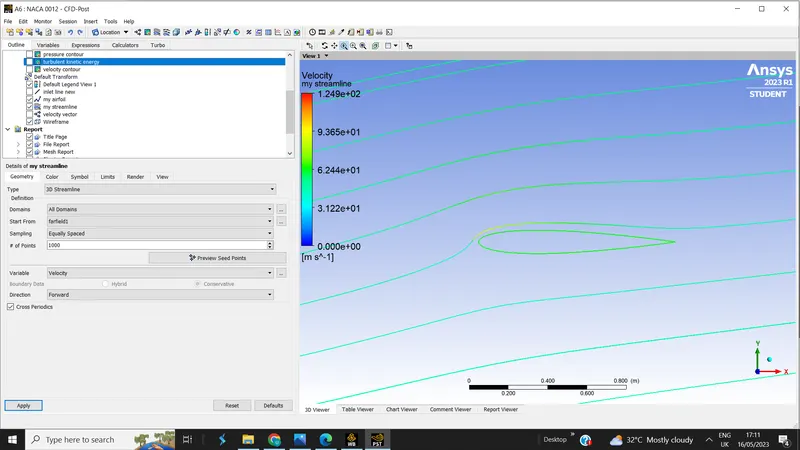

4. Velocity streamlines

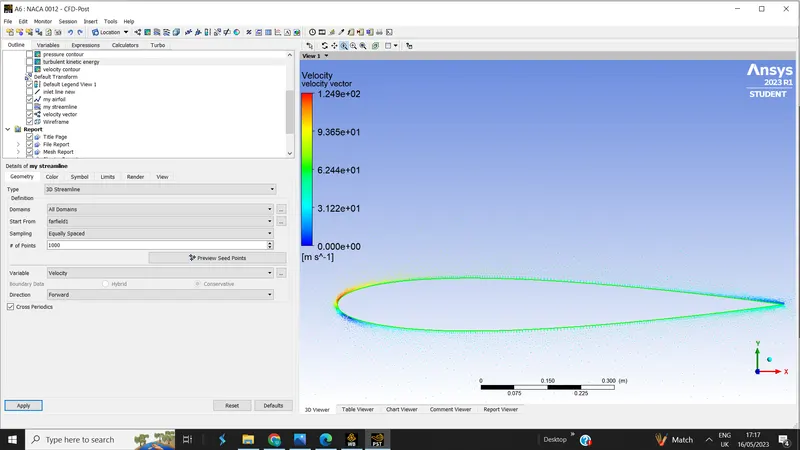

5. Velocity vectors
