Flow over a cylinder
Aim: To simulate transient flow over a cylinder for different Reynolds number
Theory:
Reynolds Number:

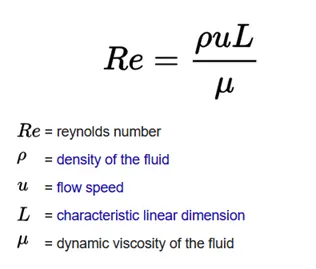

It is a ratio of inertial forces to the viscous forces within a fluid
Procedure:
- Firstly, I started by creating cylinder geometry with a diameter of 0.05m.

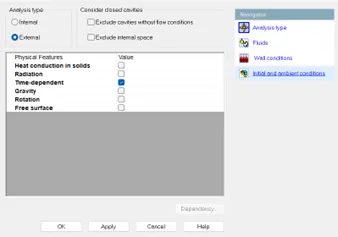

- Then I started the flow simulation and used the necessary options to simulate the external flow over the cylinder
- Since we need to simulate the transient flow i.e., the flow parameters change with time we need to use the time-dependent parameter to simulate this flow.
- Initially started the simulation with the initial velocity of 10m/s of flow over the cylinder. and in order to vary the Reynolds number, I varied the velocity with 12m/s and 20 m/s
Results:

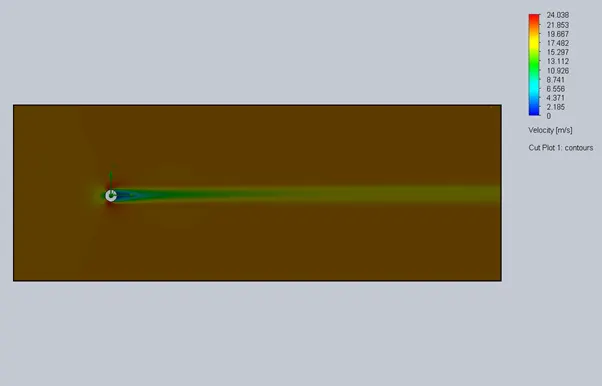

- Velocity with 10m/s

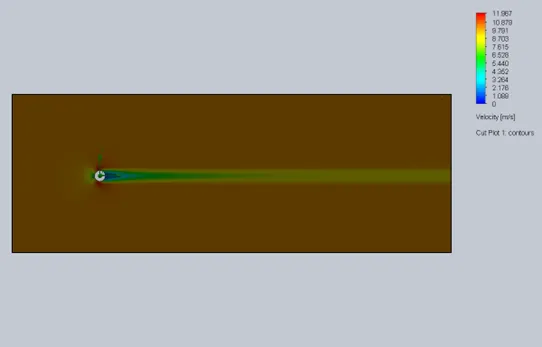

2. Velocity with 12m/s
3. Velocity of 20m/s
Animation of flow over a pipe:
https://drive.google.com/file/d/1X_XNG6PiOdurqFWEB5bRSGaOrqf_rVvX/view?usp=sharing
