FINAL INDEPENDENT PROJECT

FINAL INDEPENDENT PROJECT

Project Name :- Automatic Certificate Generation using Matlab

Program : -

% Automatic certificate Generator
close all
clear all
clc

filename = 'Registration_detail.xlsx';
[num,txt] = xlsread(filename);
% Read Excel sheet containing details. Text is read from the file
% seperately from numbers


len=length(txt);
% obtain length of text in excel or number of certificates to be generated
% This code provides scalability

blankimage = imread('Certificate_Blank.tif');
% Read blank certificate image

for i=1:len
    for j= 2:2
        text_names(i,j)=txt(i,j);
    end
end
% Obtain names from the txt variable which are in 2nd column

for i=1:len
    for j= 3:3
        text_topic(i,j)=txt(i,j);
    end
end
% Obtain topics from the txt variable which are in 3rd column


%Ignore first row which is heading
for i=2:len
        text_all=[text_names(i,2) text_topic(i,3)];
        % combine names and topics

        position = [100 258;120 416];
        % obtain positions to insert on image, MSPaint or any image editor

        RGB = insertText(blankimage,position,text_all,'FontSize',22,'BoxOpacity',0);
        %Provide parameters for function insertText
        %Font size is 22 and opacity of box is 0 means 100% transparent

        figure
        imshow(RGB)
        %Obtain and display figure in color

        y=i-1;
        filename=['Certificate_Topic_' num2str(y)];
        lastf=[filename '.tif'];
        saveas(gcf,lastf)
        % generate and save files with .tif extension
end

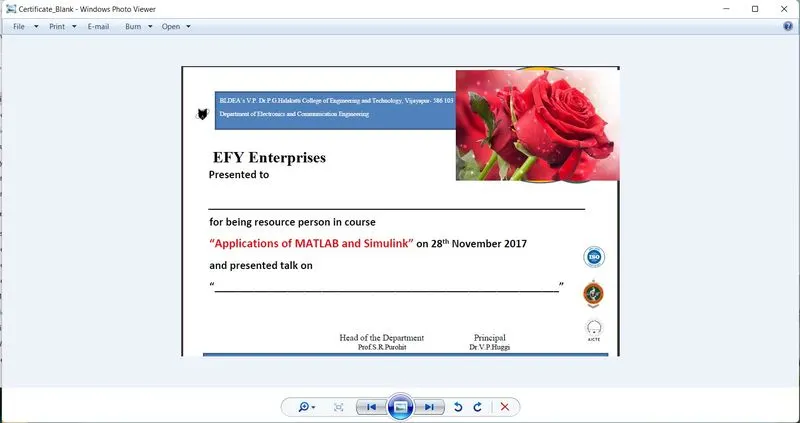

Blank cerificate :

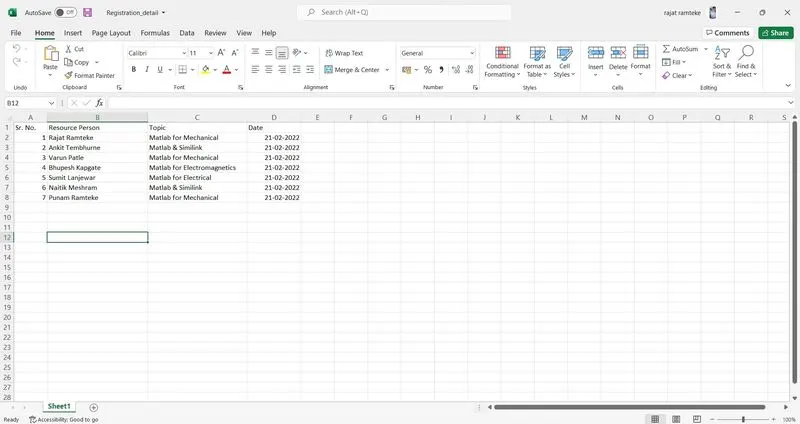

Xl File :-

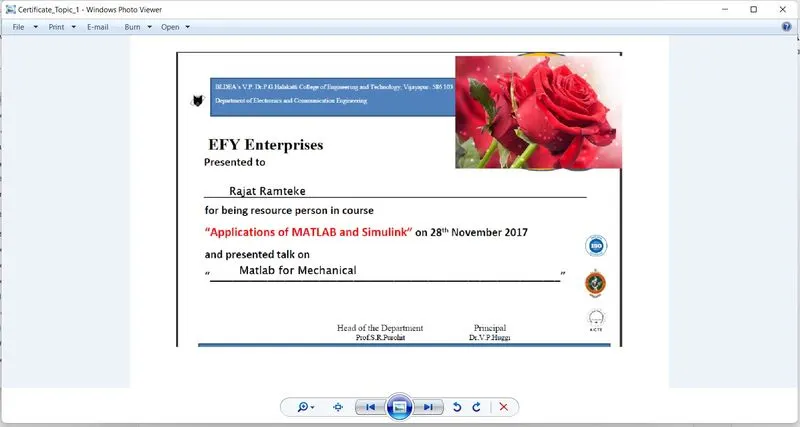

Result :-

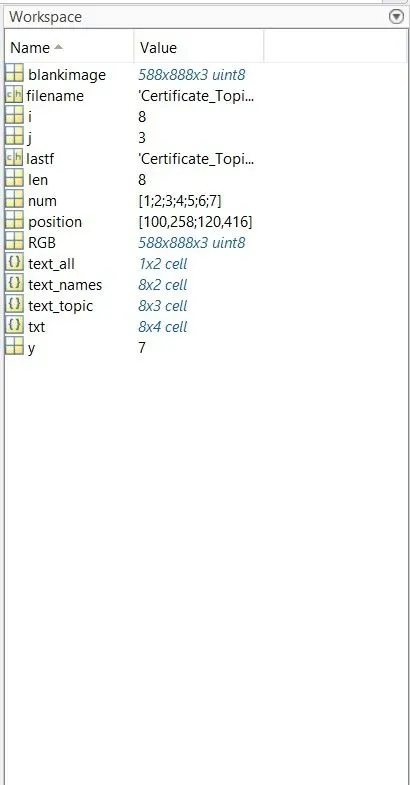

Workspace :-
