Aim:

• To determine whether the given fender's wheel arch area will meet the requirements of the European Standards.

Procedure:

• The design wheel arc and fender must satisfy the wheel guard requirement in accordance with European standards in order to move on.

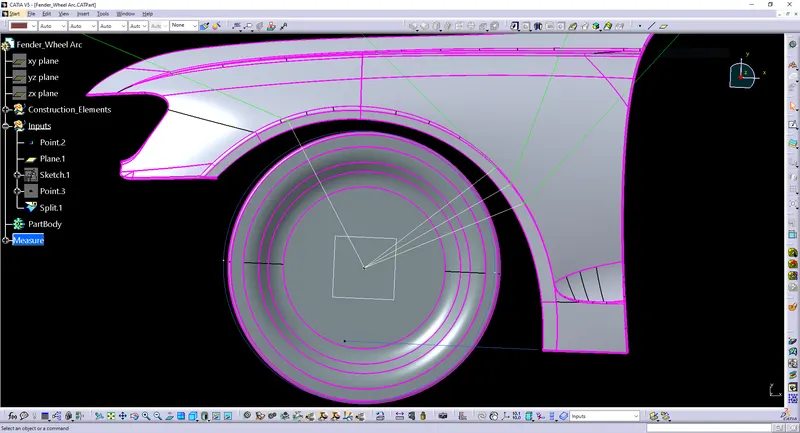

• The provided igs_File is initially changed into a (Cat. Part).
• Make a plane with the origin at the wheel plane's center.
• Create a line drawing using the measurements SA, SB, SC, SD, and SE.
• The junction of the project after sketching points to the fender

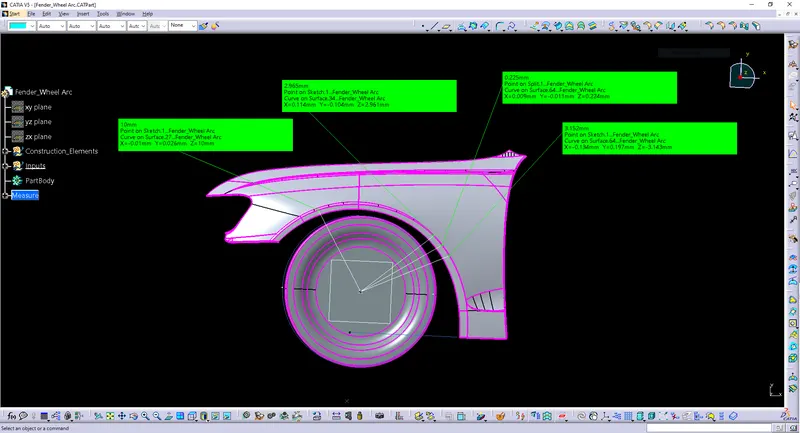

• The clearance between drawing lines and the wheel arch can then be calculated using the measure distance tool.

Wheel Arch:

• The semicircular portion above a car's wheel is called the wheel arch.
• The front wheel arch was raised into the fender, which was the most significant body modification.
• Around the splash plate at the rear of the wheel arch, corrosion had taken place.

Japan Standards Regulation For Fender Wheel Arc Design:

Japan Regulations:

• The minimum distance between the wheel and the fender required by Japanese standards is 5mm.
• The wheel should be 5 mm away from the arch in the aforementioned image, but in some places, it falls short.

USA Standards Regulation For Fender Wheel Arch Design:

 USA Regulation:

• The American Standard stipulates that the fender must be at least 10mm away from the outside surface of the wheel at points every 10 degrees between -20 degrees and 180 degrees from the center of the wheel.

European Standards Regulation For Fender Wheel Arch Design:

European Regulation:

• Measure CL L at sections SA, SA, SB, SC, SD, SE, and SE, then create a CL check chart to validate.
• To comply with the European Regulation on Wheel Guards, the CL L value at each of the five sections must be larger than 10mm
• The value of a must be greater than 5mm at a line 30 degrees in front of and 50 degrees behind the center vertical axis of the wheel.

Fenders:

• An enclosure made of metal or plastic that covers the wheels of a car or other vehicle to prevent mud splashes and other debris.
• Over the car's wheels is where the fender is situated. As a result, a normal car has four fenders: the front right, front left, rear right, and rear left.

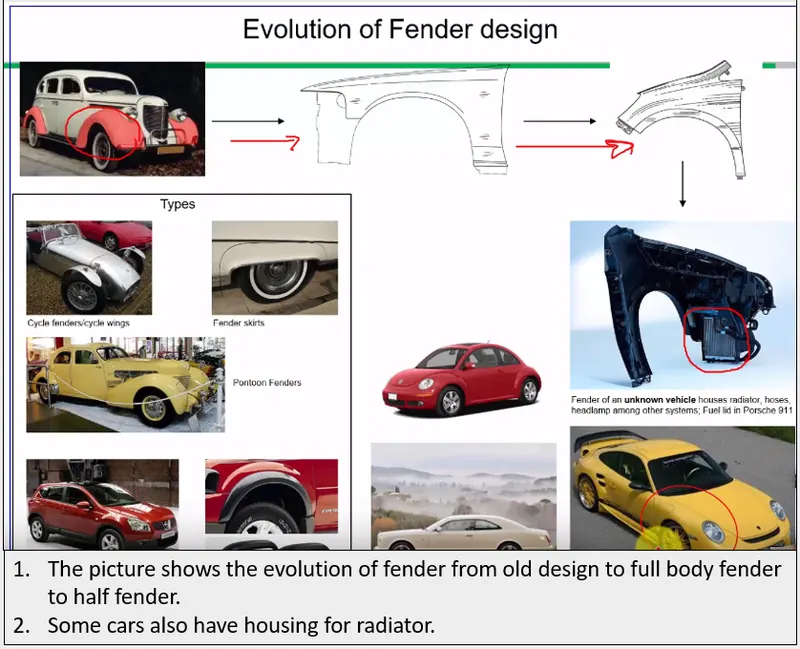

Types Of Fenders:

Design Instruction:

Conclusion:

• According to the obtained data, the fender does not comply with European rules since it does not have the required 10mm distance between the wheel and the wheel arch for vehicle and pedestrian safety.
