Fender Design - Wheel Arch Challenge

FENDER DESIGN:

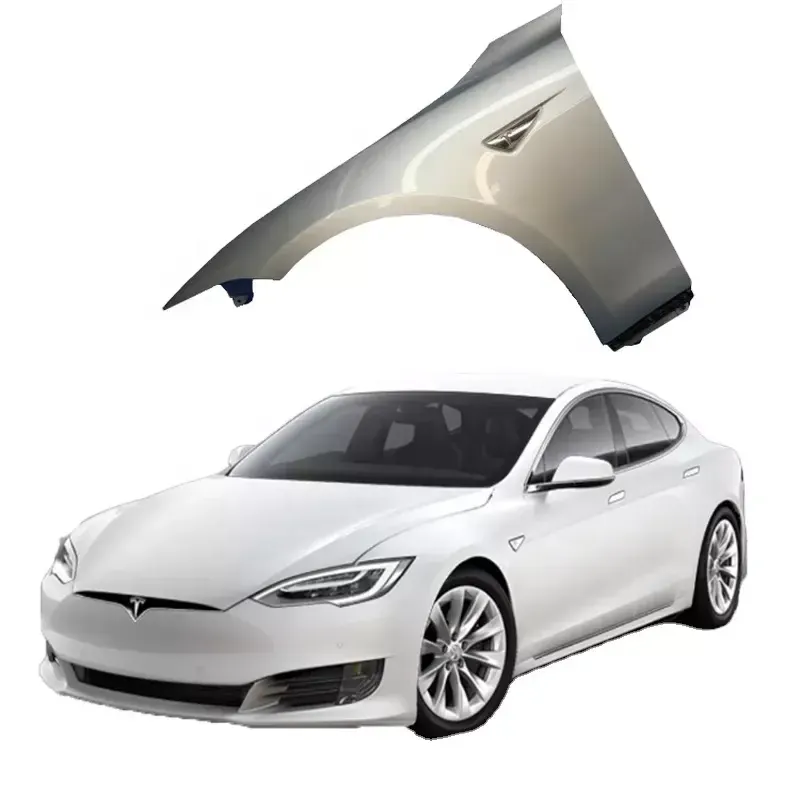

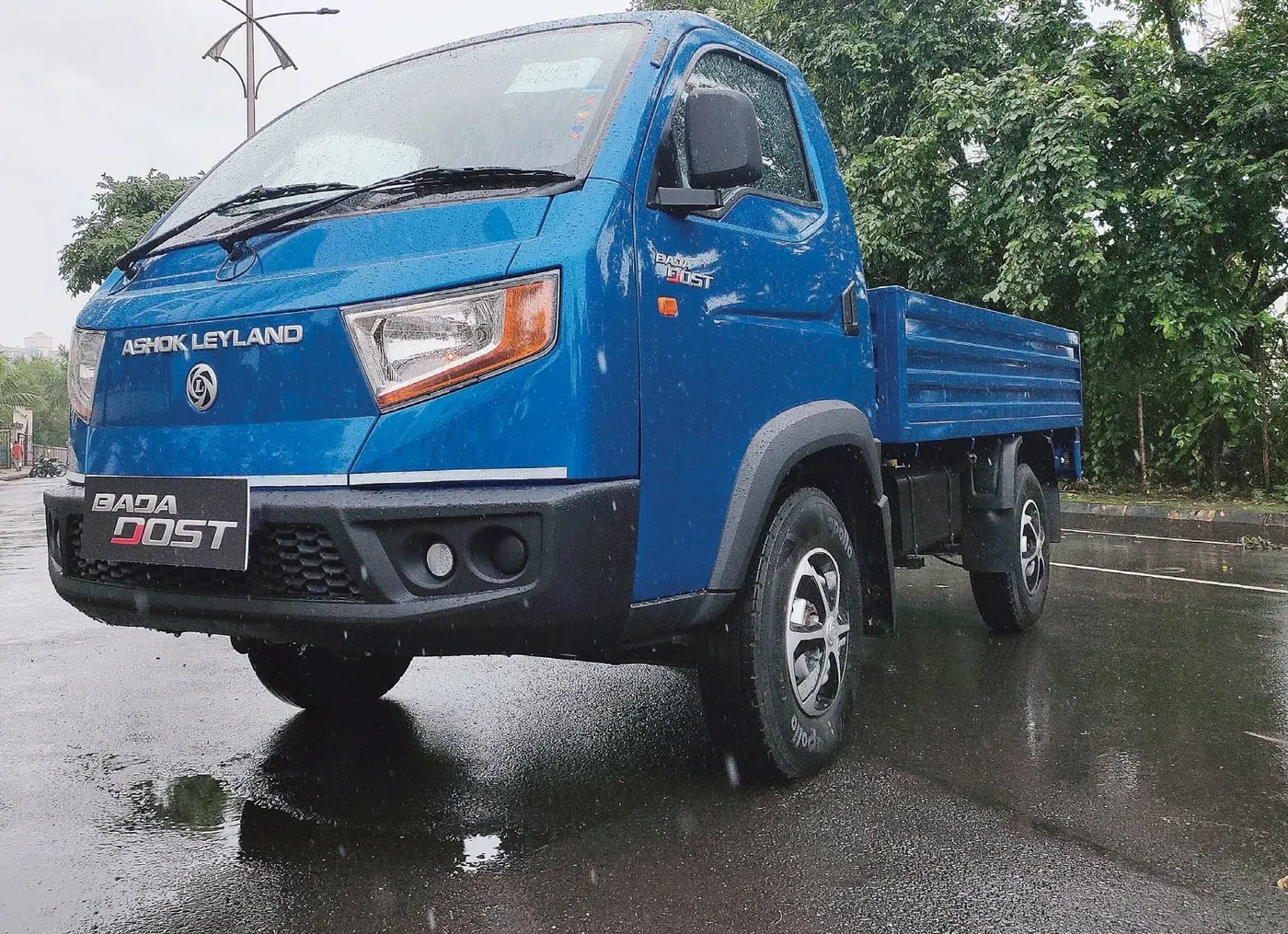

Generally, Fender is a BIW part provided over the Tyres of Passenger Cars and Commercial Vehicles to stop dirt from the tires, which could harm pedestrians aside from the road or the vehicle itself.

Types of Fender Design:

• Full Bumper Type. Used in the Early days, but Not Mostly used now.
• Half Bumper type. Mostly used nowadays as they reduce the Scrap Sheet metal cost during Blanking.

REGULATIONS:

Different Countries and Regions have come up with their own Fender Regulations according to their Road Conditions.

For Example,

1. A Japanese Fender Regulation will state that the fender should be extended at least 5mm from the tire's side wall at the top of the wheel.

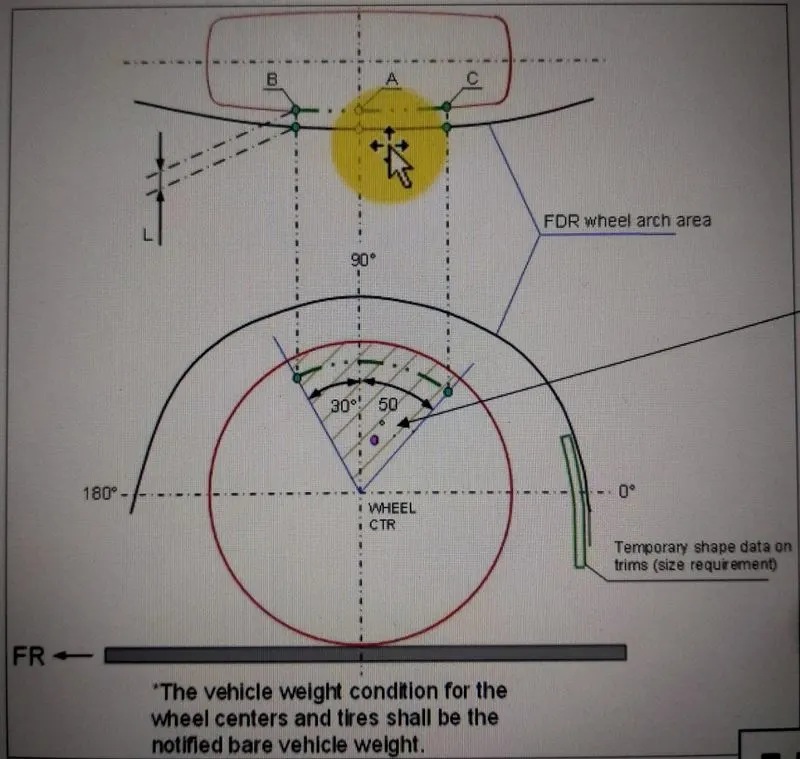

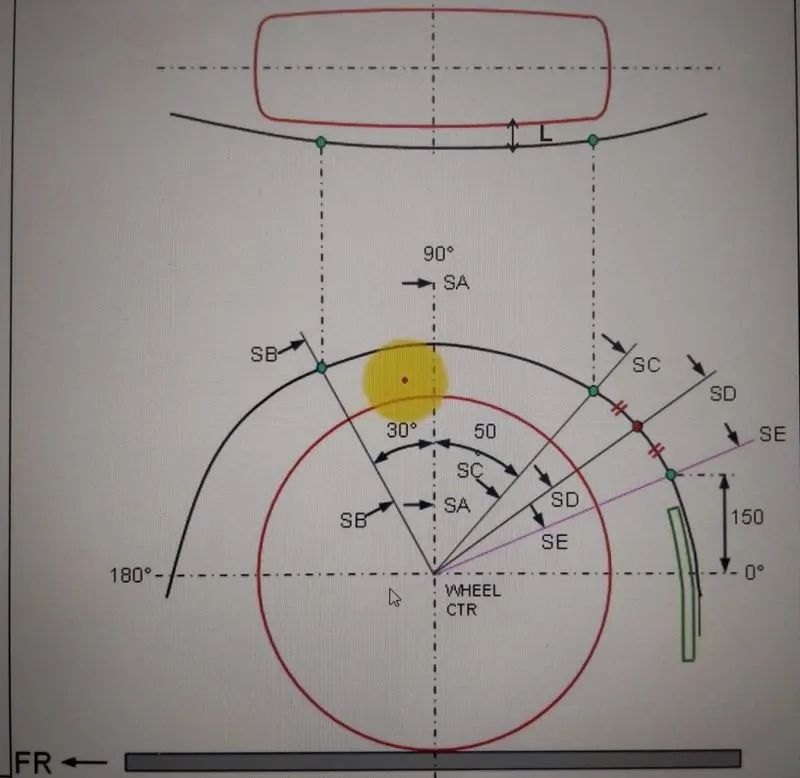

2. European Standard:

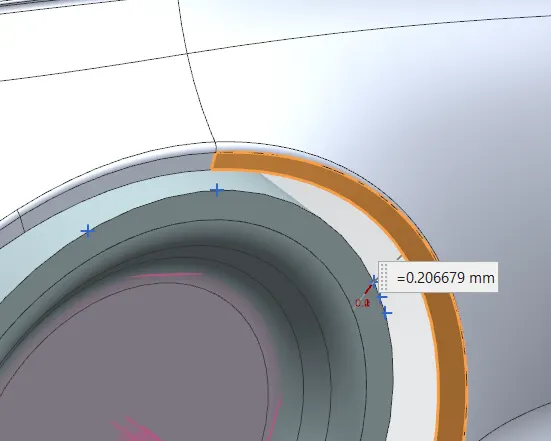

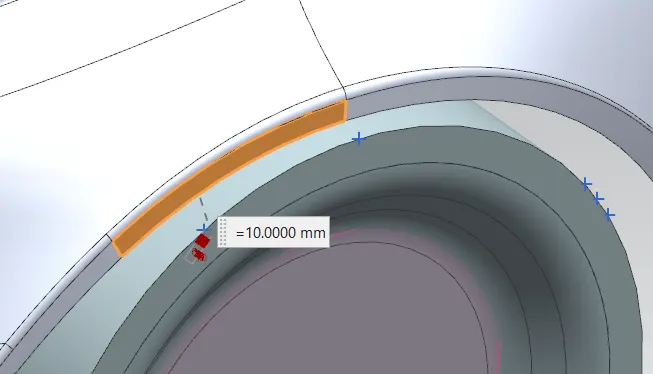

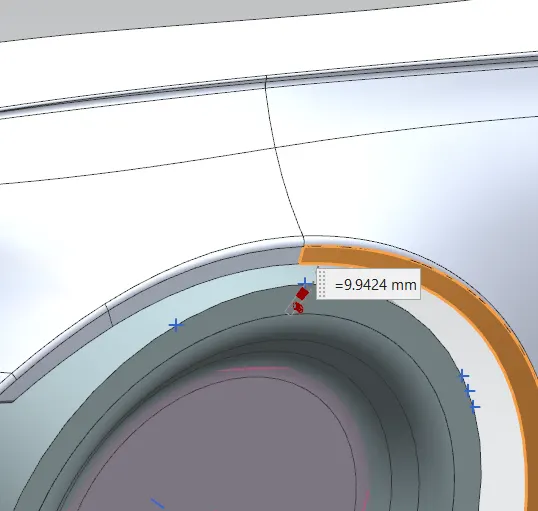

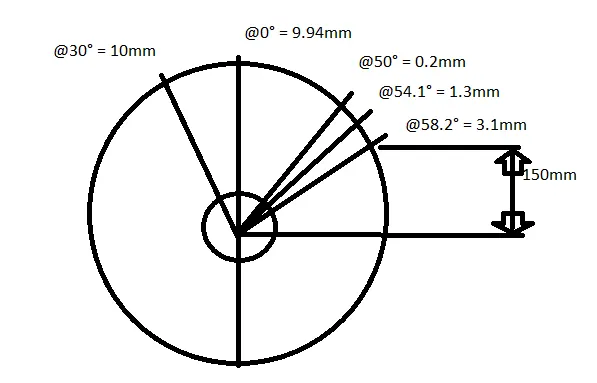

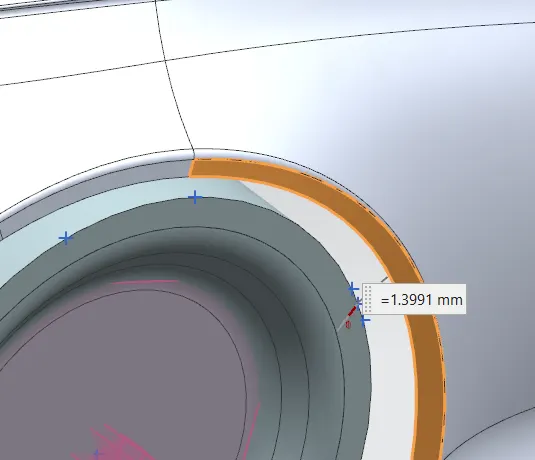

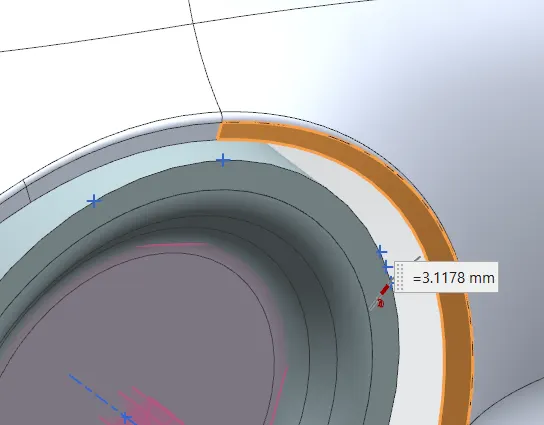

Measurement Details:

The Fender is not within the European Standards (See Below chart)
