Fender Design - Wheel Arch Challenge

FENDER WHEEL ARCH

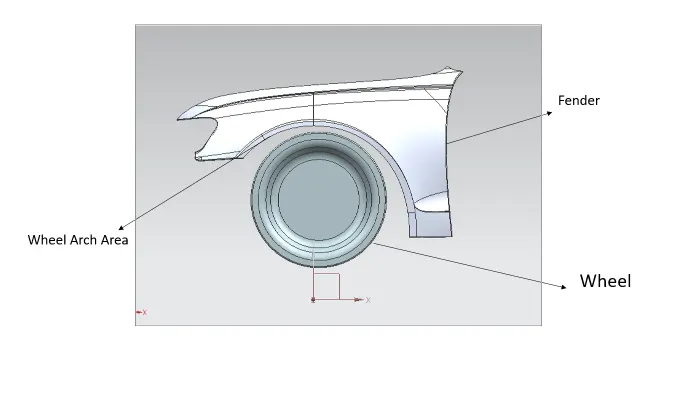

Wheel Arch is the semi-circular part of the fender positioned above the wheel of the vehicle. The design of the wheel arch of the fender should be such that it must shield wheels and protect both passengers compartment and pedestarians from the projection of watr, mud and stones.The wheel arch area of the fender is usually designed as a cover or shield over the tyre along its perimeter to stop any debris or stones ,dirt,sand,snow,etc,from getting thrown into the vehicle or the BIW area as well as outside the vehicle and onto other vehicles or pedestarians on the road.For the vehicle to has its permit in different countries,the wheel arch of fenders must be compliant with the standards and regulations set by respective countries.

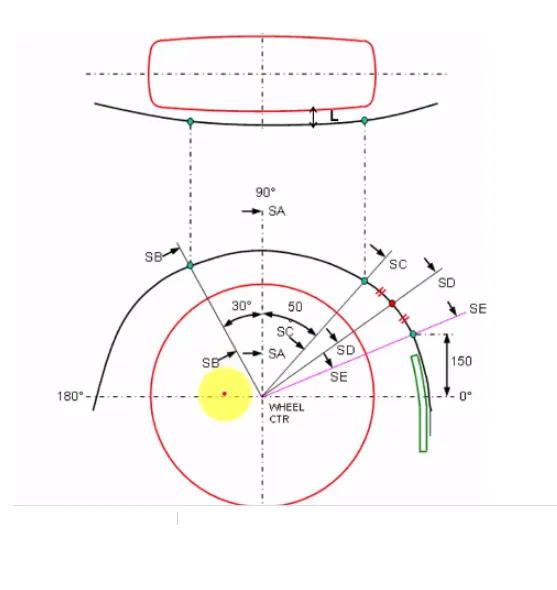

The European regulations requires a pre-determined clearance or a minimum distance of 10mm to be maintained between the fender and respective tyre at particular points, along the tyre profile as shown below:

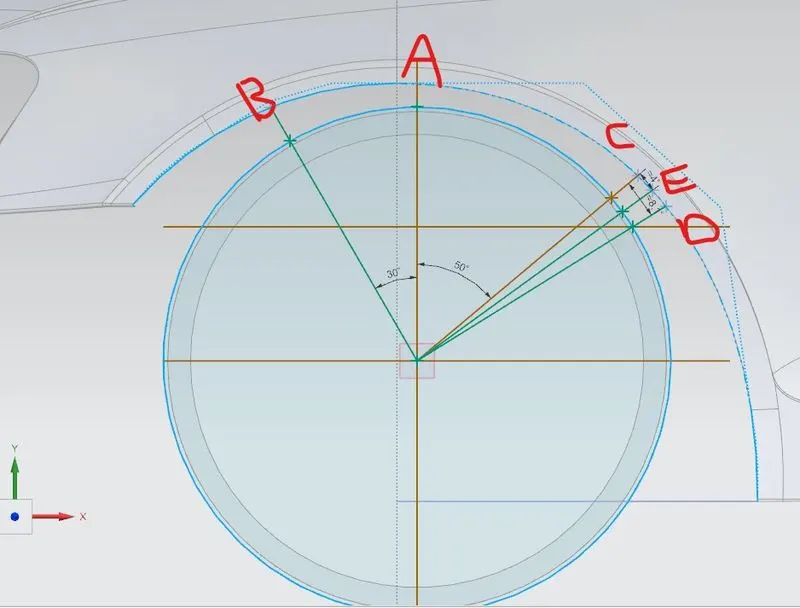

STEPS FOLLOWED IN CREATING THE SKETCH REQUIREMENT FOR EUROPEAN STANDARDS

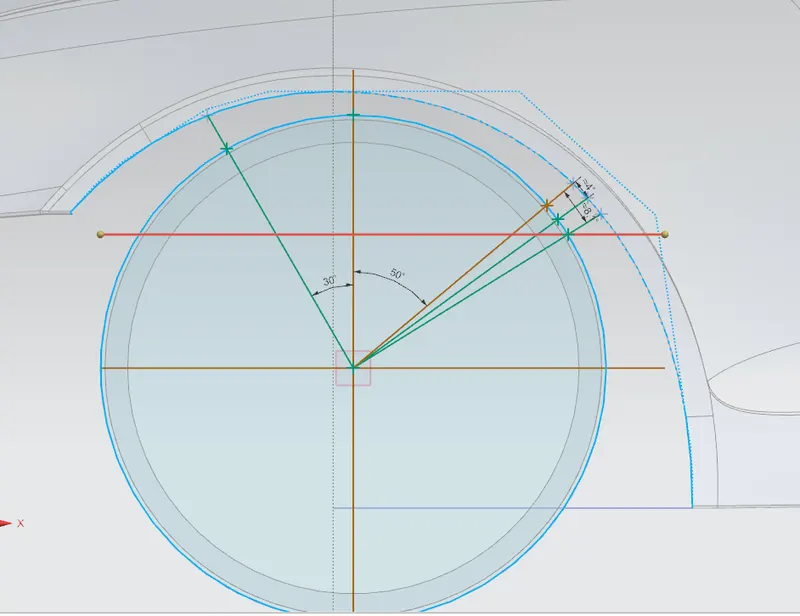

1. A Horizontal and vertical axis is drawn from the centre of the wheel.
2. The vertical axis intersection point is labelled as A.
3. Similar references are drawn at 30 degrees to left and 50 degree to the right and named it as B and C respectively.
4. A line of 150mm is drawn perpendicular to the horizontal axis and normal from the normal point on fender which gives point E.
5. The midpoint of the arc cut by the sections C and E results in a new section D.

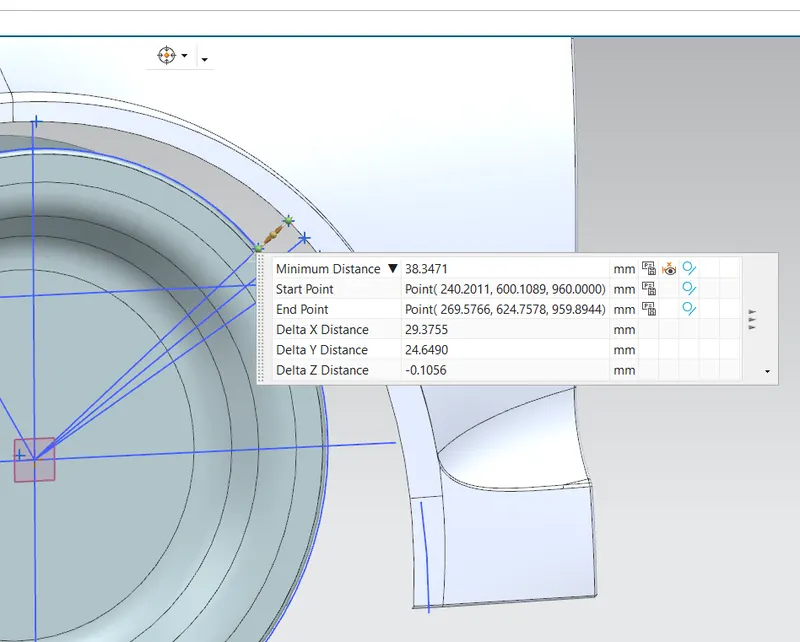

6. The value of 'L' at each section and the value of 'a 'are found out to detrmine whether the fender satisfies the european standards

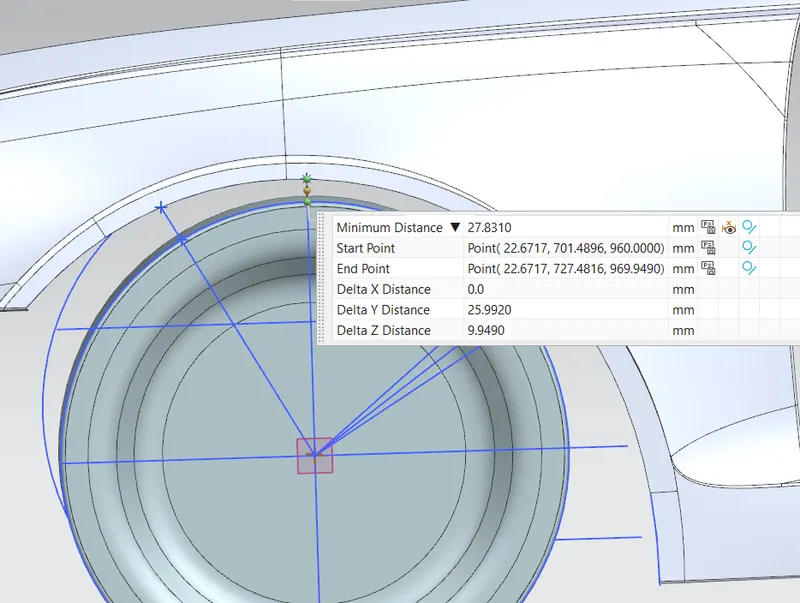

VALUE OF L AT A SECTION = 9

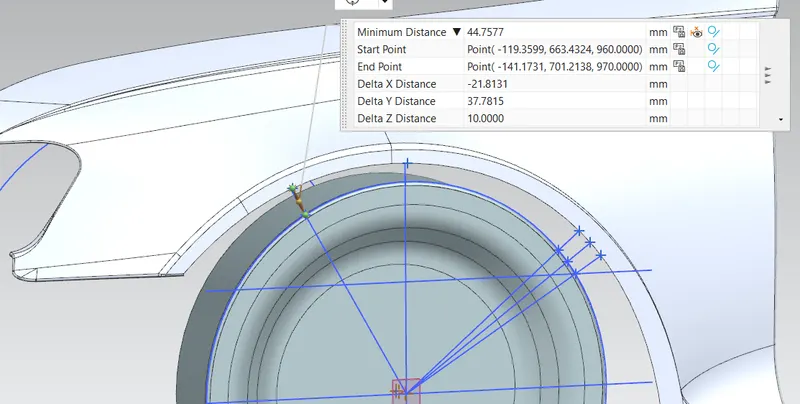

VALUE OF L AT B SECTION =10

VALUE OF L AT C SECTION =-0.10

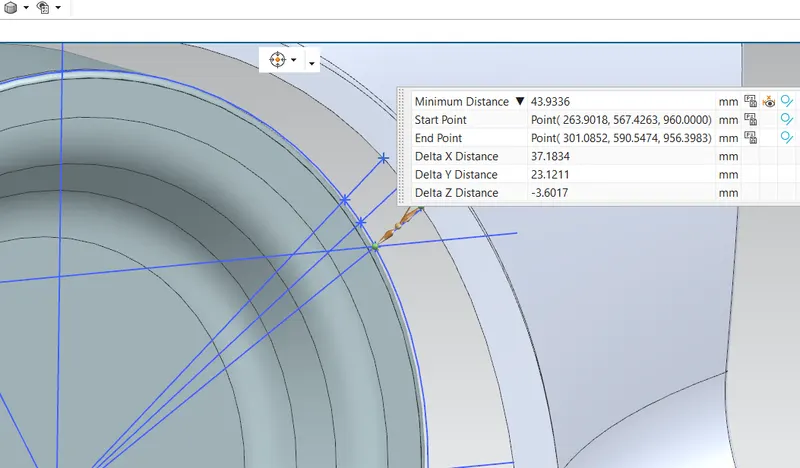

VALUE OF L AT D SECTION

=-3.60

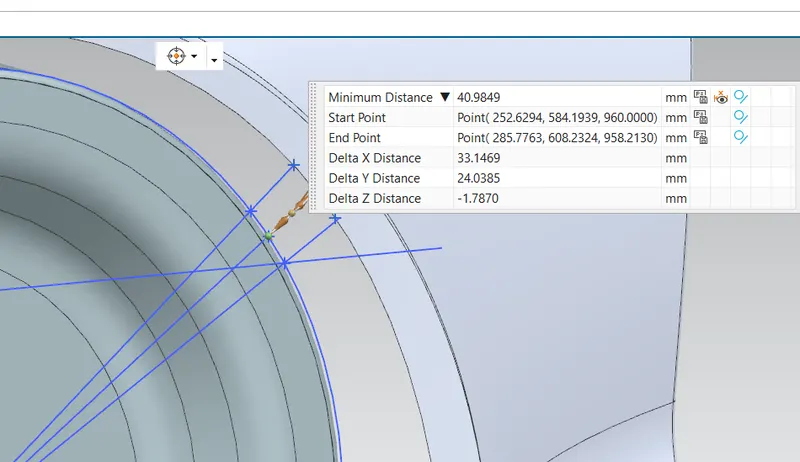

VALUE OF L AT E SECTION

=-1.7

1.THE VALUES AT C,D AND E SECTIONS ARE NEGATIVE VALUES.

2.NEEDED AT LEAST VALUE OF 10 MM

CONCLUSION

THE FENDER FAILS AS THE VALUES DOES NOT LIE IN BETWEEN THE VALUES OF THE EUROPEAN STANDARD.
