Week 8 - Challenge 2 - Switch Bezel Design

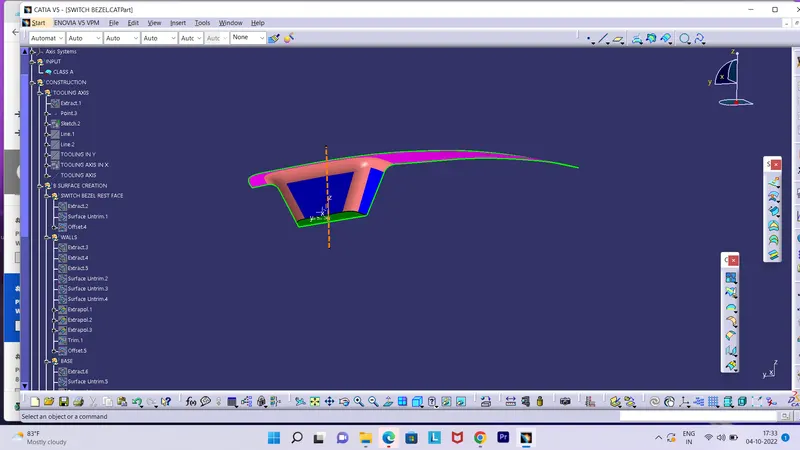

CREATION OF TOOLING AXIS BY AXIS CREATION AND TOOLING DIRCTION OF X DIR AND ANOTHER TOOLING DIRECTION Y

DIRECTION AND AFTER ITS BISECT AND MAKE TOOLING DIECTION

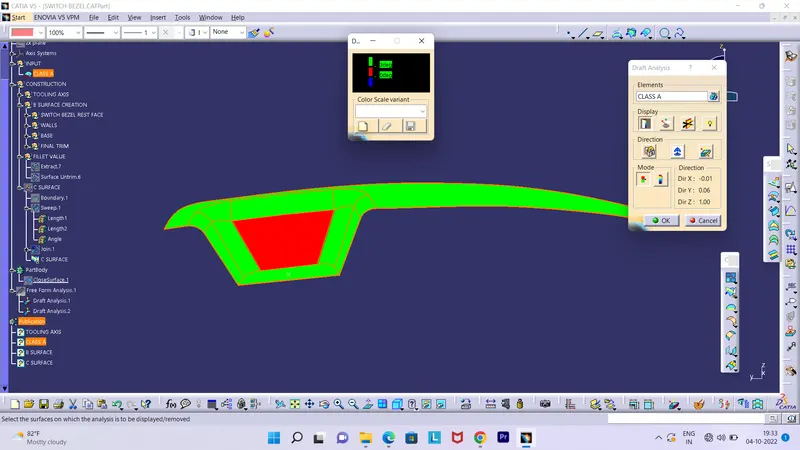

DRAFT ANALYSIS OF A SURFACE

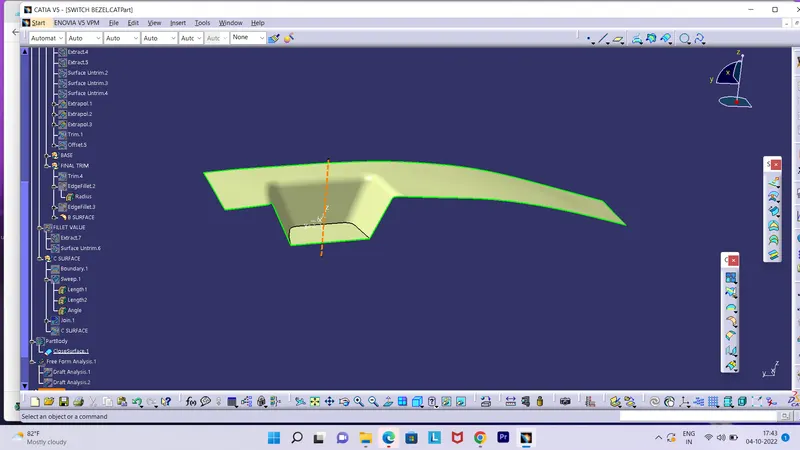

CREATION OF B SURFACE FROM A SURFACE BY EXTRACTING FACES

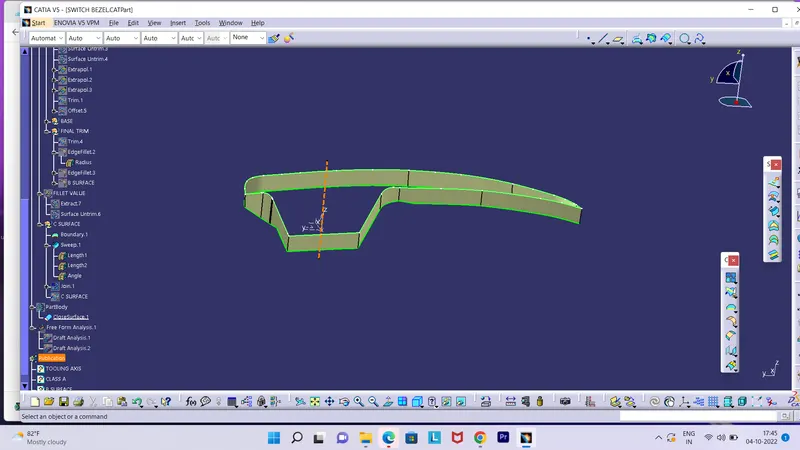

CREATION OF C SURFACE BY SWEEP COMMAND

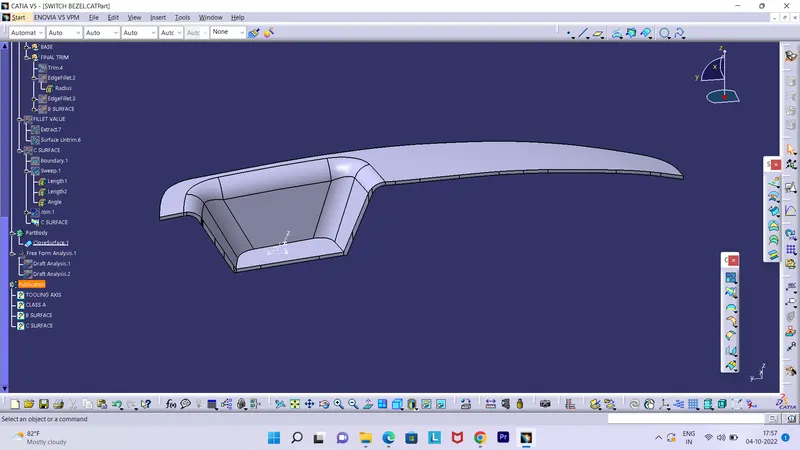

JOINING OF A AND C SURFACE

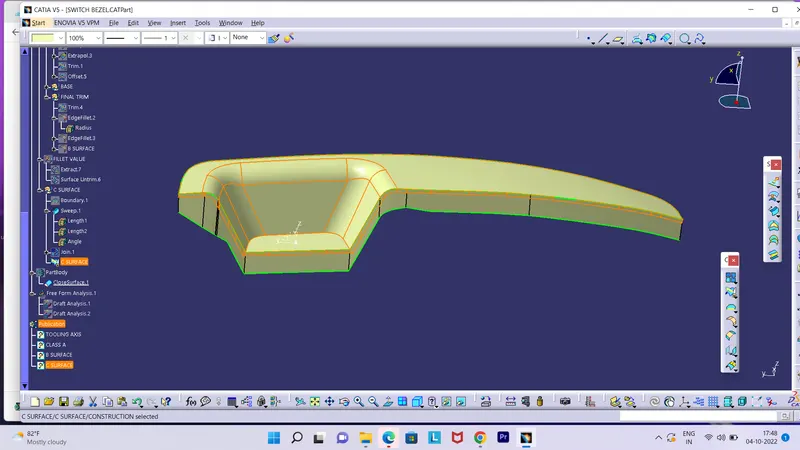

FINAL TRIM  OF  A B C COMPONENTS

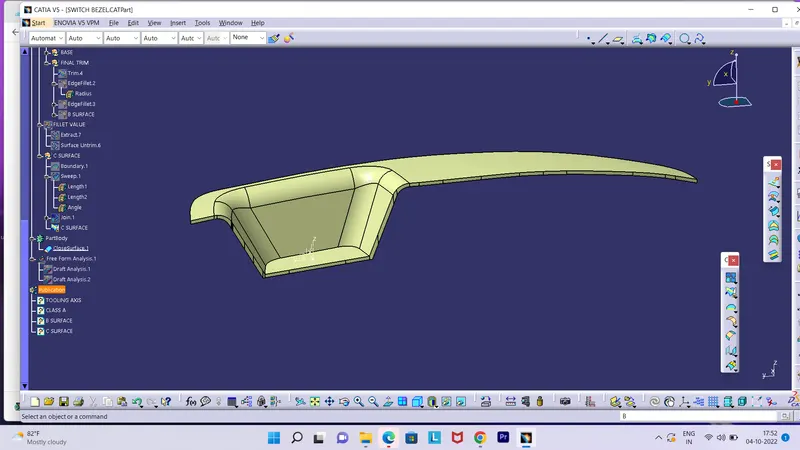

FINAL COMPONENT OBTAINED BY CLOSE SURFACE OPTION

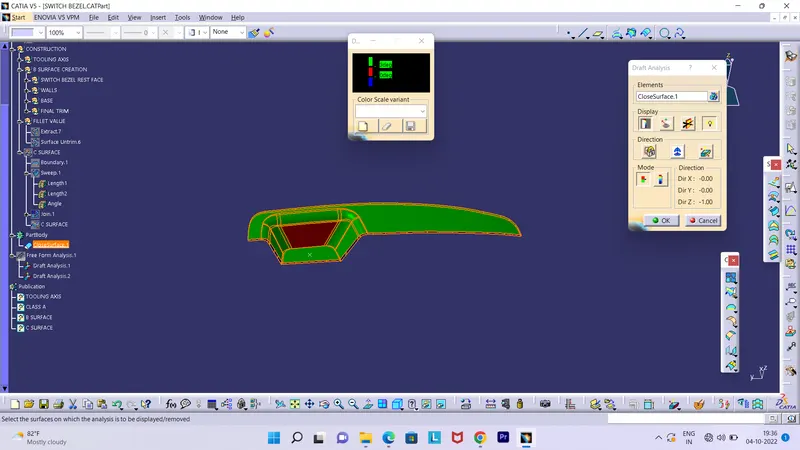

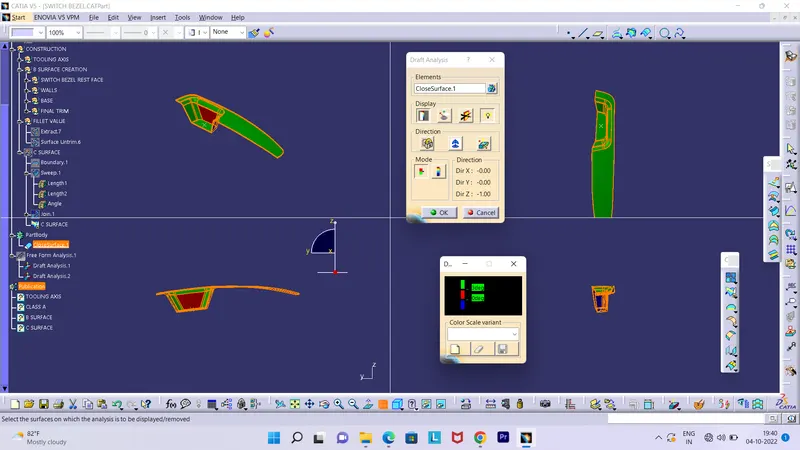

DRAFT ANALYSIS OF FINAL COMPONENT: GREEN :ABOVE 3 ,RED =0-3, BLUE = BELOW ZERO

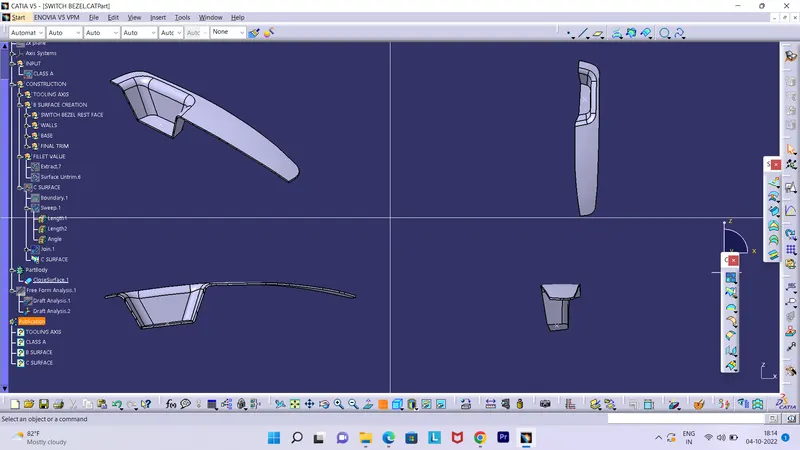

VIEWS
