Fender Design - Wheel Arch Challenge

Using the Europian Standards Discussed for WHEEL ARC :

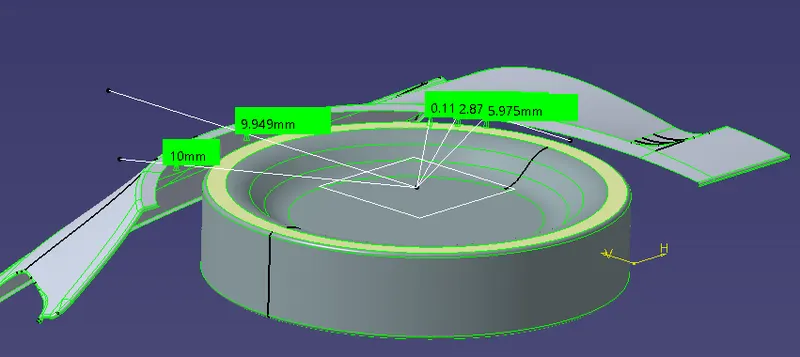

TABULATED DATA:

LINE OSERVED CLEARENCE REQUIRED CLEARENCE RESULT REASON FOR RESULT

SA 9.949 >5 PASS The wheel line INSIDE the fender line within the rage of required clearence.

SB 10 >5 PASS The wheel lines INSIDE the fender line within the range of required clearence.

SC -0.113 >5 FAIL The wheel lies OUSIDE the fender line.

SD -2.879 >5 FAIL The wheel lies OUTSIDE the fender line.

SE -5.953 >5 FAIL The wheel lies OUTSIDE the fender line.

CONCLUSION:

From the above calculation, we understand that the fender does not comply within the European regulations. Hence the component has to be redesigned by the styling Department before it undergoes full development and production.
