Fender Design - Wheel Arch Challenge

AIM:

To check and validate the given Fender Design whether the Wheel Arc complies with the European Regulations requirement or not.

WHEEL ARC :

The wheel arc calculation has to comply with the European Standards inorder for the Fender to be road legal in Europe.

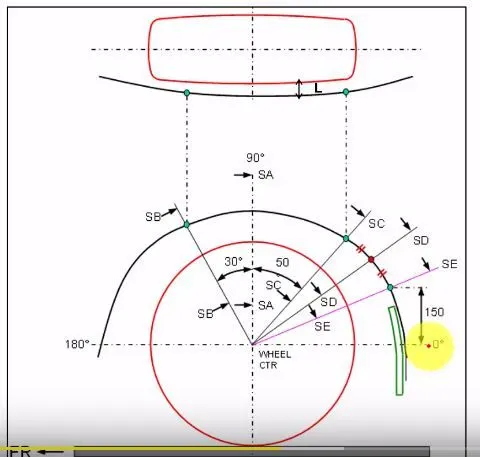

SKETCH:

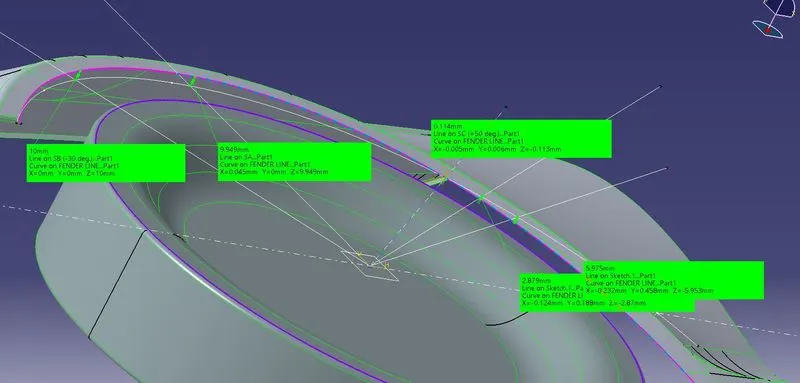

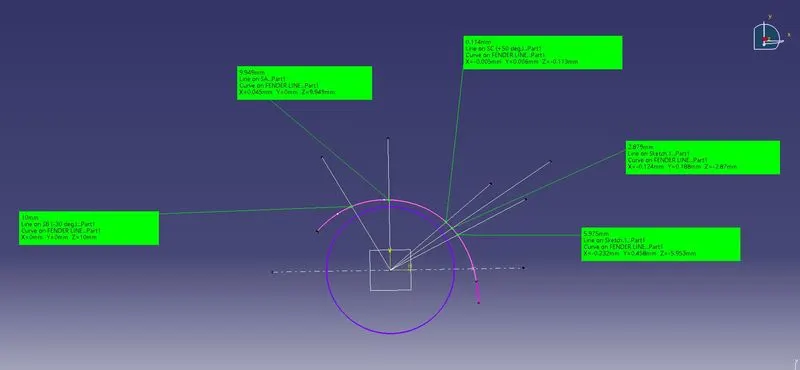

CLEARANCE:

TABULATED DATA:

LINE	OBSERVED CLEARANCE	REQUIRED CLEARANCE	RESULT	REASON FOR RESULT.
SA	9.949	>5	PASS	The wheel lies INSIDE the fender line within the range of required clearance.
SB	10	>5	PASS	The wheel lies INSIDE the fender line within the range of required clearance.
SC	-0.113	>5	FAIL	The wheel lies OUTSIDE the fender line.
SD	-2.879	>5	FAIL	The wheel lies OUTSIDE the fender line.
SE	-5.953	>5	FAIL	The wheel lies OUTSIDE the fender line.

CONCLUSION:

from the Above calculation, we understand that the Fender does not comply with the European regulations. hence the component has to be redesigned by the styling Department before it undergoes full development and production.
