Fender Design - Wheel Arch Challenge

Fender Wheelarch Regulations

Fender wheelarch detail is obtained by considering these 3 regulations.

1. Japan Regulations
2. European Regulations
3. USA Regulations

Japan Regulations:

Measure at 3 different points, 30^ rearward 50^ forward and inbetwen these two points at 90^. All the values must be greater than 5mm to pass the Japanese standards.

European Regulations:

Measure at 5 points at 30^ rearward 50^ forward 150mm above base line inbetween 50^ line and 150mm line and at 90^. All the values must be greater than 10mm to pass the European Reguations.

Measure

United States Regulations:

Make clearance check detail at every 10^ from -20^ to 180^ clearance table. All the values should be greater than 10mm to satisfy the regulations.

To check the Fender Wheelarch considering European regulations.

In European regulations 5 points to be marked on the outer surface of the wheel ant the fender, the horizontal distance from the wheel to the fender must b greater than 10mm to clear the European regulations.

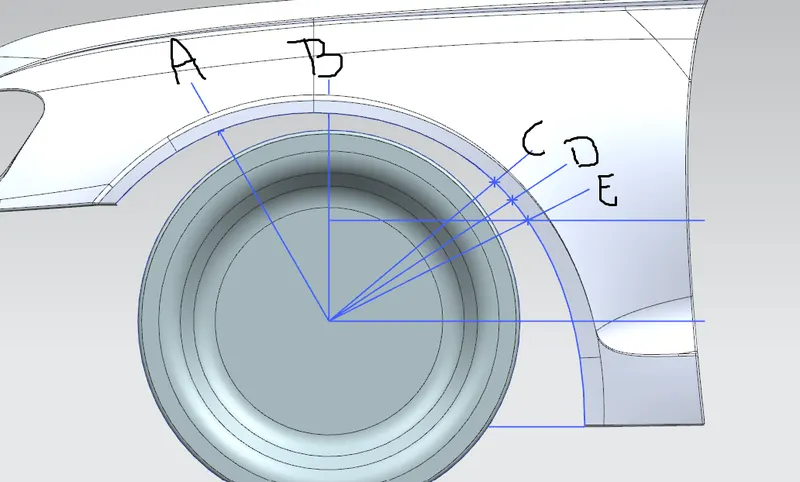

Lets consider those 5 points as A,B,C,D&E

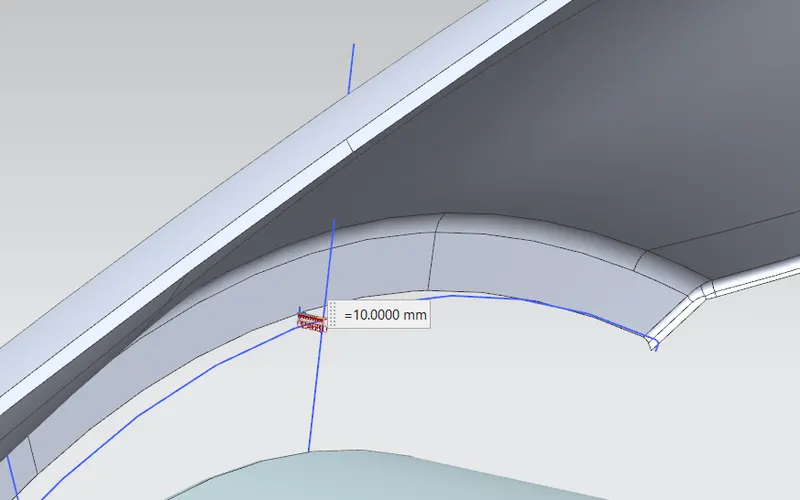

At position A the distance is 10mm

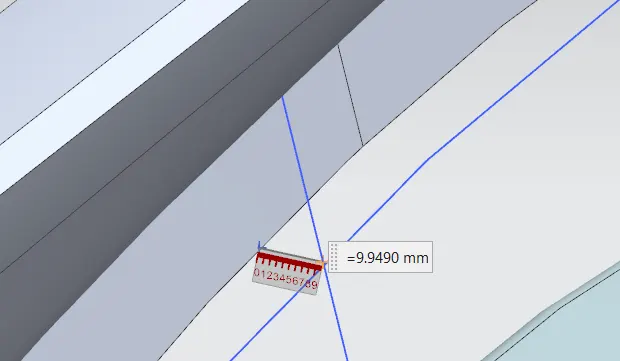

At position B the distance is 9.94mm

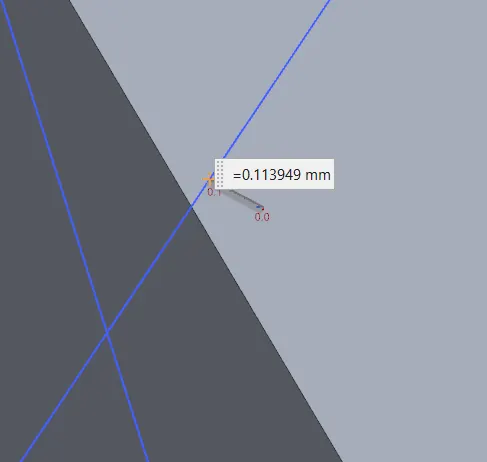

At position C the distance is 0.11mm

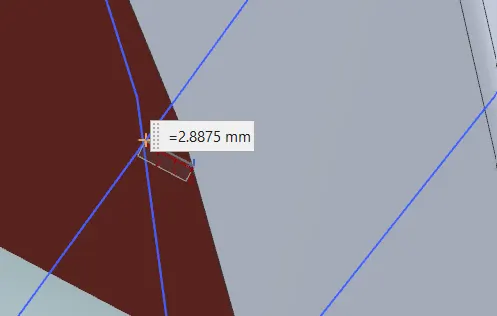

At position D the distance is -2.88mm

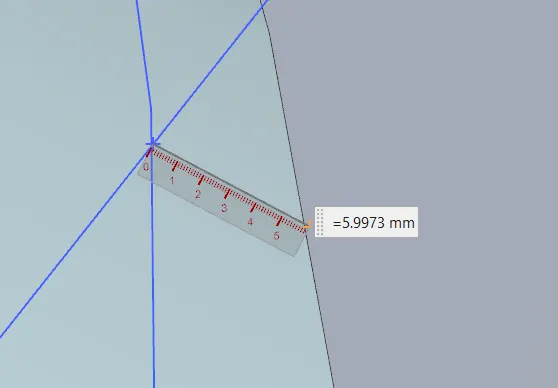

At position E the distance is -5.99mm

All the points are not greater than 10mm, Hence this fender wont pass the European Wheelarch Regulations.
