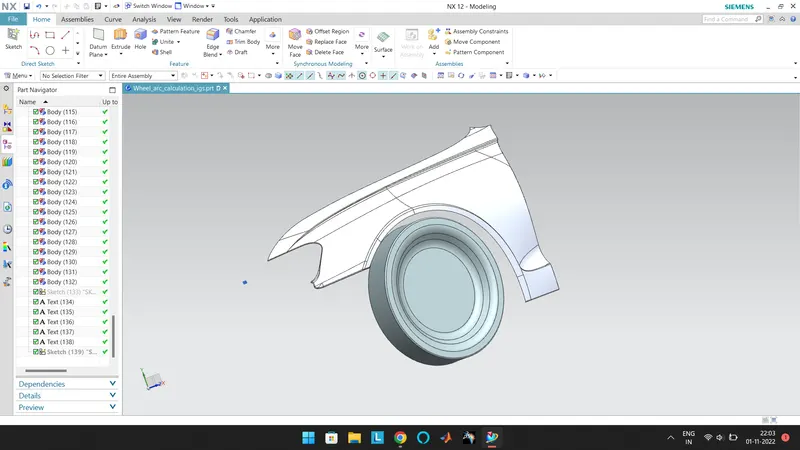

Fender Design - Wheel Arch Challenge
Aim : To decide whether the given design clear the European standards or not.

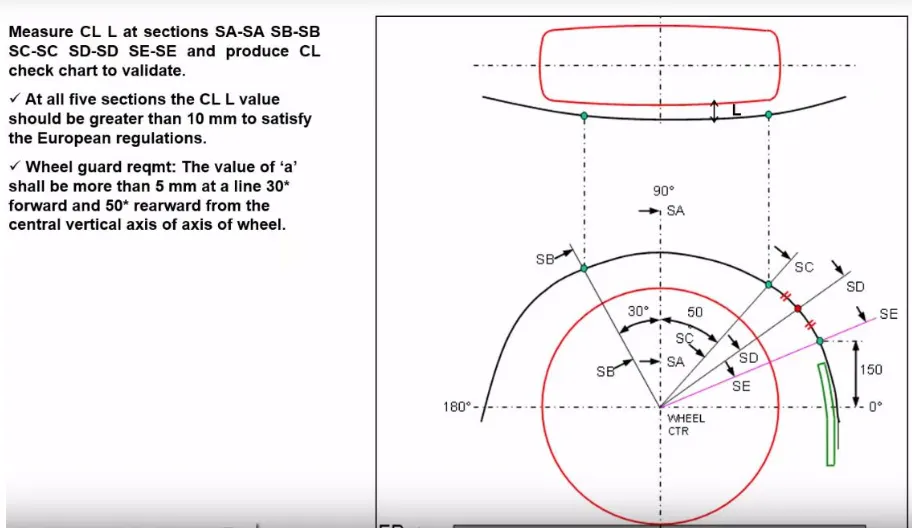

European Standard Regulation:
Examination:
| Distance | Result | |
| SA-SA | 30.9920 > 10 | Cleared |

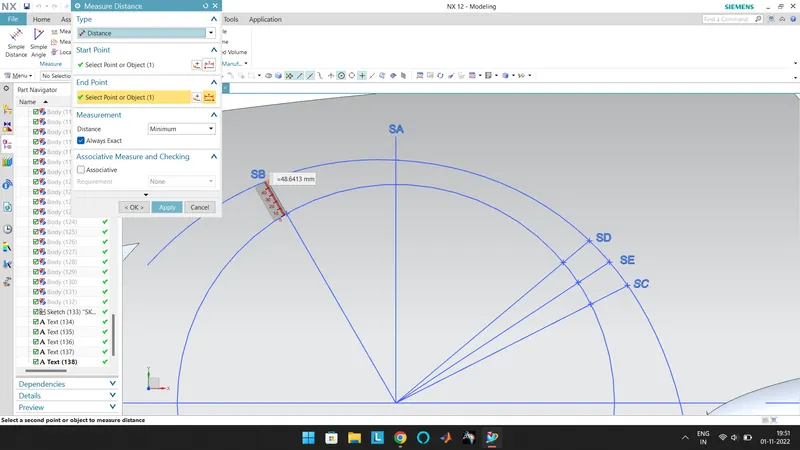

| SB-SB | 48.6413 > 10 | Cleared |

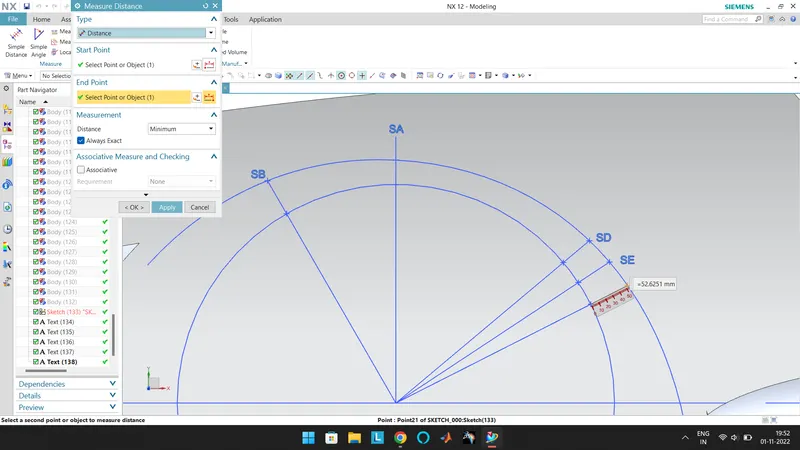

| SC-SC | 52.6251 > 10 | Cleared |
| SD-SD | 43.3597 > 10 | Cleared |
| SE-SE | 47.6670 > 10 | Cleared |
Wheel guard examination:
| Outer curve of fender to | Distance | Result |

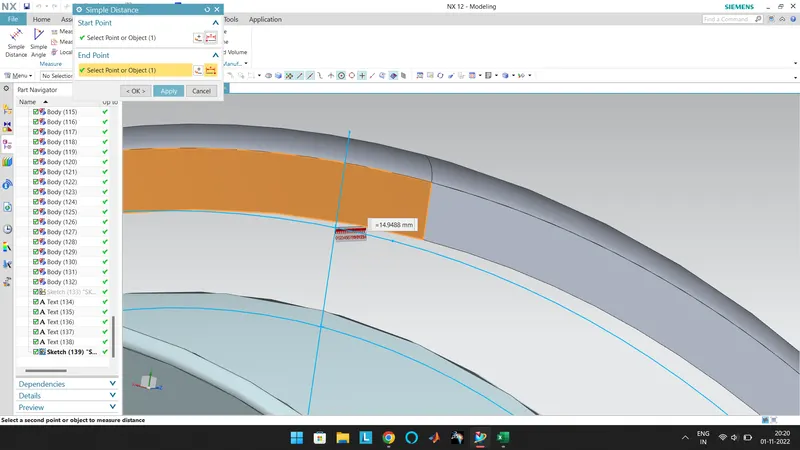

| SA | 14.448 > 5 | Cleared |

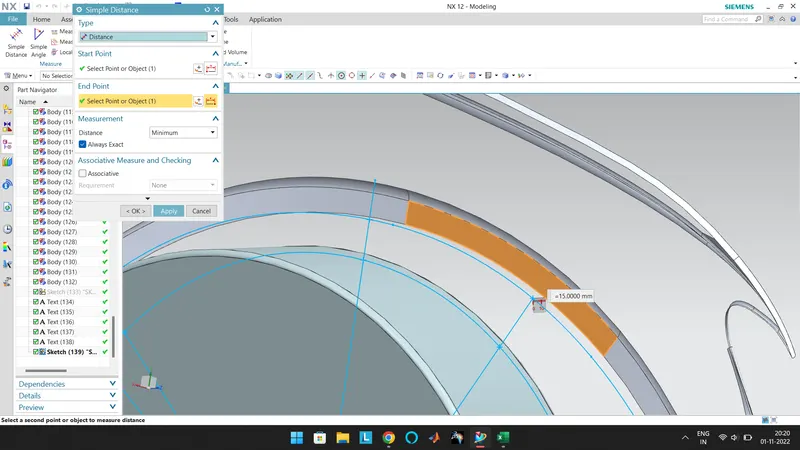

| SB | 15 > 5 | Cleared |

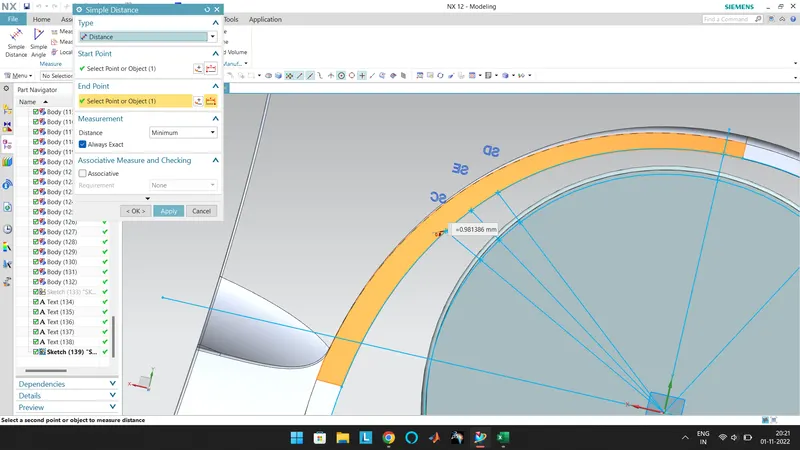

| SC | 0.981 < 5 | Not Cleared |

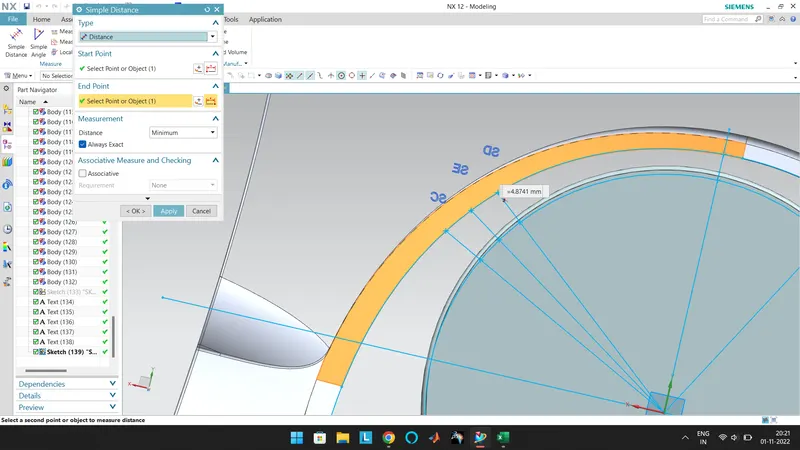

| SD | 4.8741 < 5 | Not Cleared |

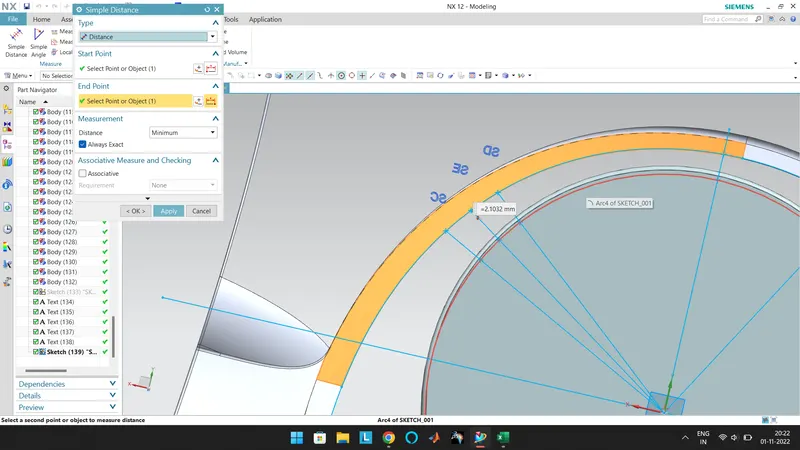

| SE | 2.1032 < 5 | Not Cleared |
Here the recommended minimun distance is not cleared for C,D,&E as its less than 5mm. Therefore the Class A need to be revisioned.
