OBJECTIVE:
The objective of the project is to design a body in white front fender of a car with its mounting using the information provided by the styling team. The skin data and master sketch are the information provided by the styling team.
INTRODUCTION:
Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.
In order to fix the fender Mountings are essential in our design .
1.A Pillar Mounting
2.Bumper Mounting
3.Drip Area mounting
4.Baffel Mounting
5.Sill Mounting

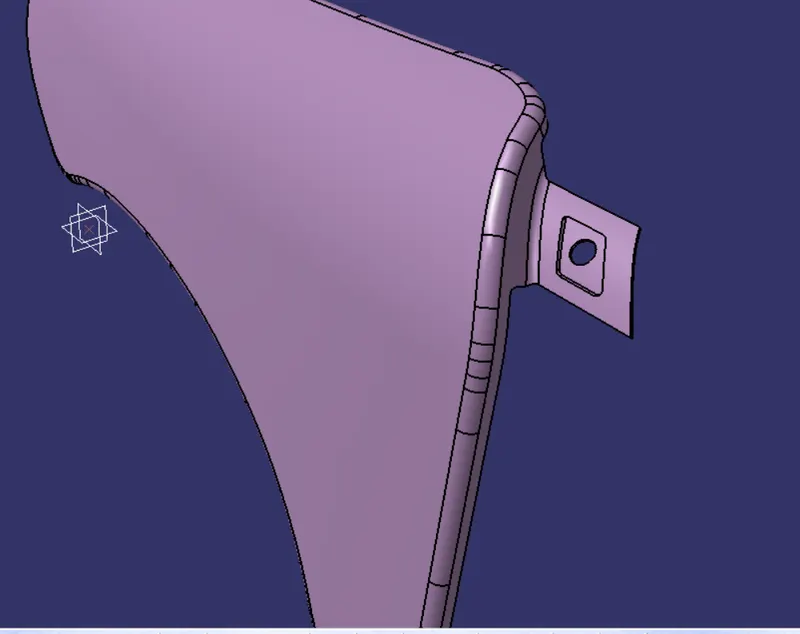

A Pillar Mounting

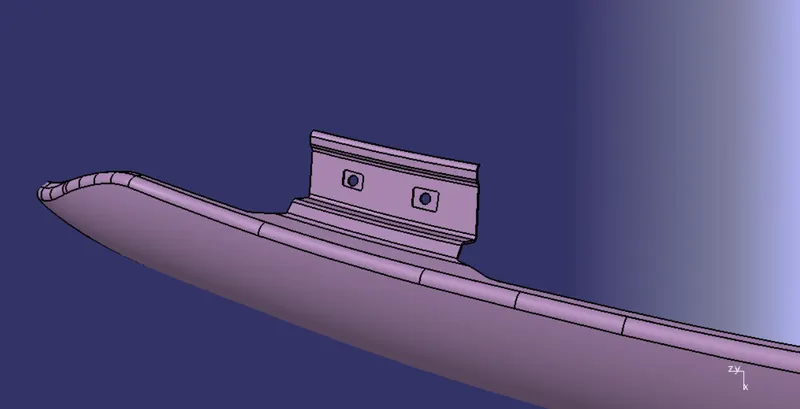

Bumper Mounting

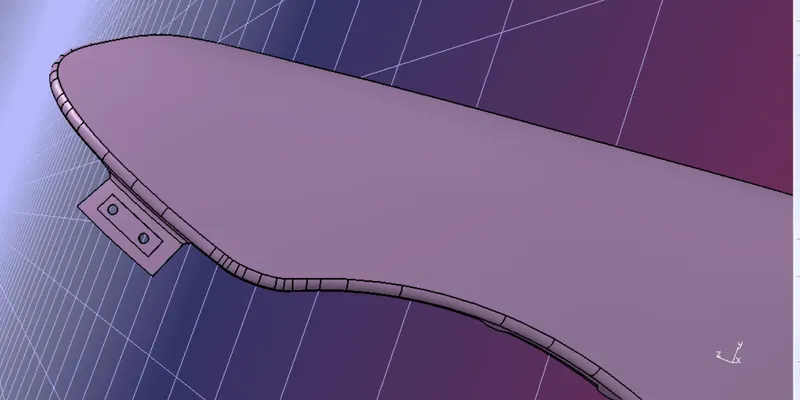

Drip Area mounting

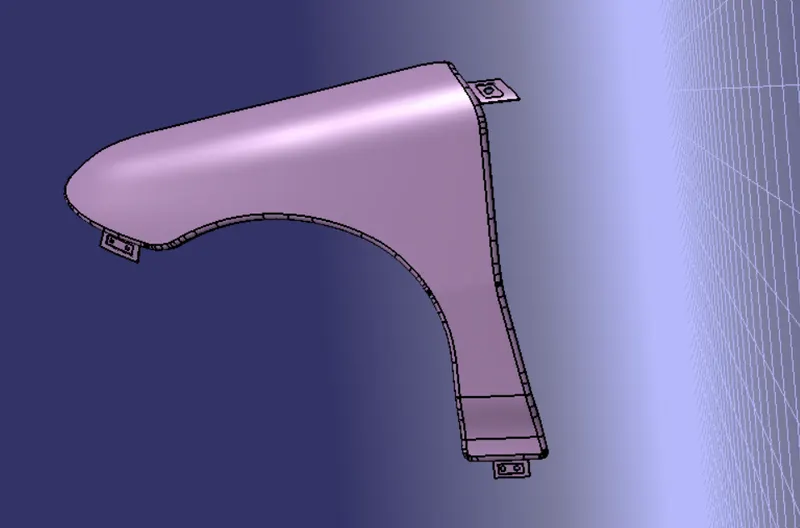

Isomeri View

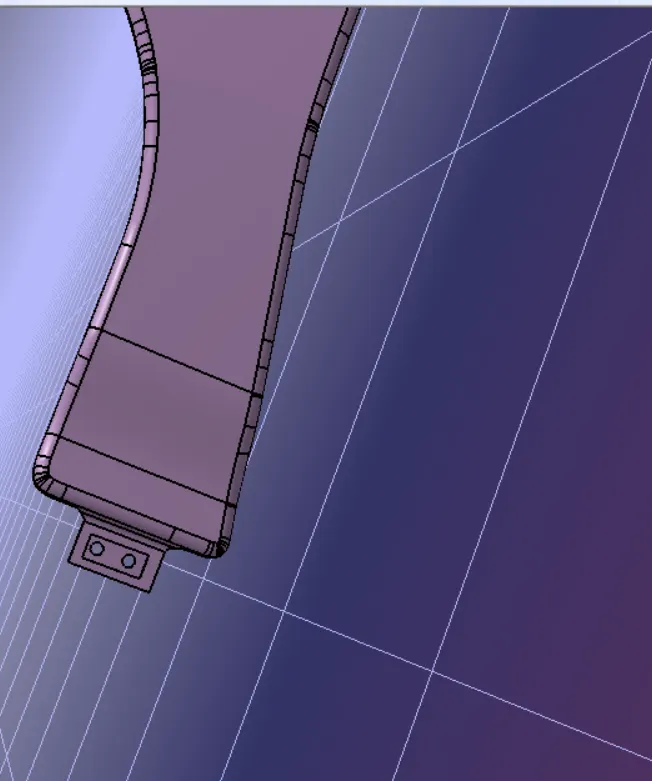

Sill Mounting
Conclusion:
It designed the Front Fender in CATIA V5 application with proper mountings by using the Master Sketch and Design Parameters.
