Fender Design - Wheel Arch Challenge

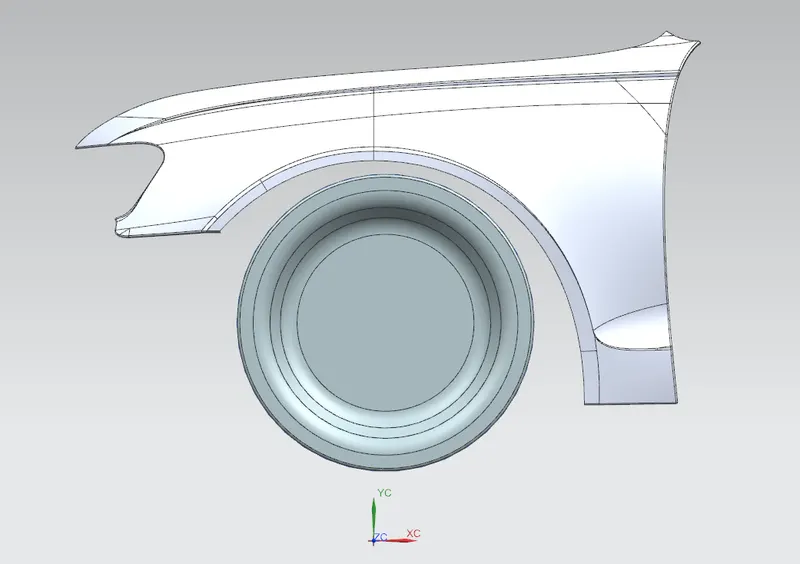

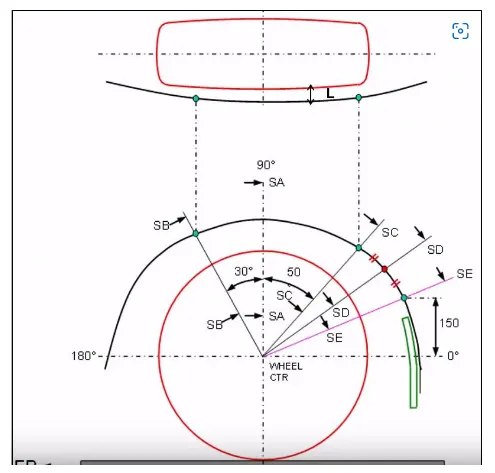

Aim: To observe and identify whether the Wheel Arch Gap [L] clears the norms of European NCAP regulation. i.e L>= 10mm.
Analysis:

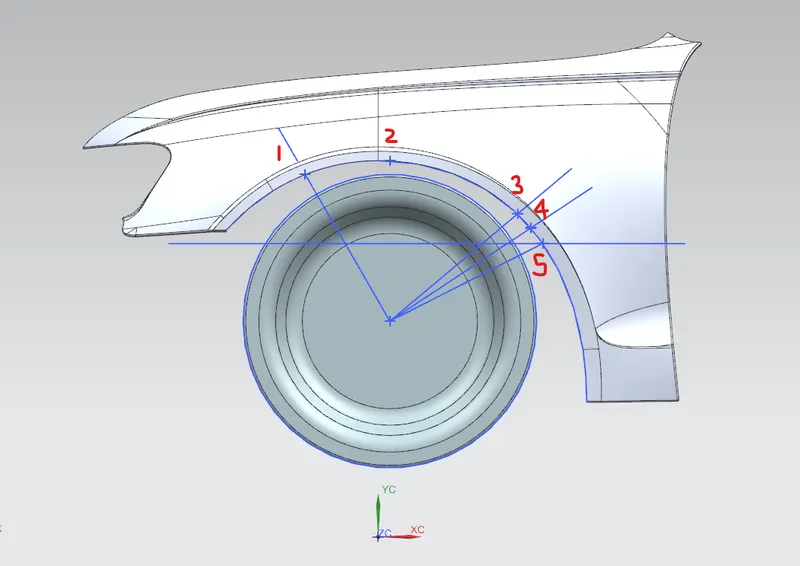

POINT 1
POINT 2
POINT 3
POINT 4
POINT 5
| POINTS | GAP VALUE in mm [L] >= 10mm | RESULT | |

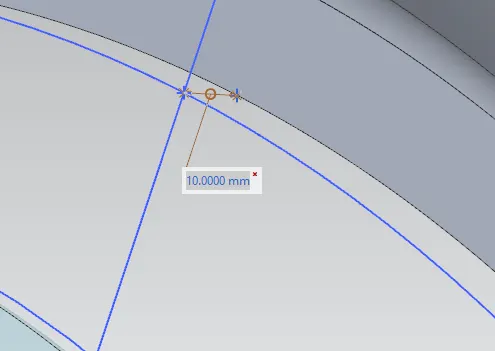

| 1 | 10.000 | PASS | |

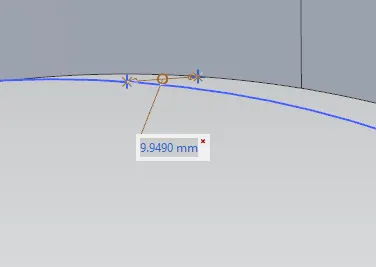

| 2 | 9.9490 | FAIL | |

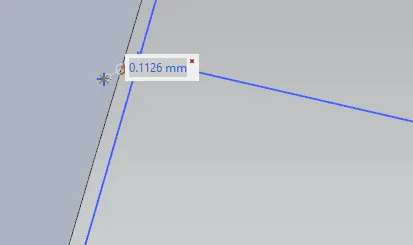

| 3 | 0.1126 | FAIL | |

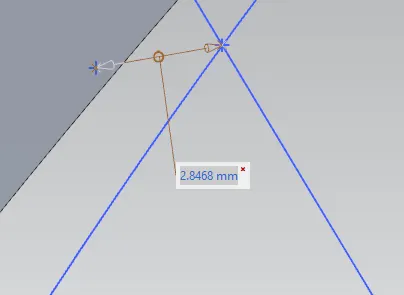

| 4 | 2.8468 |
|
|

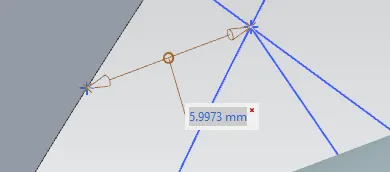

| 5 | 5.9973 |
|
CONCLUSION
The component fails the European NCAP standards on Wheel Arch therefore the model needs to be informed to styling team and modified accordingly.
