Fender Design - Wheel Arch Challenge

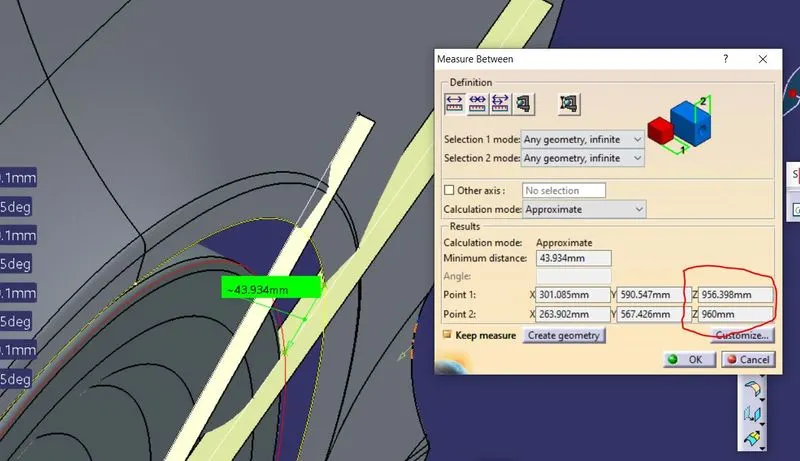

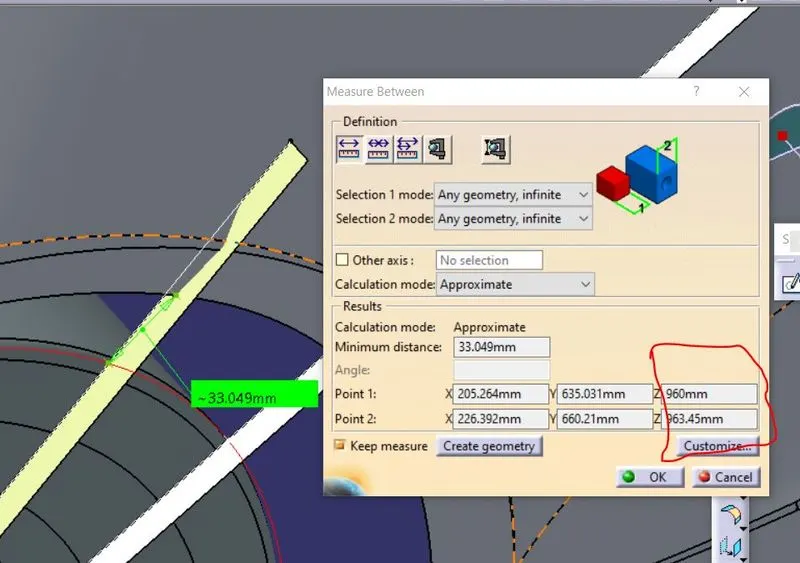

Point	Clearance	Cleared	Remarks
SA	3.45	NOK	<10 mm
SB	10 mm	Ok	-
SC	-3.602 mm	NOK	<10 mm

VARIOUS REGULATIONS:

Wheel arc calculation is necessary for the fender design to pass the local regulation which are based on the local road conditions.

Wheel arch is a semi-circular area in fender, which houses the wheel well. It should have a sufficient clearance between tyre and wheel arch. So, that it doesn’t touch the wheel arch area during suspension. The clearance value differ from region to region, here are few regulations.

Japan Regulation Standard:

The clearance value will be more than the 5mm at 30 degree at forward and 50 degree at backward from the central vertical line.

European Regulation Standard:

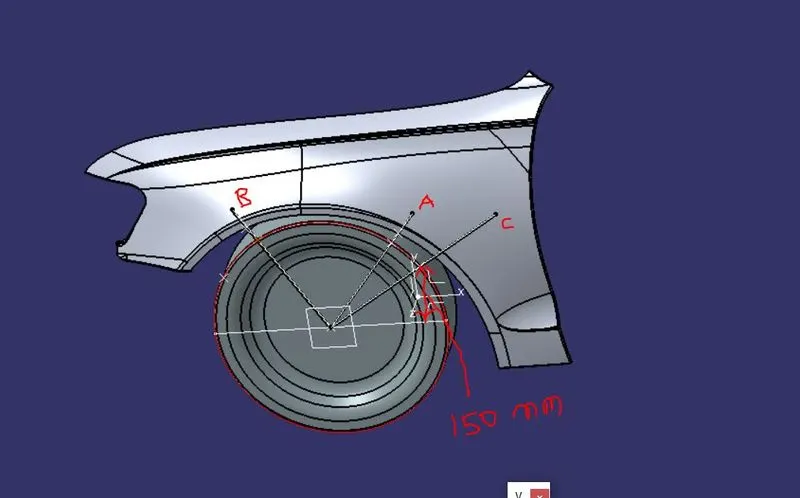

The clearance value will be more than 10mm at 30 degrees at forward and 50 degree at backward and line 150mm above X-axis and Mid-point between 50 degree and line above 150mm.

US Regulation Standard:

Make clearance check details on all position from -10 to 180 degrees. All values must be greater than 5mm.The Clearance Value will more than 5mm at line 30 degree forward and 50 degree backward from central vertical axis.
