Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

1)

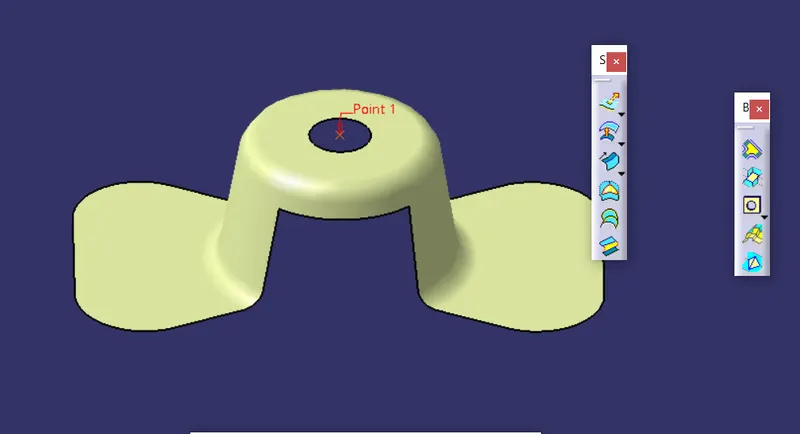

A point is created at the Part centre which could be the COG of the part

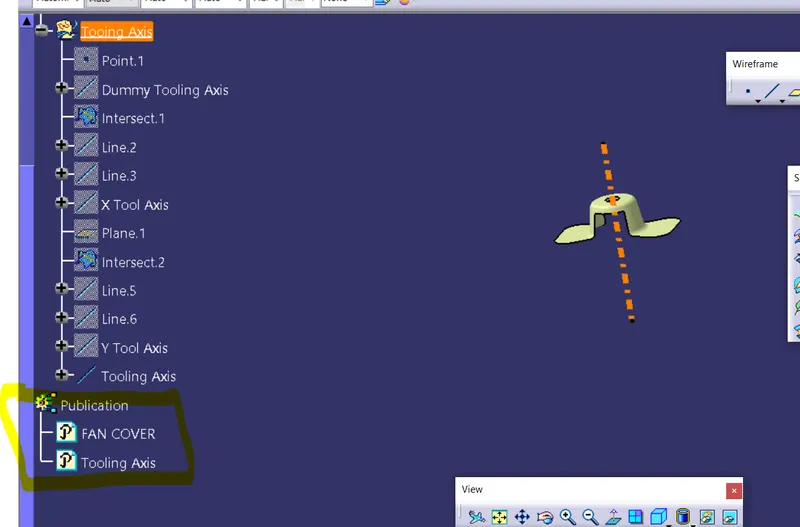

Tooling Axis and Class A are Published

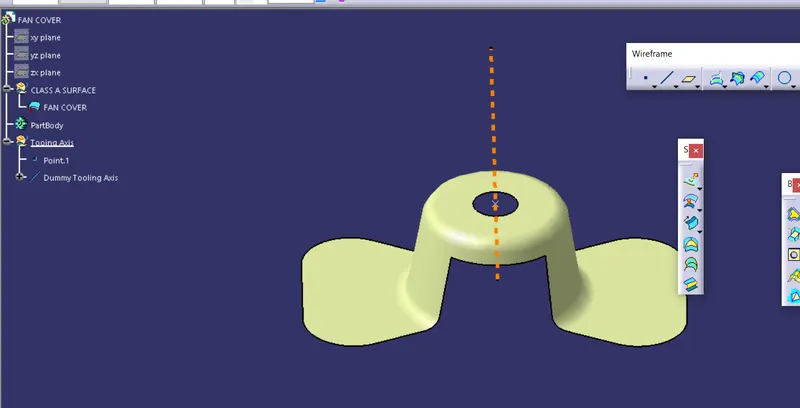

A tenative tooling Axis is chosen along the Z axis as in both X and Y direction the Hole and Slot wont fully clear

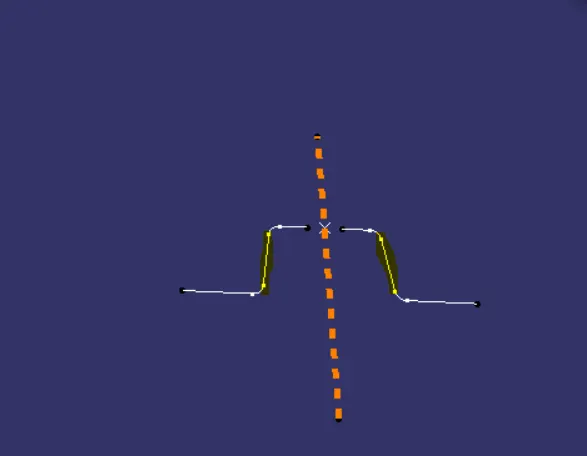

The Yellow Higlighted faceare nearly parallel to the Dummy tool Axis Which might be an issue, hence create a lin on it and bisect those two lines

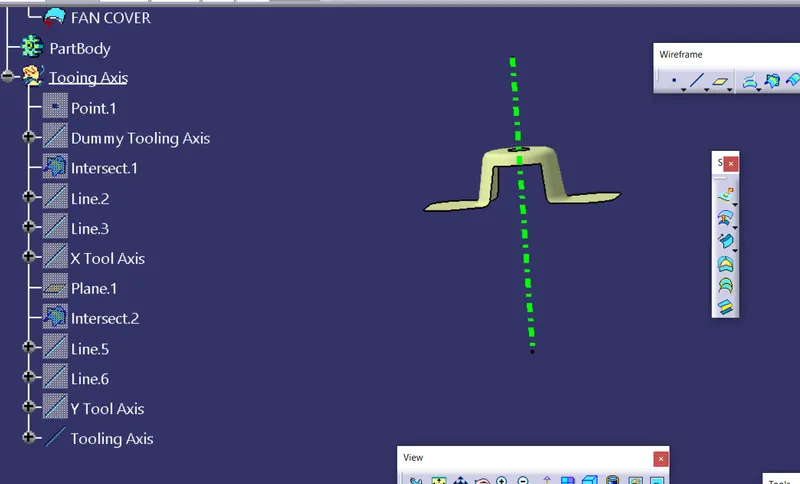

Final Tooling Axis
