Fender Design - Wheel Arch Challenge
FENDER WHEEL ARCH:

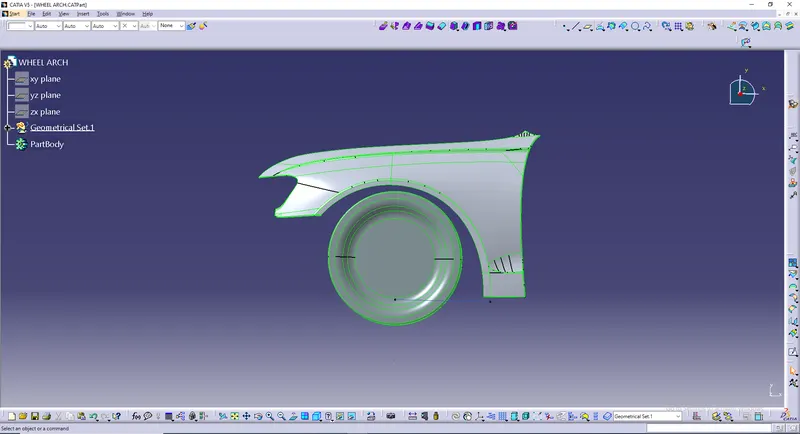

- Wheel arch igs.file has opened as given
- Insert a geometrical set Constructions.
- Intially join all the surfaces for merging distance 0.001mm.
- Join all wheel surfaces & name it as Wheel
- Extract surface.99\face.1
- Join extract.1 & join.1 & name it as Fender

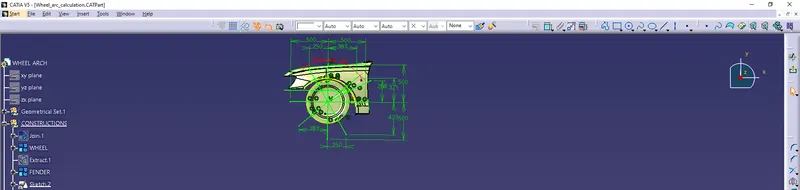

- Draw a sketch.
- Insert a point.
- Draw a Bisecting line.
- Insert 2 more points.
- Project sketch.2\vertex.1 to sketch.2\vertex.1 to sketch.2\vertex.11
- Insert another 2 points.

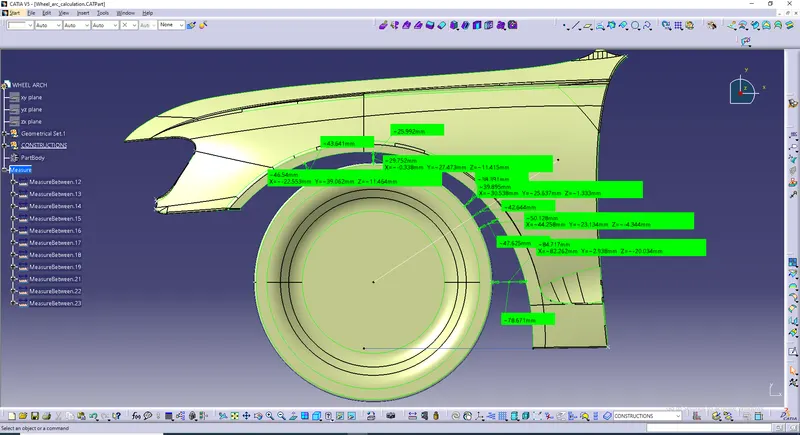

- Select measure & keep measure option.
- Finally the wheel arch is completed.
