Fender Design - Wheel Arch Challenge

REPORT:

European Regulations:

According to European Regulations

SA-SA ,SB-SB,SC-SC,SD-SD,SE-SE should be grater than or equal to 10mm

Distance between Wheel arc and fender outside(at SA,SB,SC) should be minimum 5mm

Steps:

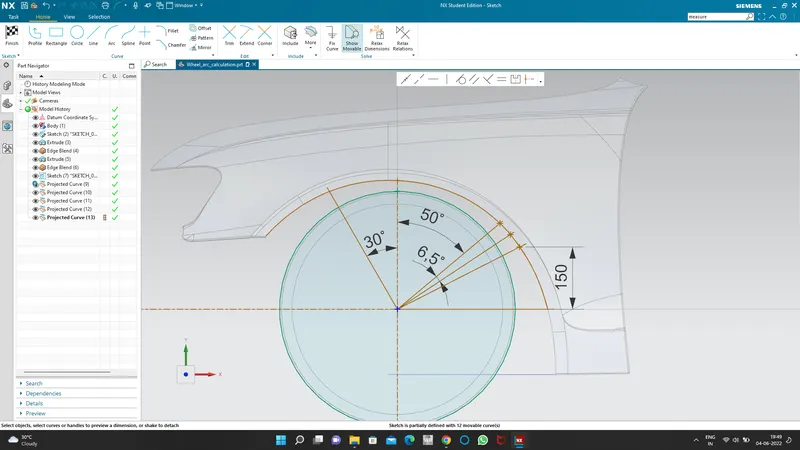

1. Sketch is drawn on the wheel.
2. Curve is projected on the fender.
3. Distance between the projected and original curve is measured.

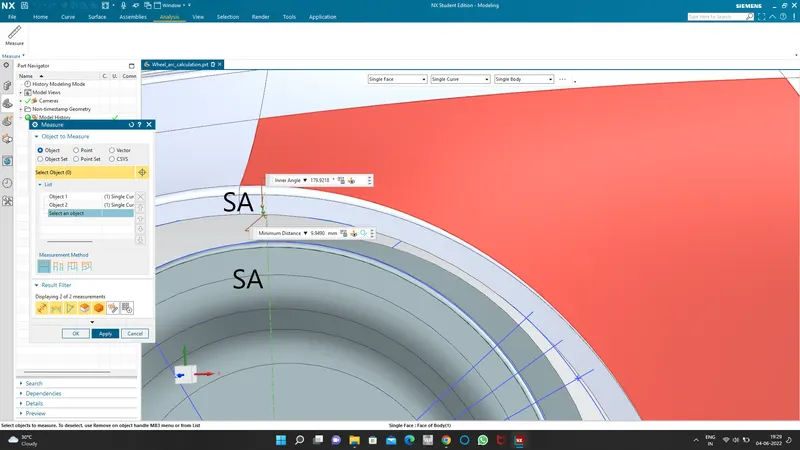

Length SA-SA=9.949mm

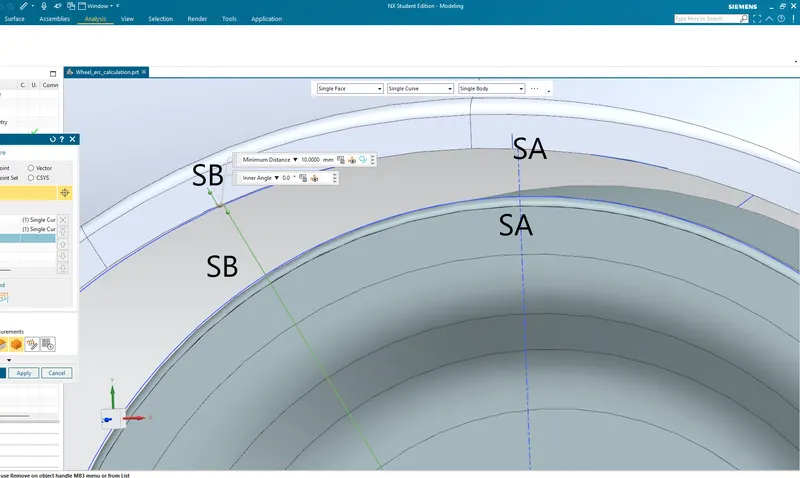

Length SB-SB=10mm

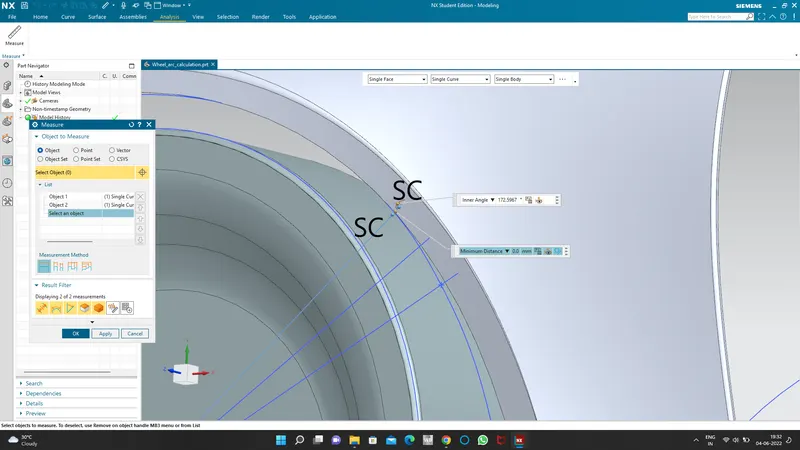

Length SC-SC =0 mm

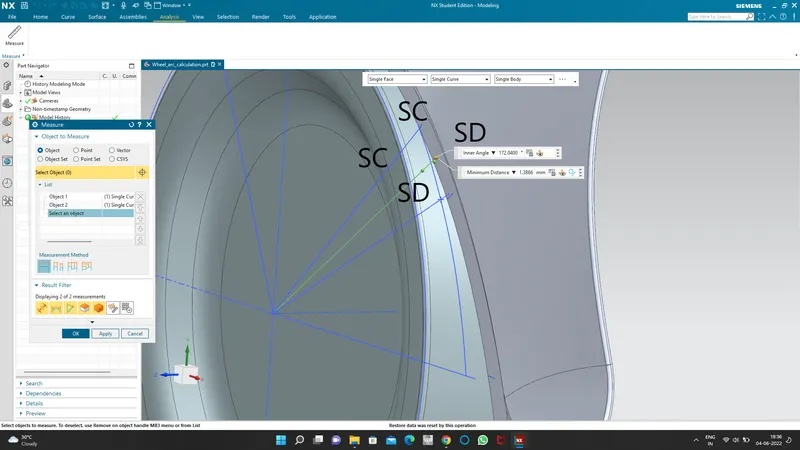

Length SD-SD=1.3886mm

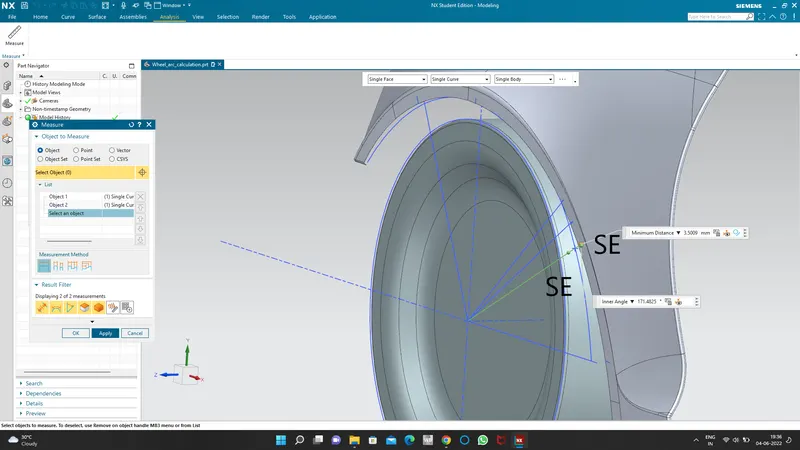

Length SE-SE=3.5009mm

Length A

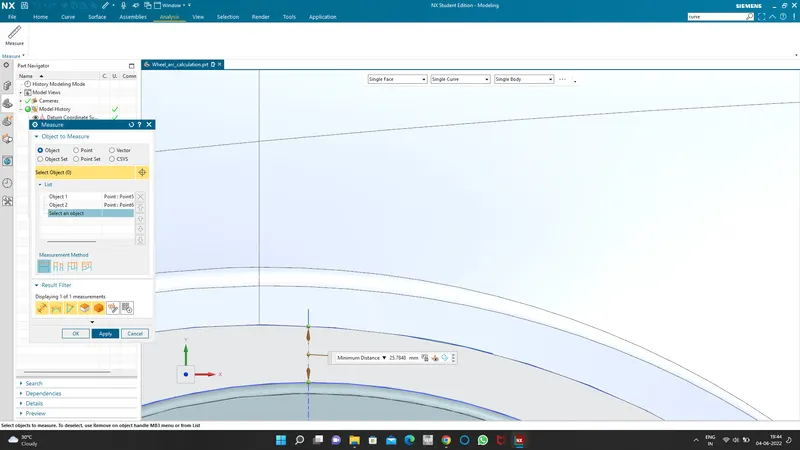

SA-SA=25.7848



Length A

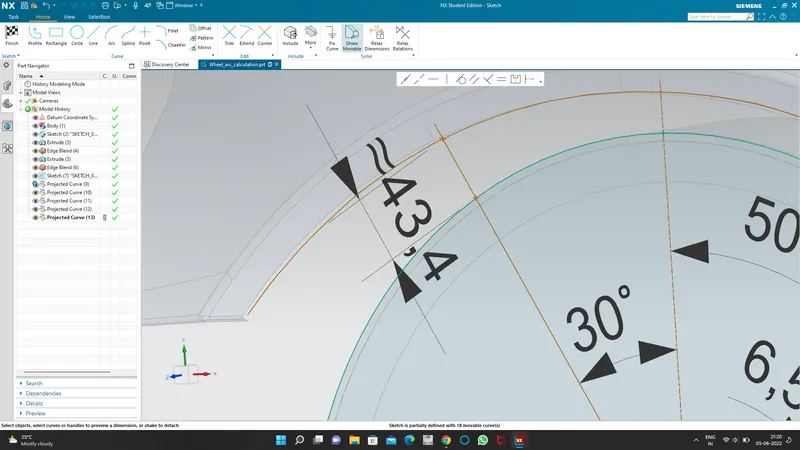

SB-SB=43.4

Length A

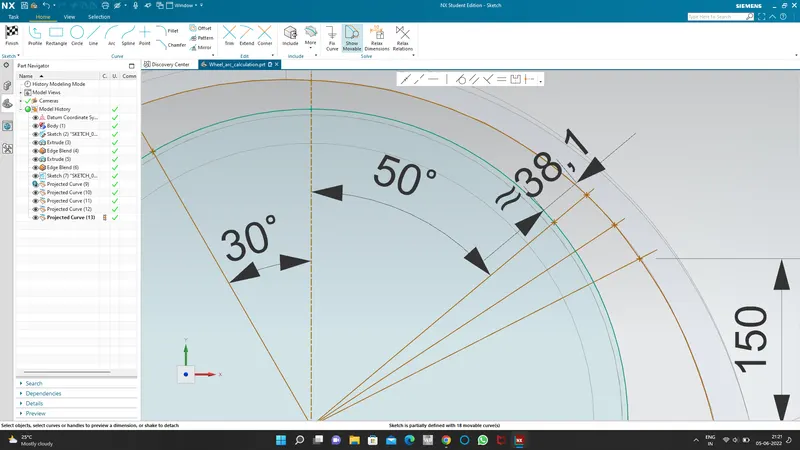

SC-SC=38.1

 Results

L>=10mm

S.no	Component	Dimensions	Results
1	SA-SA	9.949	Fail
2	SB-SB	10	Pass
3	SC-SC	0	Fail
4	SD-SD	1.3886	Fail
5	SE-SE	3.5009	Fail

Distance A

A>=5mm

S.No	Component	Dimensions	Results
1	SA-SA	25.7848	Pass
2	SB-SB	43.4	Pass
3	SC-SC	38.1	Pass

Conclusion

For given design ,the fender design doesnt pass the european standards.So design should be created again.
