Fender Design - Wheel Arch Challenge
Fender regulations: Japanese standard, European standard & US standard

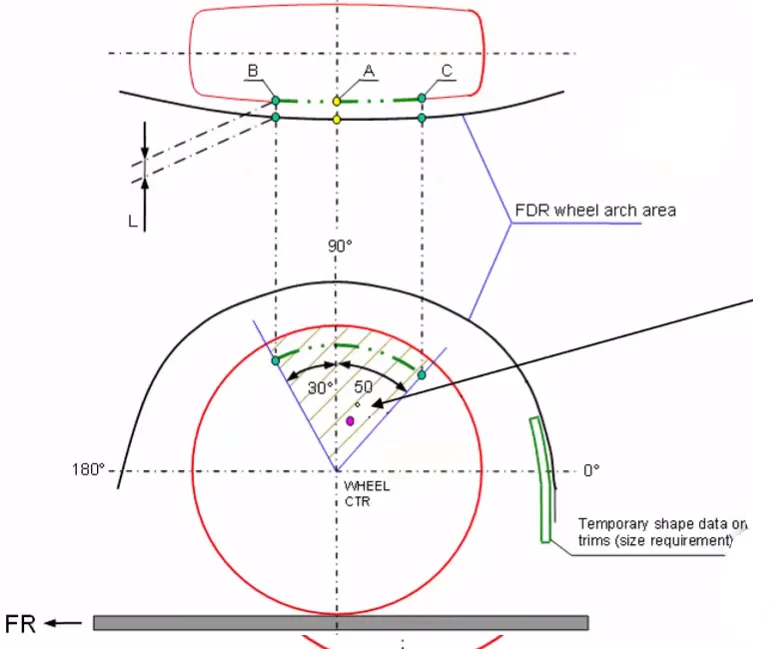

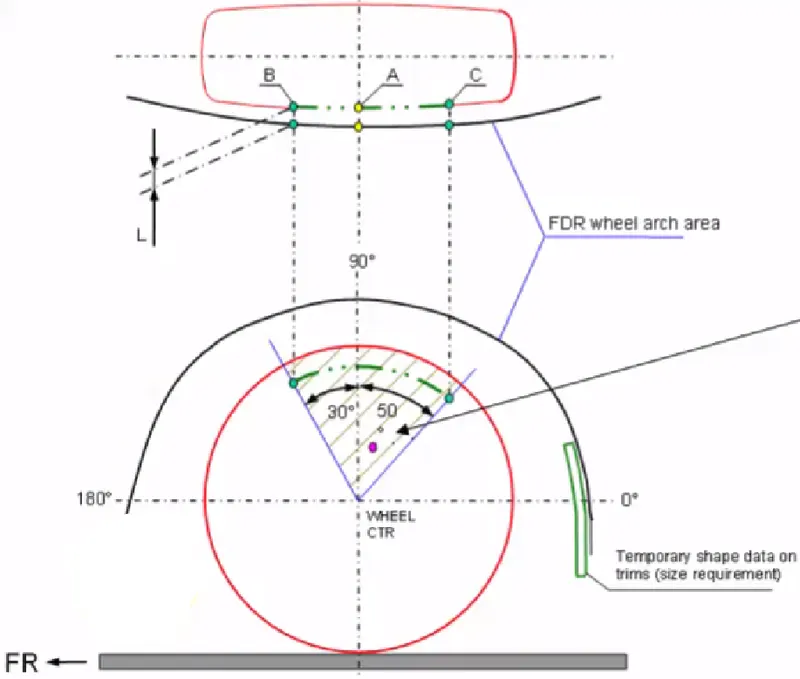

Japanese standard- From fender wheel arch area to tire outter part it must be more than 5mm in all 3 positions(A, B& C) as shown in fig.
L>5mm

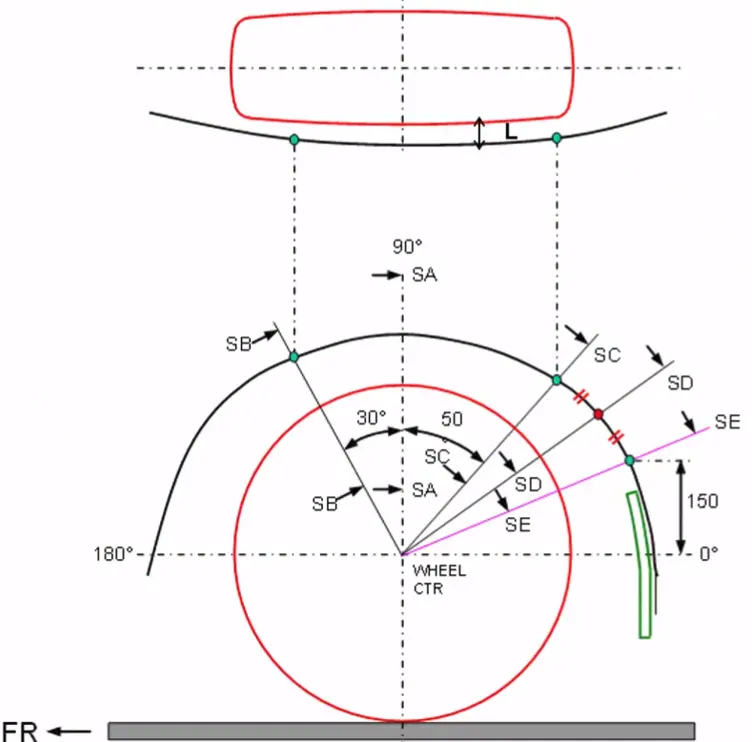

European standard: From fender wheel arch area to tire outter part it must be more than 10mm in all 5 positions as shown in fig.
US standars: From fender wheel arch area to tire outter part it must be more than 5mm from -100° to 100° in all 5 positions as shown in fig.
Part Given to check as per European standard:-
| Value of L(mm) | Remarks | |
| SA | 9.9 | OK |
| SB | 10 | OK |
| SC | -0.1 | Not Ok |
| SD | -2.9 | Not Ok |
| SE | -6 | Not Ok |

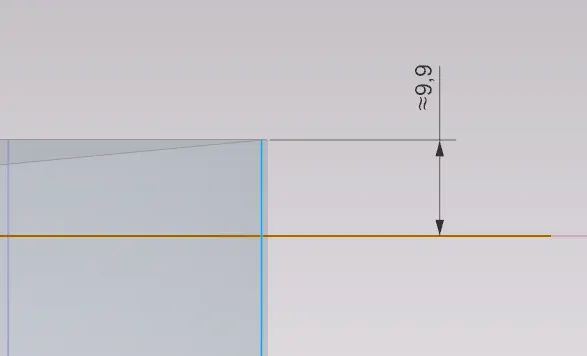

At SA:

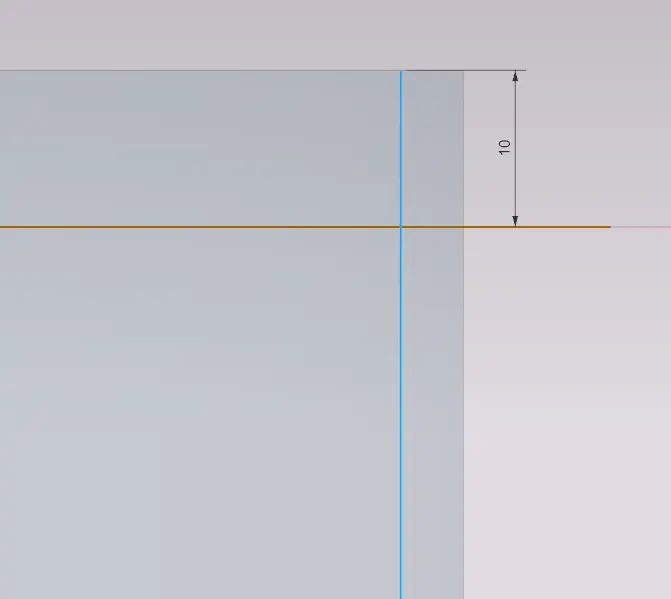

At SB:

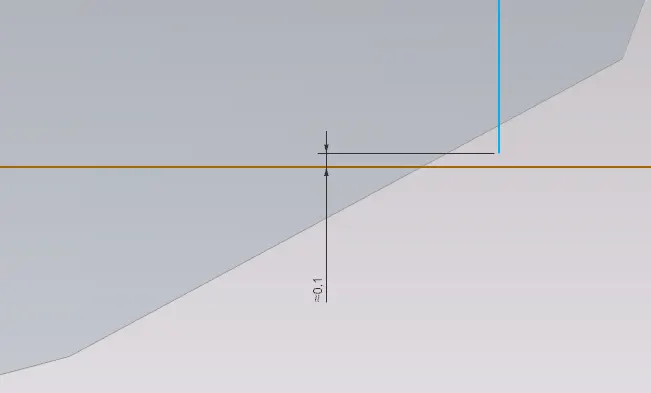

At SC:

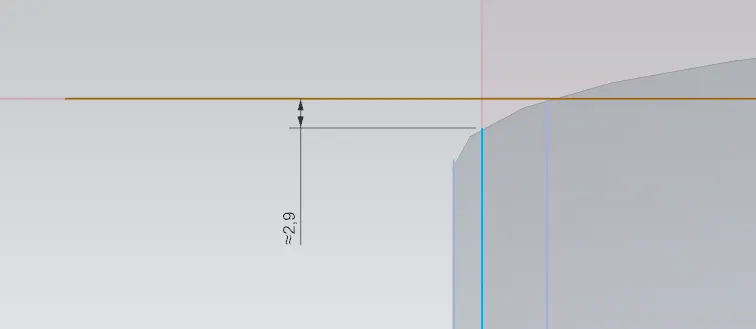

At SD:

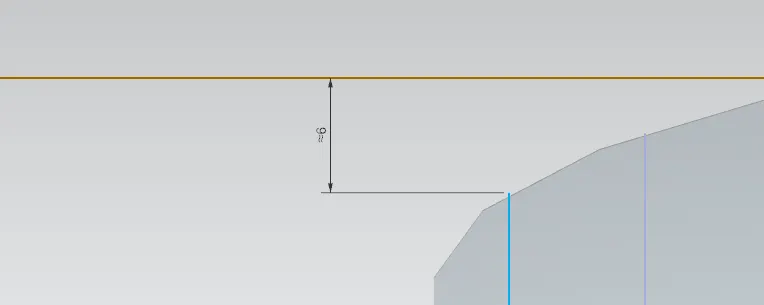

At SE:
