Fender Design - Wheel Arch Challenge

Aim : To Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

Fender Arch :

• Wheel arch is the semi circular part of the fender positioned above the wheel of the vehicle .
• The design of the wheel arch of the fender should be such that it must shield wheels and protect both passanger and padestrian from the projection of stone and mud.
• For the vehicle to has different permit in different countries , the wheel arch of fender must be compliant with the standard and regulation set by respective countries .

Different fender regulation by different countries are as follow :

European standard :

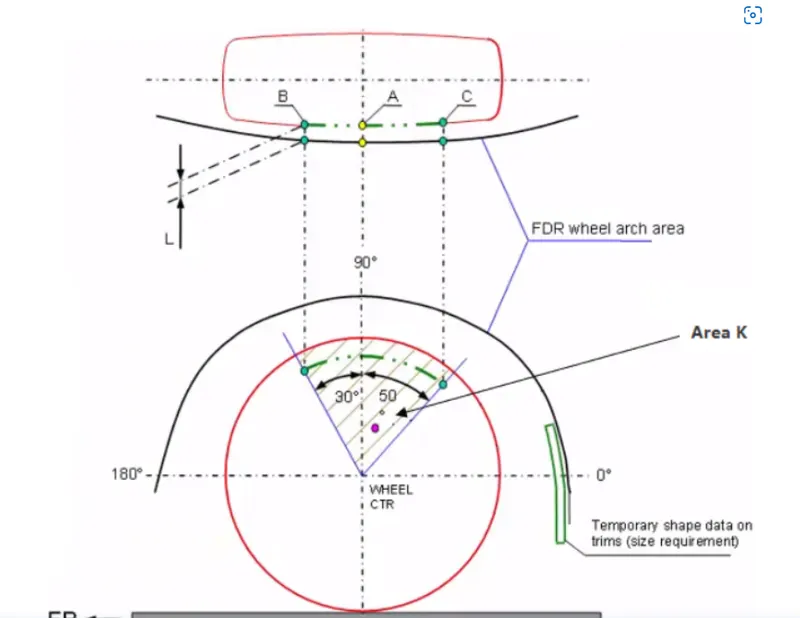

• The european regulation requires a pre- determined clearance or a minimum distance of 10 mmm to be maintained between the fender and respective tyre at particular points, along the tyre profile as shown below .
• Wheel guard requirement : The value of 'a' should be more than 5 mm at line 30 degree forward and 50 degree reward from the central vertical axis of the wheel .

US Regulations :

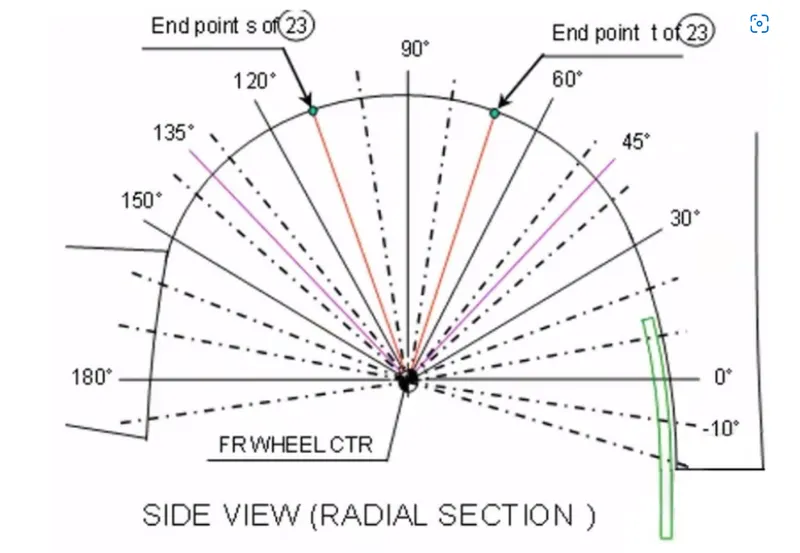

• Clearance 'L' is to be checked at all positions from -100 to 100 degree and create clearance check chart to validate .
• The value of L should be greater than 5 mm to satisfy the regulations.
• Wheel guard requirement : The value of a should be more than 5 mm at line 30 degree forward and 50 degree reward from the central vertical axis of the wheel .

Japan Regulations :

• The clearance 'L' for is to be measured within area K and create clearance check chart to validate .
• The value of L should be greater than 5 mm at all point .
• Wheel guard requirement : The value of a should be more than 5 mm at line 30 degree forward and 50 degree reward from the central vertical axis of the wheel .

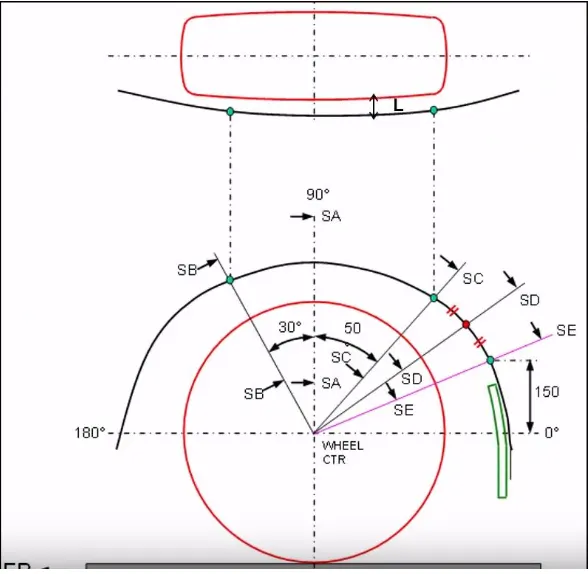

Calculation of Wheel arch area according to European Regulations :

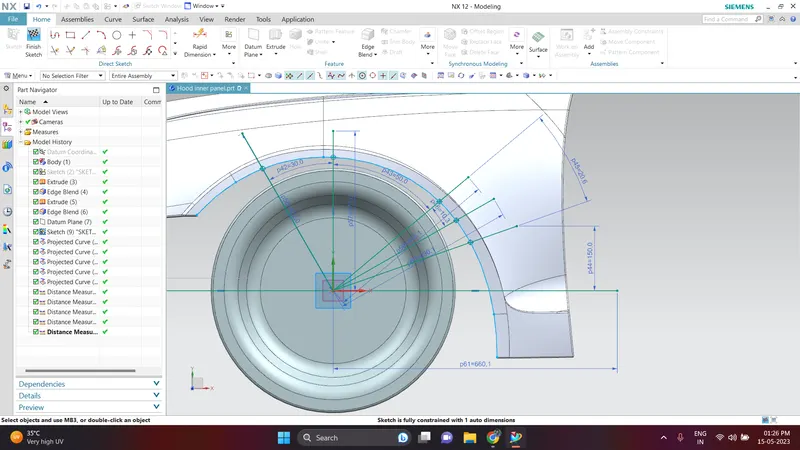

• A Datom plane is created at the outermost face fo the wheel .
• Horizontal and vertical line is created from the center of wheel and make it reference.
• Create 30 degree and 50 degree line with respect to vertical line .
• Now take ofset of 150mm from the horizontal line .
• Now create 5 point on plane and project it into the fender.
• Now measure the clearance 'L'.

Calculating clearance at different points :

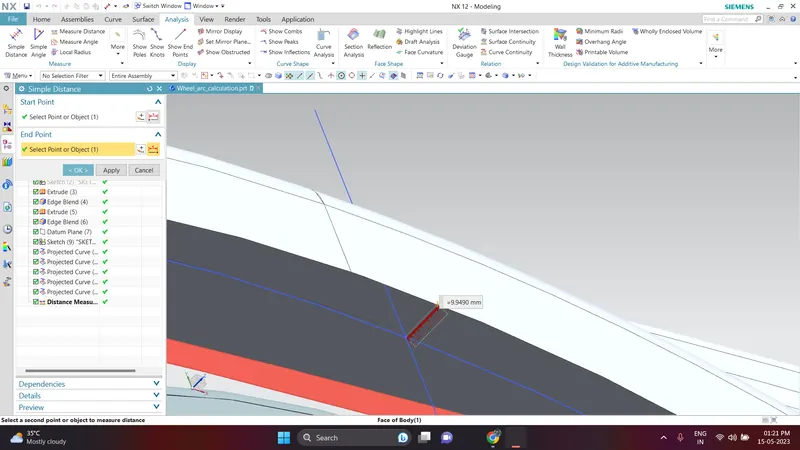

1) clearance 'L' at SA-SA :9.94

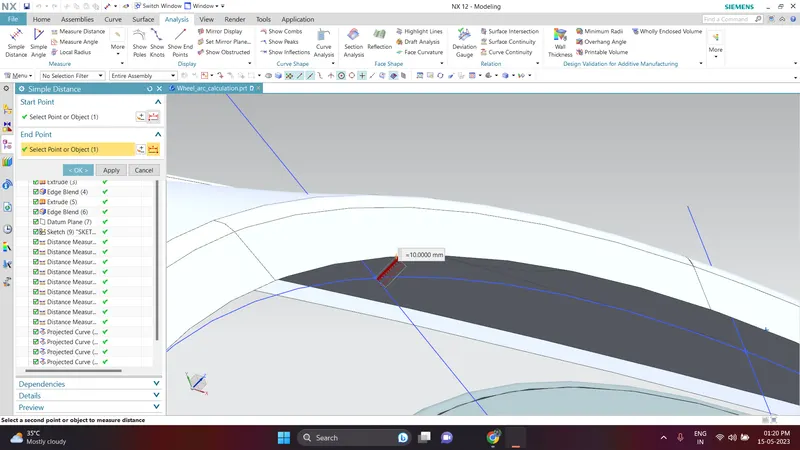

2) clearance 'L' at SB-SB :10.00

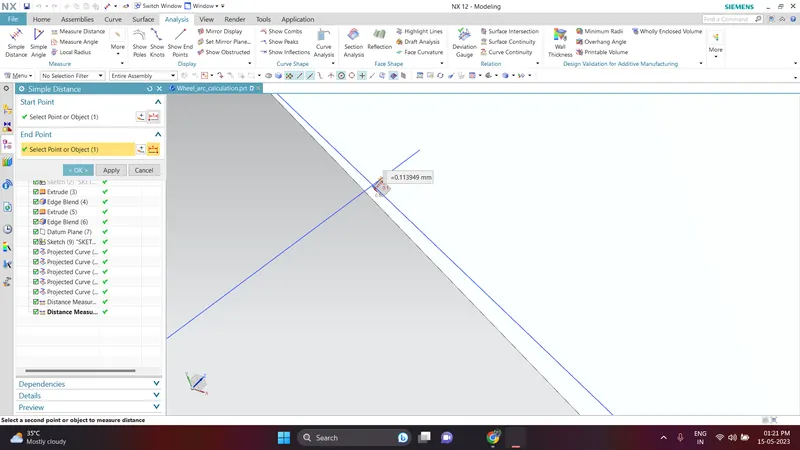

3) clearance 'L' at SC-SC :0.11

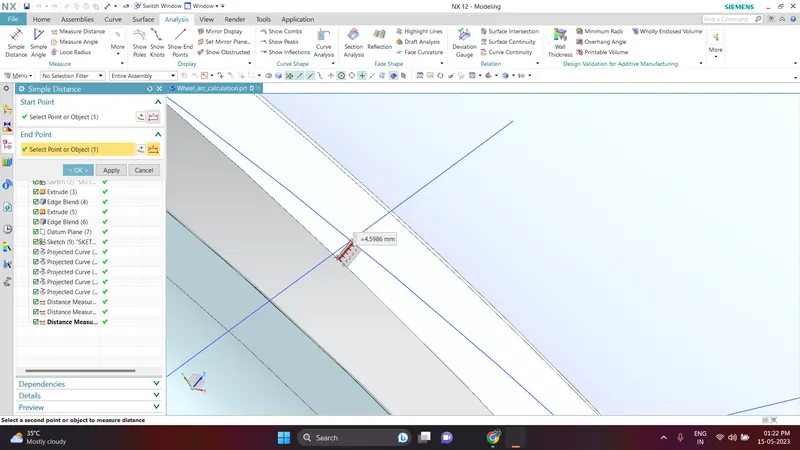

4) clearance 'L' at SD-SD :4.59

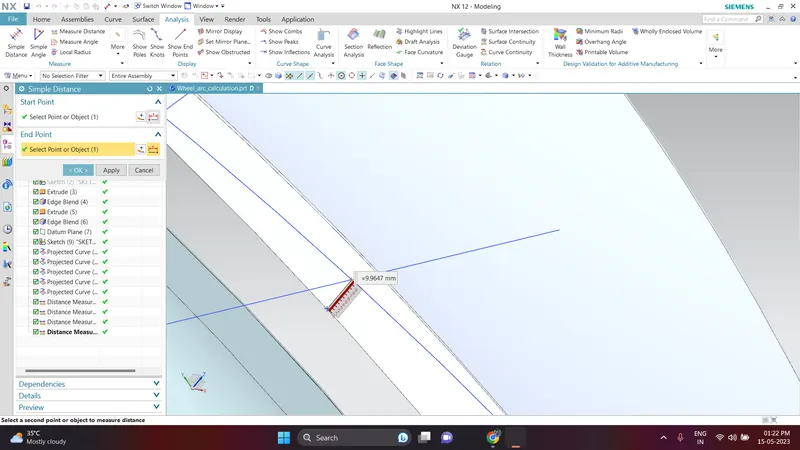

5) clearance 'L' at SE-SE :9.96
