Fender Design - Wheel Arch Challenge

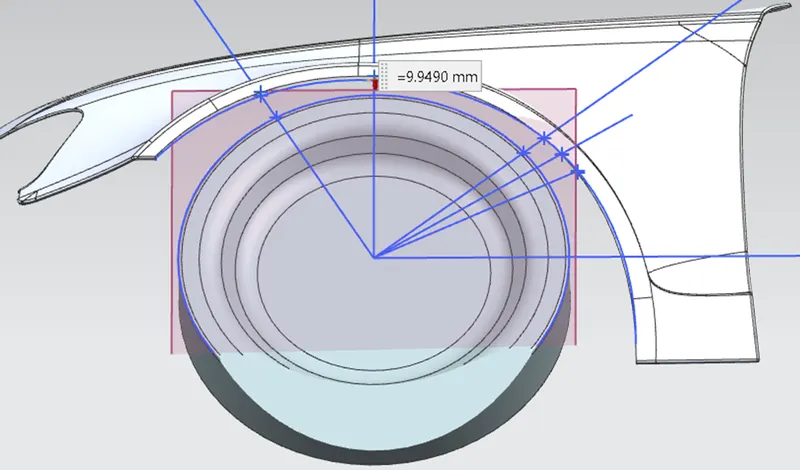

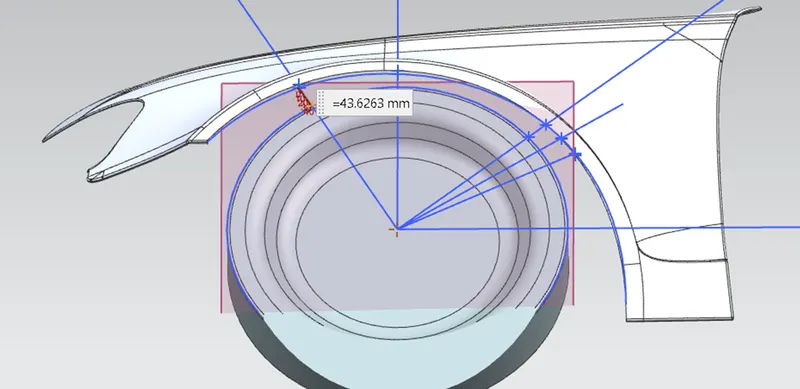

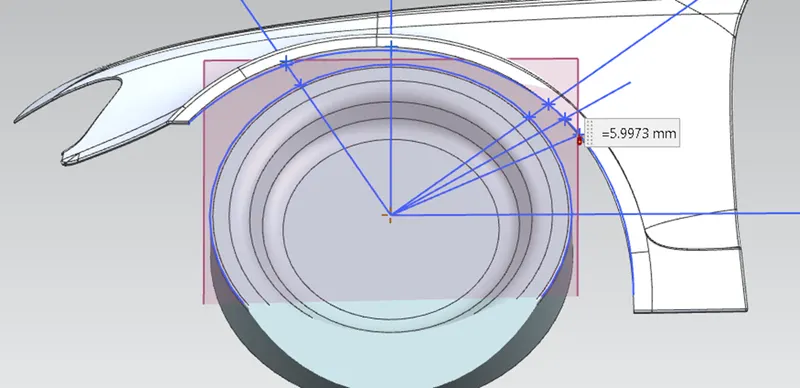

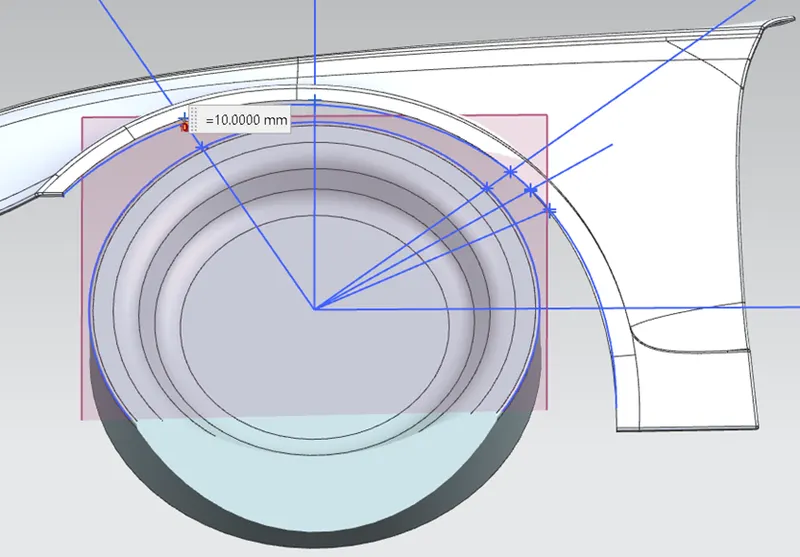

Calculate the Wheel Arch gap : first create plan on wheel outer face and sketch line as per requied standard than project fender edge on plan than using derived line command to create line than create inersection point on each line at five loaction as per requied than finish the sketch than measure distance every five point measure distance as below image.

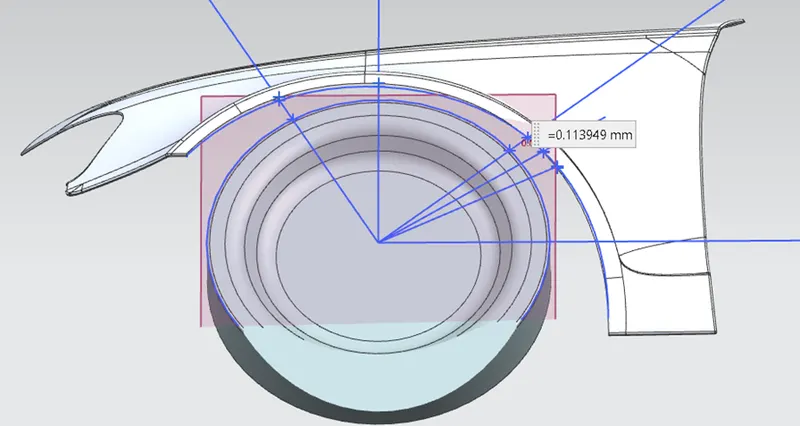

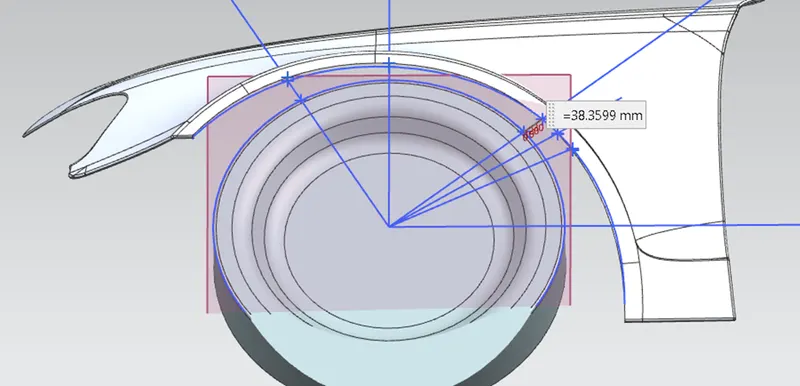

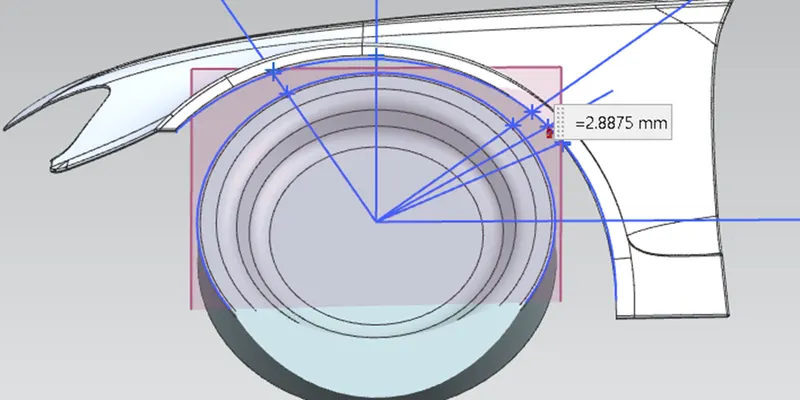

for the gap calculation between fender and wheel : create sketch on plan and project wheel top edge on plan than create intersection point on both line as per requied than finish the sketch and measuer distance fender to wheel measure results as below image :

this model is not satisfied to given condition .
