Fender Design - Wheel Arch Challenge

Wheel Arch Validation:

EUROPEAN STANDARD

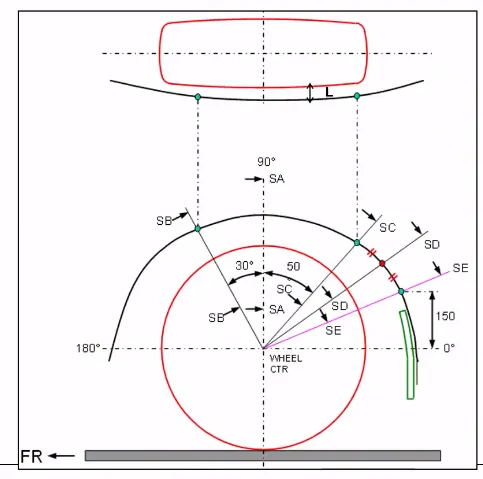

CREATE SUCH SKETCH AS PER EUROPIAN STANDARD, LIKE SEE BELOW:

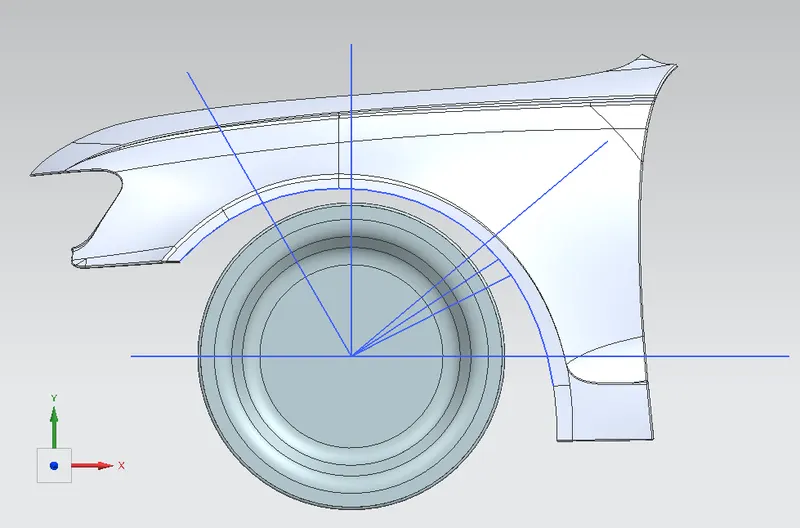

HENCE WE WILL USE SECTION FOR MEASUREING DISTANCE AS SHOWN:

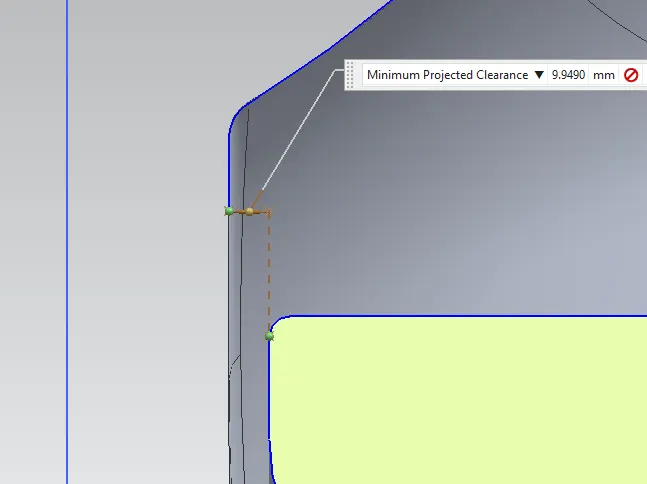

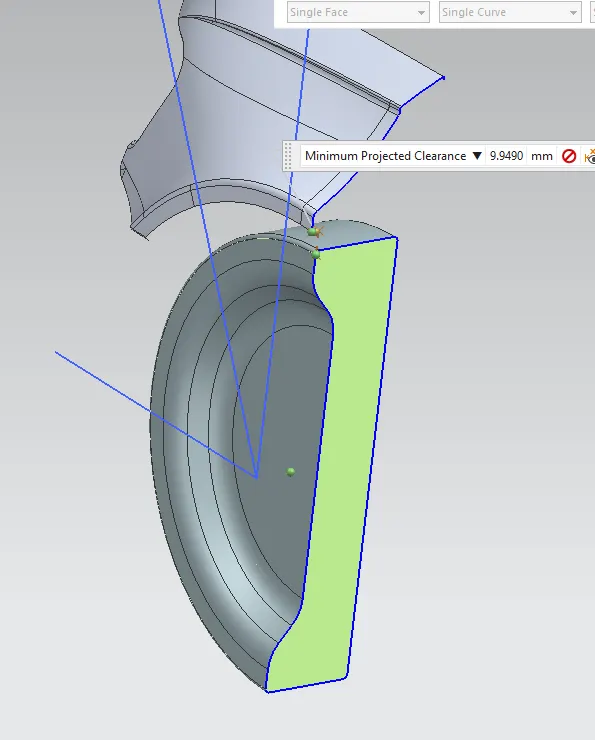

SECTION SA-SA

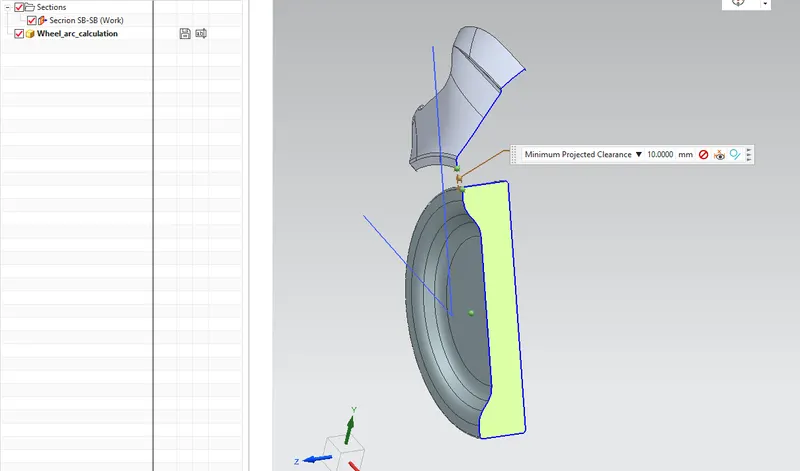

SECTION SB-SB

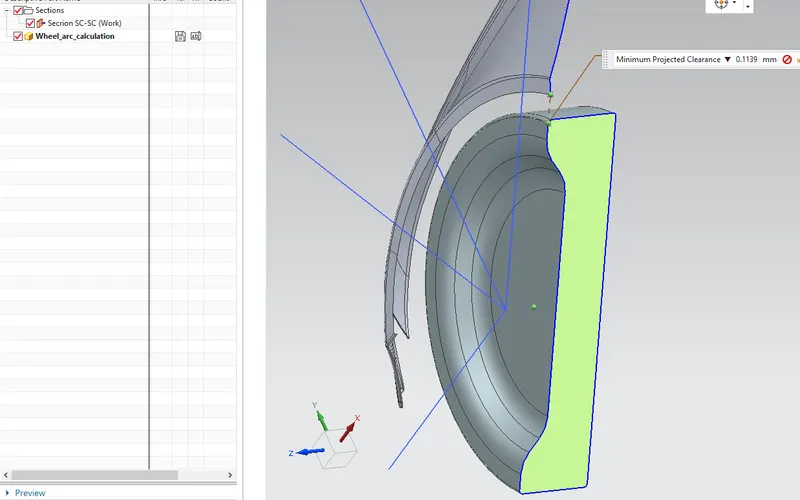

SECTION SC-SC

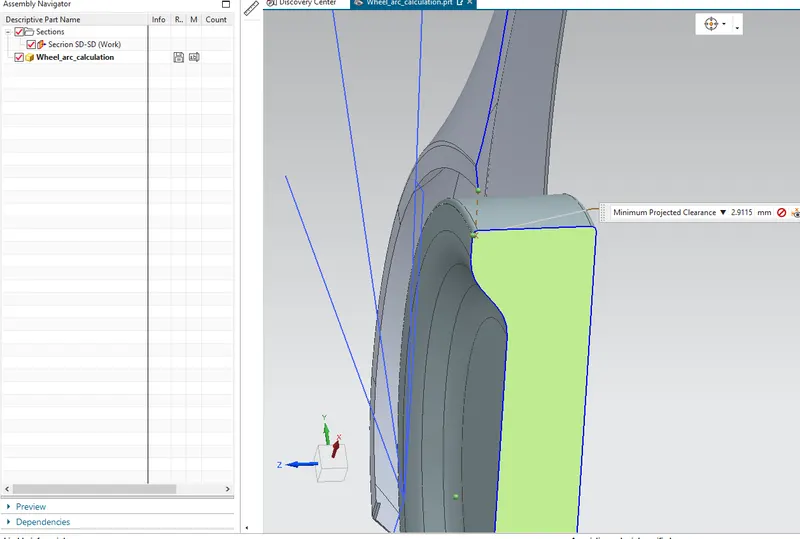

SECTION SD-SD

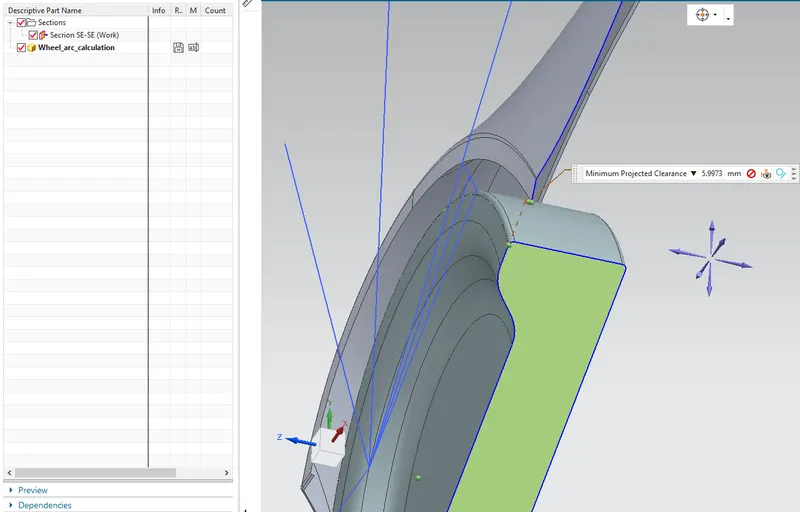

SECTION SE-SE

WE GET :

SECTION	NORMAL DISTANCE TO WHEEL EDGE "L"	PASS / FAIL
SA-SA	9.49	FAIL
SB-SB	10	PASS
SC-SC	-0.1139	FAIL
SD-SD	-2.9115	FAIL
SE-SE	-5.9973	FAIL
SECTION	FRONT DISTANCE "a"	"a"	PASS / FAIL
SA-SA	25.99	>5	PASS
SB-SB	43.63	>5	PASS
SC-SC	38.36	>5	PASS
SD-SD
SE-SE

THIS MODEL WHEEL ARCH DOES NOT QUALIFY EUROPEAN STANDARD.
