Fender Design Challenge

FENDER DESIGN:-

Objective is to:-
1. Design Drip Area,
2. Design Sill Mount Area
3. Design Body Mount Area
4. Design Bumper Mount Region and A-pillar mount Region.

INPUT FROM STYLING TEAM:- A Class Surface

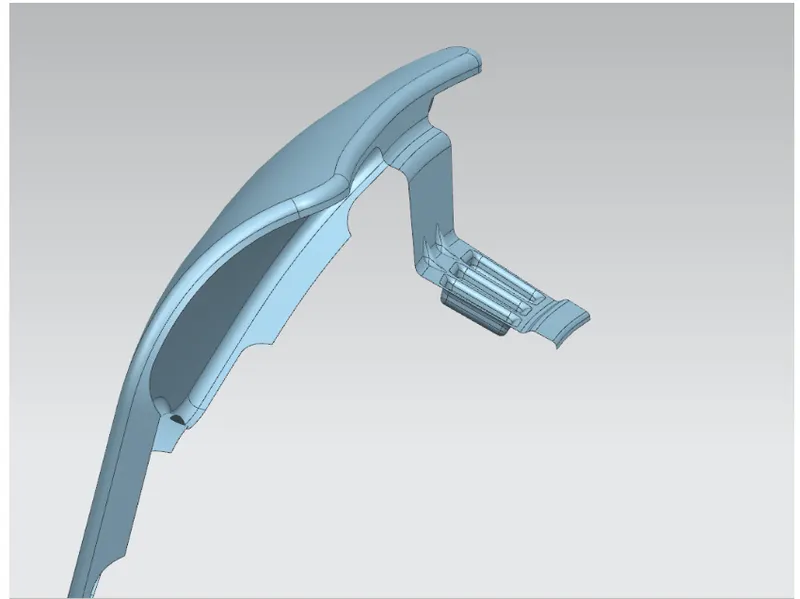

1. DESIGN OF DRIP AREA:-

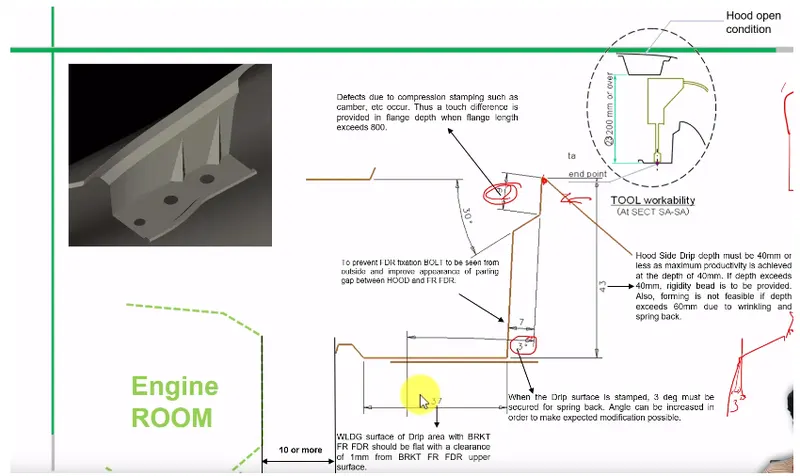

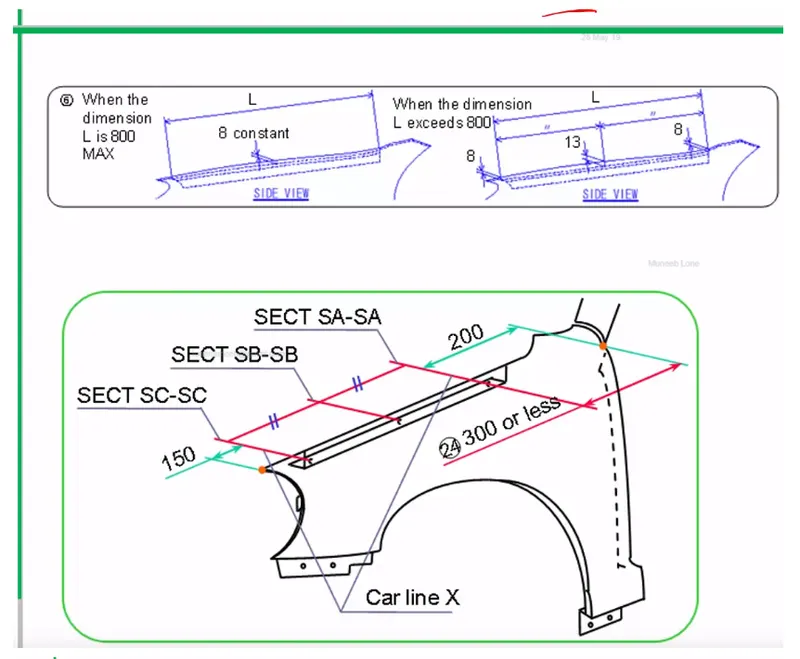

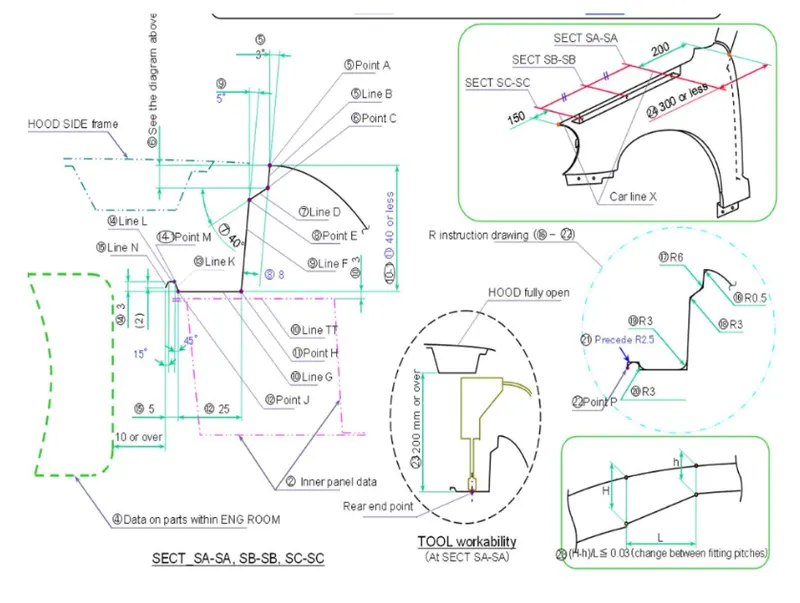

Master sections to follow to create the Drip Area

Creating Drip Area following the given Master Sections, Regulations and Stardards:-
Giving Draft Angles and Fillets
Creating Embosses and Ribs

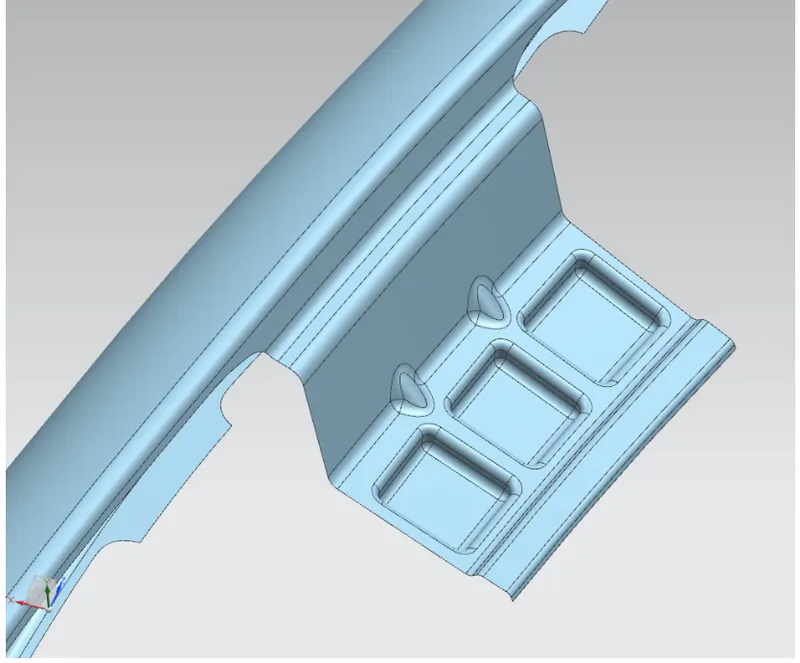

2. DESIGN OF SILL MOUNT AREA:
Giving Draft Angles and Fillets
Creating Embosses

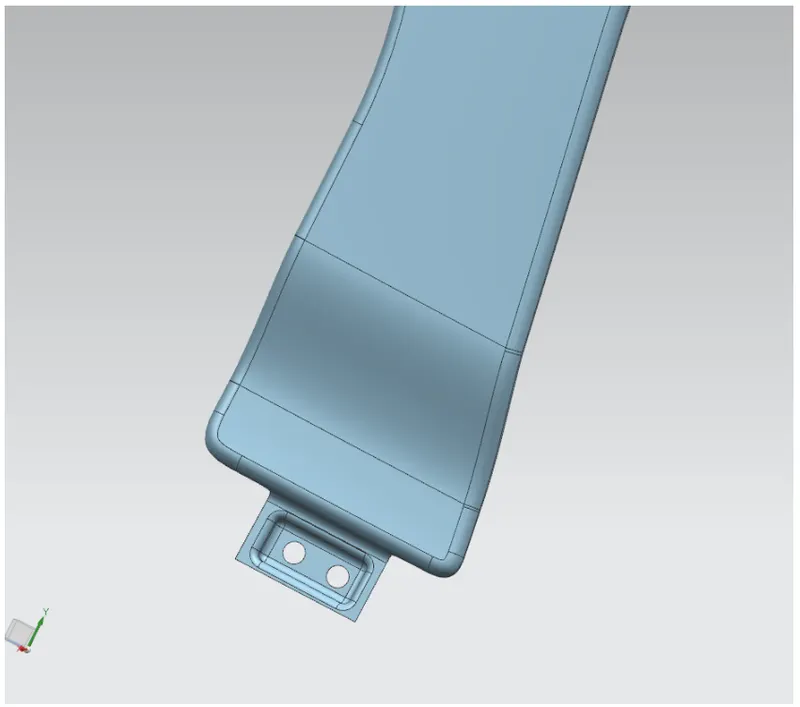

3. DESIGN OF BODY MOUNT AREA:-
Giving Draft Angles and Fillets
Creating Embosses

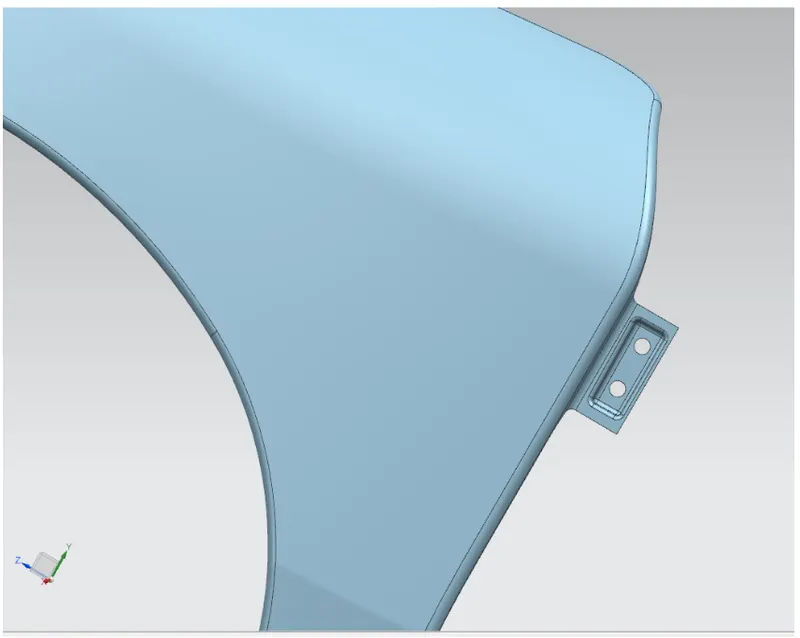

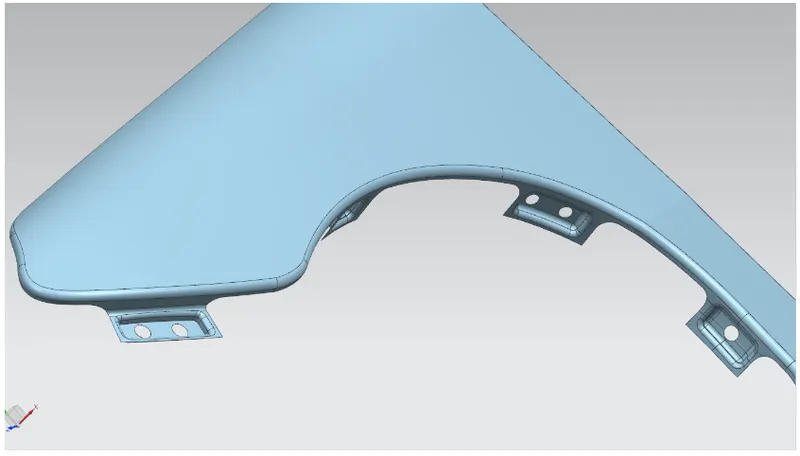

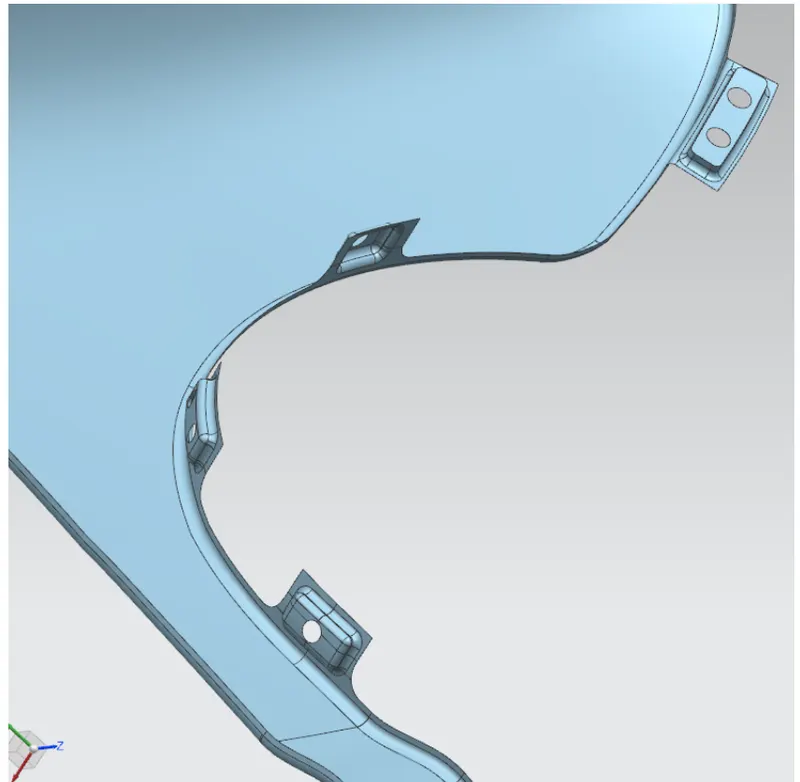

4. DESIGN OF BUMPER MOUNT AREA:-
Giving Draft Angles and Fillets
Creating Embosses

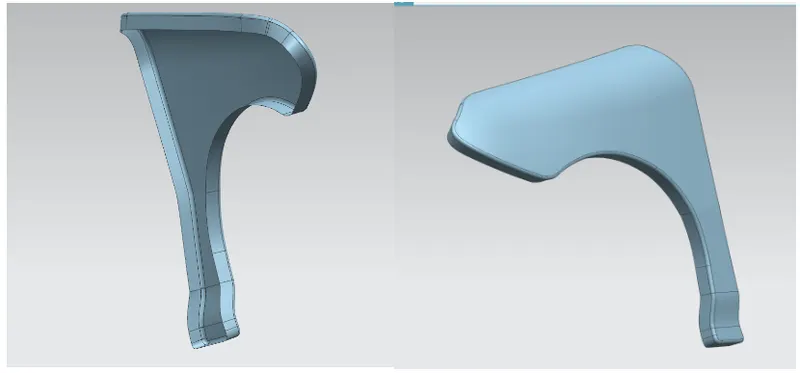

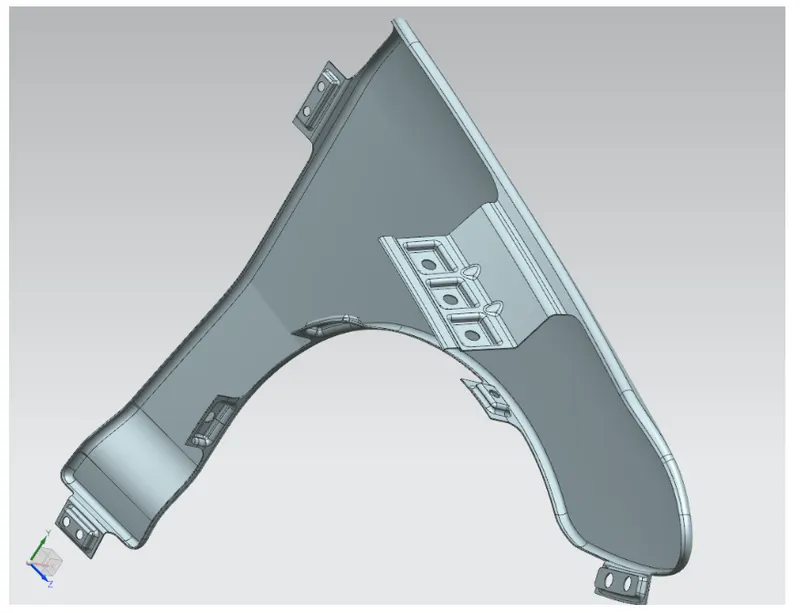

Final Fender part after giving thickess of 0.65mm to make a Solid body
