Fender Design Challenge

FENDER

Main purpose of fender is to prevent environmental damage by tyre. Environment facters are sand, liquids,rocks.

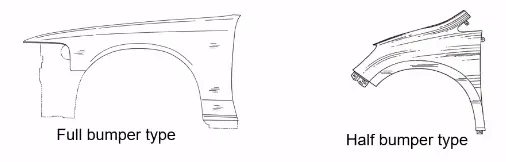

Types of fender

Full bumper type

Half bumper type

Full bumper type

Full bumper type is oldest type is now coming time majorly not used because its having large space to install need more material to manufacturing.

Half bumper type

Half type bumper is mostly used in current time the reason of chooseing this low weight and less scriping area it giving more perfomanece in vechile.

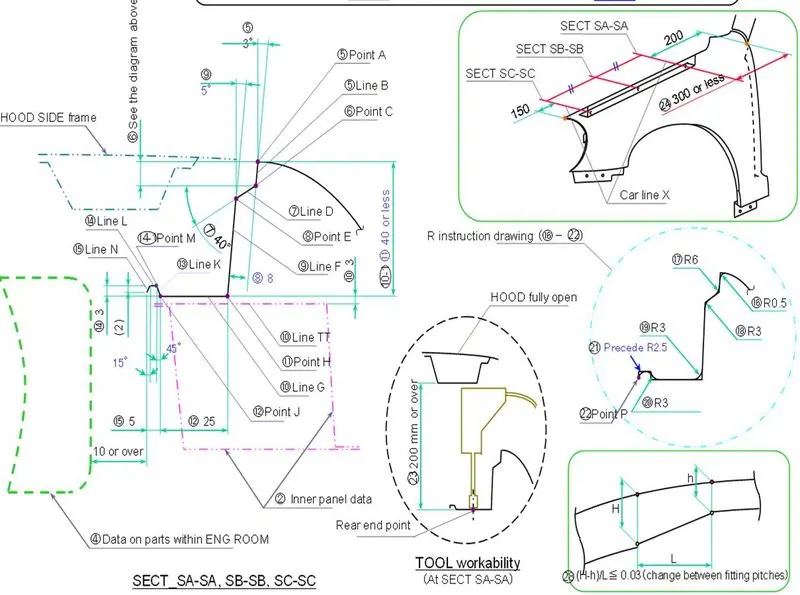

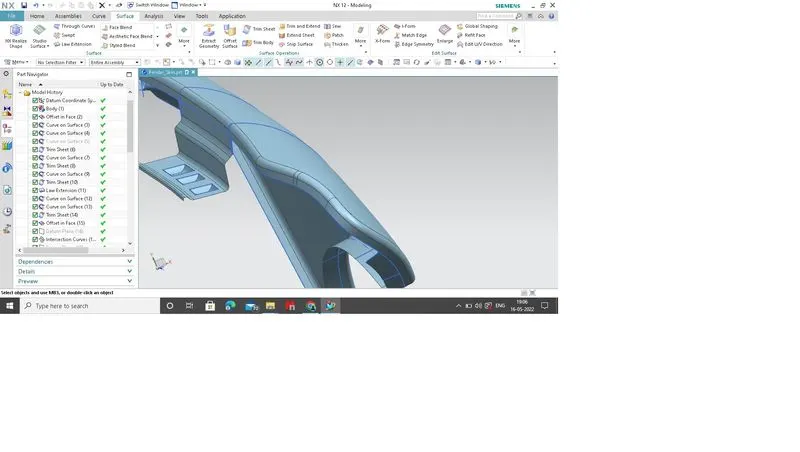

Creating drip area

Conclustion

Drip area created as per machining allowance.
