Fender Design Challenge

FENDER DESIGN:

• Front fender is a side covering unit of a engine compartment.
• Its primary purpose is to prevent dust, sand or mud particles from being thrown into the air by the rotating tyre.
• It also plays an important role in pedestrians safety like preventing the chip particles being thrown in air.

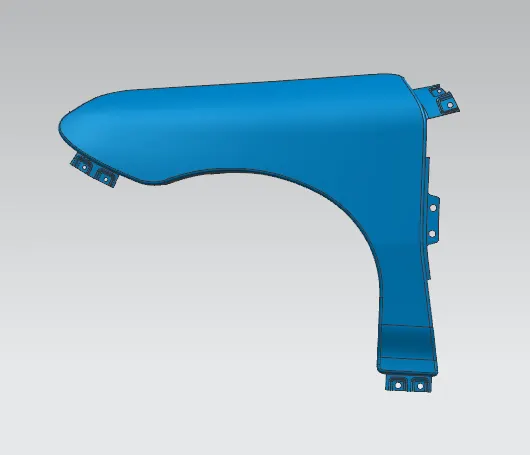

Design a front fender from the given skin data and the master section provided with drip mounting, A pillar, Sill, Bumper, Body, Splash mountings.

Design Considerations:

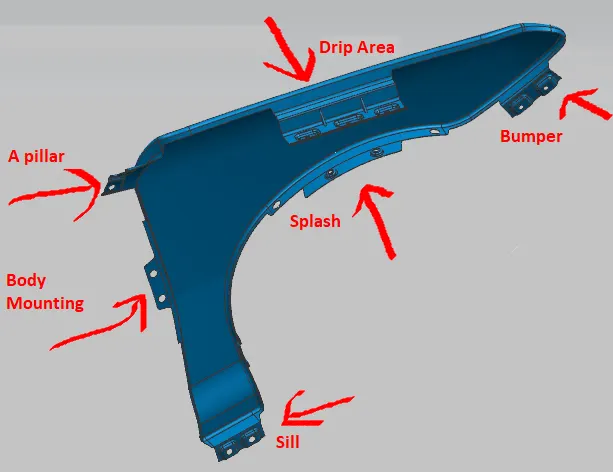

Front fender comprises of 6 major design requirements, they are

1. A pillar
2. Sill Mounting
3. Bumper
4. Drip area
5. Body
6. Splash Mounting

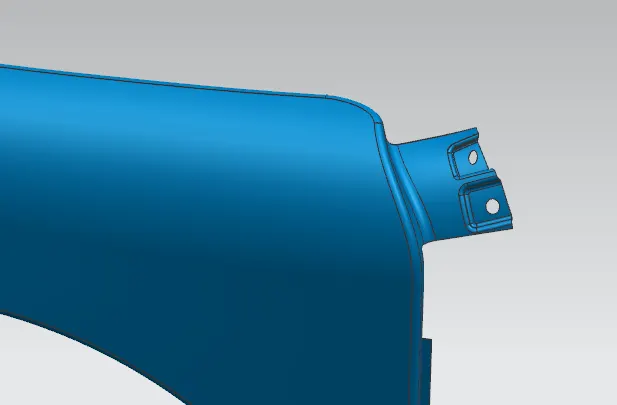

A pillar: A pillar is the region where the A pillar of the car is mounted from the front fender. It is located at the top right corner of the fender.

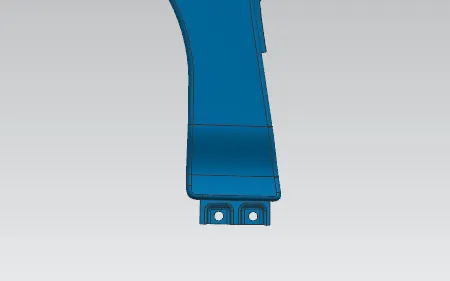

Sill Area: Sill area is the lower area of a fender, the sill mounted both on fender and the body of the car.

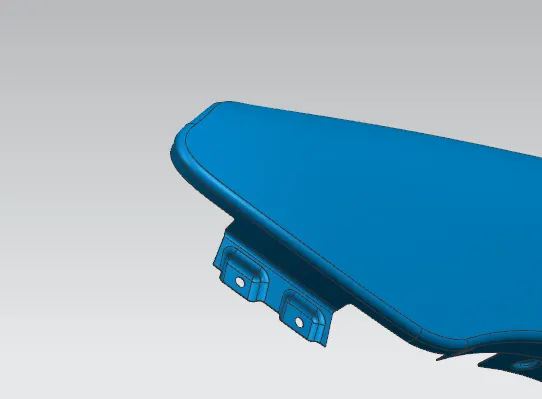

Bumper: It is the front portion of the fender where the bumper is mounted with the help of brackets.

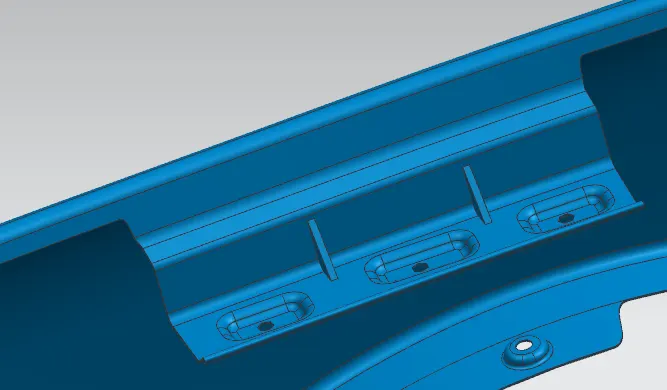

Drip Area:

• Two main points to be remembered while designing the drip area.
• A minimum gap of 200 mm should be maintained from rear end of the fender. This is because to have spacing for cowl mounting.
• The second thing is to maintain a minimum gap of 150 mm front end of the fender for headlamp mountings.
• It is considered to be important because it is mounted on the engine compartment.
• Ribs are provided to improve the stiffness and holes are given for mountings over engine compartment.

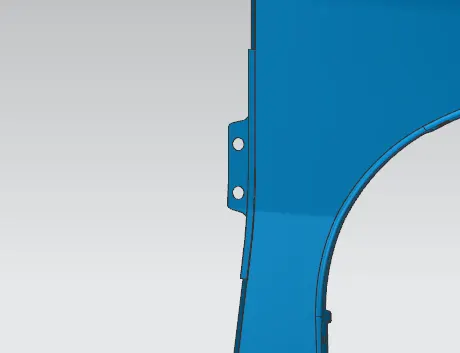

Body Mounting:

• For stable position of fender it is mounted with the car body.
• Fasteners can be used for assembly of fender with car body.
• Here the beads also are provided to improve the stiffness.

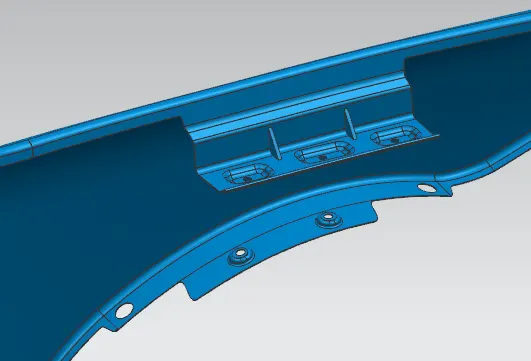

Splash Mounting:

• Splash area also plays a vital role anti chipping.
• It protects the dust particles, spray particles from being entered inside the car.
• Thus Splash plays vital role in fender.

Hence , the design of front fender according to the engineering standard is completed.
