Front Fender design

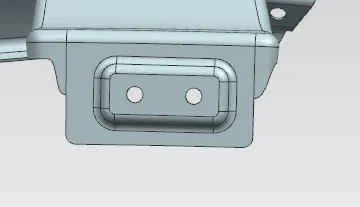

Drip mounting area -

Drip area is flanges which located in the fender is used to assemble with engine compartment of the car by using Fastners.

• Using law extension tools create a flange from main body part of fender to attach with clamp with referred master section.
• Giving fillets to all the sharpen edges as well as joining the surface by using the face blend tool.
• create sketches on flat surface and make emboss to strengthen the flange
• Make Holes to fix in clamp on the engine compartment,
• create ribs between the perpendicular flanges for support.

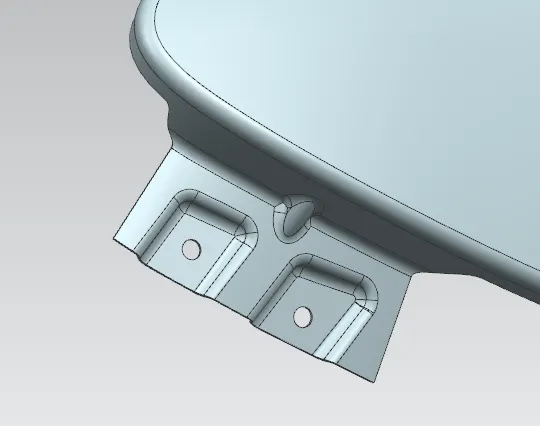

A pillar Mounting area -

Flanges are attached towards main body by fasteners and some ribs are also used to strengthen the flanges.

• Using law extension tool extend the surface parallel towards the fender to mounted on the main body.
• Make a separate sketch to emboss make a hole on the flanges.
• As well as create ribs between the surfaces for support.

Bumper area -

Front portion of the fender. flanges connect to the bumper by using fasteners

• create flange front parallel to the fender
• make a sketch to emboss and hole on the flange.

Sill Mount-

Its lowermost fixing flange of the fender to sill area.

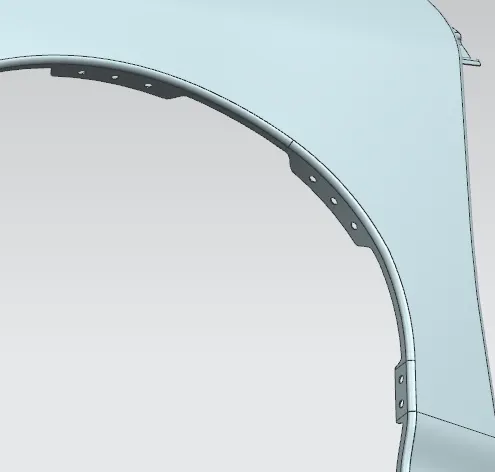

Baffle mounting area-

Baffle is plastic part located on the wheel arc area in fender.

• Separate flanges were created to baffle fixing on the wheel arc area
• creating holes on the flanges with clearance to fasteners sit on the flange
