Fender Design
FENDER DESIGN
FENDER
Fender is an automobile part in cars or motorbikes. The main purpose of this fender is to prevent the external substance like mud,stone,water,sand are thrown outside using fender. There are two types of fenders
- Full Bumper Type
- Half Bumper Type

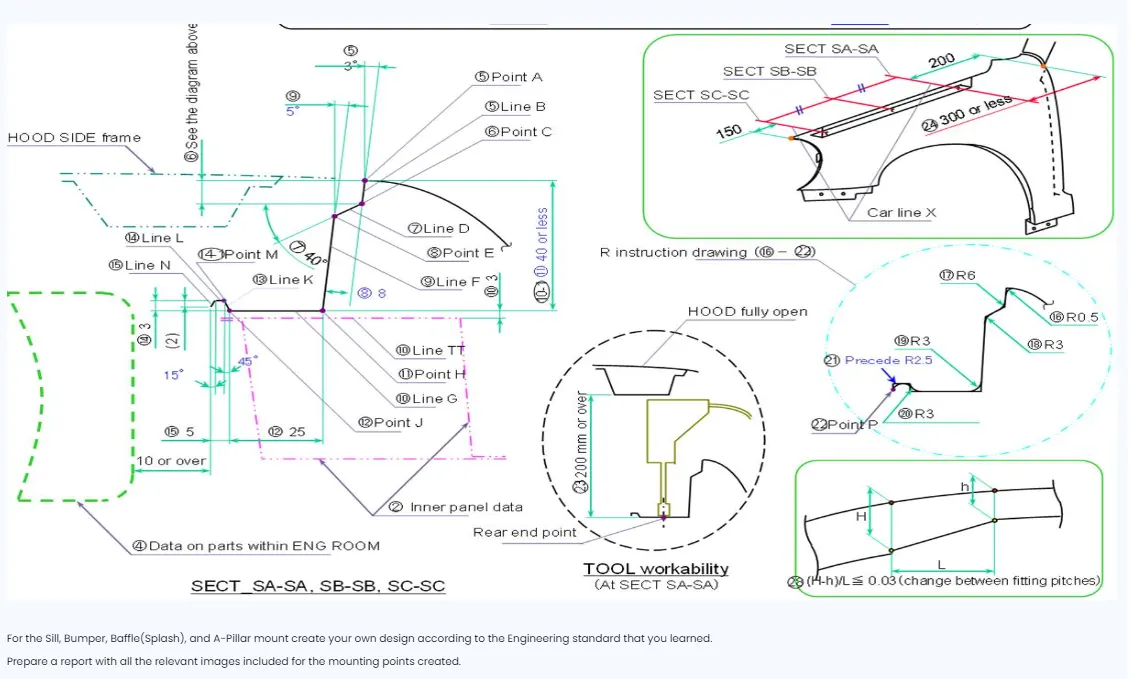

MASTER SECTION OF FENDER
For designing a fender their are several design parameters to be considered such as
- Drip area Mounting
- Bumper Mounting
- Sill Mounting
- A-Pillar Mounting
- Wheel Arch Area Mounting
DRIP AREA MOUNTING
This is the major portion of the fender which provides the stability to it while designing fenders. Drip area is designed using the master section 200mm space from cowl mounting and 150mm from headlamp unit. The maximum depth of dip area didnot exceeds 40mm to reduce the spring back effect.

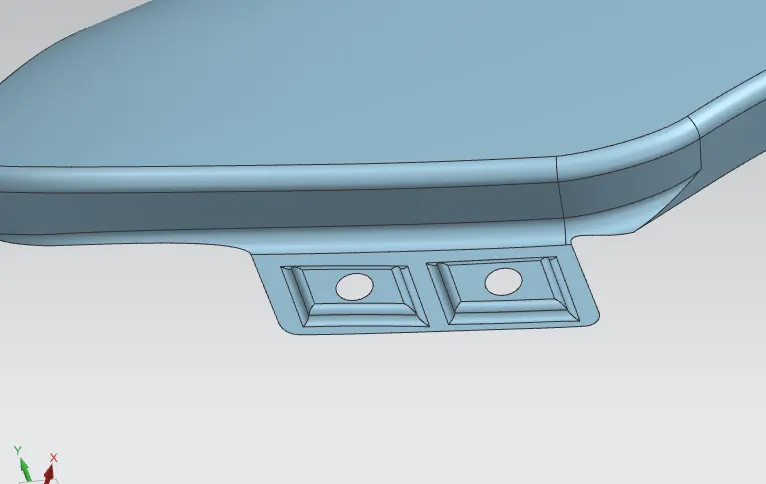

SILL MOUNTING
Sill is located at the lower end of the fender which gets in contact with the body of the vehicle. It provides proper sealing in fender to improve NVH.

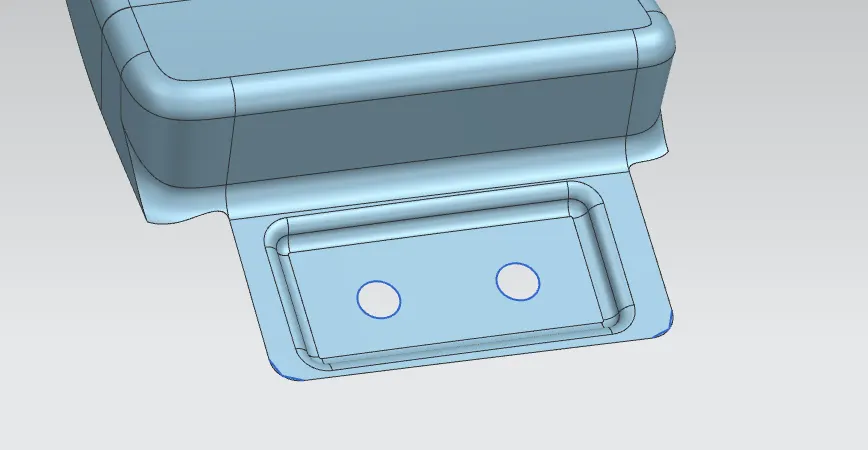

BUMPER MOUNTING
Bumper mounting in the fender gets connected to the front bumper of the car.

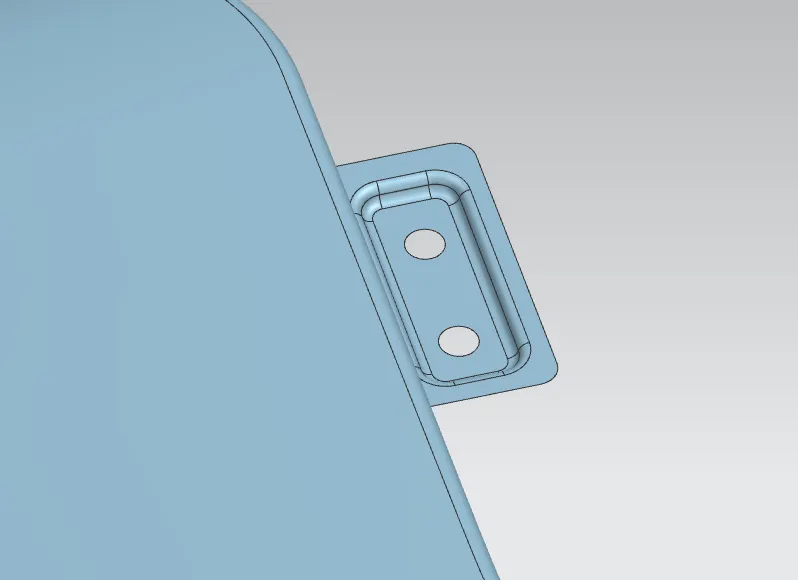

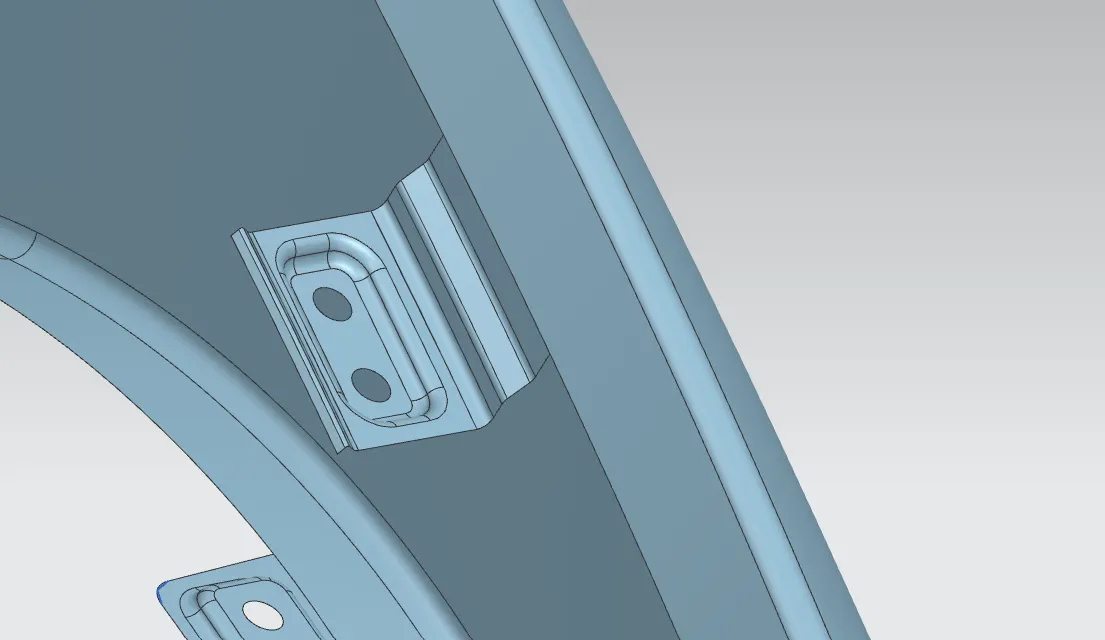

A-PILLAR MOUNTING
A-Pillar Mounting of the fender is in contact or fastened with the A-Pillar of the car. It also provides strength to the car in case of any crash occurs.

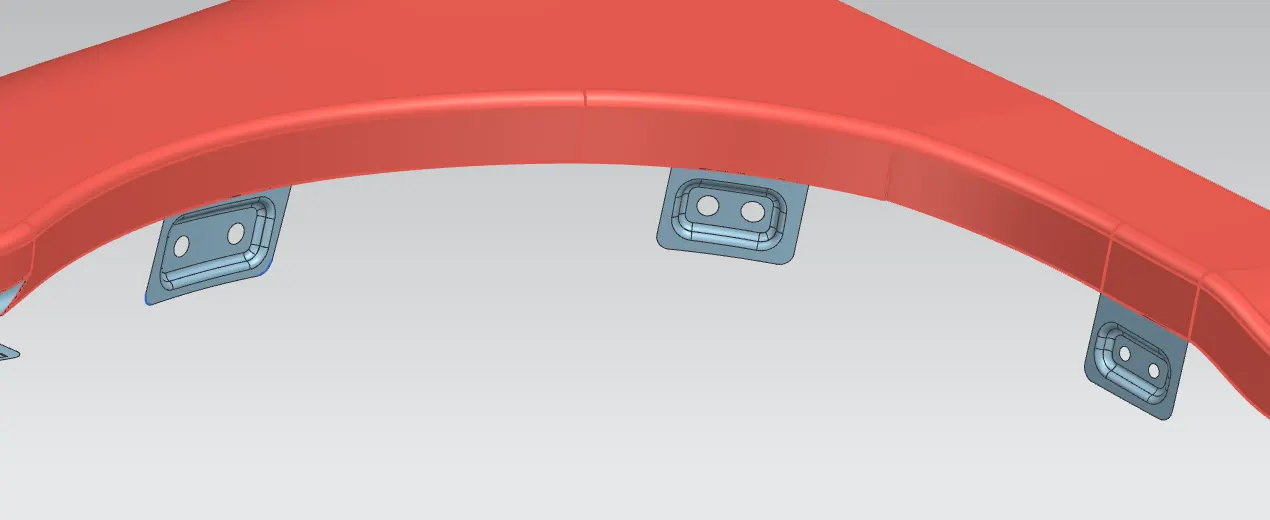

WHEEL ARCH MOUNTING
These mountings are provided on the wheel arch area of the car.

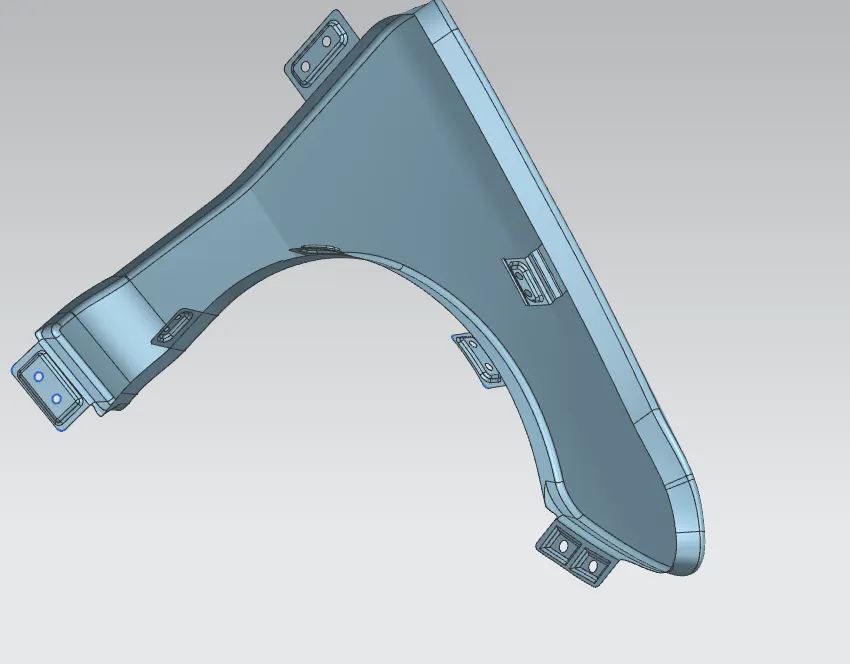

FENDER DESIGN
