Fender Design
IMAGE 01

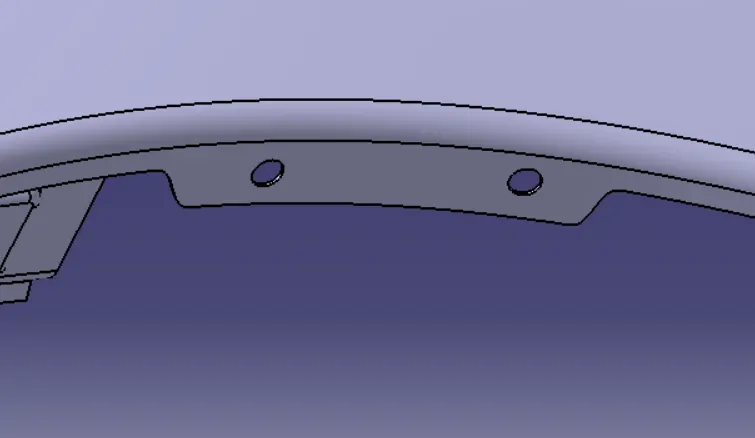

Drip Area:
- While designing the drip area we have to initially leave 200-300 mm for cowl top
- For placing the headlamp we have to leave at least 150 mm at the front while designing the fender
IMAGE 02

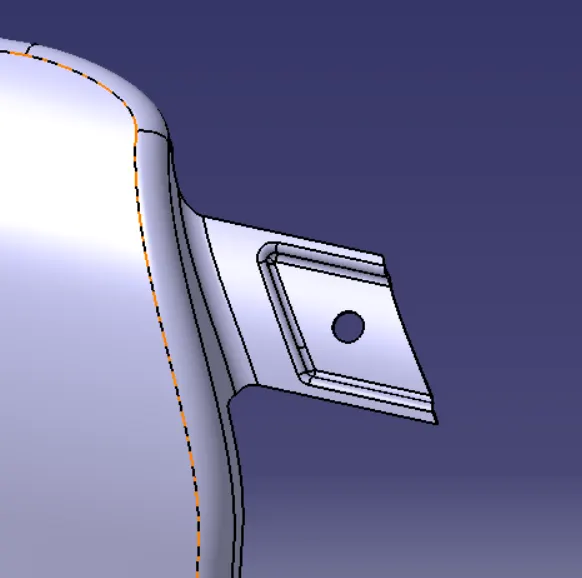

A PILLAR MOUNTING AREA
The A-pillar is a structural pillar that combines the body of the roof. The front Fender are fastned to A-Pillar.
IMAGE 03

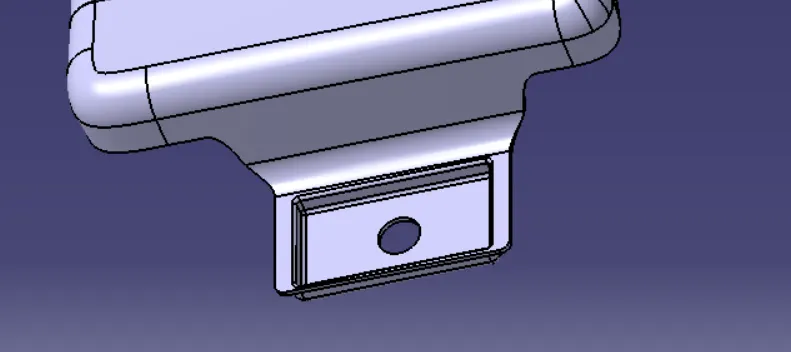

BUMPER MOUNTING AREA
It helps to fix the platic bumper to the fender with the help of fastners.
IMAGE 04

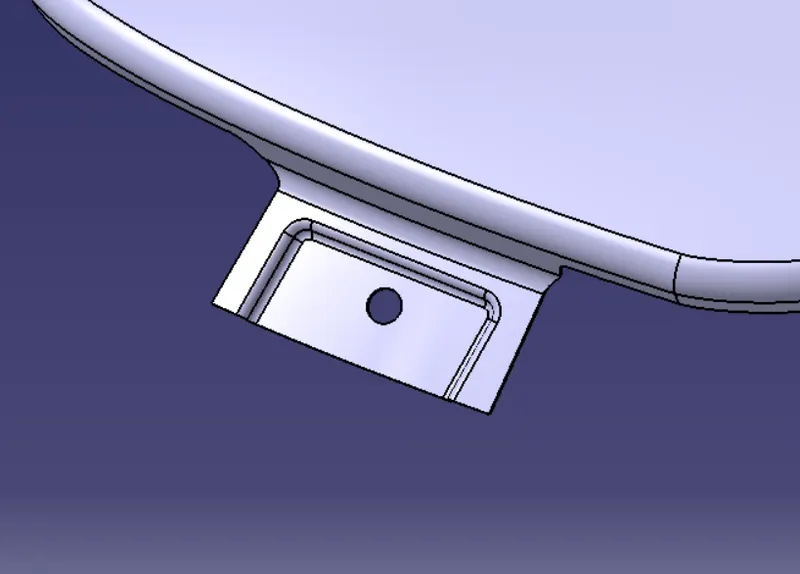

FRONT SILL MOUNTING AREA
Sill is the panel directly below the bottom of the door supporting the floor and may be used to combine the floor and the body.
IMAGE 05

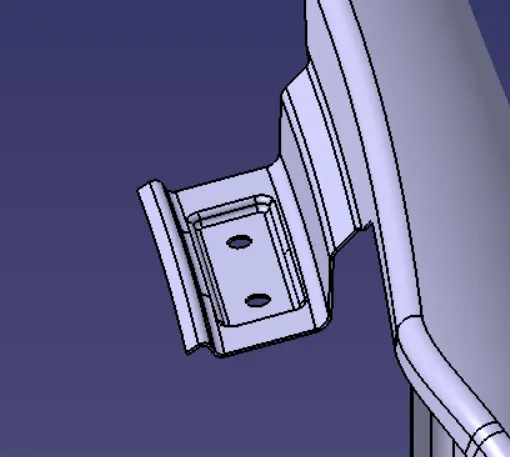

Baffle Mounting Area
IMAGE 06

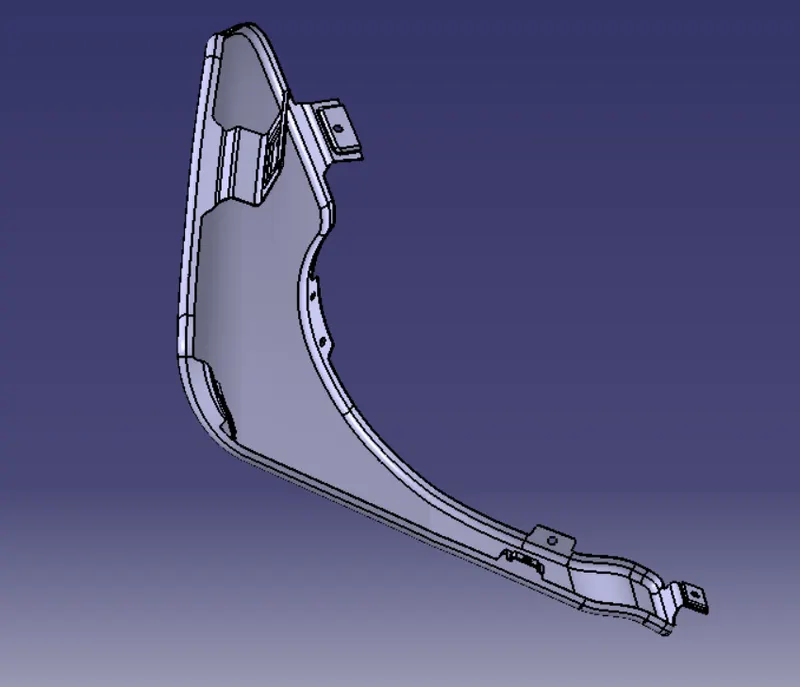

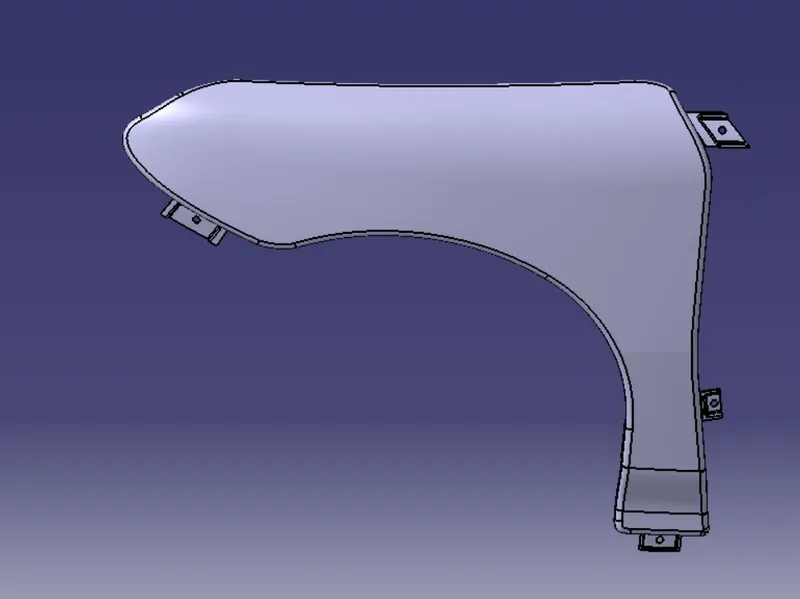

FULL FEANDER IMAGES
IMAGE 02
