Fender Design

Introduction to Fender:

• Fender is the vehicle part which covers the wheel and the engine compartment.
• The fender is provided in such a way that it will protect the padestrians from the high impact from the engine comapartment.
• The fender is also the cover made in such a way that the customer won't see the internal ugly areas of the engine compartment.
• The Fender part is of two types:
  • Full Bumper Type
  • Half Bumper Type

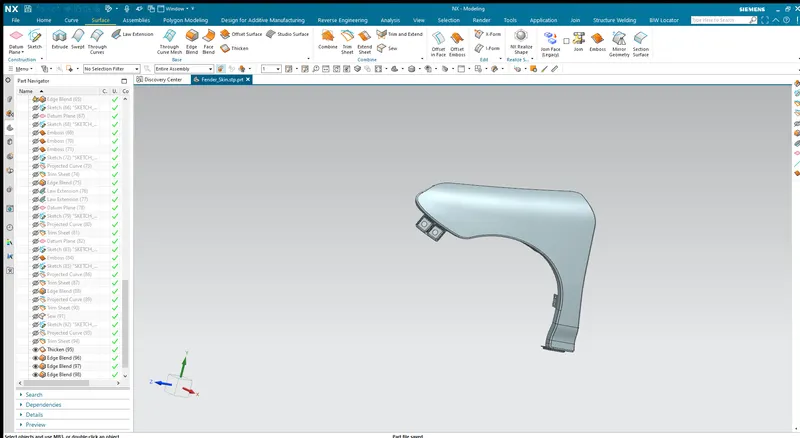

as the given standard dimensions the part is created

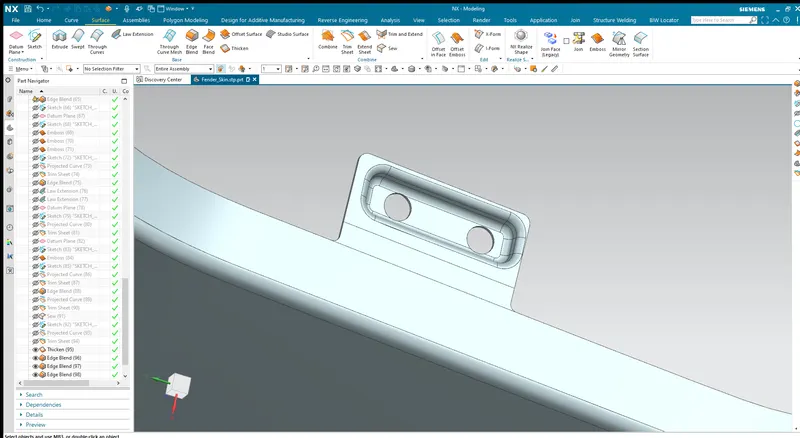

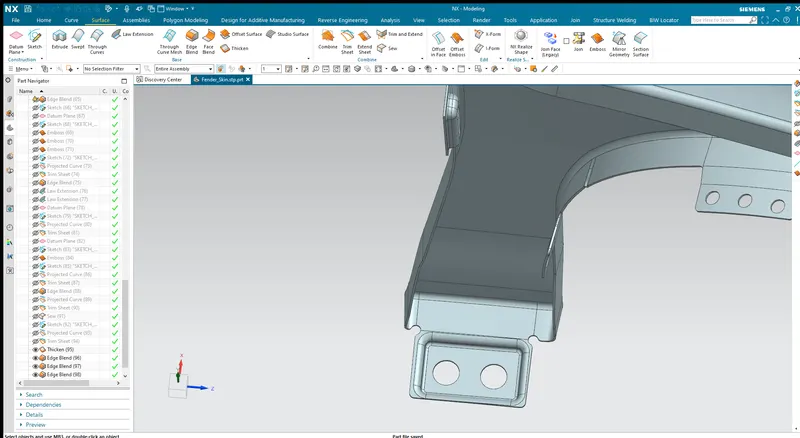

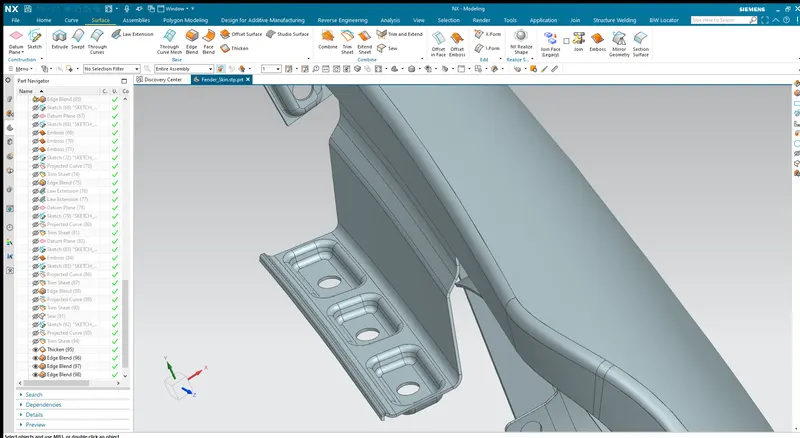

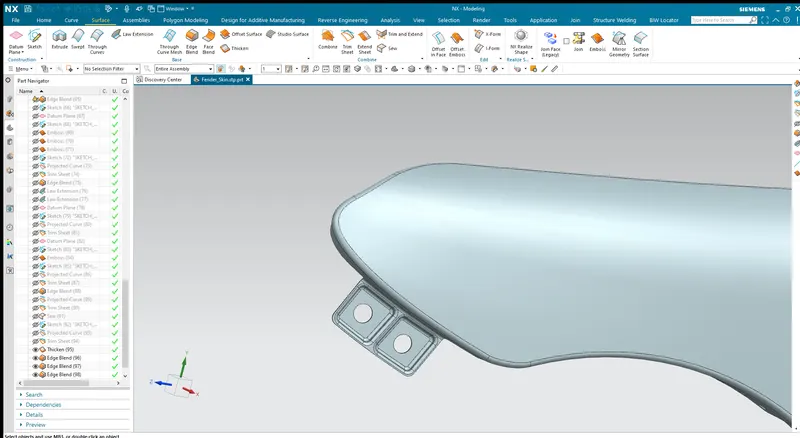

1.Drip area

2. silling area

3. bumper area

4.A-pillar mounting area

the thinkness provided to the part is 0.75mm as the given stanraded dimensions
