Fender Design

FENDER DESIGN

automobile fenders set over the wheels to prevent mud, sand and dust being thrown on to the body and the occupants.Fenders typically became a more integral part of overall auto bodies . In contrast to the slab-sided cars, the had real bolt-on fenders over both its front and rear wheels.

Objective is to:-

1. Design Drip Area,

2. Design Sill Mount Area

3. Design Body Mount Area

4. Design Bumper Mount Region and A-pillar mount Region.

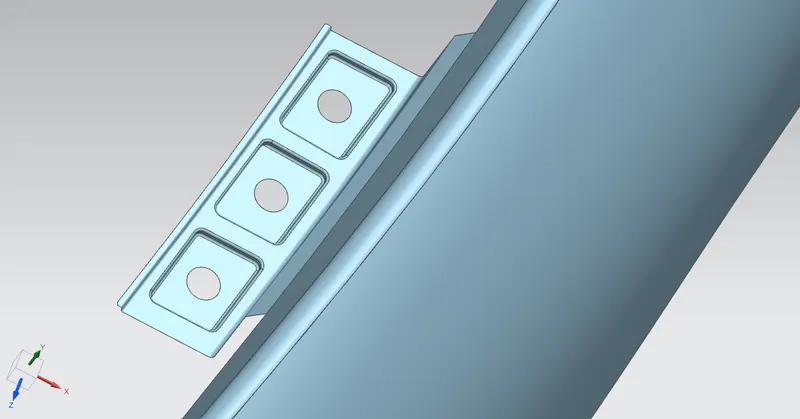

design of drip area

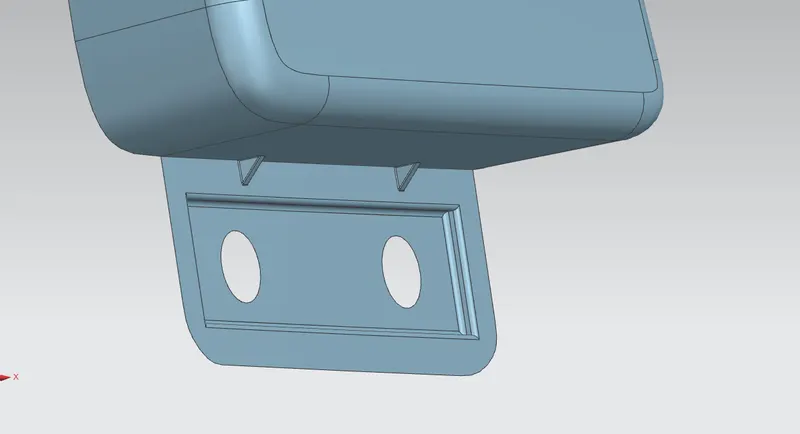

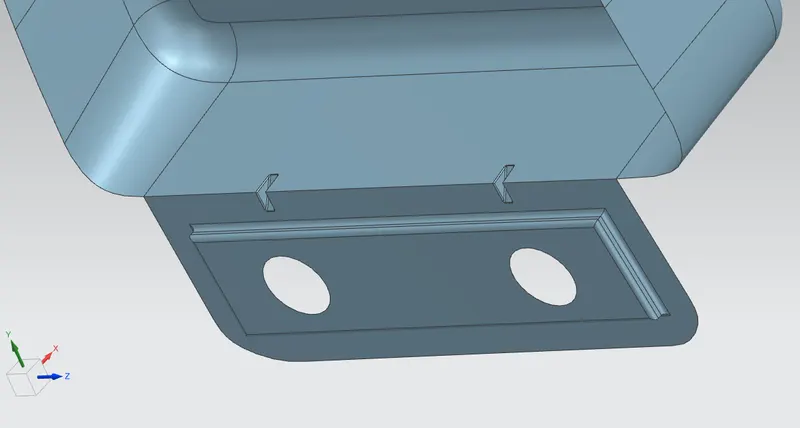

2.design of sill mounting area

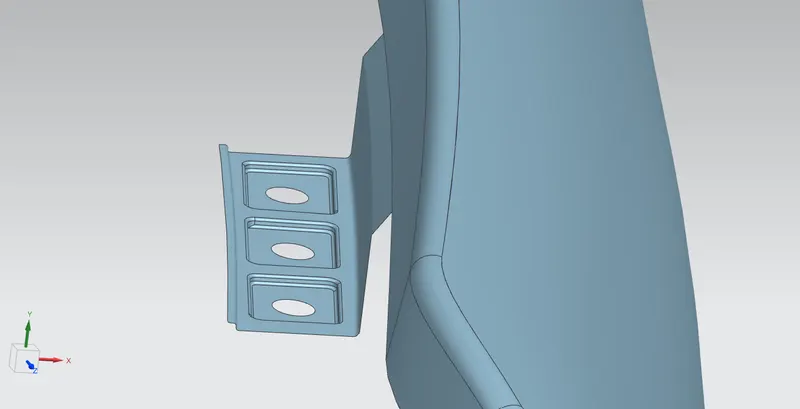

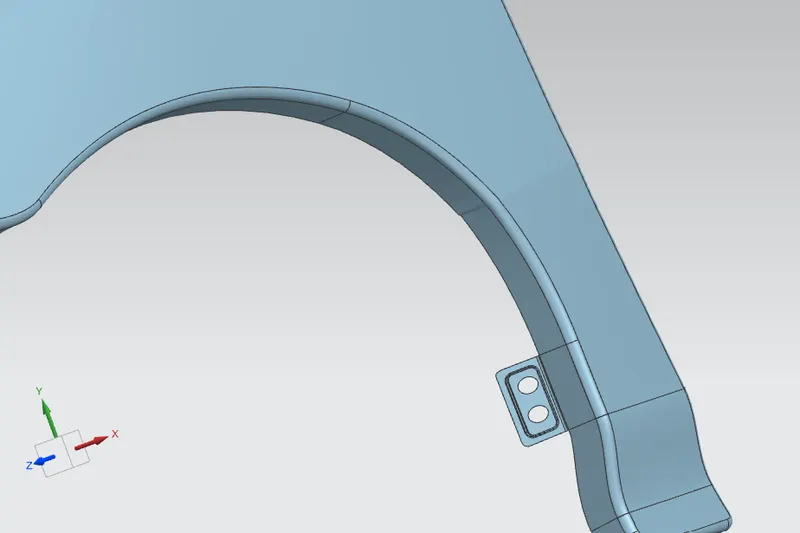

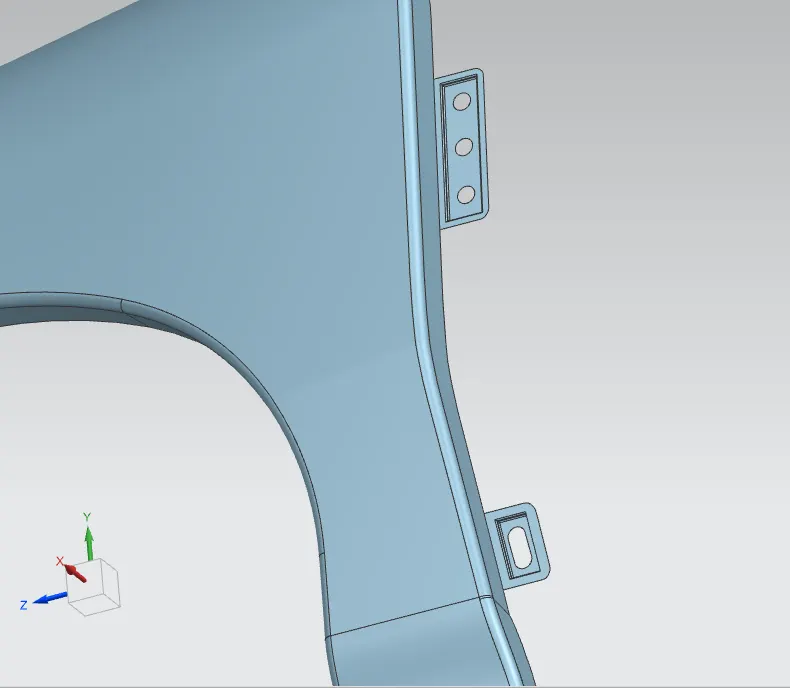

3,design of body mount area

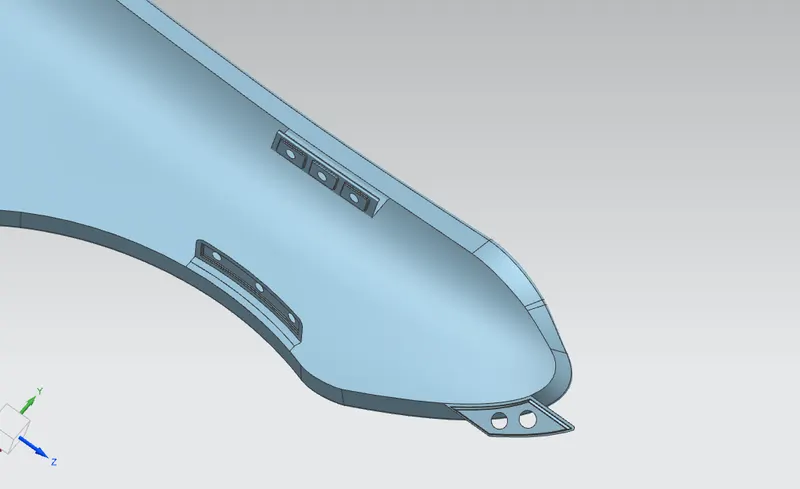

4 design of bumber mount area

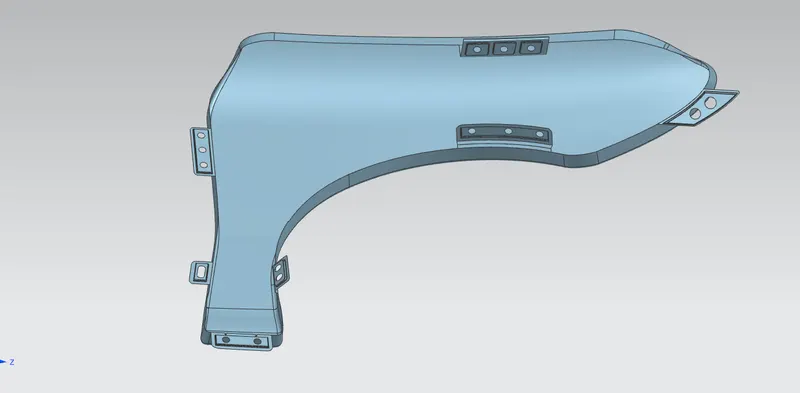

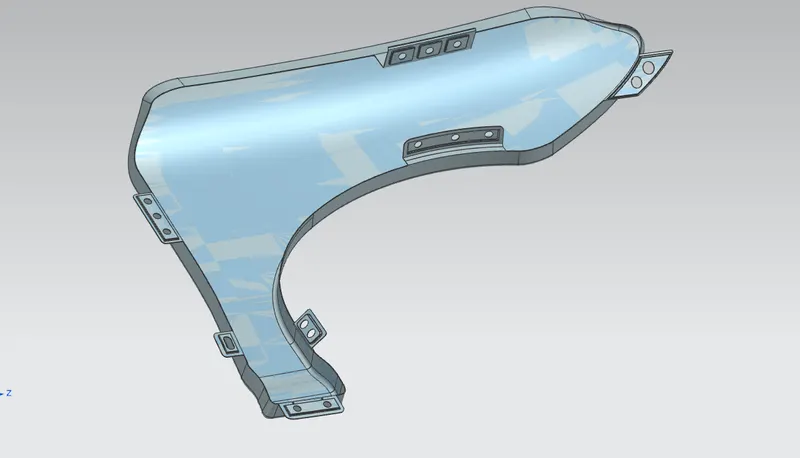

Final resualt after giving 0.65mm thickness
