Week 8 - Challenge 4 - Bumper

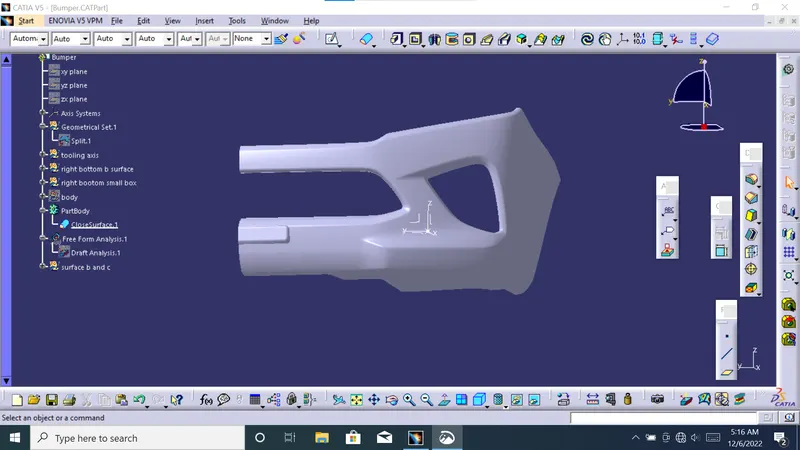

BUMPER part fully draft analaysed and its performed good in creating tooling axis .

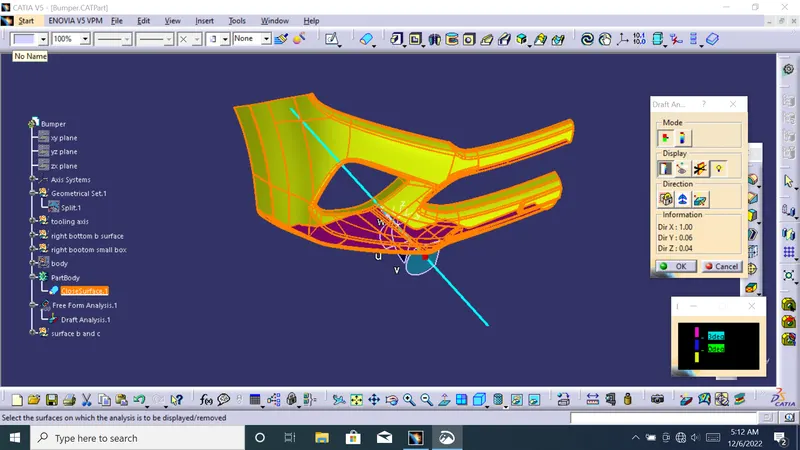

tooling axis is constructed with collect lines from CLASS A surface and its biscuting and made tooling axis .its giving good draft direction to part.

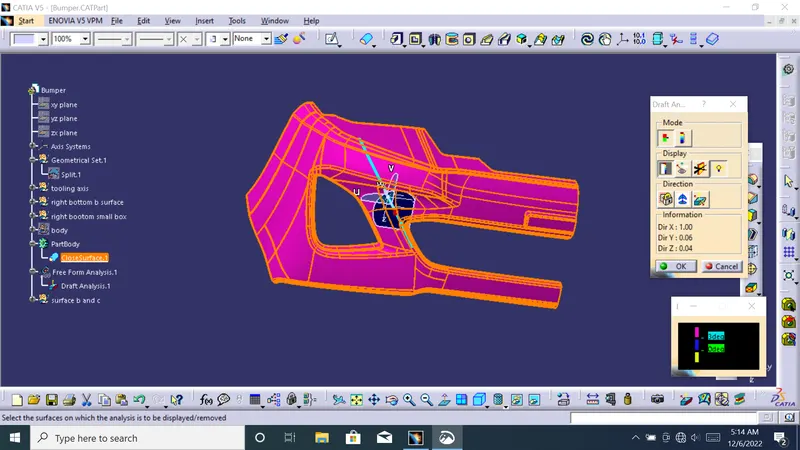

draft analysing is done in this part.its giving good result. its improving the quality and seepd of production
