Fender Design

Fender Design

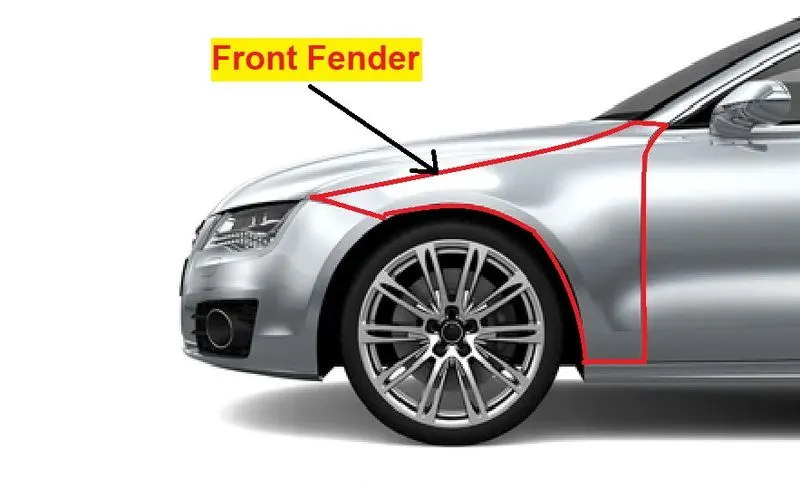

Fenders:

• An enclosure made of metal or plastic that covers the wheels of a car or other vehicle to prevent mud splashes and other debris.

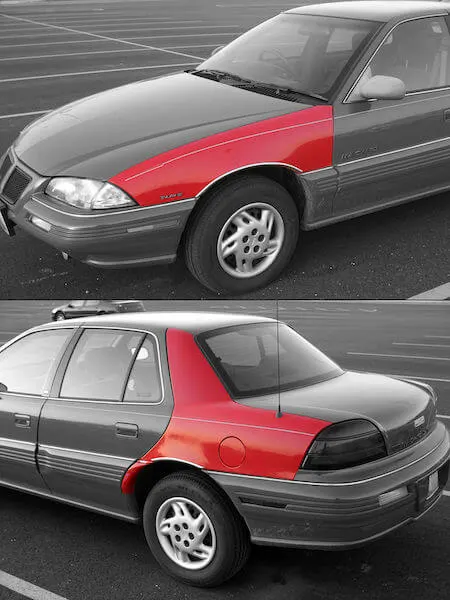

• Over the car's wheels is where the fender is situated. As a result, a normal car has four fenders: the front right, front left, rear right, and rear left.

Typically there are 5 Mounting points On Fender:

• Drip Mounting Area.

• Bumper Mounting Area.

• Sill Mounting Area.

• A-Pillar Mounting Area.

• Baffle Mounting Area.

Remastering:

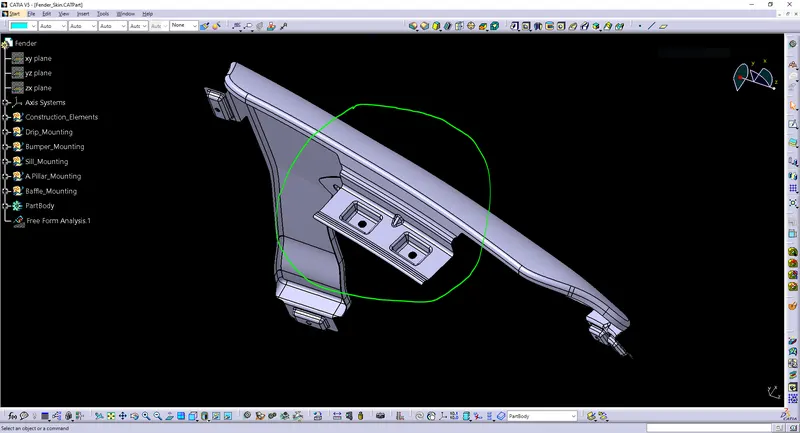

1.) Drip Mounting Area:

• This area, which is installed beneath the hood's inner panel, must be level with the surface when the hood is closed, and there should be very few gaps.
• Spot welding or self-tapping screws may be used in some circumstances to fasten down the drip area.

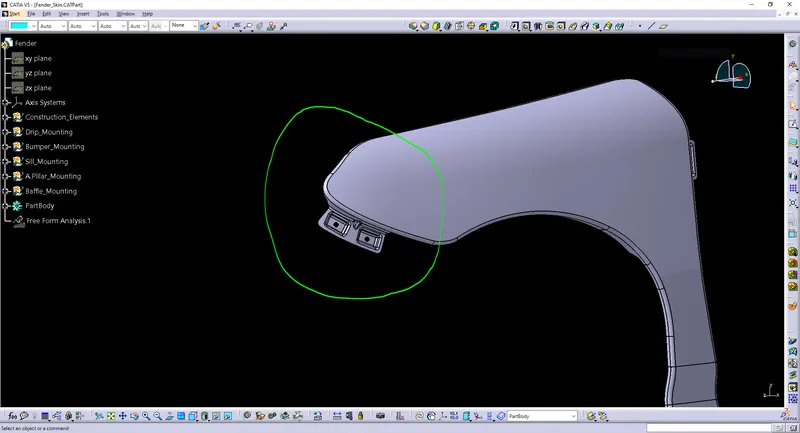

Bumper Mounting Area:

• The bumper can be mounted to the fender using this mounting point.
• It ought to be powerful enough to hold the bumper firmly.
• The bead in this case is intended to strengthen the flange.

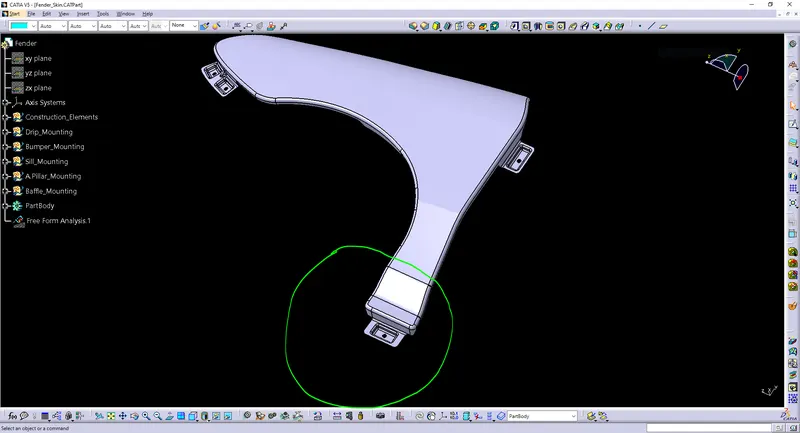

3.) Sill Mounting Area:

• The bottom of the fender has the Sill Mounting area.
• The majority of the time, it is attached to the car's door area.
• Here, appropriate embossing and fastener holes are offered.

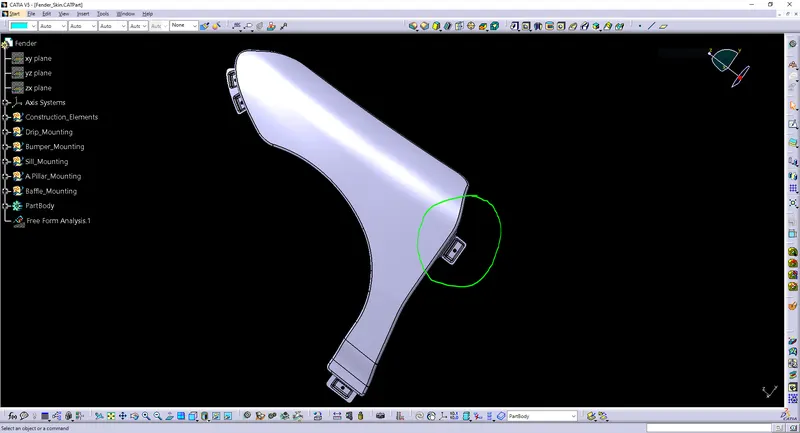

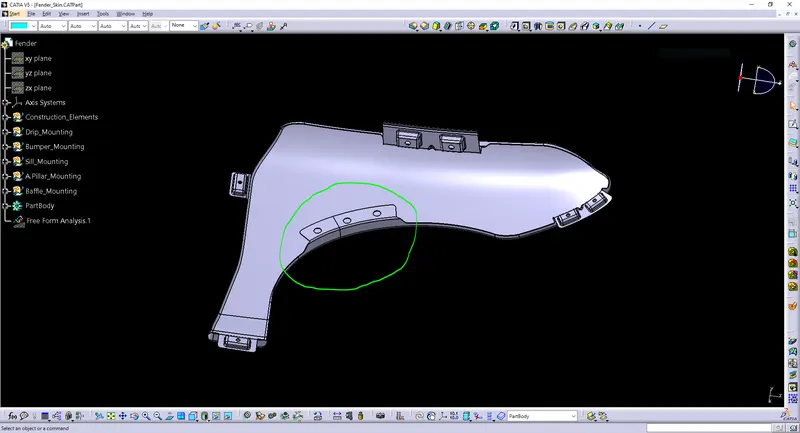

4.) A-Pillar Mounting Area:

• This mounting area is attached to the cowl top of the vehicle via a bolt.
• Baffle Mount Location: In this area, baffles are mounted using fasteners to close the gap between the engine compartment and the wheels.

5.) Baffle Mounting Area:

• These mounting points are designed to hold plastic parts, such as a baffle that prevents chipping in the engine compartment in a particular place.

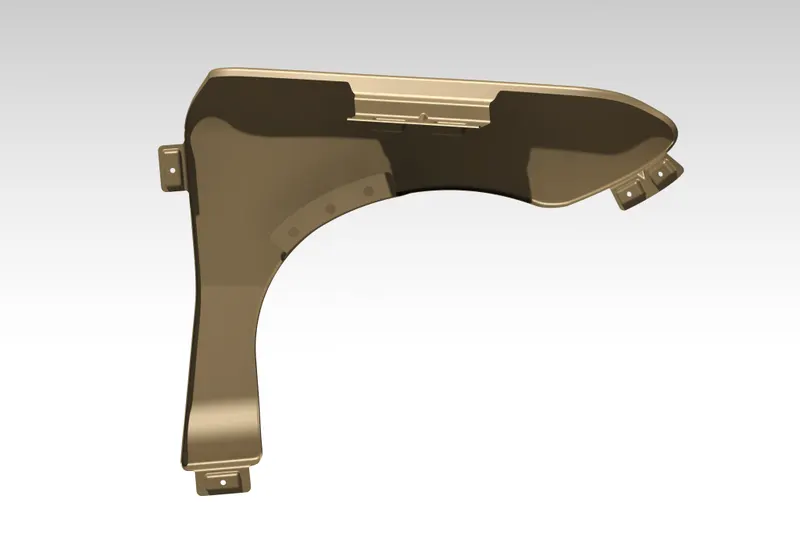

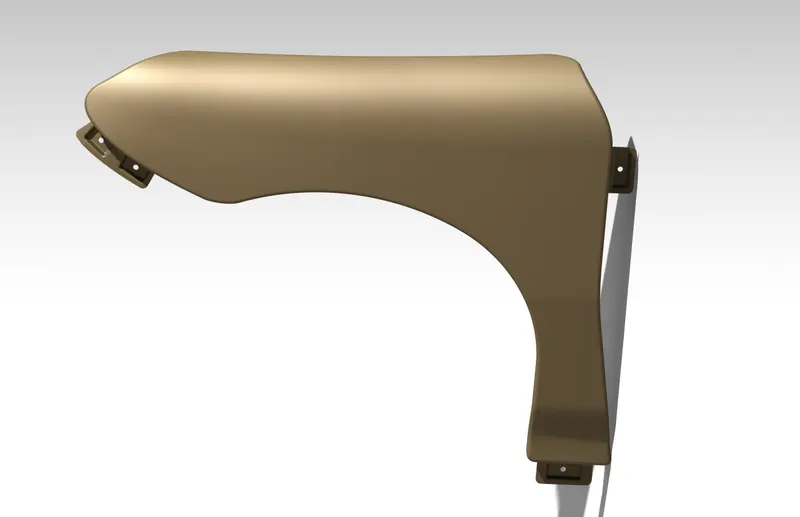

Render View:

Conclusion:

• According to the provided master section and CLASS A Surface specifications, the front fender was created.
