Fender Design

REPORT:

THE FENDER OF THE CAR :

THE FENDER OF A CAR ARE THE PARTS OF THE BODY OVER THE WHEELS.THE FENDER OF A CAR IS A BAR AT THE FRO0NT OR BACK THAT PROTECTS THE CAR IF IT BUMPS INTO SOMETHING..IT IS A METAL OR PLASTIC ENCLOURSE OVER THE WHEELS OF AN AUTOMOBILE OR OTHER VEHICLE TO PROTECT AGAINST SPLASHING MUD etc.THE CAR FENDERS PROVIDDE SAFETY TO THE DRIVER AND THE PASSANGERS AT THE TIME ACCIDENTS OR COLLISIONS.THEY ARE MANUFACTURED IN A WAY TO PROVIDE BEND DURING FRONT AND SIDE COLLISIONS.

ACOLLISION HAPPENS AFTER A MOTOIST STOPS SUDDENDLY AND IS REAR-ENDED.A DRIVER BACKS OUT OF A PARKING SPACE COLLIDES WITH THE CAR BEHIND THEIR VEHICLE..IT ALSO DIMINISHES THE STRUCTRUAL INTEGRITY OF YOUR VEHICLE AND PUTS YOU AT HIGHER RISK OF INJURY SHOULD YOU HAVE AN

ACCIDENT

TYPES OF FENDER:

FULL FENDER TYPE:

THE FULL IS FULL DEVELOPED FENDER IT IS USED IN VINTAGE CARS NOW IT NOT USING FOR THE CARS BECAUSE THE FULL FENDER NEED MORE MATERIAL TO MANUFACTURE PROCESS .IT MAY COST MORE COMPARE TO HALF FENDERS.IF ANY DAMAGED HAPPED WHILE MANUFACTURE IN SMALL PARTS WE WANT TO MAKE IT NEW FOR HOLE PARTS.

.

HALF FENDER:

IT IS WIDELY USING IN ALL CARS BECAUSE IT EASIER TO MANUFACTURE AND MATERIAL AND COST OF THE PRODUVCT IS LOW COMPARE TO FULL FENDER TYPE AND IT WANT ONLY SAMLL AMOUNT OF MATERIAL TO MANUFATURE THE FEMNDER.SO IT IS VERY USEFUL TO PRODUCE IT.

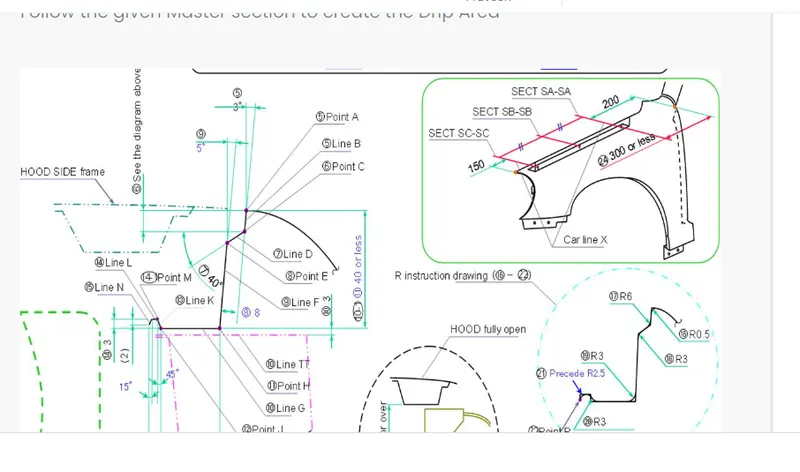

SKIN DATA AND MASTER SECTION:

FENDER MOUNTINGS:

1)A-PILLAR

2)SILL

3)DRIP

4)COWL

5)BAFFLE

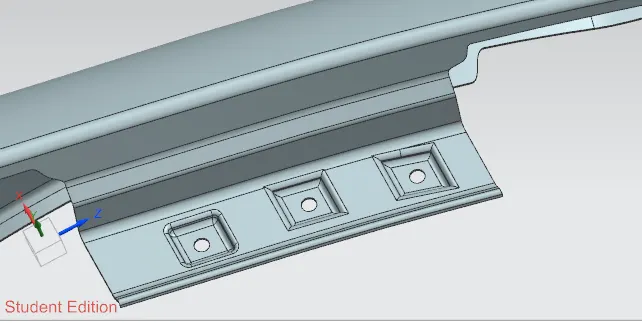

DESIGN THE DRIP MOUNTING:

• FIRST WE WANT TAKE THE SKIN DATA PROVIDED BY THE A SURAFCE DESIGN TEAMAND WE WANT TO MAKE A-PILLAR DESIGN WITH NTHE BHELP OF THE MASTER SECTION PROVIDED BY THE TEAM
• FIRST WE WANT TAKE OFFEST OF CURVE OPTION TO MAKE THE OFFEST CURVE ON SURFACE OF 5mm THE USE CURVE ON SURFACE OPTION TO MAKE SURFACE TO TRIM IT TO MAKE THE DRIP MOUNTING
• THE TAKE LAW EXTENTION OPTION AND EXTEND THE SURFACEWITH THE ANGLE OF 40 DEG ON LENGTH OF 8mm.
• THEN MAKE ANOTHE EXTENSION EITH 5 DEG AND LENGTH OF 17mm.
• THE TAKE ANOTHE LAW EXTENSION OPTION TO EXTEND OF UPTO 25mm ON THE ANGLE OF 0 DEG.AND MAKE ANOTHER LWAE EXTENSION ON UPPER SURFACE WITH ANGLE OF 45 DEG
• WHILE USING THIS WE WANT TO MAKE IT IN WITH TRIGNOMENTRY AND MAKE THEW LENGTH OF1.45 mm.AND MAKE ANOTHER ANGLE ODE OF 0 DEG AND LENGTH OF 2mm AND MAKE ANPOTHER LAW EXTENSION OF 15 DEG AND LENGHTH OF 1 mm.
• NOW DRAW SKET AND MAKE CIRCLE AND TEMBOSS AND TRIM THE SURFACE AND USE FACE EDGE FILLET OF 3mm

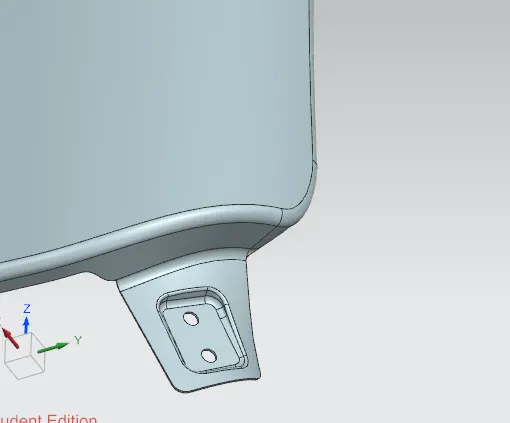

BAFFLE MOUNTING:

• FIRST WE WNT TO CUT THE SURFACE AND MAKE DRIM IT .LIKE WISE OPTION USED IN DRIP MOUNTING WANT TO USE IT
• AFTER MAKEING IT NOW WE WANT TO USE IT HERE THERE ARE NO RESISTRICTION OR ANY ANOTHER MASTER SECTION IS NOT GIVEN AND MAKE THE CIRCLE AND USE TRIM SHEET OPTION TO TRIM IT.

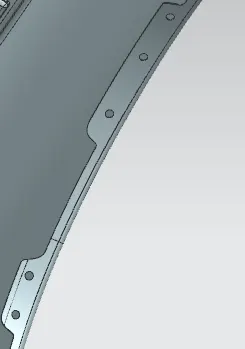

BUMPER MOUNTING:

• WE WANT TO CREATE THE SURFACE WHILE USING THE TRIM AND CURVE ON SURFACE OPTION AND MAKE WHILE USING THE SURFACE.
• FIRST WE WANT TO MAKE THE LAW EXTENSION EXTEND THE SURFACE UPTO 15mm AND MAKE THE SKETCH ON IT FIRST WE WANT TO CREATE THE DATUM PLANE TO CREATE THE SKETCH
• AFTER THAT WEUSE MAKE CIRCLE AND TRIM OPTION TO OPTION ON IT AND MAKE EMBOSS OF IT AND ANF USE THE FILLET OPTION FILLET THE SURFACE.

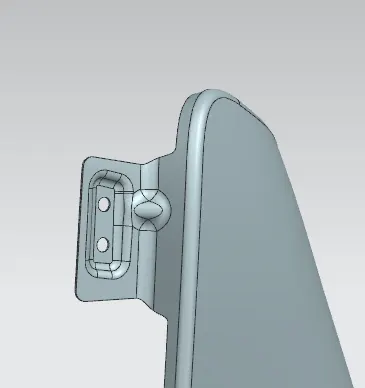

A-PILLAR MOUNTING:

WE WANT TO CREAT THE SURFACE TO EXTEND IT AND WE WANT DO SAME OPTION TO GET THE SURFACE MAKE LAW EXTENTION AND TRIM THE SURFACE TO GET THJE SURFACE

THEN WE WANT TO MAKE THE PLANE TO DRAW IT .WE WANT TO CREATE USING INFERENED PLANE OPTION TO CREATE THE PLANE

THE CLICK SKETCH OPTION TO SKETCH THE THE SURFACE AND CONSTRAIN THE SURAFCE AND MAKE EMBOSS OF IT

THEN USE TRIM THE CIRCLE OPTION TAND TRIM IT AND USE FACE FILLET OPTION TO FILLET IT AND USE BRIDGE CURVE OPTION TO CUT THE NSHARP EDGES.

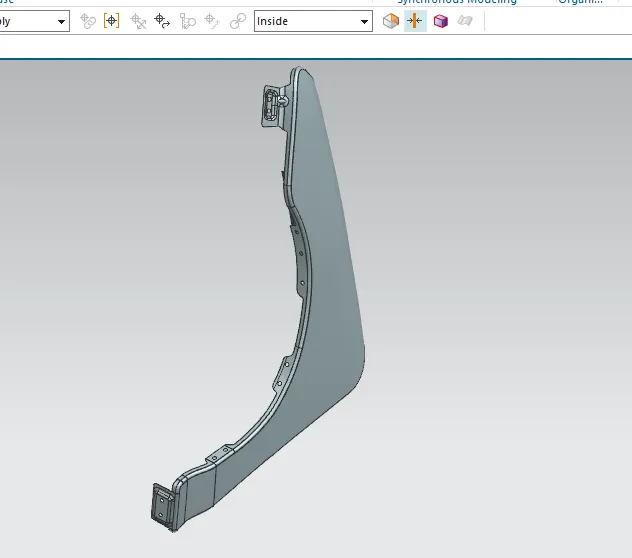

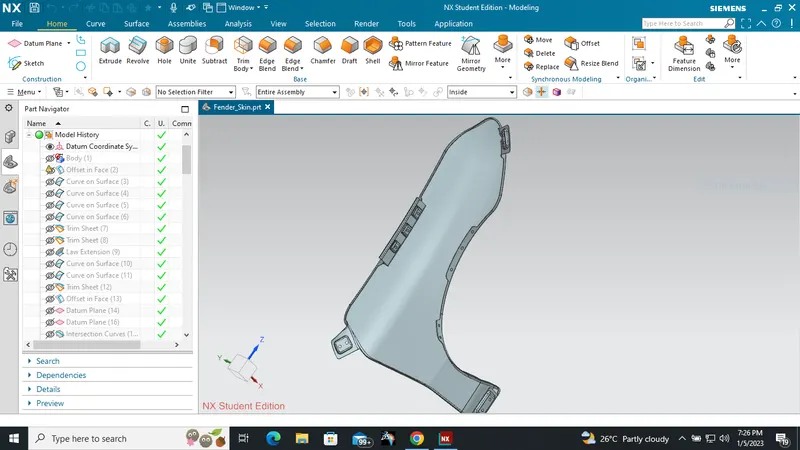

FULL VIEW OF FENDERS:
