Fender Design

FENDER DESIGN

FENDER

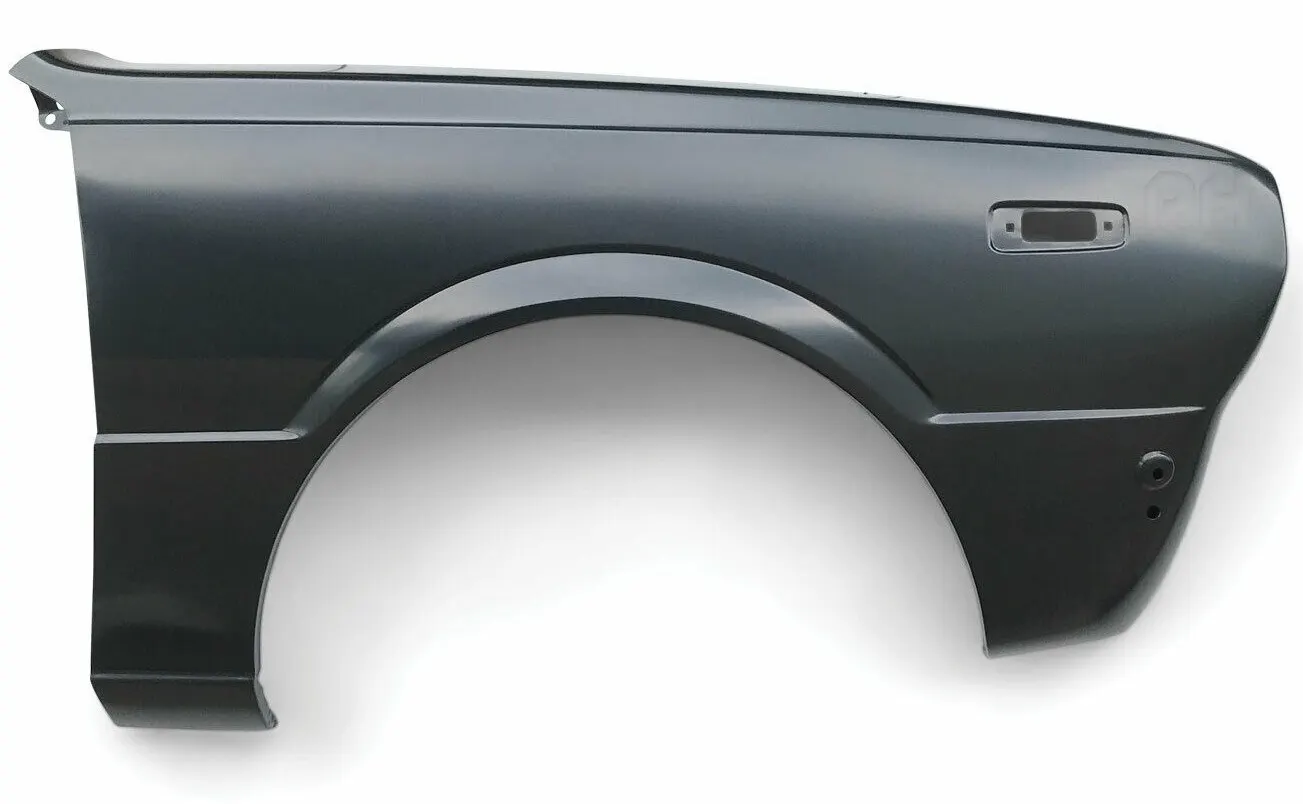

A part of the vehicle which wrap around the wheel with wheel arch. The main purpose is to safeguard the engine bay as well as preventing the mud and stone thrown away by the wheel in running condition. it also a side pannel which contributes to the aesthetics of the vehicle when perfectly matched, the fenders flow seamlessly with the rest of vehicles appearance. On some classic cars, you can find a long fender that’s welded on. It runs the entire length of the vehicle from the front to the back. Today, cars have separate fenders for the front and back of the vehicle.

Two types of front fenders are

1. Full bumper type
2. Half bumper type

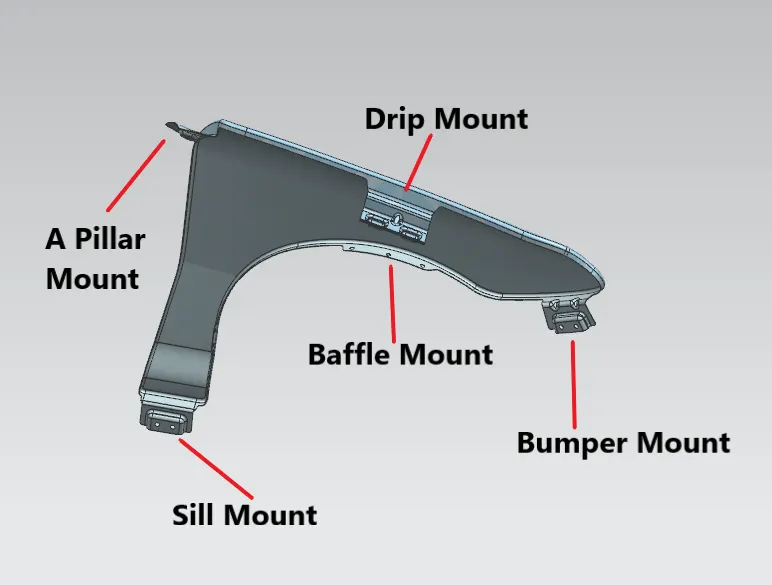

MAIN MOUNTINGS

1. Drip area Mount
2. cowl Mownt
3. Bumper Mount
4. Sill Mount

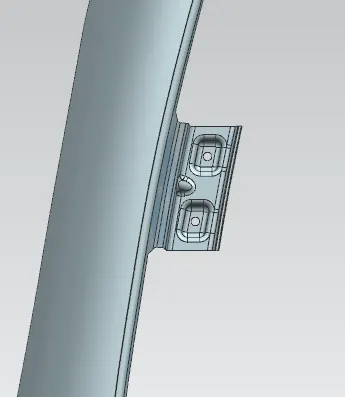

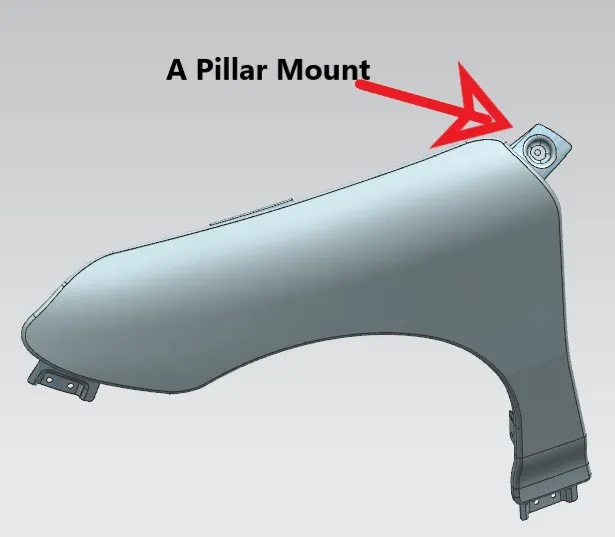

5. A Pillar Mount
6. Baffle Mount

DATA GIVEN FOR DESIGN OF FENDER MOUNTINGS

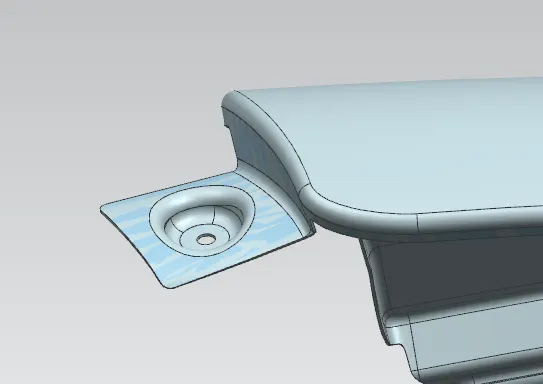

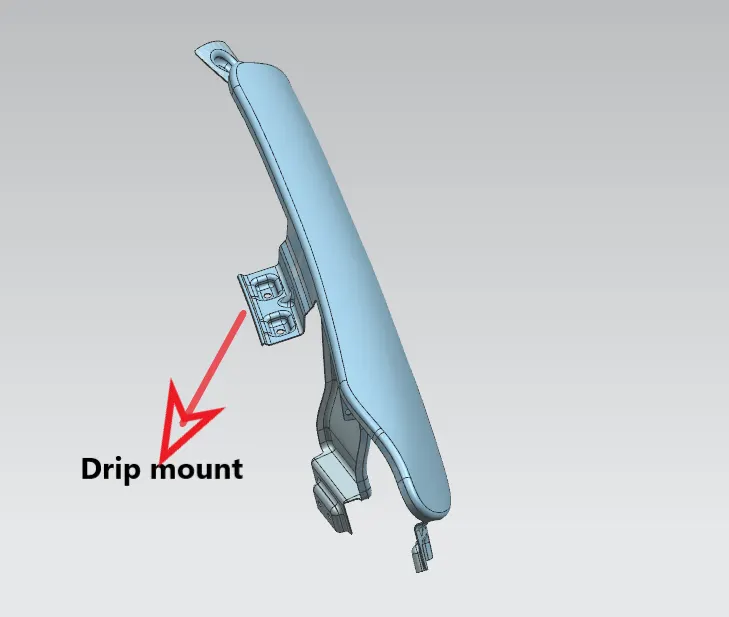

Drip mount design

A Pillar Mount Design

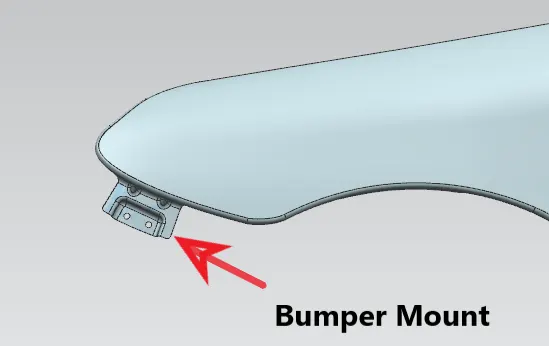

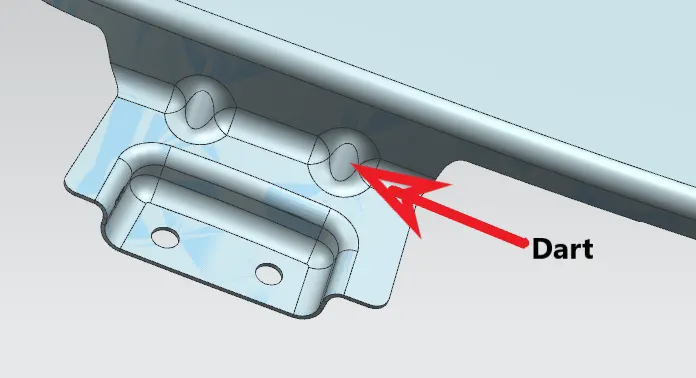

Bumper Mount

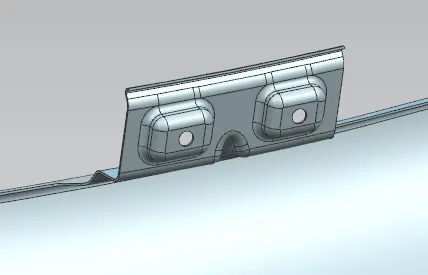

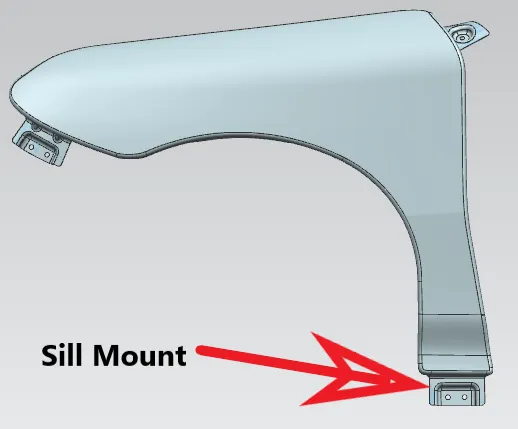

Sill Mount

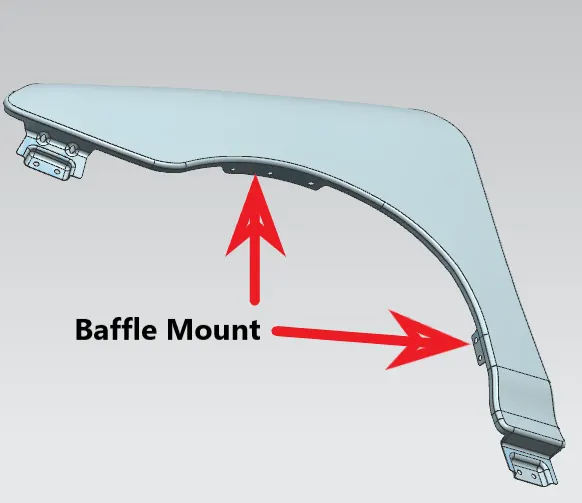

Baffle Mounts

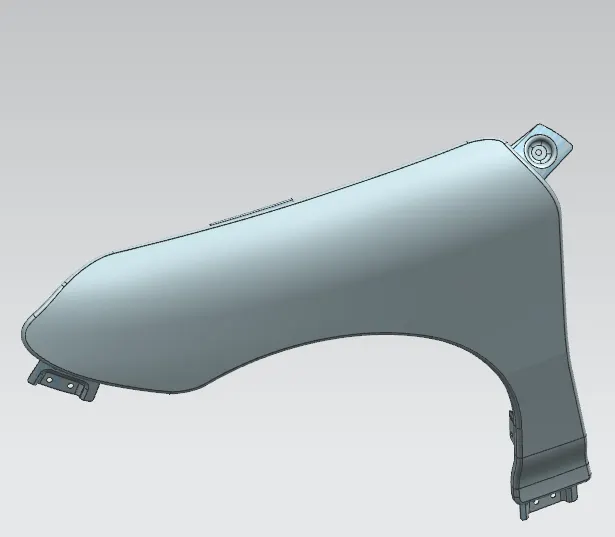

Overall Design

Conclusion

Fender design is successfully completed in NX CAD as per given specification.
