FENDER DESIGN
1. When vehicle is moving tiers pick up stones and others hurlthem in all direction.Fenders are basically present to prevent any injuries to pedastrain and contain the motion of these particles.
2.Partially its cover engine compartmant.
3.Most passanger car have four fenders.For vehicle with a narrow car body that expose the tire. the fenders is an exposed curve over the top of the line.for wide body vehicle that cover the tire, the fender
forms the wheel well surrounding the tire and is not directly visible from above the car body.
4.Move elabrate designs include fender skirts for enclosing the outside edge of the wheel well and stylized pantoon fenders for exposed fenders
TYPES
1.Full bumper type
The full bumper type fender was used in old cars.it covers the full area until the front lighting.But it has a lot of sheet metal material which is unnecessary and increases the weight of the fender.these typefenders are no longer usedin automobiles.
2.Half bumper type
cost saving,scrab management and improve performance of vehicle.
FENDER MOUNTING POINT
1.Body
2.A-pillar
3.sill
4.cowl
5.Drip area
DRIP AREA MASTER SECTION
Creating Drip Area following the given Master Sections, Regulations and Standards:-
Giving Draft Angles and Fillets
Creating Embosses.

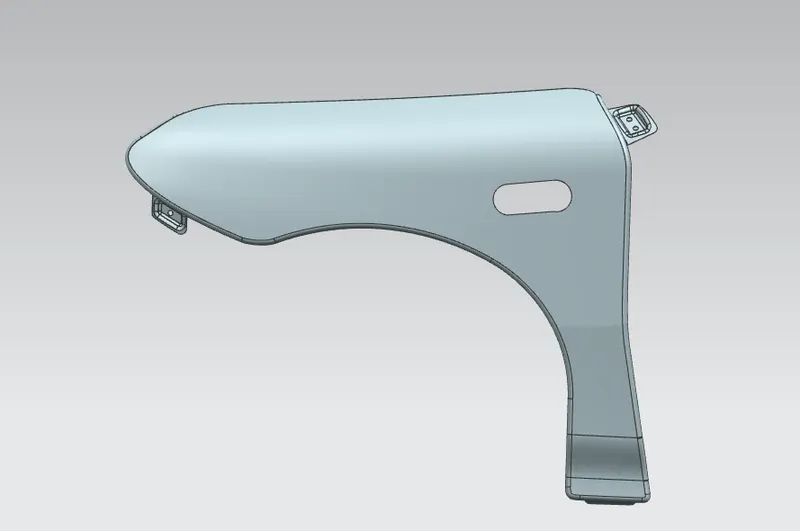

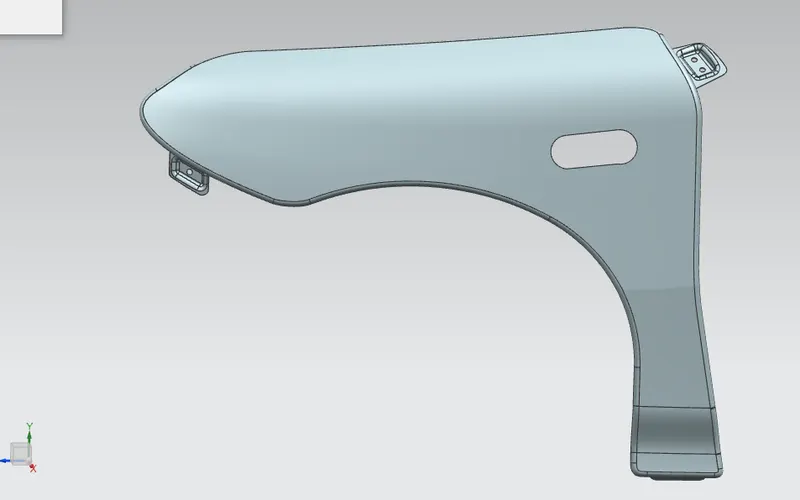

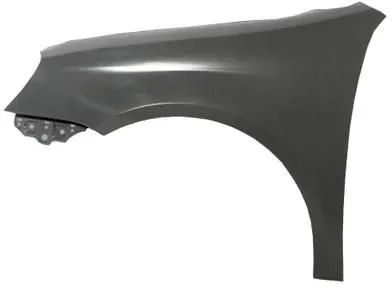

FENDER

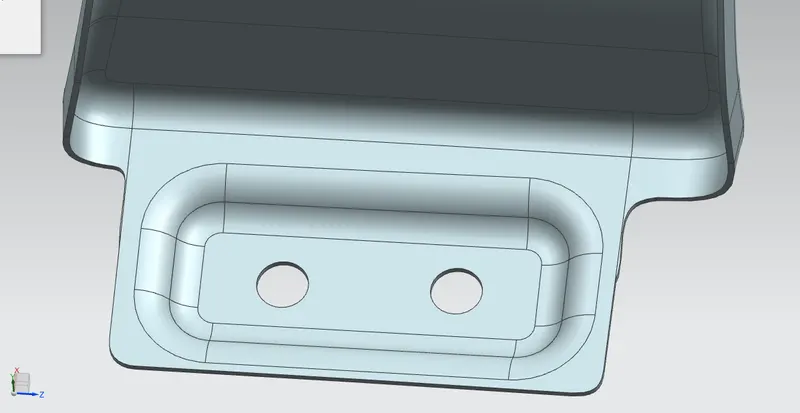

BUMPER MOUNTING AREA

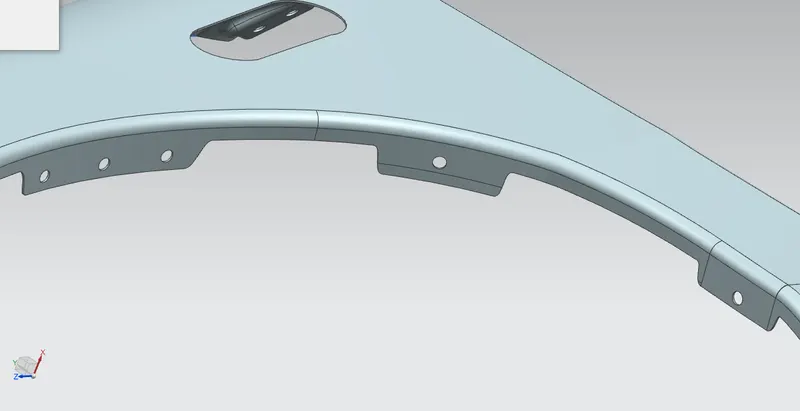

DRIP AREA

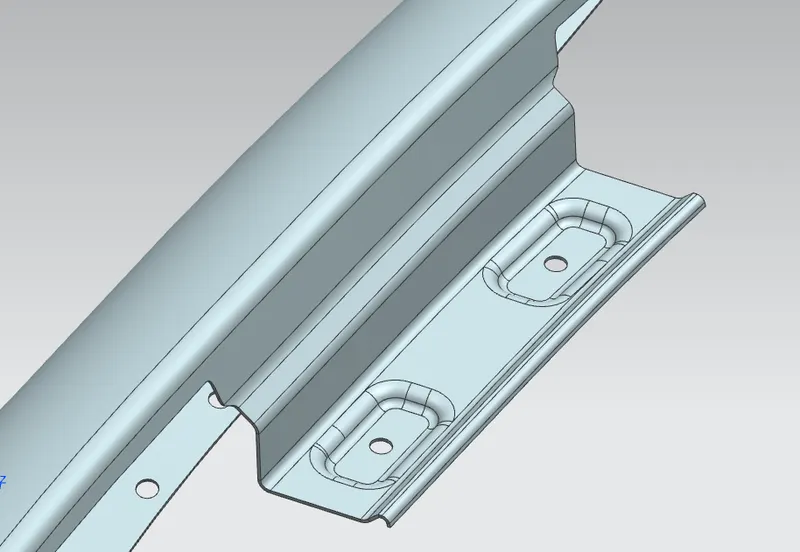

SILL MOUNTING AREA

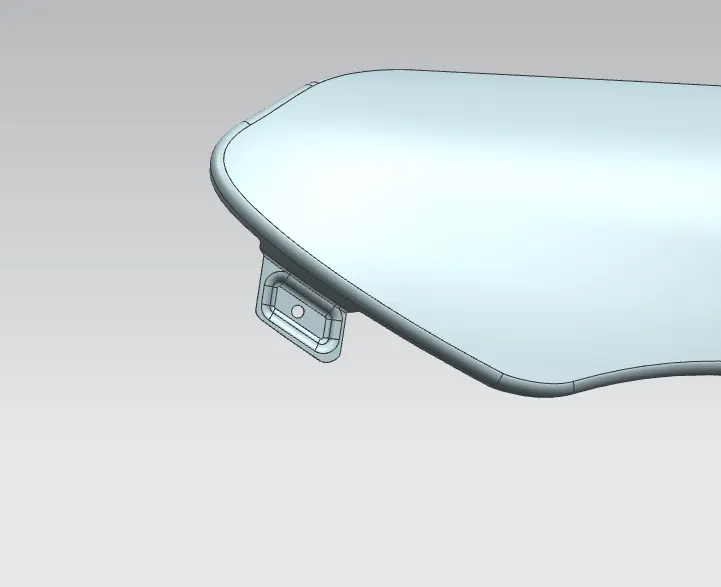

A-PILLAR MOUNTING AREA

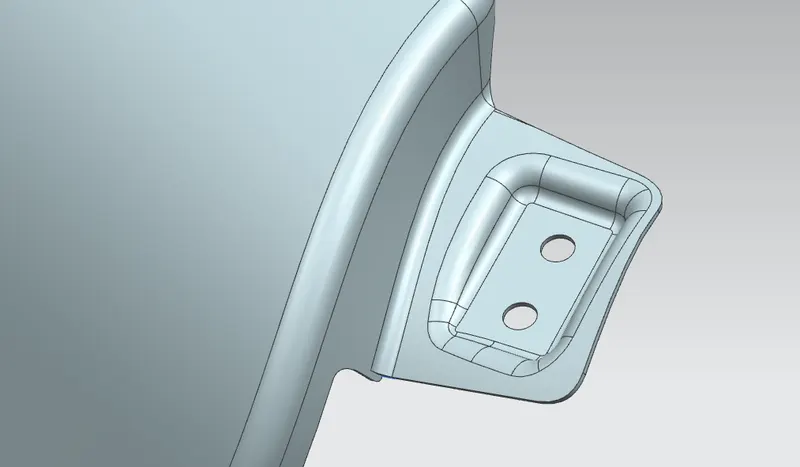

BAFFLE MOUNTING AREA
INDICATER LIGHT MOUNTING AREA
