Drafting of various geometries using Chamfer, Fillet tool in AutoCad

1)

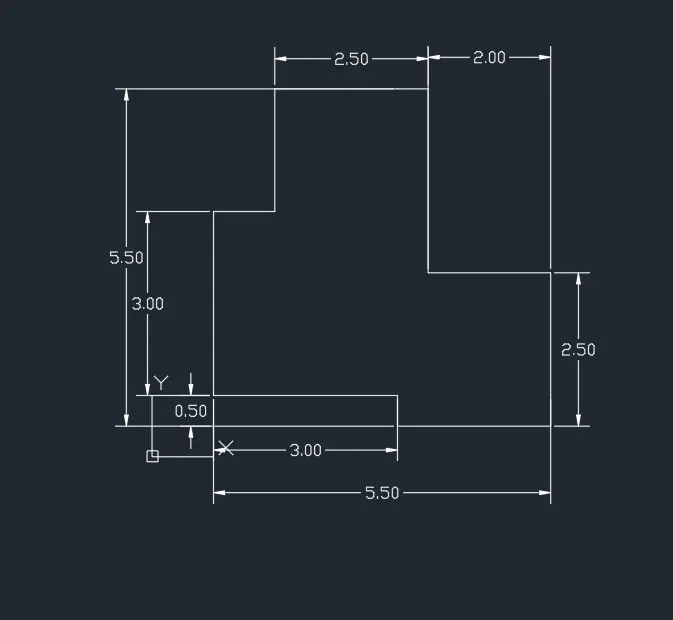

Aim : To draw 1st diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,circle,dim,offset .

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.00 and insertion scale to millimeters

 * Type line in command box and specify first corner point as (1,1) and then specify distance as (@3,0) and then draw inclined line with (@2.12<45) then draw one more inclined line (@2.83<45).

 * Then after draw a horizontal line (@-2,0) and enter c in command box. then after enter c in command box and specify center point of circle from bottem 1 and from left to 1.5 with dia meter of 1.20.

 * And then draw one more circle from bottom with height of 2.5 and from left to 1 with diameter of 0.80.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

2)

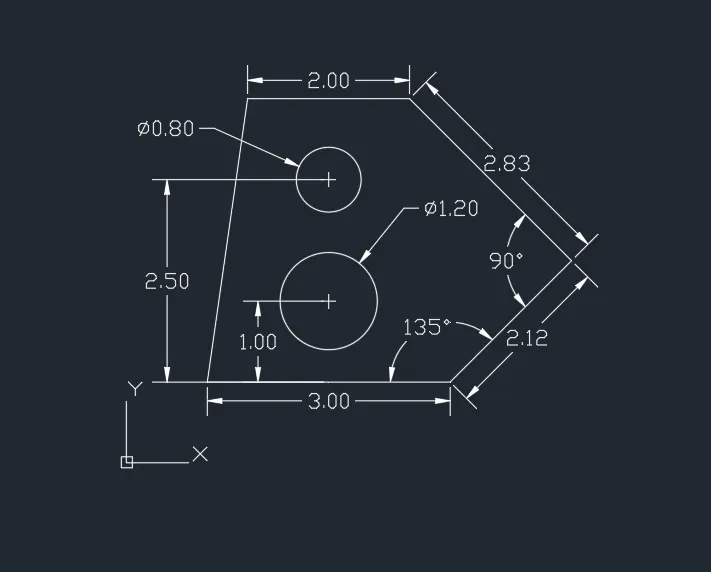

Aim : To draw 2nd diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,circle,dim,offset .

Procedure : Open AutoCAD

 In startup settings start from scratch select Engineering(feets).type un in command box and press enter change unit type to engineering and precesion to 0'0"and insertion scale to inches.

 * Type line command in command box and specify first corner point (1,1) and draw inclined line (@1'2"<135)and one more inclined line (@3'<45) and then draw a vertical line of (@2'5").

 * Then draw ahorizontal line of (@8',0) And then draw a vertical line of (@0,-1'9") then draw a inclined line of (@2'10"<135)then draw horizontal line and close the diagram.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

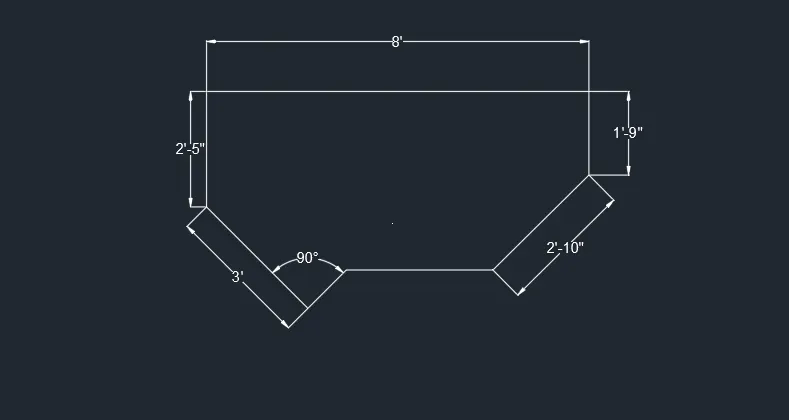

Result :

3)

Aim : To draw 3rd diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,circle,dim,offset .

Procedure : Open AutoCAD

 In startup settings start from scratch select Engineering(feets).type un in command box and press enter change unit type to engineering and precesion to 0'00"and insertion scale to inches.

 * Type line command in command box and specify first corner point (1,1) and draw a horizontal line of (@5'0.1",0) and draw a vertical line of (@1'6.0") and press escape.

 * Then again type line command in command box and specify corner point which we have drawn at starting at left side and draw a a vertical line of (@0,3'3.0") and then draw horizontal line of (@2'6.5").

 * And then draw inclined line and close the diagram and press escape. then after type circle command in command box and specify center point at 1'3.0" from bottom left right and 1'6.0" from bottom left to top with diameter of 1'6.0".

* Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

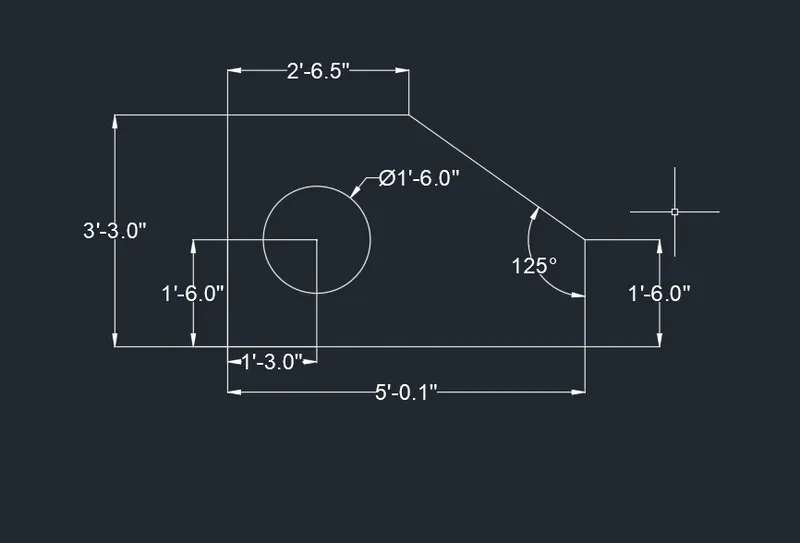

Result :

4)

Aim : To draw 4rd diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,,dim,offset .

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.00 and insertion scale to millimeters

 * Type line command in command box and specify first corner point (1,1) and draw a horizontal line of (@3.0) and ten vertical line of (@0,-0.50) and then horizontal line of (@2.50,0).

 * And then after vertical line of (@0,2.50) and horizontal line of (@-2,0) and vertical line of (@0,3) and horizontal line of (@-2.5,0) and vertical line of (@0,-2).

 * Then after horizontal line of (@-1,0) and then draw vertical line of (@0,-3.5).

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

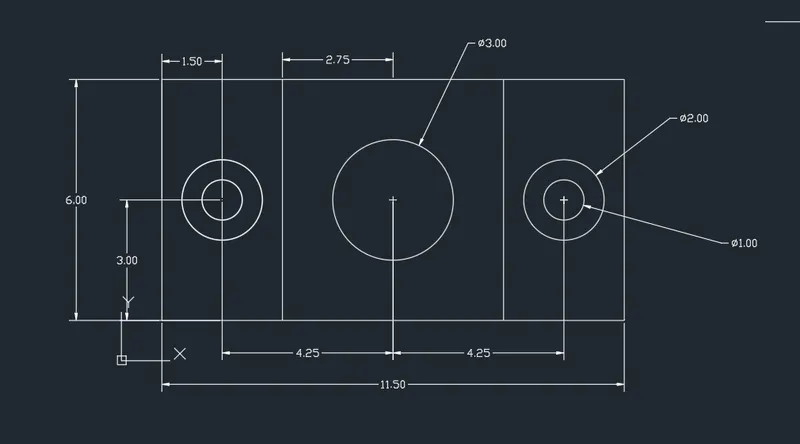

5)

Aim : To draw 5th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,circle,dim,offset,rec,mirror.

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.00 and insertion scale to millimeters

 * Type rec in command box and specify first corner point and select dimensions and give length as 11.50 and width as 6.00.

 * And then type off set and give offset distance as 3 and select left vertical line and press to right side.and type mirror in command box and select the object and specify center point of rectangle on more line will reflect.

 * Then after type circle in command box specify cener point at middle of the rectangle draw a circle with diameter of 3

 * Then draw one more circle at left rectanle distance from 3 from bottom 4.25 from center of main rectangle with diametr of 2 and type offset and select the 2 unit diameter circle and give 1 unit offi=set distance to inside of circle.

 * Then type mirror in command box and select both the cerciles and and specify the first and second point of mirror line then press enter.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

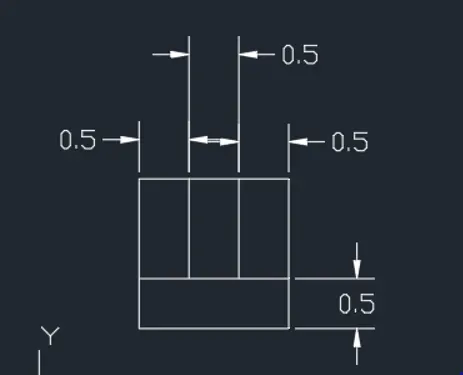

6)

Aim : To draw 6th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,dim,offset,rec,tr.

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.0 and insertion scale to millimeters

 * Type rec in command box give first corner point and select dimensions and give length as 1.5 and width as 0.5.then type line command in command box specify the first corner point at left top rectangle and draw vertical line oh 1.

 * Then type offset give offset distance as 0.5 each and select vertical line and draw remaining two lines. and again give offset distance as1 and draw a horizontal line at top.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

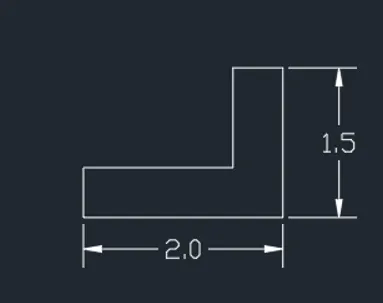

 * Then first type line command in command box and specify first point and then draw horizontal line (@2,0) and vertical line of (@0,1.5) and horizontal line of (@-0.5,0).

 * And then vertical line of (@0-1) then horizontal line of (@-1.5,0) And then vertical line of (@0,-0.5).

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

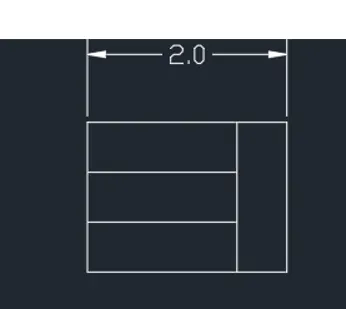

 * Then first type line command in command box and specify first point and then draw horizontal line (@2,0) and vertical line of (@0,1.5) and horizontal line of (@-2,0).

 * Then vertical line of (@0,-1.5). then type offset command in command box and draw 2 horizontal lines of each distance of 0.5 then one more offset draw from right with offset distance of 0.5.and using trim command trim the unwanted lines.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

7)

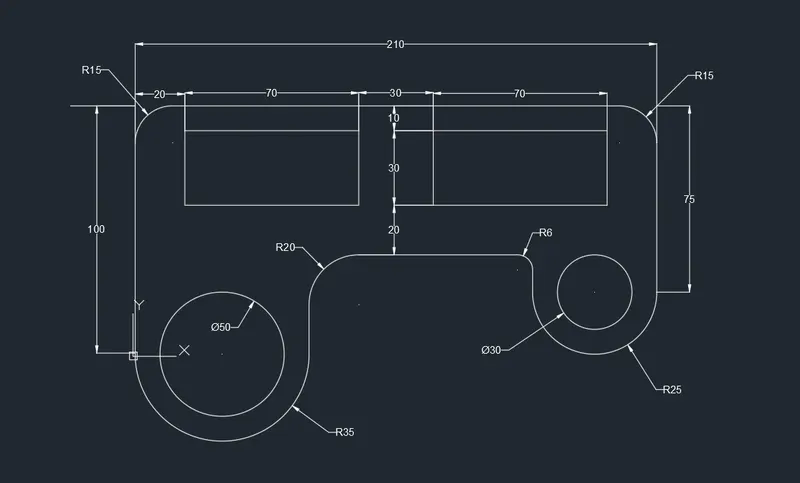

Aim : To draw 7th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,dim,offset,rec,tr,circle,rec,fillet.

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0 and insertion scale to millimeters

 * Type line command in command box and draw horizontal line of (@210,0) and draw vertical line of (@0,-75) and then type cicrcle command in command box and specify cener point draw a circle with radius of 25.

 *  Then move the circle to 75mm vertical line bottom point and trim the above half circle.from the CG of R25  circle draw a circle with dia meter of 30mm.

 * And then move to left side draw a vertical line of (@0,-100) and in command box typr cir and draw a circle with radius of 35 and from the CG of R35  circle draw a circle with dia meter of 50mm.

 * Then type offset in command box and give offset distance as 60 from top horizontal line and using fillet command mix with radius of 20 at left and 6 at right bottom as well at top fillet radius of 15 both sides.

 * Then type rec in command box and specift distance length as 70 and width as 30 at 10 from top 20 from left. then using mirror command select the rectangle object and specify the point of first and seconf mirror line.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

8)

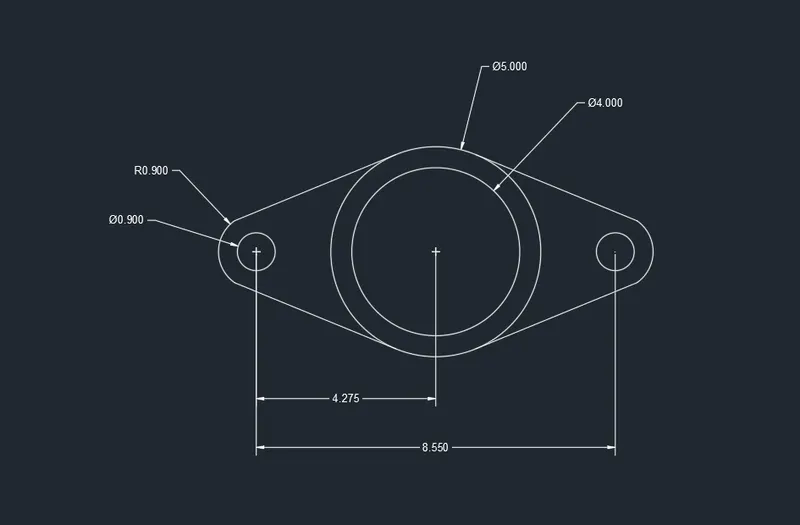

Aim : To draw 8th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,dim,offset ,tr,circle.

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.00and insertion scale to millimeters .

 * Type circle in command box and specify center for circle and select diameter of cirecle and give diameter as 5 and with CG of 5 diameter circle draw one more circle with diameter of 4 inside the circle.

 * From the CG with a distance of 4.275 both sides of circle draw circles of diameter of 0.9  inner circle and 1.8 diameter of outer circles. and the draw tangents to the both sides.

 * And then type tr in command box trim the unwanted lines in the diagram.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

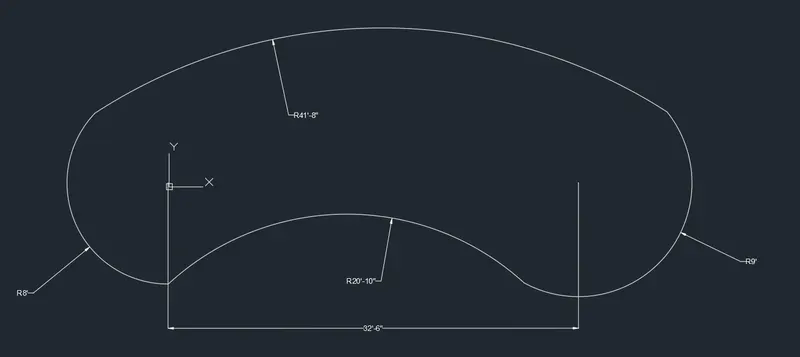

9)

Aim : To draw 9th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are circle,dim,arc,tr.

Procedure : Open AutoCAD

 In startup settings start from scratch select Engineering(feets).type un in command box and press enter change unit type to engineering and precesion to 0'0"and insertion scale to inches.

 * Type circle in command box and specify center for circle and select diameter of cirecle and give Radius as 8' and one more circle from a distance of 32'6" with radius of 9'.

 * Then from ribbon >home >arc select start,end radious and draw the top arc from right side is starting point and left side id ending point and give radius as 41'8".

 * And the bottom ribbon >home >arc select start,end radious and draw the bottom arc from right side is starting point and left side id ending point and give radius as 20'10".

 * Type tr in command box and trim unwanted lines.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

Result :

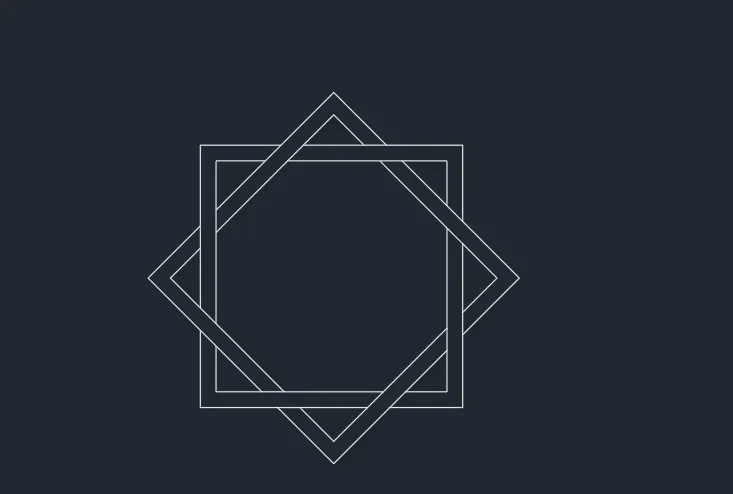

10)

Aim : To draw 10th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are rec,dim,offset ,tr,rotation.

Procedure : Open AutoCAD

 In startup settings start from scratch select metric (meter).type un in command box and press enter change unit type to decimal and precesion to 0.00and insertion scale to millimeters .

 * Type rec in command box and specify first corner point and select dimenstion and give length as5 and width as 5. and tpye offset in command box and give offset distance as 0.5 draw a rectangle inside.

 * Then enter copy in command box and copy the both rectangles and plase a side then using rotation command rotate the copied rectangles with an angle of 45 degree .

 * Then rotated rectangles place the first drawn rectangles and then using trim command trim the unwanted lines.

Result :

11)

Aim : To draw 11th diagram using chamfere,fillet tool in autocad.

Introduction : The drawing consists of a plan showing front view and the command which i have used to dra this diagram are line,mirror, dim,offset .

Procedure : Open AutoCAD

 In startup settings start from scratch select Engineering(feets).type un in command box and press enter change unit type to engineering and precesion to 0'0"and insertion scale to inches.

 * Type line command in command box and specify first corner point (1,1) and draw a horizontal line of (@3',0) and draw a vertical line of (@4'6.0") and draw vertical line of (@0,1'2") and horizontal line of (@5'4",0).

 * Then vertical line of (@0,-1'2") and then draw horizontal line of (@4'6",0) and then draw a vertical line of (@0,-4'6") and then horizontal line of (@3',0) and vertical line of (@0,9').

 * Using mirror command select all right side segments we have drawn earlier and specify the point of mirror line at center drwa at left side.from top with a distance of 6'9" and from left 10'2" draw a rambous with dimension of 3'.

 * Then draw a inclined line from top witha distance of 2'8" then draw a mirror line to the inclined line at left side as well at top right vertical distance of 3'7" draw a inclined line with an angle of 30 degree and draw mirrior line to thet inclined line. then draw the horizontal line in between those triangles.

 * Type tr in command box and trim unwanted lines.

 * Then after type dim in command box and specify dimensions to each and every segment in the doiagram.

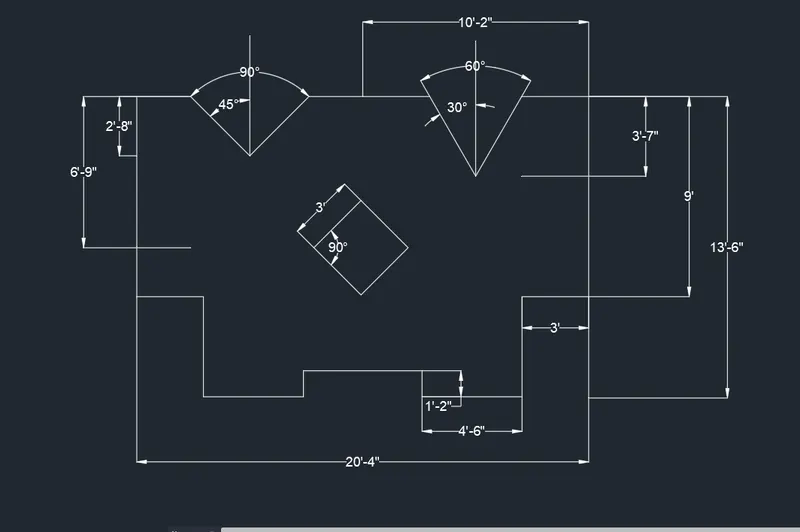

Result :
