Creation of geometries by Coordinate system methods using AutoCad

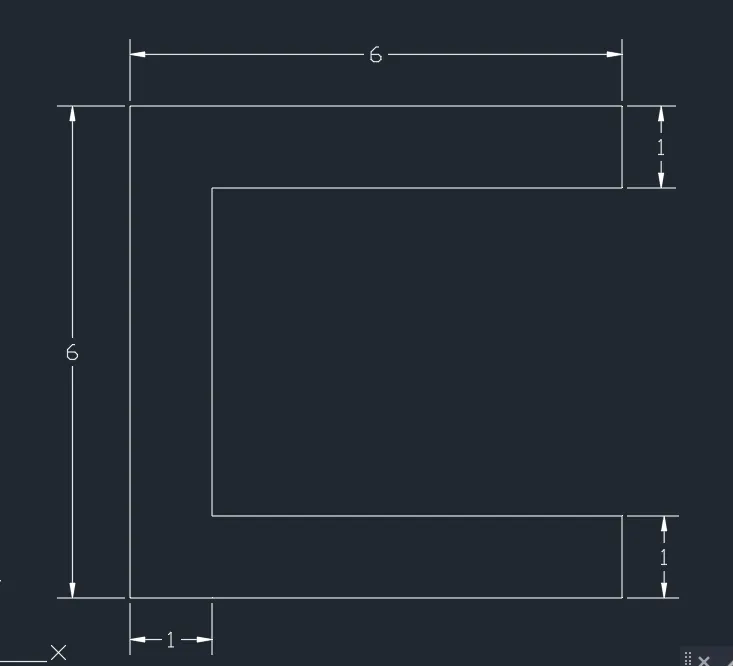

Aim : To draw P-1 using coordinate system

Procedure :

* First i have taken orgin coordinate as (2,1) using line command .

* Then after using line command i have given @6,<90 degree drawn a vertical line.

* To draw horizontal i have given @6,<0 degree.

* Then after with @1,<270 degree drawn a vertical line .

* Then i have given @5,<180degree to draw horizontal line

* Then after with @4,<270 degree drawn a vertical line .

* To draw horizontal i have given @5,<0 degree.

* Then after with @1,<270 degree drawn a vertical line .

* Then i have given a close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

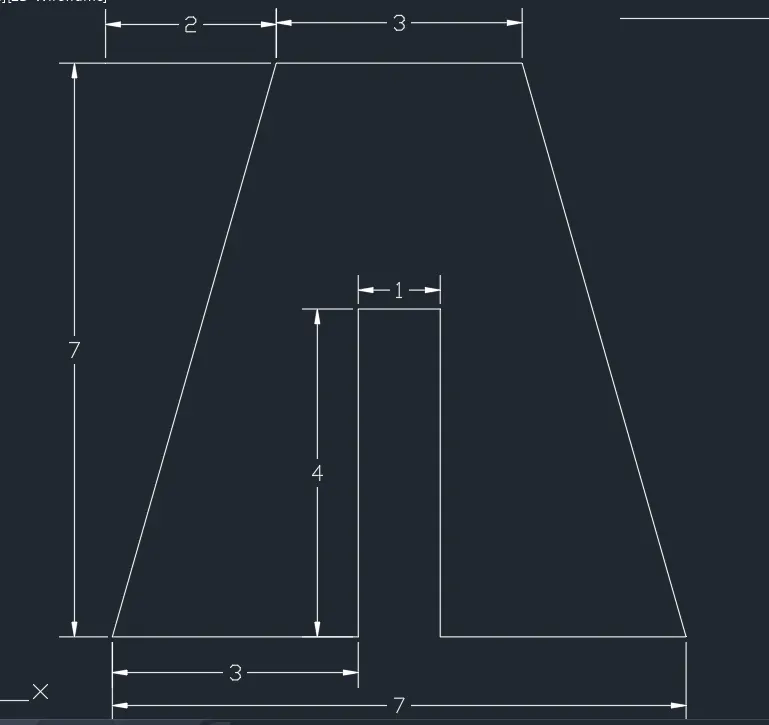

Aim : To draw P-2 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (2,1) using line command .

* Then to draw inclined line i have taken line command with dimensions of @2,7.

* Then to draw horizontal line i have given @3,0.

* Then to draw inclined line i have given @2, -7 .

* Then to draw horizontal line i have given @-3,0.

* Then to draw vertical line @0,4

* Then to draw horizantal line @-1,0

* Then to draw vertical line @0,-4.

* Then i have used close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

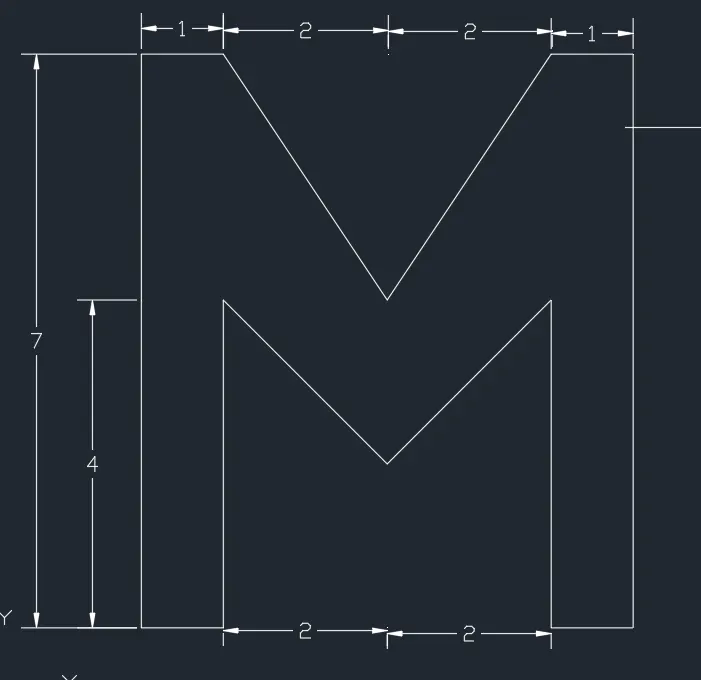

Aim : To draw P-4 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (2,1) using line command .

* To draw vertical line with use of line command i have given @0,7

* To draw horizontal line @1,0.

* To draw inclined line i have given @2,-3.

* To draw inclined line i have given @2,3.

* To draw horizontal line @1,0.

* To draw vertical line with use of line command i have given @0,-7.

* To draw horizontal line @-1,0.

* To draw vertical line with use of line command i have given @0,4.

* To draw inclined line i have given @-2,-2.

* To draw inclined line i have given @-2,2.

* To draw vertical line with use of line command i have given @0,-4.

* Then i have used close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

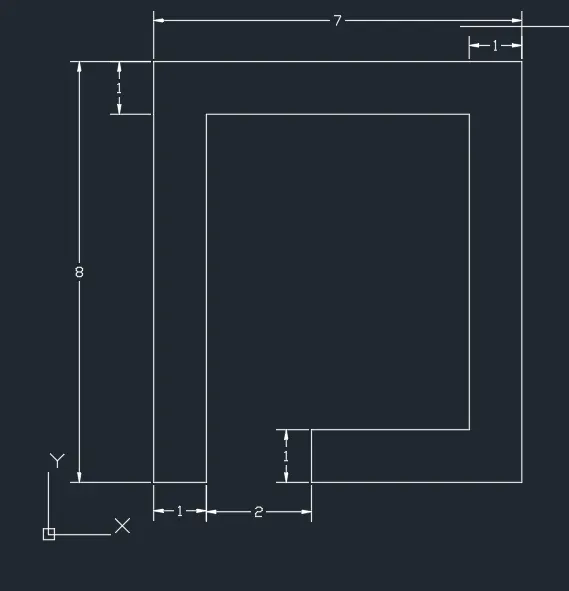

Aim : To draw P-5 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (2,1) using line command .

* To draw vertical line i have used line command and given @0,8.

* Two draw horizontal line i have given @7,0

* To draw vertical line i have given @0,-8.

* Two draw horizontal line i have given @-4,0.

* To draw vertical line i have given @0,1.

* Two draw horizontal line i have given @3,0.

* To draw vertical line i have given @0,6.

* Two draw horizontal line i have given @-5,0.

* To draw vertical line i have given @0,-7.

* Then i have used close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

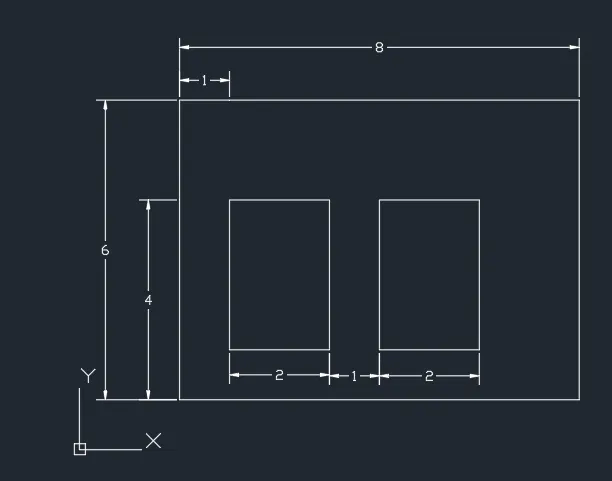

Aim : To draw P-7 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (2,1) using line command .

* To draw vertical line i have used line command and given @0,6.

* To draw horizontal line i hiave given @8,0.

* To draw vertical line i have used line command and given @0,-6.

* To draw horizontal line i hiave given @-8,0.

* Then i have taken coordinate of (3,2) from that using of line command to draw vertical line i have given @0,3

* To draw horizontal line i hiave given @2,0.

* To draw vertical line @0,-3 and for horizontal line @-2,0 and enter escape.

* then using line command to locate coordinate with (6,2) and to draw vertical line i have given @0,3

* To draw horizontal line i hiave given @2,0.

* To draw vertical line @0,-3 and for horizontal line @-2,0 and enter escape.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

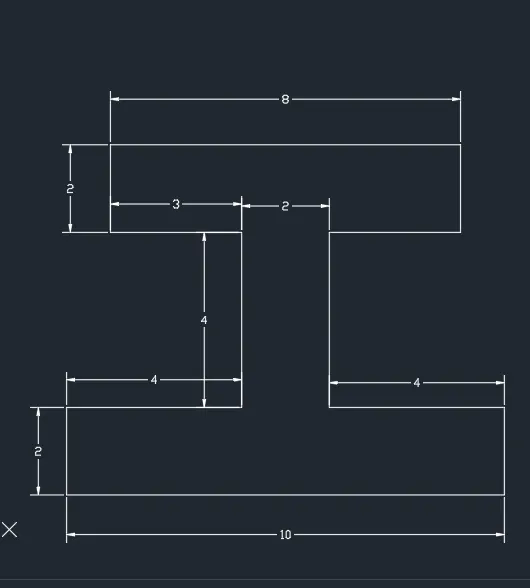

Aim : To draw P-8 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (0,0) using line command .

* With using of line command i have drawn vertical line with using of dimensions @0,2

* To draw horizontale line @4,0 and to draw vertical line @0,4.

* Then to draw horizontal line @-3,0 and for vertical line @0,2.

* Then for horizontal line i have given @8,0 and for vertical line @0,-2.

* To draw horizontal line @-3,0 and for vertical line @0,-4.

* To draw horizontal line @4,0 and for vertical line @0,-2.

* Then i have used close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

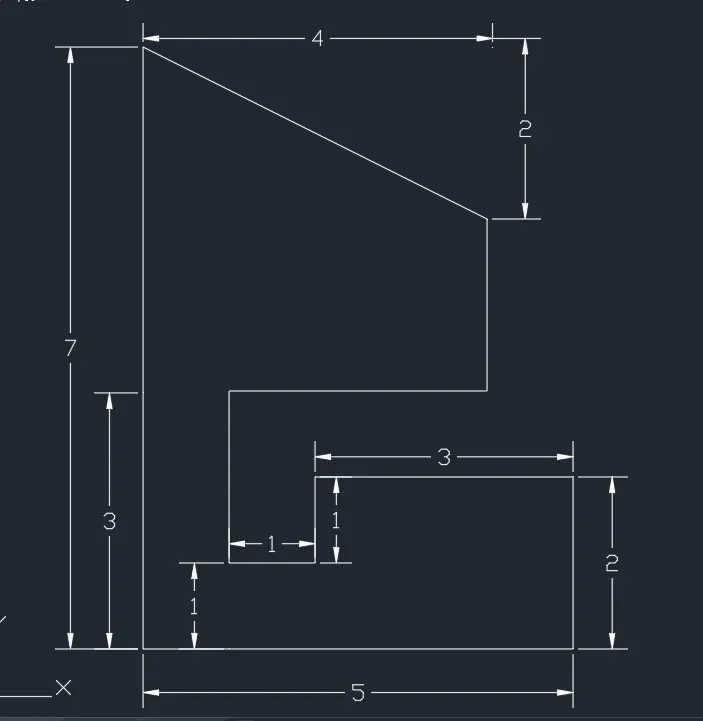

Aim : To draw P-9 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (1,1) using line command .

* With using of line command i have drawn vertical line with using of dimensions @0,7.

* To draw inclined line @4,-2 and for vertical line @0,-2.

* To draw horizontal line @-3,0 and for vertical line @0,-2 and then for horizontal line @1,0.

* Then after to draw vertical line @0,1 and for horizontal line @3,0 and then for vertical line @0,-2.

* Then i have used close command to finish the diagram.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

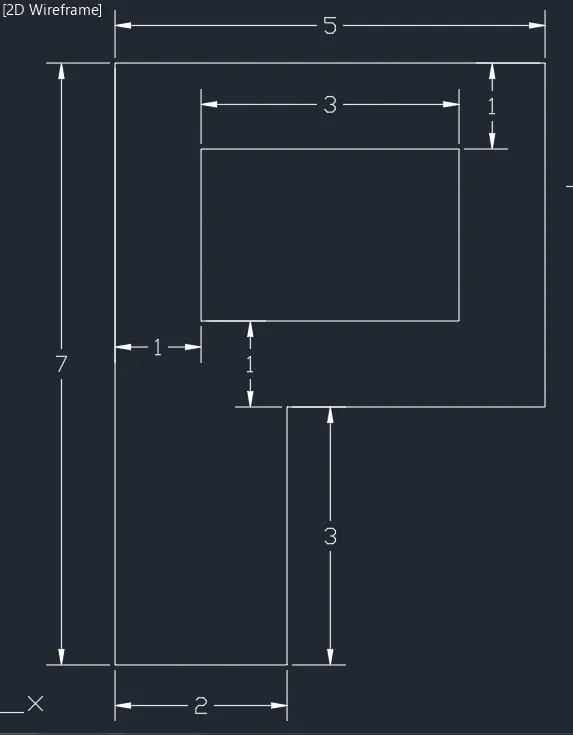

Aim : To draw P-10 using coordinate system.

Procedure :

* First i have taken orgin coordinate as (1,1) using line command .

* With using of line command i have drawn vertical line with using of dimensions @0,7.

* Two draw horizontal line i have given @5,0 and then for vertical line @0,-4.

* To draw horizontal line @-3,0 and for vertical line 20,-3 and then for horizontal line @-2,0 and enter escape.

* Then after using of line command given coordinate of (2,5) and drawn vertical line with @0,2.

* To draw horizontal line @3,0 and for vertical line @0,-2 and then for horizontal line @-3,0 and enter escape.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

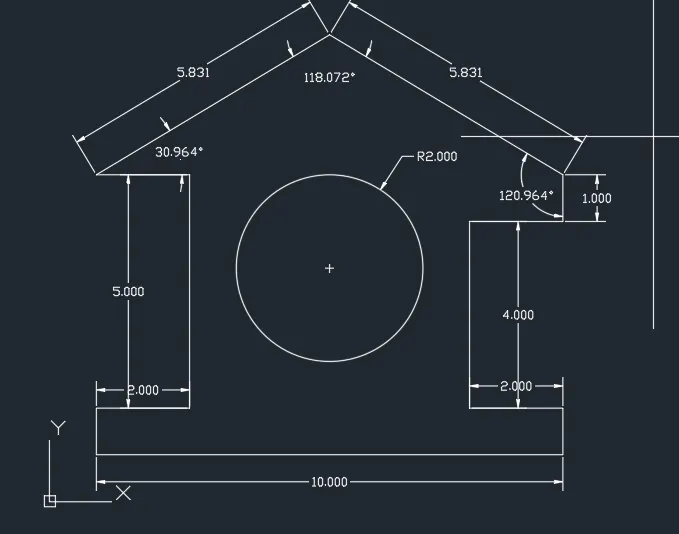

Aim : To draw Profile wood using coordinate system.

Procedure :

* First i have taken orgin coordinate as (0,0) using line command .

* To draw vertical line i used line command with @1,<90degree and then for horizontal line @2,<0degree.

* Then for vertical line @5,<90degree and for horizontal line @2,<180degree and for inclined line [email protected],< 30.964 degree.

* Then i have drawn inclined line with @5,-3 and for vertical line @0,1 and then horizontal @-2,0.

* Then after to draw vertical line @0,-4 and for horizontal line @2,0 and then for vertical line @0,-1.

* Then i have used close command to finish the diagram.

* Two draw a circle i have taken coordinate of (5,4) and with radius of 2.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

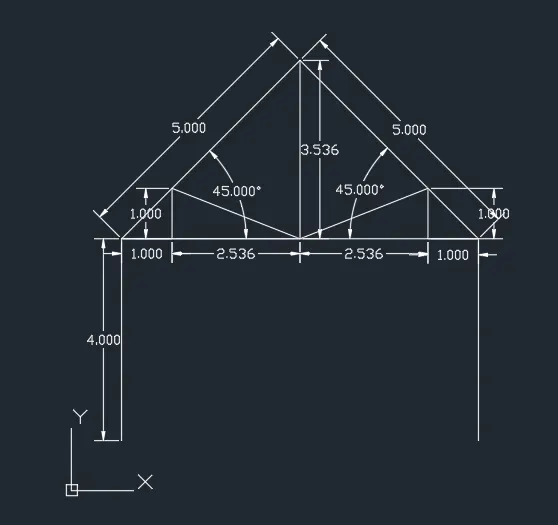

Aim : To draw Qeen post truss using coordinate system.

Procedure :

* First i have taken orgin coordinate as (1,1) using line command .

* To draw vertical line i have used line command with @0,4 and inclined line with @5<45degree and enter escape.

* And then from coordinate(8,1) drawn a vertical line @0,4 and inclined line with @5<45degree and enter escape.

* And then from cpprdinate (1,5) drawn a vertical line with @1,0 and vertical line @0,1 and then inclined line joined at center of triangle at a distance of 3.536

* From that center same procedure repeated at right side and than drawn a vertical line at centre of triangle dimension of @0,3.536.

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :

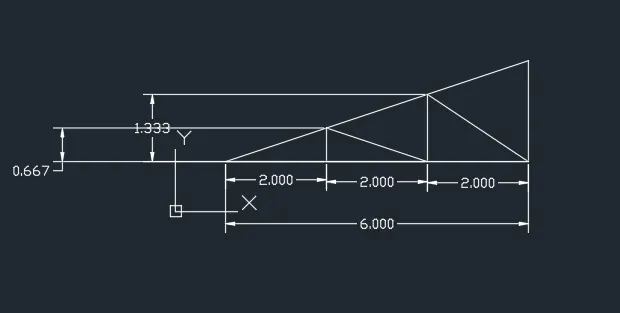

Aim : To draw Mono pitch using coordinate system.

Procedure :

* First i have taken orgin coordinate as (1,1) using line command .

* To draw horizontal line using line command @6,0 and for vertical line @0,2 and then inclined line @-6,-2 emter escape.

* And using line command at coordinate of (3,1) draen a vertical line @0,0.667 and then inclined i have joined at coordinate of (5,1).

* Then after for vertical line @0,1.333 and for inclined line i have joined at co ordinate of (7,1).

* Then i have select the dimensions tool from ribbon to give dimensions.

Result :
